In industrial environments, safety is paramount, especially when dealing with hazardous materials or explosive atmospheres. That's where a Combined Pressurization Fire & Gas (CPFG) system comes in. More than just a safety device, it's an intelligent guardian for your positive pressure containers, ensuring a safe and compliant operational space.
How Does a CPFG System Work Its Magic?
At its core, a CPFG system is designed to create and maintain a positive pressure environment within an enclosure. Think of it like a protective bubble that keeps dangerous gases out. Here's a breakdown of its sophisticated process:
The Brains and Brawn: Integrated Components
A CPFG system isn't just one piece of equipment; it's a suite of interconnected, smart devices working in harmony. These typically include:
Powering Up and Purging for Safety
When you switch on a CPFG system, the first thing it does is activate the booster fan. This fan rapidly purges the container's interior, filling it with clean air and establishing a positive pressure. This is a critical step, as it physically prevents dangerous gases from entering the enclosure from the outside.
The Green Light: Activating Internal Equipment
Once the CPFG system's detectors confirm that the internal environment is completely safe – meaning no hazardous gases are present and the positive pressure is stable – it then gives the go-ahead for the power distribution board (DB) to activate. This is your cue that it's safe to use the non-explosive electrical equipment inside the container, such as computers, sockets, or water heaters.
Constant Vigilance: Monitoring During Operation
The CPFG system doesn't stop working once your equipment is running. It continuously monitors the environment for any changes.
Why is a CPFG System Essential for Your Business?
Implementing a CPFG system isn't just about compliance; it's about safeguarding lives, protecting valuable assets, and ensuring uninterrupted operations in challenging environments. By actively managing the internal atmosphere of your enclosures, a CPFG system offers unparalleled safety and peace of mind.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #CPFG system, #Combined Pressurization Fire & Gas system, #Positive pressure container, #Industrial safety, #Hazardous environments, #Explosion protection equipment, #Gas detection system, #Pressurized enclosures, #Safety interlock, #Automatic shutdown system
How Does a CPFG System Work Its Magic?
At its core, a CPFG system is designed to create and maintain a positive pressure environment within an enclosure. Think of it like a protective bubble that keeps dangerous gases out. Here's a breakdown of its sophisticated process:
The Brains and Brawn: Integrated Components
A CPFG system isn't just one piece of equipment; it's a suite of interconnected, smart devices working in harmony. These typically include:
- Gas and Smoke Detectors: The frontline sensors, constantly sniffing out any hazardous gases or smoke that might indicate a problem.
- Heat Detectors and Fire Alarms: Essential for early detection of potential fires, triggering immediate alerts.
- Pressure and Flow Switches: Monitoring the crucial positive pressure within the container, ensuring it remains at safe levels.
- Booster Fans: The workhorses that purge the enclosure and maintain that vital positive pressure.
- Emergency Stop & Alarm Mute Switches: Providing manual overrides for immediate intervention when needed.
- Explosion Protection Equipment: Additional safeguards to mitigate risks in hazardous areas.
Powering Up and Purging for Safety
When you switch on a CPFG system, the first thing it does is activate the booster fan. This fan rapidly purges the container's interior, filling it with clean air and establishing a positive pressure. This is a critical step, as it physically prevents dangerous gases from entering the enclosure from the outside.
The Green Light: Activating Internal Equipment
Once the CPFG system's detectors confirm that the internal environment is completely safe – meaning no hazardous gases are present and the positive pressure is stable – it then gives the go-ahead for the power distribution board (DB) to activate. This is your cue that it's safe to use the non-explosive electrical equipment inside the container, such as computers, sockets, or water heaters.
Constant Vigilance: Monitoring During Operation
The CPFG system doesn't stop working once your equipment is running. It continuously monitors the environment for any changes.
- Immediate Alerts: If gas detectors pick up dangerous fumes or pressure switches indicate a loss of positive pressure, the system's alarms will blare, issuing immediate warnings.
- Automatic Shutdown for Ultimate Protection: In a critical scenario, if the safe conditions within the container aren't restored within a set timeframe after an alarm, the CPFG system automatically shuts off all non-explosive devices. This intelligent fail-safe ensures that potential ignition sources are immediately de-energized, making the general equipment inside the container compliant with blast protection protocols.
Why is a CPFG System Essential for Your Business?
Implementing a CPFG system isn't just about compliance; it's about safeguarding lives, protecting valuable assets, and ensuring uninterrupted operations in challenging environments. By actively managing the internal atmosphere of your enclosures, a CPFG system offers unparalleled safety and peace of mind.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #CPFG system, #Combined Pressurization Fire & Gas system, #Positive pressure container, #Industrial safety, #Hazardous environments, #Explosion protection equipment, #Gas detection system, #Pressurized enclosures, #Safety interlock, #Automatic shutdown system
Written by Oliver

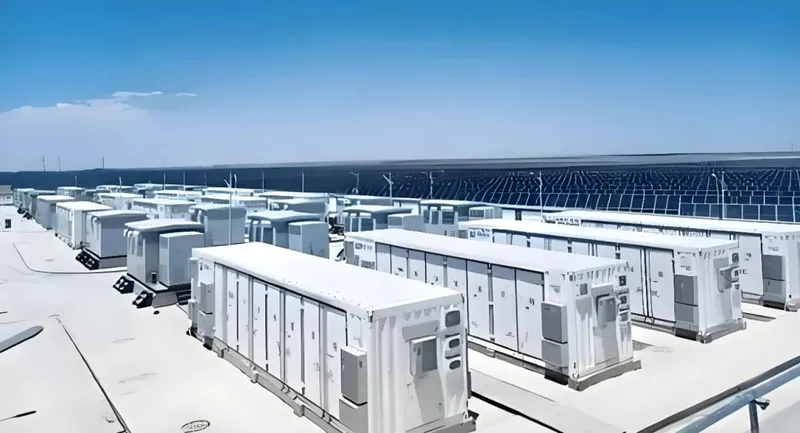

As renewable energy adoption accelerates worldwide, battery energy storage systems (BESS) are stepping into the spotlight as a critical enabler of grid stability and flexibility. The challenge lies in how to deploy these systems efficiently, safely, and with maximum adaptability. Leveraging years of experience in modular engineering, TLS Energy International introduces its customized semi-integrated BESS container solutions—offering the industry a smarter, more dependable path forward.
01. Integrated Design: More Than Storage—A Complete System Unit
TLS BESS containers are not just metal boxes filled with batteries. They are carefully engineered energy management units. Key systems such as air conditioning (for thermal regulation), fire protection, and intelligent lighting are all pre-integrated into the container at the factory level. This approach minimizes on-site work, reduces deployment time, and supports faster grid connection. With pre-wired, pre-tested components, the containers are plug-and-play ready upon delivery.
02. Flexible Customization: Tailored for Every Project
No two energy storage projects are the same. Site conditions, maintenance environments, battery brands, and cooling requirements vary greatly. TLS Energy offers a wide range of customization options, including:
From concept to production, TLS works closely with clients to ensure each BESS container is perfectly aligned with the system’s technical and operational requirements.
03. Safety First: Risk Control Starts with Design
Safety is at the heart of every energy storage project. TLS BESS containers are designed with reserved structural space for fire and explosion protection, enabling flexible upgrades and system compatibility. The containers can be equipped with automatic fire suppression systems, early smoke and thermal detection sensors, and modular isolation zones, allowing for rapid emergency response and minimizing potential impact to both equipment and personnel.
04. Sustainability Focus: Efficiency Meets Environmental Responsibility
TLS believes energy storage should support the global energy transition—not just technologically, but also environmentally. That’s why TLS incorporates eco-conscious materials, recyclable insulation layers, and optimized internal layouts to reduce waste and carbon impact, helping customers meet both performance and sustainability goals.
05. Seamless Delivery: Let Customers Focus on What Matters
From initial design consultation and mid-phase production control to final delivery and commissioning support, TLS provides a comprehensive end-to-end delivery process. Clients define the target, and TLS makes it reality—ensuring the final product arrives ready to perform.
TLS delivers more than just a container—we deliver an integrated system component for your energy storage solution.
Conclusion: The Evolution from “Functional Box” to “System Unit”
In a rapidly evolving BESS market, standardized containers are no longer enough. TLS Energy’s semi-integrated BESS containers combine flexibility, system integration, safety, and delivery efficiency—making them the preferred choice for the next generation of storage projects.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Keywords:#BESS Container,#Energy Storage System,#Modular Energy Storage,#Customizable BESS,#Battery Storage Solution,#Semi-Integrated Container,#Thermal Management,#Fire Suppression System,#Plug and Play Storage,#Energy Container Design,#Sustainable Energy Storage,#Smart Container Solution,#Turnkey BESS Delivery,#Safe Battery Storage,#Off-Grid Energy Container
01. Integrated Design: More Than Storage—A Complete System Unit
TLS BESS containers are not just metal boxes filled with batteries. They are carefully engineered energy management units. Key systems such as air conditioning (for thermal regulation), fire protection, and intelligent lighting are all pre-integrated into the container at the factory level. This approach minimizes on-site work, reduces deployment time, and supports faster grid connection. With pre-wired, pre-tested components, the containers are plug-and-play ready upon delivery.
02. Flexible Customization: Tailored for Every Project
No two energy storage projects are the same. Site conditions, maintenance environments, battery brands, and cooling requirements vary greatly. TLS Energy offers a wide range of customization options, including:
- Container sizes (20ft, 40ft, high cube, or double-layer designs)
- Air conditioning selection and heat management strategy

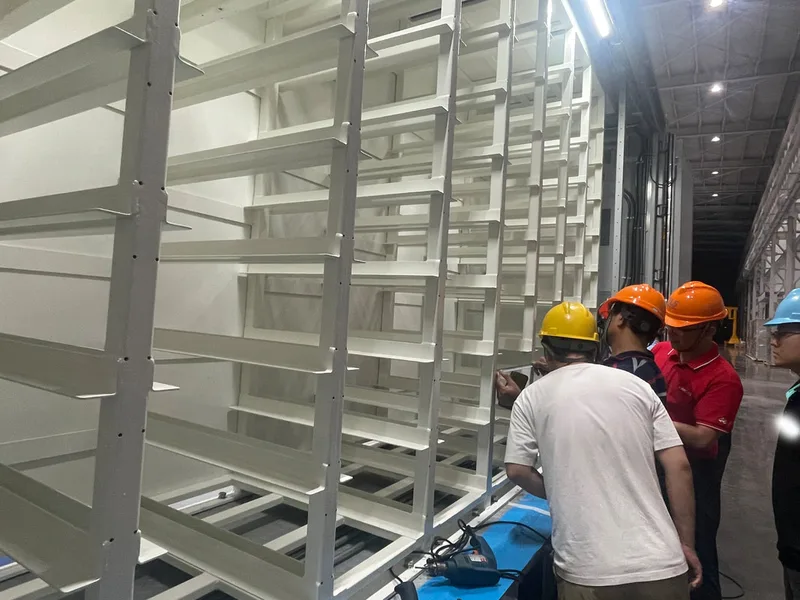

- Internal layout planning: cable routing, battery bank partitions, and safe access channels
- Sensor installation, monitoring interfaces, and lighting brightness configurations
From concept to production, TLS works closely with clients to ensure each BESS container is perfectly aligned with the system’s technical and operational requirements.
03. Safety First: Risk Control Starts with Design
Safety is at the heart of every energy storage project. TLS BESS containers are designed with reserved structural space for fire and explosion protection, enabling flexible upgrades and system compatibility. The containers can be equipped with automatic fire suppression systems, early smoke and thermal detection sensors, and modular isolation zones, allowing for rapid emergency response and minimizing potential impact to both equipment and personnel.
04. Sustainability Focus: Efficiency Meets Environmental Responsibility
TLS believes energy storage should support the global energy transition—not just technologically, but also environmentally. That’s why TLS incorporates eco-conscious materials, recyclable insulation layers, and optimized internal layouts to reduce waste and carbon impact, helping customers meet both performance and sustainability goals.
05. Seamless Delivery: Let Customers Focus on What Matters
From initial design consultation and mid-phase production control to final delivery and commissioning support, TLS provides a comprehensive end-to-end delivery process. Clients define the target, and TLS makes it reality—ensuring the final product arrives ready to perform.
TLS delivers more than just a container—we deliver an integrated system component for your energy storage solution.
Conclusion: The Evolution from “Functional Box” to “System Unit”
In a rapidly evolving BESS market, standardized containers are no longer enough. TLS Energy’s semi-integrated BESS containers combine flexibility, system integration, safety, and delivery efficiency—making them the preferred choice for the next generation of storage projects.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Keywords:#BESS Container,#Energy Storage System,#Modular Energy Storage,#Customizable BESS,#Battery Storage Solution,#Semi-Integrated Container,#Thermal Management,#Fire Suppression System,#Plug and Play Storage,#Energy Container Design,#Sustainable Energy Storage,#Smart Container Solution,#Turnkey BESS Delivery,#Safe Battery Storage,#Off-Grid Energy Container
Written by Snowy
A Battery Energy Storage System container is more than a metal shell—it is a frontline safety barrier that shields high-value batteries, power-conversion gear and auxiliary electronics from mechanical shock, fire risk and harsh climates. By integrating national codes with real-world project requirements, modern BESS container design optimises strength, stability, thermal performance and corrosion resistance, while enabling easy transport, installation and maintenance. This article distils the latest best practices into an 800-word roadmap for engineers and EPC contractors who need a rugged, standards-compliant enclosure that protects assets and boosts lifetime system value.
1. Structural Integrity Comes First

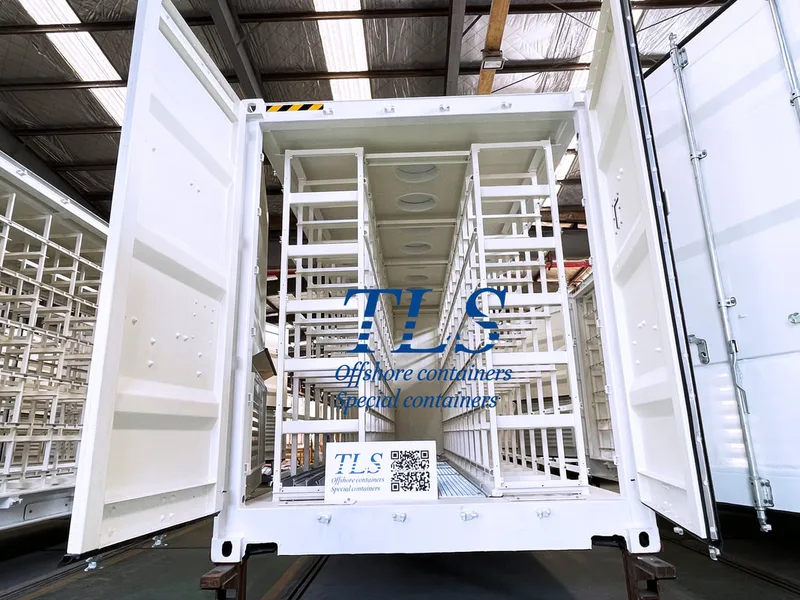

Frame design anchored in codes. Begin with ISO 20-ft or 40-ft dimensions to ensure global intermodal compatibility. Follow GB 50009/50017 for load calculations and reference UL 9540 structural guidelines for energy-storage enclosures. Use finite-element analysis to verify that beams and corner posts can absorb static battery weight plus dynamic forces from crane lifts, road vibration and short-circuit electrodynamics.
All-welded construction for rigidity. Continuous welds deliver higher torsional strength than bolted frames, minimise micro-movement and prevent seal fatigue. Specify full-penetration welds at high-stress nodes and subject them to 100 % non-destructive testing (UT or RT) to rule out hidden cracks.
Built-in redundancy. Design with a minimum 1.3 safety factor for dead loads and 1.5 for live loads. Oversize bottom long-members to keep deflection under L/500, protecting busbars and battery racks from alignment drift.
2. Material Excellence: Strength Meets Durability
High-strength low-alloy (HSLA) steel or 6000-series aluminium. Both options combine favourable weight-to-strength ratios with weldability. Aluminium reduces tare weight for offshore lifts, while HSLA steel offers better fire-resistance and cost efficiency.
Multi-layer corrosion protection. Blast-clean to Sa 2.5, apply zinc-rich epoxy primer (≥75 µm), then a polyurethane topcoat (≥80 µm) rated to ISO 12944 C5-M for coastal or saline sites. Stainless fasteners (A4-70) eliminate galvanic corrosion at penetration points.
3. Thermal & Environmental Protection: Insulation that Saves Cells
Closed-cell polyurethane or mineral wool panels. Target a thermal conductivity ≤0.024 W m⁻¹ K⁻¹ and water absorption <2 %. A 50–80 mm layer across walls, roof and floor prevents cold bridges, suppresses condensation and stabilises battery temperature for longer cycle life.
Roof and wall architecture. Sandwich lightweight aluminium-zinc sheets around a non-combustible core (UL 94 V-0). External slopes ≥2 ° shed rainwater and eliminate standing puddles that accelerate rust.
Passive vs. active climate control. Combine natural cross-flow vents with forced-air HVAC sized for 5–10 kW thermal loads per megawatt-hour of batteries. Add pressure-equalisation valves to handle rapid barometric changes without pulling moist air through panel seams.
4. Fire Safety by Design—not by Retrofit
Comply with UL 9540 and IEC 62933-5-2. Separate battery and power rooms with rated fire partitions. Use double-skin doors certified to ≥1.5 h fire resistance and integrate intumescent seals that expand during thermal events.
Deflagration panels and gas-sensing. Rooftop vent panels calibrated for 0.2 bar burst relieve over-pressure from thermal runaway, while H₂/CO sensors trigger early alarms and automatic fire-suppression release.
Redundant suppression layers. Pair aerosol or Novec™ clean-agent systems with rack-level sprinklers. Ensure agents remain effective from -30 °C to +55 °C for global deployment.
5. Door & Access Engineering: Safety, Serviceability, Security
Wide-swing fire doors. Minimum 90 ° opening with stainless limit stays prevents wind slam. A flush threshold eases forklift entry for battery racks. Achieve IP 55 ingress protection with elastomer gaskets and stainless cam locks.
Integrated louvers and filters. Door-mounted, rain-hooded louvers enable fresh-air intake without compromising IP rating, while MERV 8 or higher filters block dust in desert locations.
Anti-corrosion hardware. Use concealed hinges and tamper-resistant torque-head bolts; fewer external protrusions mean fewer water paths and a cleaner aesthetic.
6. Installation & Maintenance Efficiency
Pre-routed raceways and raised anti-static floors. Cable trays bolted to frame ribs and a 300 mm high false floor simplify retrofits and keep power and data lines segregated. Floor tiles resist 10⁸ Ω static charge and lift out for inspection.
Foundation interface. Weld base plates to embedded steel pads or torque structural anchors through a levelling grout layer. Seal junction with neutral-cure silicone to block capillary moisture rise.
Predictive O&M design. Position sensors, shut-off valves and HVAC filters within arm’s reach of the access door. Label components per IEC 81346 for clear digital-twin mapping and faster troubleshooting.
7. Sustainability & Compliance: Building a Greener Box
Conclusion: Engineering Value into Every Panel
Designing a BESS container is a multidisciplinary challenge that blends structural mechanics, materials science, thermal engineering and fire safety into one compact, road-legal module. By anchoring every decision—frame geometry, weld quality, insulation type, door hardware, HVAC sizing—on recognised standards and rigorous simulations, you create an enclosure that protects batteries from the rigours of transport and the extremes of climate while minimising downtime and extending asset life. The result is a cost-effective, high-reliability power plant in a box, ready to accelerate the transition to cleaner, more resilient energy grids.
1. Structural Integrity Comes First
Frame design anchored in codes. Begin with ISO 20-ft or 40-ft dimensions to ensure global intermodal compatibility. Follow GB 50009/50017 for load calculations and reference UL 9540 structural guidelines for energy-storage enclosures. Use finite-element analysis to verify that beams and corner posts can absorb static battery weight plus dynamic forces from crane lifts, road vibration and short-circuit electrodynamics.
All-welded construction for rigidity. Continuous welds deliver higher torsional strength than bolted frames, minimise micro-movement and prevent seal fatigue. Specify full-penetration welds at high-stress nodes and subject them to 100 % non-destructive testing (UT or RT) to rule out hidden cracks.
Built-in redundancy. Design with a minimum 1.3 safety factor for dead loads and 1.5 for live loads. Oversize bottom long-members to keep deflection under L/500, protecting busbars and battery racks from alignment drift.
2. Material Excellence: Strength Meets Durability
High-strength low-alloy (HSLA) steel or 6000-series aluminium. Both options combine favourable weight-to-strength ratios with weldability. Aluminium reduces tare weight for offshore lifts, while HSLA steel offers better fire-resistance and cost efficiency.
Multi-layer corrosion protection. Blast-clean to Sa 2.5, apply zinc-rich epoxy primer (≥75 µm), then a polyurethane topcoat (≥80 µm) rated to ISO 12944 C5-M for coastal or saline sites. Stainless fasteners (A4-70) eliminate galvanic corrosion at penetration points.
3. Thermal & Environmental Protection: Insulation that Saves Cells
Closed-cell polyurethane or mineral wool panels. Target a thermal conductivity ≤0.024 W m⁻¹ K⁻¹ and water absorption <2 %. A 50–80 mm layer across walls, roof and floor prevents cold bridges, suppresses condensation and stabilises battery temperature for longer cycle life.
Roof and wall architecture. Sandwich lightweight aluminium-zinc sheets around a non-combustible core (UL 94 V-0). External slopes ≥2 ° shed rainwater and eliminate standing puddles that accelerate rust.
Passive vs. active climate control. Combine natural cross-flow vents with forced-air HVAC sized for 5–10 kW thermal loads per megawatt-hour of batteries. Add pressure-equalisation valves to handle rapid barometric changes without pulling moist air through panel seams.
4. Fire Safety by Design—not by Retrofit
Comply with UL 9540 and IEC 62933-5-2. Separate battery and power rooms with rated fire partitions. Use double-skin doors certified to ≥1.5 h fire resistance and integrate intumescent seals that expand during thermal events.
Deflagration panels and gas-sensing. Rooftop vent panels calibrated for 0.2 bar burst relieve over-pressure from thermal runaway, while H₂/CO sensors trigger early alarms and automatic fire-suppression release.
Redundant suppression layers. Pair aerosol or Novec™ clean-agent systems with rack-level sprinklers. Ensure agents remain effective from -30 °C to +55 °C for global deployment.
5. Door & Access Engineering: Safety, Serviceability, Security
Wide-swing fire doors. Minimum 90 ° opening with stainless limit stays prevents wind slam. A flush threshold eases forklift entry for battery racks. Achieve IP 55 ingress protection with elastomer gaskets and stainless cam locks.
Integrated louvers and filters. Door-mounted, rain-hooded louvers enable fresh-air intake without compromising IP rating, while MERV 8 or higher filters block dust in desert locations.
Anti-corrosion hardware. Use concealed hinges and tamper-resistant torque-head bolts; fewer external protrusions mean fewer water paths and a cleaner aesthetic.
6. Installation & Maintenance Efficiency
Pre-routed raceways and raised anti-static floors. Cable trays bolted to frame ribs and a 300 mm high false floor simplify retrofits and keep power and data lines segregated. Floor tiles resist 10⁸ Ω static charge and lift out for inspection.
Foundation interface. Weld base plates to embedded steel pads or torque structural anchors through a levelling grout layer. Seal junction with neutral-cure silicone to block capillary moisture rise.
Predictive O&M design. Position sensors, shut-off valves and HVAC filters within arm’s reach of the access door. Label components per IEC 81346 for clear digital-twin mapping and faster troubleshooting.
7. Sustainability & Compliance: Building a Greener Box
- Circular materials: select recyclable steel, aluminium and eco-friendly PU foams free from CFCs.
- Manufacturing efficiency: CNC laser-cut panels and robot welding reduce scrap and energy use.
- Lifecycle documentation: provide Environmental Product Declarations (EPDs) and recycle-ready design files to help owners meet ESG targets.
Conclusion: Engineering Value into Every Panel
Designing a BESS container is a multidisciplinary challenge that blends structural mechanics, materials science, thermal engineering and fire safety into one compact, road-legal module. By anchoring every decision—frame geometry, weld quality, insulation type, door hardware, HVAC sizing—on recognised standards and rigorous simulations, you create an enclosure that protects batteries from the rigours of transport and the extremes of climate while minimising downtime and extending asset life. The result is a cost-effective, high-reliability power plant in a box, ready to accelerate the transition to cleaner, more resilient energy grids.
