## Introduction to BESS and Its Core Components

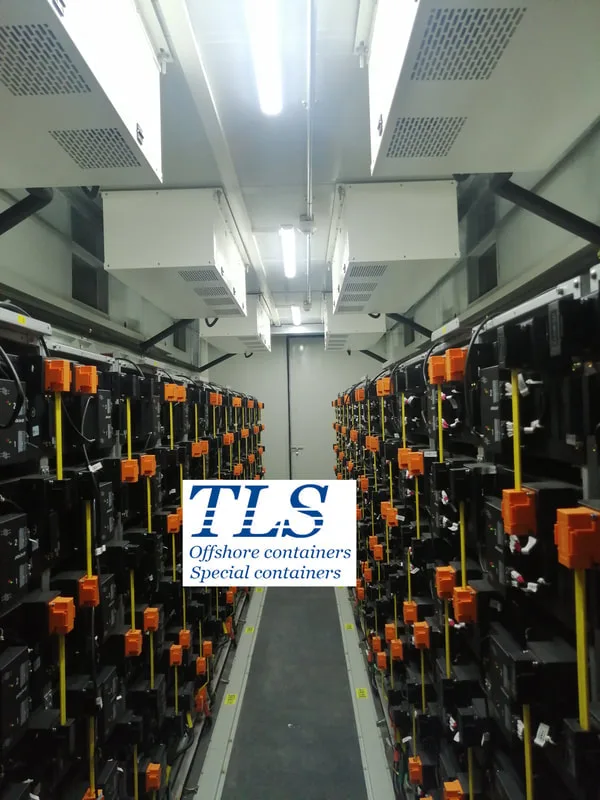

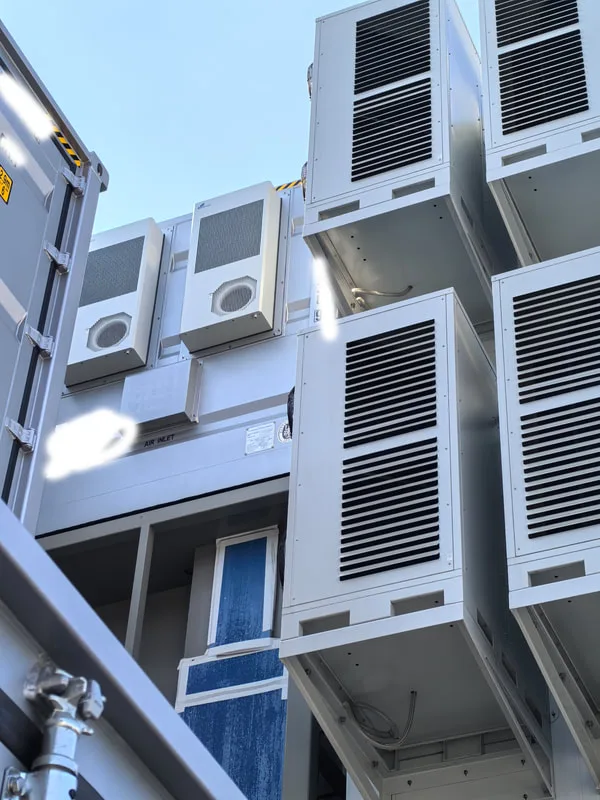

Battery Energy Storage Systems (BESS) are pivotal in modern energy landscapes, enabling the storage and dispatch of electricity from renewable sources like solar and wind. As global demand for sustainable energy rises, understanding the key subsystems within BESS becomes crucial. These include the Battery Management System (BMS), Power Conversion System (PCS), and Energy Management System (EMS), often referred to as the "3S System." Together, they ensure safety, efficiency, and optimal performance. This article delves into each component, their roles, integration, and broader implications.
## The Battery Management System (BMS): Safeguarding Battery Health
The BMS is the brain of the battery pack in a BESS, responsible for monitoring and protecting individual cells to prevent damage and extend lifespan. It measures critical parameters such as voltage, current, and temperature, while calculating the State of Charge (SOC) and State of Health (SOH). By handling cell balancing, the BMS ensures uniformity across cells, avoiding overcharge or deep discharge scenarios that could lead to failures.
Structurally, BMS often features a hierarchical architecture: the Battery Module Unit (BMU) oversees individual cells, the Battery Control Unit (BCU) manages packs, and the Battery Array Unit (BAU) supervises larger arrays. This setup allows for fault diagnostics, data upload to higher systems, and implementation of control strategies during charging and discharging.
The importance of BMS cannot be overstated. It safeguards against risks like overheating or short circuits, enhancing operational reliability and battery longevity. In applications ranging from residential setups to utility-scale projects, a robust BMS reduces maintenance costs and improves safety, making it indispensable for integrating BESS with volatile renewable energy sources.
## The Power Conversion System (PCS): The Energy Translator
Acting as the executor in BESS, the PCS handles the conversion of electrical power between direct current (DC) from batteries and alternating current (AC) for grid compatibility. It controls charging and discharging processes, enabling bidirectional energy flow through four-quadrant converters. This system responds to commands for constant power or current control, facilitating seamless integration with solar panels or wind turbines.
PCS classifications vary by scale: utility-scale versions exceed 10MW with cascaded topologies, while commercial systems (above 250KW) are modular and compact. Industrial and commercial (C&I) setups under 250KW focus on peak shaving, and residential ones below 10KW prioritize noise reduction and emergency backup.
Its role is vital for efficient energy exchange, ensuring BESS can supply power directly to AC loads or stabilize grids during fluctuations. By optimizing conversion, PCS minimizes losses, boosts system efficiency, and supports applications like EV charging stations and microgrids.
## The Energy Management System (EMS): The Strategic Overseer
The EMS serves as the decision-maker, coordinating the entire BESS for optimized energy flow. It integrates hardware and software to monitor real-time data, analyze trends, and dispatch energy based on grid demands, market signals, or user needs. Key functions include scheduling, data protocol management, and providing user interfaces like apps for visualization.
EMS structure encompasses device layers interfacing with PCS and BMS, communication layers for data transmission, information layers for storage, and application layers for control. Unlike BMS, which focuses on battery-level protection, EMS influences the broader microgrid, issuing commands to subordinate systems.
Its importance lies in enhancing efficiency and ROI through intelligent optimization, such as peak shaving or arbitrage. In large-scale deployments, EMS enables predictive maintenance and grid support, crucial for renewable integration.
## Integration of BMS, PCS, and EMS: Synergy in Action
These components form an interdependent trinity. The BMS provides real-time battery status to the EMS, which processes this data to make decisions and sends instructions to the PCS for execution. For instance, if BMS detects high temperature, EMS may halt discharging via PCS to prevent damage.
Communication is key, often via stable Ethernet protocols with redundancy like A/B dual networks for fault tolerance. This ring network ensures uninterrupted data flow, supporting remote monitoring and diagnostics.
Benefits of integration include higher efficiency, reduced operational costs, and enhanced safety. Applications span factory parks, data centers, and agricultural irrigation, where synchronized operations optimize energy use and extend system life.
## Benefits, Applications, and Future Trends
Collectively, BMS, PCS, and EMS deliver stability, cost savings, and grid resilience. They facilitate self-consumption in photovoltaics, emergency backups, and demand response, reducing reliance on fossil fuels.
Future trends point to AI-enhanced EMS for predictive analytics, advanced BMS with machine learning for better SOH estimation, and modular PCS for scalability. As BESS adoption grows—projected to reach terawatt-hours by 2030—these systems will evolve to support smarter grids and electric mobility.
## Conclusion
In summary, BMS, PCS, and EMS are the backbone of BESS, ensuring safe, efficient energy storage. By understanding their roles and integration, stakeholders can harness BESS for a sustainable future. Whether for residential or industrial use, investing in robust 3S systems is key to energy innovation.
Battery Energy Storage Systems (BESS) are pivotal in modern energy landscapes, enabling the storage and dispatch of electricity from renewable sources like solar and wind. As global demand for sustainable energy rises, understanding the key subsystems within BESS becomes crucial. These include the Battery Management System (BMS), Power Conversion System (PCS), and Energy Management System (EMS), often referred to as the "3S System." Together, they ensure safety, efficiency, and optimal performance. This article delves into each component, their roles, integration, and broader implications.
## The Battery Management System (BMS): Safeguarding Battery Health
The BMS is the brain of the battery pack in a BESS, responsible for monitoring and protecting individual cells to prevent damage and extend lifespan. It measures critical parameters such as voltage, current, and temperature, while calculating the State of Charge (SOC) and State of Health (SOH). By handling cell balancing, the BMS ensures uniformity across cells, avoiding overcharge or deep discharge scenarios that could lead to failures.
Structurally, BMS often features a hierarchical architecture: the Battery Module Unit (BMU) oversees individual cells, the Battery Control Unit (BCU) manages packs, and the Battery Array Unit (BAU) supervises larger arrays. This setup allows for fault diagnostics, data upload to higher systems, and implementation of control strategies during charging and discharging.
The importance of BMS cannot be overstated. It safeguards against risks like overheating or short circuits, enhancing operational reliability and battery longevity. In applications ranging from residential setups to utility-scale projects, a robust BMS reduces maintenance costs and improves safety, making it indispensable for integrating BESS with volatile renewable energy sources.
## The Power Conversion System (PCS): The Energy Translator
Acting as the executor in BESS, the PCS handles the conversion of electrical power between direct current (DC) from batteries and alternating current (AC) for grid compatibility. It controls charging and discharging processes, enabling bidirectional energy flow through four-quadrant converters. This system responds to commands for constant power or current control, facilitating seamless integration with solar panels or wind turbines.
PCS classifications vary by scale: utility-scale versions exceed 10MW with cascaded topologies, while commercial systems (above 250KW) are modular and compact. Industrial and commercial (C&I) setups under 250KW focus on peak shaving, and residential ones below 10KW prioritize noise reduction and emergency backup.
Its role is vital for efficient energy exchange, ensuring BESS can supply power directly to AC loads or stabilize grids during fluctuations. By optimizing conversion, PCS minimizes losses, boosts system efficiency, and supports applications like EV charging stations and microgrids.
## The Energy Management System (EMS): The Strategic Overseer
The EMS serves as the decision-maker, coordinating the entire BESS for optimized energy flow. It integrates hardware and software to monitor real-time data, analyze trends, and dispatch energy based on grid demands, market signals, or user needs. Key functions include scheduling, data protocol management, and providing user interfaces like apps for visualization.
EMS structure encompasses device layers interfacing with PCS and BMS, communication layers for data transmission, information layers for storage, and application layers for control. Unlike BMS, which focuses on battery-level protection, EMS influences the broader microgrid, issuing commands to subordinate systems.
Its importance lies in enhancing efficiency and ROI through intelligent optimization, such as peak shaving or arbitrage. In large-scale deployments, EMS enables predictive maintenance and grid support, crucial for renewable integration.
## Integration of BMS, PCS, and EMS: Synergy in Action
These components form an interdependent trinity. The BMS provides real-time battery status to the EMS, which processes this data to make decisions and sends instructions to the PCS for execution. For instance, if BMS detects high temperature, EMS may halt discharging via PCS to prevent damage.
Communication is key, often via stable Ethernet protocols with redundancy like A/B dual networks for fault tolerance. This ring network ensures uninterrupted data flow, supporting remote monitoring and diagnostics.
Benefits of integration include higher efficiency, reduced operational costs, and enhanced safety. Applications span factory parks, data centers, and agricultural irrigation, where synchronized operations optimize energy use and extend system life.
## Benefits, Applications, and Future Trends
Collectively, BMS, PCS, and EMS deliver stability, cost savings, and grid resilience. They facilitate self-consumption in photovoltaics, emergency backups, and demand response, reducing reliance on fossil fuels.
Future trends point to AI-enhanced EMS for predictive analytics, advanced BMS with machine learning for better SOH estimation, and modular PCS for scalability. As BESS adoption grows—projected to reach terawatt-hours by 2030—these systems will evolve to support smarter grids and electric mobility.
## Conclusion
In summary, BMS, PCS, and EMS are the backbone of BESS, ensuring safe, efficient energy storage. By understanding their roles and integration, stakeholders can harness BESS for a sustainable future. Whether for residential or industrial use, investing in robust 3S systems is key to energy innovation.
In demanding environments, especially offshore, safety and precision are paramount. TLS Offshore Containers offers cutting-edge Negative Pressure Laboratory Containers that provide a secure, self-contained, and highly customizable solution for critical testing and analysis.
What is a Negative Pressure Laboratory Container?

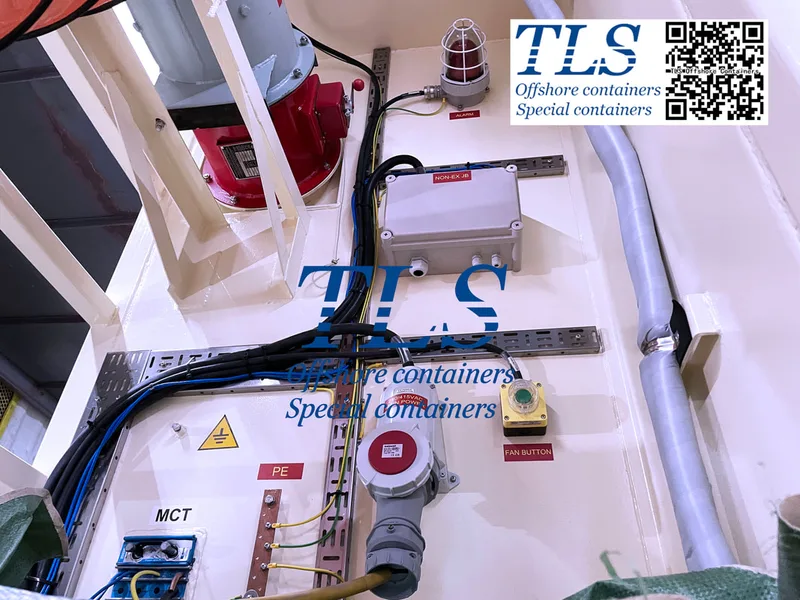

A negative pressure laboratory container is a self-contained, movable module designed to meet rigorous laboratory requirements. Its core principle is maintaining an internal pressure lower than the external environment. This crucial design feature ensures that air flows from the outside in, preventing the escape of harmful or flammable gases generated during operations. This makes them ideal for environments where hazardous substances are present or where precise environmental control is vital.
Unparalleled Safety Features for Demanding Environments
Safety is built into every TLS negative pressure lab container. Here's how:
Designed for Optimal Functionality and Convenience
TLS negative pressure laboratory containers are engineered for efficiency and ease of use:
1. Independent Operation: Each container is self-contained with its own compressed air, lighting, and ventilation systems.
2. Customization: Tailored to your specific needs, these labs can be customized in dimensions (10ft, 20ft, or custom) and internal layout.
3. Comprehensive Internal Fit-out:
Versatile Applications
These highly adaptable containers are suitable for various critical laboratory functions, including:
Your Global Partner in Containerized Solutions
TLS Offshore Containers is a global leading supplier of containerized solutions. Wherever your operations are located, TLS can provide the expertise and the right solution for you.
Contact TLS Offshore Containers today to discuss your specific requirements for a secure, efficient, and reliable negative pressure laboratory container solution.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Please download Laboratory container brochure for reference.
Keywords: #Negative pressure lab container, #Portable laboratory solutions, #Offshore lab containers, #Containerized lab units, #Explosion-proof lab container, #Customizable lab container, #DNV2.7-1 certified container, #Modular petroleum laboratory, #Mobile laboratory cabin
What is a Negative Pressure Laboratory Container?
A negative pressure laboratory container is a self-contained, movable module designed to meet rigorous laboratory requirements. Its core principle is maintaining an internal pressure lower than the external environment. This crucial design feature ensures that air flows from the outside in, preventing the escape of harmful or flammable gases generated during operations. This makes them ideal for environments where hazardous substances are present or where precise environmental control is vital.
Unparalleled Safety Features for Demanding Environments
Safety is built into every TLS negative pressure lab container. Here's how:
- Hazardous Gas Containment: The negative pressure system actively discharges flammable and explosive gases, providing a secure internal operating environment.
- Explosion-Proof Facilities: Equipped with explosion-proof electrical facilities, these containers mitigate risks in volatile atmospheres.
- Fire Safety: Features like A0 or A60 fire ratings and autonomous fire, gas, and smoke detection systems offer robust protection.
- Extreme Weather Resilience: Fully insulated and built with materials that withstand temperatures from −20∘C to +60∘C, the containers maintain structural integrity and watertightness in harsh conditions.
- Compliance & Certification: Our containers are designed to meet stringent industry standards, including DNV2.7-1/EN12079 certification and CSC plating. Compliance with ATEX and IECEx standards is also available upon request.
Designed for Optimal Functionality and Convenience
TLS negative pressure laboratory containers are engineered for efficiency and ease of use:
1. Independent Operation: Each container is self-contained with its own compressed air, lighting, and ventilation systems.
2. Customization: Tailored to your specific needs, these labs can be customized in dimensions (10ft, 20ft, or custom) and internal layout.
3. Comprehensive Internal Fit-out:
- Self-contained Heat, Ventilation, and Air Conditioning (HVAC) system.
- Water supply system with connections to rig supply.
- Air pipeline connected with an air gun.
- Explosion-proof fume hood.
- Acid and alkali resistant anti-slip flooring and workbench.
- Work desk with phone, computer, and LAN connections.
- Working and storage furniture, including stainless steel sink units with raised edges and ample drainage.
- Eye washer.
- Under-bench and over-bench cabinets for storage of consumables.
- Ex light, switch, socket, and cabling.
Versatile Applications
These highly adaptable containers are suitable for various critical laboratory functions, including:
- Modular Petroleum Laboratory
- Mud Lab
- General cargo operations
- Road, rail, and sea transport (above or below deck)
Your Global Partner in Containerized Solutions
TLS Offshore Containers is a global leading supplier of containerized solutions. Wherever your operations are located, TLS can provide the expertise and the right solution for you.
Contact TLS Offshore Containers today to discuss your specific requirements for a secure, efficient, and reliable negative pressure laboratory container solution.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Please download Laboratory container brochure for reference.
Keywords: #Negative pressure lab container, #Portable laboratory solutions, #Offshore lab containers, #Containerized lab units, #Explosion-proof lab container, #Customizable lab container, #DNV2.7-1 certified container, #Modular petroleum laboratory, #Mobile laboratory cabin
Written by Oliver
In hazardous environments, especially within the oil, gas, and renewable energy industries, safety and reliable operations are paramount. TLS Offshore Containers Int. stands as a global leader, providing cutting-edge containerized solutions, including their specialized Total Pressurized Container Solutions.
What are Pressurized Containers and Why Are They Crucial?
Pressurized containers, often referred to as cabins, are designed to create a safe working environment in areas where flammable gases, vapors, or combustible dust may be present (Zone 1/Zone 2 hazardous areas). By maintaining a positive internal pressure, these units prevent the ingress of hazardous external atmospheres, protecting personnel and sensitive equipment. This makes them indispensable for critical operations in demanding offshore and onshore settings.
TLS: Decades of Expertise in Hazardous Environments
With manufacturing experience for the Oil and Gas industry since 1998, TLS has a proven track record of delivering robust and reliable solutions. Their in-house engineering team is equipped to provide complete, customized solutions tailored to specific project requirements.
Key Applications of TLS Pressurized Container Solutions
TLS offers a diverse range of customized pressurized units, including:
Uncompromising Standards and Specifications
TLS pressurized containers, such as their Mud Logging Cabins, are built to the highest international standards, ensuring peak performance and safety. Key specifications include:
Global Reach and Support
TLS Offshore Containers Int. is committed to supporting clients worldwide. With offices in Singapore and China, they are well-positioned to serve the global market.
For more information on TLS Total Pressurized Container Solutions and how they can enhance the safety and efficiency of your operations in hazardous environments, contact TLS Offshore Containers Int. today.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Pressurized containers, #Offshore containers, #Hazardous area cabins, #DNV 2.7-1 certified containers, #A60 rated cabins, #Mud logging cabin specifications, #Zone 1 Zone 2 cabins, #Oil and gas containers, #Renewable energy containers, #Containerized solutions supplier
What are Pressurized Containers and Why Are They Crucial?
Pressurized containers, often referred to as cabins, are designed to create a safe working environment in areas where flammable gases, vapors, or combustible dust may be present (Zone 1/Zone 2 hazardous areas). By maintaining a positive internal pressure, these units prevent the ingress of hazardous external atmospheres, protecting personnel and sensitive equipment. This makes them indispensable for critical operations in demanding offshore and onshore settings.
TLS: Decades of Expertise in Hazardous Environments
With manufacturing experience for the Oil and Gas industry since 1998, TLS has a proven track record of delivering robust and reliable solutions. Their in-house engineering team is equipped to provide complete, customized solutions tailored to specific project requirements.
Key Applications of TLS Pressurized Container Solutions
TLS offers a diverse range of customized pressurized units, including:
- ROV Cabins: For controlling Remotely Operated Vehicles.
- Test Cabins: Providing a controlled environment for equipment testing.
- Control Cabins: Housing vital control systems.
- Telecommunications Cabins: Protecting communication infrastructure.
- MWD/LWD Cabins: Essential for Measurement While Drilling/Logging While Drilling operations.
- Office Cabins: Safe and functional workspaces.
- Laboratory Cabins: For on-site analysis and research.
- Mud Logging Cabins: Critical for well logging operations.
Uncompromising Standards and Specifications
TLS pressurized containers, such as their Mud Logging Cabins, are built to the highest international standards, ensuring peak performance and safety. Key specifications include:
- A60 Fire Rating: Walls, roof, and floor are A60 rated for superior fire protection.
- Structural Integrity: Designed, manufactured, and certified to DNV 2.7-1/EN12079 standards, ensuring durability and safety for offshore applications.
- Hazardous Area Compliance: Conforming to Zone 1 and Zone 2 classifications.
- Integrated Safety Systems: Equipped with comprehensive Fire, Gas, and Smoke Safety Systems, including fire and gas detectors, and H2S detectors.
- Advanced HVAC: Featuring 24000 BTU/Hr split-type air conditioning suitable for hazardous area applications.
- Robust Electrical Systems: Including a 20KVA transformer and essential electrical panels, lighting, and safety switches.
- Quality Construction: Internal roof finished with powder-coated GI sheet, walls with 25mm thick sandwich panels, and 2mm thick vinyl mat flooring.
- Comprehensive Detection and Alarm System: A Combined Pressurization on Fire and Gas (CPFG) detection panel for Zone 1, integrating gas detection (H2S and CH4), smoke detection, emergency stop, pressurization fan, and alarms.
- Certification: All products are produced to international standards and meet ISO1496/CSC, ISO 14001:2015, ISO900, Type Approval CSC-International, and Type Approval SOLAS A60.
Global Reach and Support
TLS Offshore Containers Int. is committed to supporting clients worldwide. With offices in Singapore and China, they are well-positioned to serve the global market.
For more information on TLS Total Pressurized Container Solutions and how they can enhance the safety and efficiency of your operations in hazardous environments, contact TLS Offshore Containers Int. today.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Pressurized containers, #Offshore containers, #Hazardous area cabins, #DNV 2.7-1 certified containers, #A60 rated cabins, #Mud logging cabin specifications, #Zone 1 Zone 2 cabins, #Oil and gas containers, #Renewable energy containers, #Containerized solutions supplier
