BMS, PCS, and EMS in Battery Energy Storage Systems (BESS): A Comprehensive Guide

## Introduction to BESS and Its Core Components

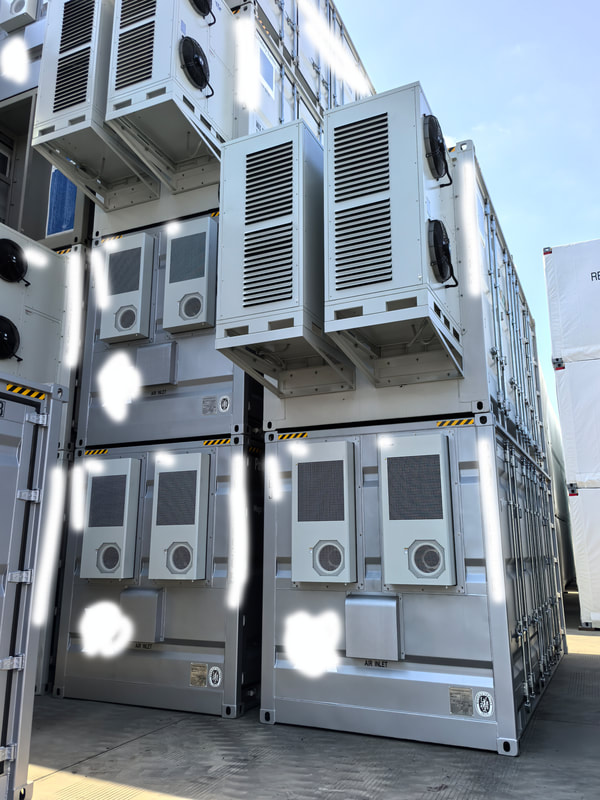

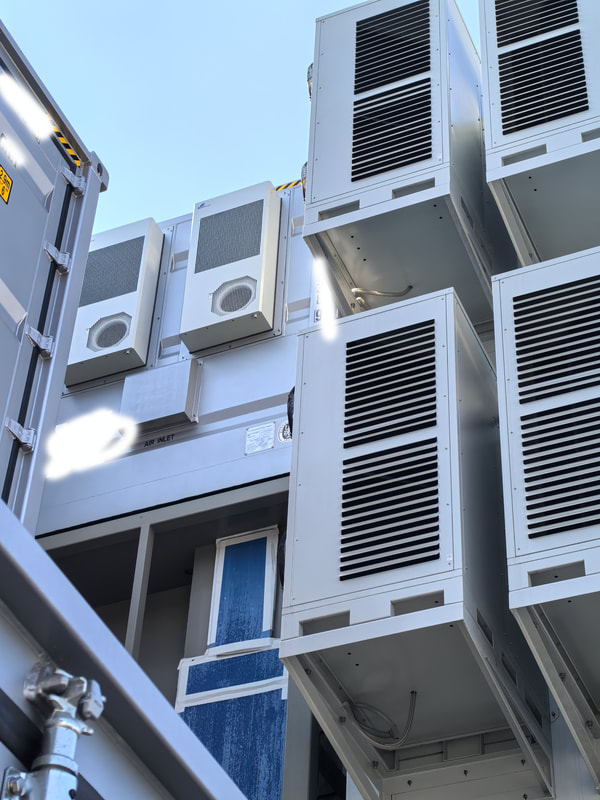

Battery Energy Storage Systems (BESS) are pivotal in modern energy landscapes, enabling the storage and dispatch of electricity from renewable sources like solar and wind. As global demand for sustainable energy rises, understanding the key subsystems within BESS becomes crucial. These include the Battery Management System (BMS), Power Conversion System (PCS), and Energy Management System (EMS), often referred to as the "3S System." Together, they ensure safety, efficiency, and optimal performance. This article delves into each component, their roles, integration, and broader implications.

## The Battery Management System (BMS): Safeguarding Battery Health
The BMS is the brain of the battery pack in a BESS, responsible for monitoring and protecting individual cells to prevent damage and extend lifespan. It measures critical parameters such as voltage, current, and temperature, while calculating the State of Charge (SOC) and State of Health (SOH). By handling cell balancing, the BMS ensures uniformity across cells, avoiding overcharge or deep discharge scenarios that could lead to failures.

Structurally, BMS often features a hierarchical architecture: the Battery Module Unit (BMU) oversees individual cells, the Battery Control Unit (BCU) manages packs, and the Battery Array Unit (BAU) supervises larger arrays. This setup allows for fault diagnostics, data upload to higher systems, and implementation of control strategies during charging and discharging.

The importance of BMS cannot be overstated. It safeguards against risks like overheating or short circuits, enhancing operational reliability and battery longevity. In applications ranging from residential setups to utility-scale projects, a robust BMS reduces maintenance costs and improves safety, making it indispensable for integrating BESS with volatile renewable energy sources.

## The Power Conversion System (PCS): The Energy Translator
Acting as the executor in BESS, the PCS handles the conversion of electrical power between direct current (DC) from batteries and alternating current (AC) for grid compatibility. It controls charging and discharging processes, enabling bidirectional energy flow through four-quadrant converters. This system responds to commands for constant power or current control, facilitating seamless integration with solar panels or wind turbines.

PCS classifications vary by scale: utility-scale versions exceed 10MW with cascaded topologies, while commercial systems (above 250KW) are modular and compact. Industrial and commercial (C&I) setups under 250KW focus on peak shaving, and residential ones below 10KW prioritize noise reduction and emergency backup.

Its role is vital for efficient energy exchange, ensuring BESS can supply power directly to AC loads or stabilize grids during fluctuations. By optimizing conversion, PCS minimizes losses, boosts system efficiency, and supports applications like EV charging stations and microgrids.

## The Energy Management System (EMS): The Strategic Overseer
The EMS serves as the decision-maker, coordinating the entire BESS for optimized energy flow. It integrates hardware and software to monitor real-time data, analyze trends, and dispatch energy based on grid demands, market signals, or user needs. Key functions include scheduling, data protocol management, and providing user interfaces like apps for visualization.

EMS structure encompasses device layers interfacing with PCS and BMS, communication layers for data transmission, information layers for storage, and application layers for control. Unlike BMS, which focuses on battery-level protection, EMS influences the broader microgrid, issuing commands to subordinate systems.

Its importance lies in enhancing efficiency and ROI through intelligent optimization, such as peak shaving or arbitrage. In large-scale deployments, EMS enables predictive maintenance and grid support, crucial for renewable integration.

## Integration of BMS, PCS, and EMS: Synergy in Action
These components form an interdependent trinity. The BMS provides real-time battery status to the EMS, which processes this data to make decisions and sends instructions to the PCS for execution. For instance, if BMS detects high temperature, EMS may halt discharging via PCS to prevent damage.

Communication is key, often via stable Ethernet protocols with redundancy like A/B dual networks for fault tolerance. This ring network ensures uninterrupted data flow, supporting remote monitoring and diagnostics.

Benefits of integration include higher efficiency, reduced operational costs, and enhanced safety. Applications span factory parks, data centers, and agricultural irrigation, where synchronized operations optimize energy use and extend system life.

## Benefits, Applications, and Future Trends
Collectively, BMS, PCS, and EMS deliver stability, cost savings, and grid resilience. They facilitate self-consumption in photovoltaics, emergency backups, and demand response, reducing reliance on fossil fuels.

Future trends point to AI-enhanced EMS for predictive analytics, advanced BMS with machine learning for better SOH estimation, and modular PCS for scalability. As BESS adoption grows—projected to reach terawatt-hours by 2030—these systems will evolve to support smarter grids and electric mobility.

## Conclusion
In summary, BMS, PCS, and EMS are the backbone of BESS, ensuring safe, efficient energy storage. By understanding their roles and integration, stakeholders can harness BESS for a sustainable future. Whether for residential or industrial use, investing in robust 3S systems is key to energy innovation.

---
