There's a number the industry rarely says out loud: roughly 90% of liquid cooling failures trace back to the piping system. Not the CDU. Not the cold plates. The pipes, fittings, and the connections between them. Understanding why — and how the same failure modes migrate into Battery Energy Storage System (BESS) thermal management — is essential for anyone designing infrastructure where heat removal is mission-critical.
The Hidden Failure Chain in Liquid Cooling
Most cooling incidents don't announce themselves dramatically. They begin quietly: a fitting that wasn't torqued to spec, a weld with a hairline defect, a pocket of trapped air causing a water hammer event at 2 AM. By the time the leak is visible, a cascade is already in motion — downtime, equipment damage, and replacement costs that dwarf what proper design would have cost.
The root cause is almost always a gap between disciplines. HVAC engineers understand fluid dynamics but not the uptime requirements of critical infrastructure. Data center operators know their SLAs but not pipe schedules. BESS integrators, under pressure to hit energy density targets, often treat thermal management as a secondary system — until it isn't.
Material Selection: Getting the Foundation Right
Three material families dominate liquid cooling piping, each with a specific role:
Stainless steel (304/316L) is the backbone of primary circuits. With a service life exceeding 20 years and excellent corrosion resistance, 316L is the preferred choice where chloride exposure is a risk — common in coastal BESS installations. The trade-off is weight and cost.
Specialty thermoplastic pipe (PP-R) handles secondary, low-pressure circuits effectively. It's roughly one-third to one-half the cost of stainless, installs quickly via heat fusion, and presents low flow resistance. But it's pressure-limited (generally PN ≤ 2.0 MPa) and degrades above 70°C — a constraint that matters in high-density BESS configurations where ambient temperatures inside enclosures can spike.
Flexible braided hose absorbs vibration and compensates for thermal expansion at equipment connection points. Quality matters enormously here; substandard liners develop microcracks within months.
A reliable combination: 316L stainless for main runs, PP-R for branch circuits, and stainless braided flex at CDU and battery module interfaces.
Fittings Are Where Leaks Live
Over 60% of piping leaks originate at joints. Compression fittings require torque wrenches and manufacturer-specified values — under-tightened fittings seep, over-tightened ones deform. Flanged connections above DN50 need EPDM gaskets (rated –40°C to +150°C) tightened in a cross-pattern across three passes. Field welds demand 100% radiographic or dye-penetrant inspection on critical joints; weld quality is highly dependent on the welder, ambient wind, and humidity at the time of execution.

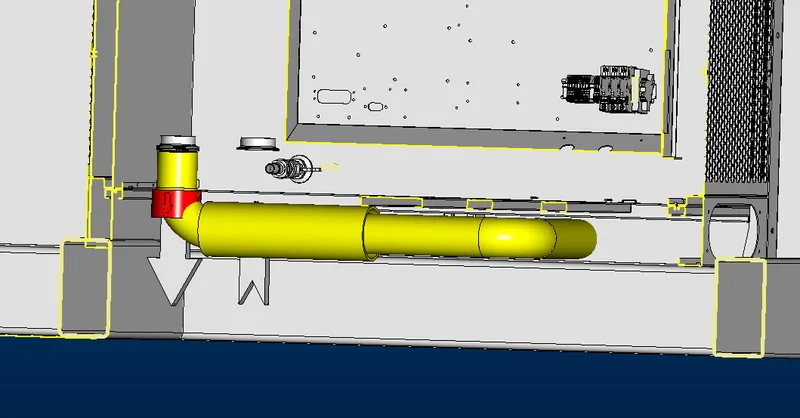

Sizing, Slope, and the Air Problem
Flow velocity dictates both efficiency and longevity. In primary circuits (CDU to dry cooler), target 1.5–3.0 m/s. Secondary circuits (CDU to rack or battery module) run better at 0.5–1.5 m/s. A useful first estimate: pipe diameter (mm) ≈ √(flow rate in L/min ÷ 0.3).
Trapped air is the silent degrader. Bubbles reduce heat transfer, cause flow imbalance, and damage pump impellers through cavitation. Every high point in the circuit needs an automatic air vent. Pipe runs should slope upward at least 0.3% in the direction of flow. At system commissioning, fill at 30% of design flow rate and hold for two to four hours before ramping up — rushing this step embeds micro-bubbles that are nearly impossible to purge later.
Applying This to BESS Thermal Management
Battery cells are far less forgiving than servers. A lithium-ion cell operating outside its thermal window — typically 15°C to 35°C — degrades faster, loses capacity, and in extreme cases enters thermal runaway. The TMS for a BESS is therefore not comfort infrastructure; it is a safety system.

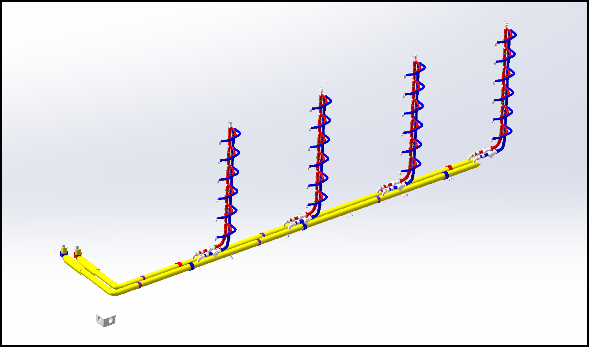

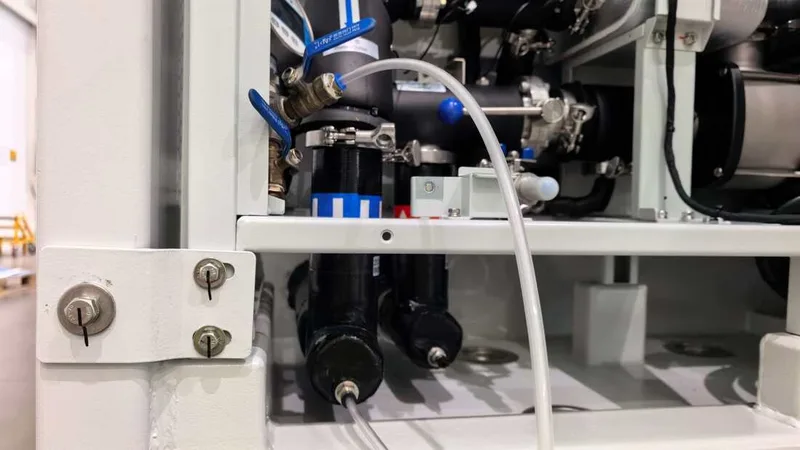

Liquid cooling architectures for BESS fall into two main configurations: direct cold-plate cooling (coolant channels integrated into module housings) and indirect liquid cooling with a secondary glycol-water loop. The latter is more common at utility scale, using a circuit architecture nearly identical to data center liquid cooling — CDU-equivalent, distribution manifolds, and per-rack (per-module) supply and return.
Key BESS-specific TMS design considerations:
Periodically Inspection Protocol
Regardless of application — data center or BESS — the maintenance discipline is the same. Visually inspect all visible fittings for crystalline deposits or moisture. Check flexible hose for bulging or surface cracking, especially at attachment points. Confirm automatic air vents are cycling correctly. Log CDU inlet/outlet temperatures, flow rates, and pressures against baseline. Verify expansion tank levels. Listen to pumps for cavitation noise or bearing roughness. Test coolant conductivity and pH monthly.
Thermal management is not a set-and-forget system. The infrastructure that moves heat away from billions of dollars of batteries and compute deserves the same engineering rigor as the assets it protects.
The Hidden Failure Chain in Liquid Cooling
Most cooling incidents don't announce themselves dramatically. They begin quietly: a fitting that wasn't torqued to spec, a weld with a hairline defect, a pocket of trapped air causing a water hammer event at 2 AM. By the time the leak is visible, a cascade is already in motion — downtime, equipment damage, and replacement costs that dwarf what proper design would have cost.
The root cause is almost always a gap between disciplines. HVAC engineers understand fluid dynamics but not the uptime requirements of critical infrastructure. Data center operators know their SLAs but not pipe schedules. BESS integrators, under pressure to hit energy density targets, often treat thermal management as a secondary system — until it isn't.
Material Selection: Getting the Foundation Right
Three material families dominate liquid cooling piping, each with a specific role:
Stainless steel (304/316L) is the backbone of primary circuits. With a service life exceeding 20 years and excellent corrosion resistance, 316L is the preferred choice where chloride exposure is a risk — common in coastal BESS installations. The trade-off is weight and cost.
Specialty thermoplastic pipe (PP-R) handles secondary, low-pressure circuits effectively. It's roughly one-third to one-half the cost of stainless, installs quickly via heat fusion, and presents low flow resistance. But it's pressure-limited (generally PN ≤ 2.0 MPa) and degrades above 70°C — a constraint that matters in high-density BESS configurations where ambient temperatures inside enclosures can spike.
Flexible braided hose absorbs vibration and compensates for thermal expansion at equipment connection points. Quality matters enormously here; substandard liners develop microcracks within months.
A reliable combination: 316L stainless for main runs, PP-R for branch circuits, and stainless braided flex at CDU and battery module interfaces.
Fittings Are Where Leaks Live
Over 60% of piping leaks originate at joints. Compression fittings require torque wrenches and manufacturer-specified values — under-tightened fittings seep, over-tightened ones deform. Flanged connections above DN50 need EPDM gaskets (rated –40°C to +150°C) tightened in a cross-pattern across three passes. Field welds demand 100% radiographic or dye-penetrant inspection on critical joints; weld quality is highly dependent on the welder, ambient wind, and humidity at the time of execution.
Sizing, Slope, and the Air Problem
Flow velocity dictates both efficiency and longevity. In primary circuits (CDU to dry cooler), target 1.5–3.0 m/s. Secondary circuits (CDU to rack or battery module) run better at 0.5–1.5 m/s. A useful first estimate: pipe diameter (mm) ≈ √(flow rate in L/min ÷ 0.3).
Trapped air is the silent degrader. Bubbles reduce heat transfer, cause flow imbalance, and damage pump impellers through cavitation. Every high point in the circuit needs an automatic air vent. Pipe runs should slope upward at least 0.3% in the direction of flow. At system commissioning, fill at 30% of design flow rate and hold for two to four hours before ramping up — rushing this step embeds micro-bubbles that are nearly impossible to purge later.
Applying This to BESS Thermal Management
Battery cells are far less forgiving than servers. A lithium-ion cell operating outside its thermal window — typically 15°C to 35°C — degrades faster, loses capacity, and in extreme cases enters thermal runaway. The TMS for a BESS is therefore not comfort infrastructure; it is a safety system.
Liquid cooling architectures for BESS fall into two main configurations: direct cold-plate cooling (coolant channels integrated into module housings) and indirect liquid cooling with a secondary glycol-water loop. The latter is more common at utility scale, using a circuit architecture nearly identical to data center liquid cooling — CDU-equivalent, distribution manifolds, and per-rack (per-module) supply and return.
Key BESS-specific TMS design considerations:
- Cell-level temperature uniformity matters more than average temperature. A ΔT above 5°C across a module accelerates imbalanced aging and capacity fade. Piping design must ensure balanced flow to every module — this requires careful manifold geometry and, in larger systems, pressure-independent control valves per branch.
- Freeze protection is non-negotiable for outdoor BESS enclosures. Glycol concentration must be sized for the site's design minimum ambient temperature, with a safety margin. Pipe routing within enclosures should minimize exposure to cold zones, and heat tracing may be required in extreme climates.
- Vibration isolation is more demanding than in static data center environments. BESS containers on skids or floating foundations experience movement; all module connections need flexible elements and adequate support spacing to prevent fatigue failure.
- Leak detection integration should be specified at the system level, not added as an afterthought. BESS enclosures typically have limited drainage paths; even a small leak can accumulate and create electrical hazards. Sensor strips beneath manifolds and at low points, tied to automatic shutoff valves, are standard practice in well-designed systems.
- CDU sizing follows the same logic as data center applications: total battery pack heat rejection capacity × 1.1–1.2 safety factor, with redundant pump sets (N+1 minimum) and dual CDU configurations for systems above 1 MWh.
Periodically Inspection Protocol
Regardless of application — data center or BESS — the maintenance discipline is the same. Visually inspect all visible fittings for crystalline deposits or moisture. Check flexible hose for bulging or surface cracking, especially at attachment points. Confirm automatic air vents are cycling correctly. Log CDU inlet/outlet temperatures, flow rates, and pressures against baseline. Verify expansion tank levels. Listen to pumps for cavitation noise or bearing roughness. Test coolant conductivity and pH monthly.
Thermal management is not a set-and-forget system. The infrastructure that moves heat away from billions of dollars of batteries and compute deserves the same engineering rigor as the assets it protects.
