Shipping a battery energy storage system (BESS) is not the same as moving an ordinary container. Modern BESS enclosures combine lithium batteries, electrical equipment and fire-control systems in one dense transport unit. Many weigh 41–50 metric tons—well beyond the 30.48-tonne maximum gross mass commonly shown on standard ISO container safety plates. Multipurpose (MPP) heavy-lift vessels therefore often provide a more practical shipping solution than scheduled container lines.
Why are container ships difficult for heavy BESS cargo?
Container networks are designed around standardized boxes and fixed handling limits. An overweight BESS may exceed the rating of the enclosure, terminal equipment, chassis, spreader or vessel slot. Even when it resembles a standard container, it may need to be booked as out-of-gauge or breakbulk project cargo.
MPP vessels are built for this variability. Subject to vessel-specific structural approval, their cargo plans can accommodate concentrated loads. The carrier can develop an engineered stowage and securing plan based on the unit’s actual weight, footprint and center of gravity.
Why does on-deck capacity matter for UN3536 BESS?
Containerized lithium-battery systems designed to supply power outside the transport unit are generally shipped as Class 9 dangerous goods under UN3536 and Special Provision 389.
Since 1 January 2026, IMDG Code Amendment 42-24 assigns UN3536 to Stowage Category D. This means on-deck-only stowage on eligible cargo ships. Codes SW1 and SW2 also require protection from heat sources and separation from living quarters. The amendment is mandatory under the International Maritime Organization’s IMDG Code.
This makes weather-deck space a decisive booking constraint. Container ships have finite dangerous-goods positions, with acceptance depending on vessel layout, segregation, port rules and carrier policy. MPP vessels typically offer greater flexibility to reserve an accessible deck position.
How do shipboard cranes and engineered lashing reduce risk?

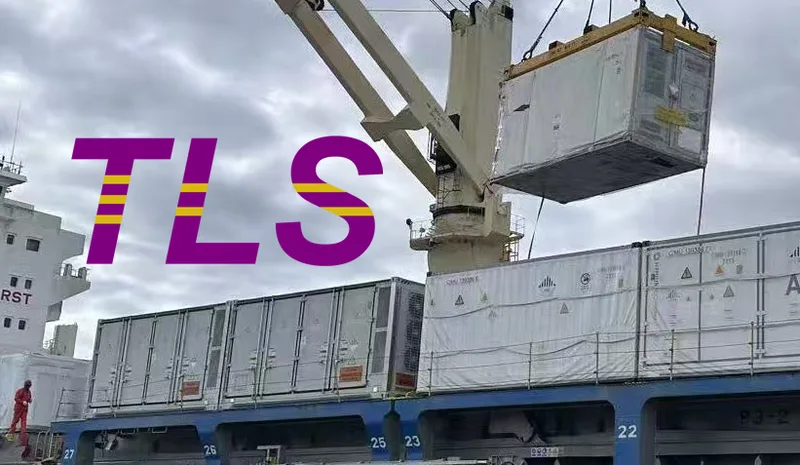

Geared MPP vessels use onboard cranes to load heavy units without depending entirely on shore container cranes. This can widen the choice of regional ports, although every lift still requires verified crane capacity, lifting points, rigging design and load-path calculations.
Heavy BESS units may require welded stoppers, deck D-rings, high-tensile lashings, supports and calculations covering voyage accelerations. Engineers must also confirm that battery racks and modules are secured inside the enclosure. External lashing cannot compensate for internal movement.
What documents are required for BESS shipping?
A complete carrier submission normally includes:
- Dangerous Goods Declaration
- Current 16-section Safety Data Sheet
- UN38.3 battery test summary
- Carrier- or port-requested transport-condition appraisal
- Verified dimensions, gross weight and center of gravity
- Lifting-point and internal-securing drawings
- Fire detection or suppression documentation
- Electrical isolation and transport-mode procedures
The UN Manual of Tests and Criteria specifies the information required in a UN38.3 test summary.
State of charge should be declared using BMS records at the level required by the carrier and competent authorities. A 30% SOC limit is a recognized risk-control measure and may be imposed by individual carriers, but it is not currently a universal IMDG ceiling for UN3536 sea transport.
For EU delivery, confirm the importer’s EORI number and the applicable conformity route, including CE documentation and EN IEC 62619 where relevant. Under the EU Battery Regulation, the battery passport becomes mandatory from 18 February 2027 for industrial batteries above 2 kWh placed on the market or put into service.
How does TLS Energy International support global BESS projects?
TLS Energy International provides BESS products to clients worldwide, including purpose-built BESS enclosures and semi-integrated BESS solutions.
Depending on the project scope, a semi-integrated solution can combine the enclosure with battery racks, thermal management, electrical distribution, fire protection and control-system interfaces. This gives clients a coordinated platform for subsequent battery, PCS, EMS and site-level integration.
TLS Energy works with customers to define enclosure dimensions, equipment layouts, environmental requirements and system-integration boundaries. It can also prepare essential technical information for transport planning, including verified weight, center of gravity, lifting points and internal securing details.
By considering transportation requirements during the design and integration stages, TLS Energy helps clients reduce the risk of late design changes, carrier rejection and loading delays. This coordinated approach connects BESS enclosure engineering, factory integration and international project delivery.
