Where Should a Negative Pressure Laboratory Container Discharge Its Exhaust?

Summary

Discharge exhaust through a designed route to a location assessed to prevent harmful exposure and re-entry into ventilation intakes or occupied areas. Select treatment for the actual contaminant and evaluate the remaining emissions at the proposed outlet. Negative pressure limits uncontrolled escape from the room; extraction removes contaminated air. It must not simply retain harmful gases inside.

Select the outlet using the site layout

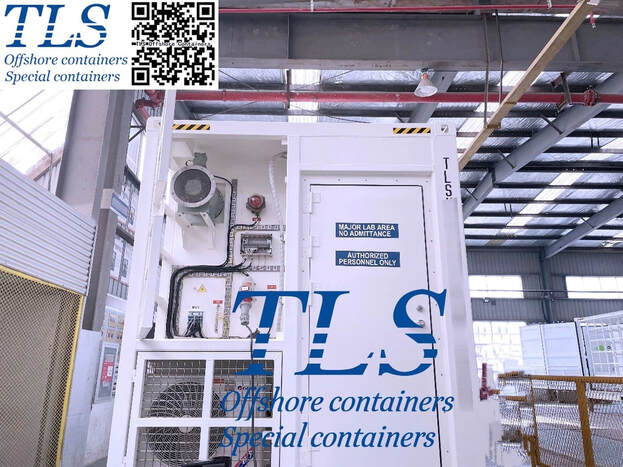

An exhaust connection on the container is an interface, not proof of a safe discharge location. The final route depends on where the module is installed and what surrounds it.

Mark nearby supply intakes, doors, windows, walkways, workstations and escape routes on the site drawing. Include adjacent modules and elevated working platforms. On offshore installations, assess the surrounding structures and operating arrangements that can affect where a plume travels.

Consider changes in wind direction and the wakes created by buildings and equipment. A point that appears remote on a plan may sit within a recirculating airflow region. HSE's local exhaust ventilation guidance discusses discharge design and the risk of exhausted contaminants returning through air inlets. HSE HSG258

Assess what leaves the outlet

The assessment needs more than exhaust volume. Define the substance, residual concentration after treatment, release duration, discharge temperature and relevant physical properties. Include routine work and credible abnormal releases that the system is intended to manage.

Agree the assessment method and acceptance criteria with the responsible ventilation, occupational hygiene and environmental specialists. Depending on the hazard and site complexity, this may require a dispersion assessment. Address worker exposure and environmental discharge requirements separately.

There is no universal stack height or separation distance suitable for every laboratory container. A project must justify its outlet geometry against the actual emissions and surroundings. Relocating the module or adding a nearby intake can invalidate an earlier assessment.

Match treatment to the contaminant

HEPA filters capture particles; they are not a universal treatment for gases or vapours. Particle removal and gas removal are different functions, as EPA's air-cleaner guidance explains. That distinction does not establish the suitability of any particular industrial treatment system. EPA guidance on particle and gas removal

Compatible adsorption or scrubbing may be appropriate for specified chemicals. Require the supplier to identify the substances covered, inlet conditions, operating limits and expected outlet performance. Mixed contaminants need a compatibility assessment rather than a generic “carbon filter” specification.

Adsorbent capacity is finite. Define how replacement or regeneration is triggered and how performance is monitored. EPA identifies outlet concentration and other operating parameters as relevant to carbon adsorber monitoring. A pressure-drop indication alone does not demonstrate that gas removal remains effective. EPA carbon adsorber monitoring

Check the complete route under abnormal conditions

Review the ductwork, treatment, fan and outlet together. Added duct length, fouling or treatment resistance can change the delivered extraction duty. Materials and equipment must suit the stream, including corrosive or potentially flammable conditions.

If emergency extraction increases airflow, verify that treatment remains effective at that flow and that the outlet assessment covers it. More exhaust volume is not automatically a safer outcome if treatment performance falls or the plume affects another occupied area.

Specify the response to treatment failure, fan failure and loss of power. Identify how hazardous work is stopped, whether residual emissions require continued extraction, and what monitoring permits restart. Include safe access for media replacement and a route for contaminated waste.

Procurement inputs and acceptance evidence

Provide these items before fixing the exhaust arrangement:

Substance inventory, safety data and normal and abnormal release cases.
Required capture duty and expected exhaust conditions.
Site drawings showing receptors, intakes, obstructions and maintenance access.
Proposed treatment, discharge criteria and monitoring requirements.
Responsibility for stack supports, final ductwork and site acceptance.

Commission the installed route. Verify extraction duty, room pressure behavior and the agreed treatment indicators. Confirm that the actual outlet matches the assessed layout. Record the restrictions that must be revisited after relocation or site changes.

Frequently Asked Questions

Can exhaust discharge directly through a side wall?

Only if the project assessment supports that arrangement. A short route may still expose people or allow contaminants to re-enter the module.

Does a HEPA filter make chemical exhaust safe?

No. HEPA filtration addresses particles. Gas and vapour treatment must be selected for the chemicals and operating conditions.

Is an outlet above the container roof always sufficient?

No. Nearby structures, intakes, elevated platforms and wind effects can still create exposure or re-entry risks.
