Understanding PCS Damage: Common Causes and Prevention Strategies

3/9/2025

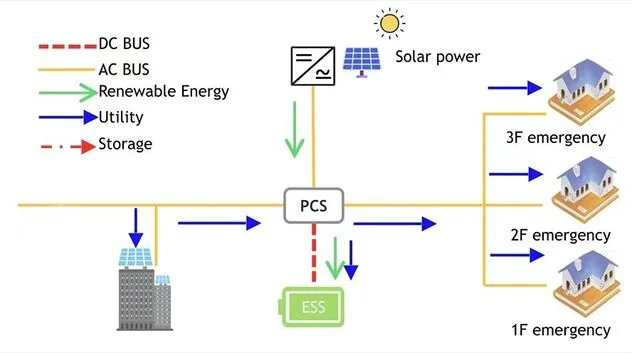

Power Conversion Systems (PCS) are critical components in energy storage, renewable energy applications, and industrial settings. Understanding the root causes of PCS damage can significantly enhance system reliability and performance.

Common PCS Damage Manifestations

PCS damage can present itself in various ways, including abnormal power output, frequent system shutdowns or startups, alarm indicators, communication disruptions, and overheating. Severe PCS failures, commonly referred to as "PCS blowouts," involve significant component damage such as visible burn marks, heavy smoke, and loud explosions.

Key Reasons for PCS Damage

**1. Power Device Failures:**
Failures of critical power devices like Insulated Gate Bipolar Transistors (IGBTs) or MOSFETs often result in PCS malfunction. Common failure modes include:

- **Latch-up Effect:** Triggered by excessive current or high temperatures causing internal short-circuits.
- **Thermal Runaway:** Resulting from inadequate cooling or overload, causing exponential temperature rise and eventual component burnout.
- **Avalanche Breakdown:** Occurs during sudden voltage spikes beyond device tolerance, typical in inductive load environments.
- **Wire Bond Lift-off:** Fatigue failures from repeated thermal cycling lead to increased resistance and overheating.

**2. Capacitor Failures:**
Capacitor issues frequently arise due to:

- **Electrolyte Drying:** High operating temperatures cause electrolyte evaporation, elevating internal resistance and heat buildup.
- **Excessive Ripple Voltage:** High-frequency ripple currents shorten capacitor life and effectiveness.
- **Voltage Imbalance:** Unequal voltage distribution across series-connected capacitors results in premature breakdown.
- **Partial Discharge:** Occurs in film capacitors when operating voltages exceed recommended limits, causing internal insulation failure.

**3. Magnetic Component Issues:**
Damage to inductors or transformers includes:

- **Saturation:** Excessive current leading to decreased inductance and distorted waveforms.
- **Insulation Breakdown:** High-frequency operation can cause insulation deterioration, resulting in short circuits.

**4. Control Board Faults:**
Control board issues can manifest through:

- **EMC Interference:** High-frequency switching noise causing microcontroller malfunctions and erroneous operations.
- **Software Logic Errors:** Delays in protection mechanisms, especially overcurrent protection, leading to catastrophic failures.

Severe PCS Blowout Scenarios

- **DC-side Short Circuits:** Caused by battery reversal or foreign object-induced short circuits, rapidly releasing energy stored in DC capacitors.
- **Shoot-Through Failures:** Concurrent conduction of IGBTs due to overlapping signals or faulty PCB layouts, directly short-circuiting the DC bus.
- **Grid-side Surges:** Lightning or grounding faults propagating through the PCS, causing component overvoltage and subsequent failures.
- **Cooling System Failures:** Water cooling leaks leading to internal short circuits.

Preventive Measures and Reliability Enhancement

To prevent PCS damage, adopting comprehensive design and testing practices is essential:

- **Advanced Thermal Management:** Use thermal simulations to optimize transient and steady-state cooling solutions.
- **Robust Electrical Insulation:** Adhere to international standards (IEC 61800-5-1) for creepage and clearance distances.
- **Multilevel Protection Logic:** Implement hardware-based fast-response protections supplemented by FPGA and MCU-based monitoring systems.
- **Rigorous Component Testing:** Conduct accelerated lifecycle tests (ALT and HALT) to identify weaknesses early.

By understanding and addressing these PCS damage mechanisms, engineers can greatly enhance system durability and operational reliability, safeguarding investments in renewable energy and industrial applications.
