Understanding FFR, FCR-D, FCR-N, and M-FFR: How BESS Enhances Grid Frequency Regulation

As global power grids shift toward renewable energy, maintaining frequency stability becomes increasingly complex. Traditional generation sources, such as coal and gas plants, provide natural system inertia, which helps dampen frequency deviations. However, with more solar and wind power integrated into the grid, the system’s ability to stabilize frequency declines. To address this challenge, Battery Energy Storage Systems (BESS) are now playing a critical role in delivering fast, precise frequency response services. Key among these are FFR (Fast Frequency Response), FCR-D (Frequency Containment Reserve – Disturbance), FCR-N (Frequency Containment Reserve – Normal), and M-FFR (Moderate Fast Frequency Response).

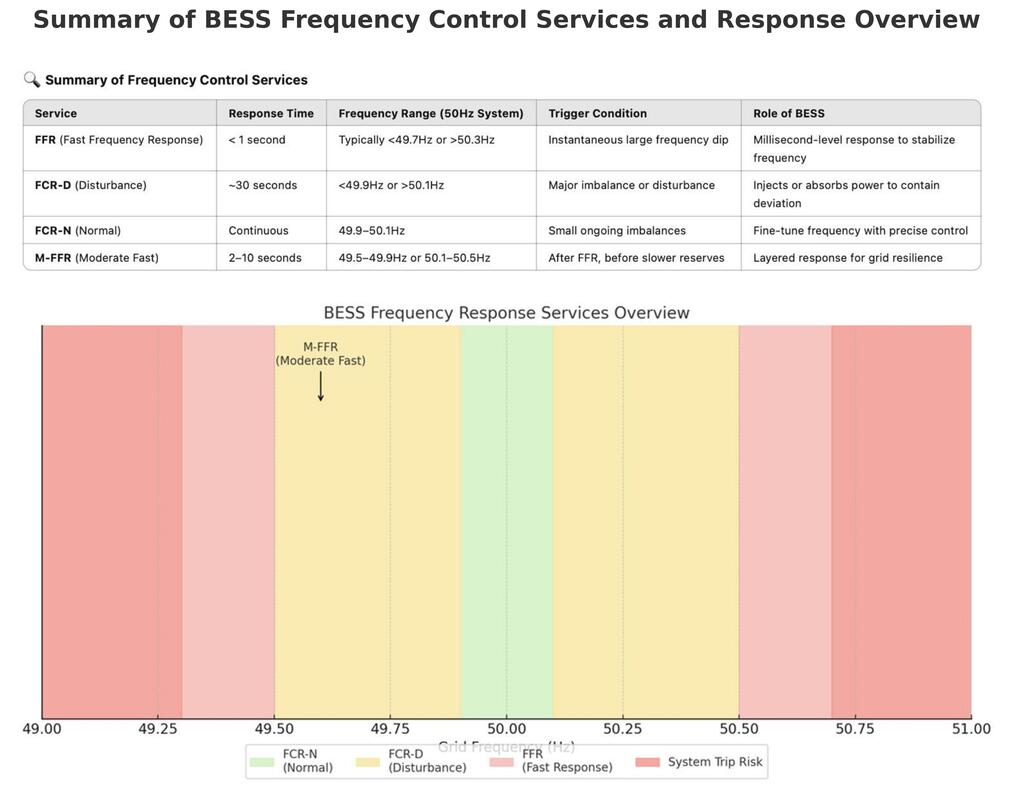

1. FFR (Fast Frequency Response)
FFR is the fastest frequency control service, typically activated within 1 second or less when system frequency experiences a sharp dip or rise. This service is crucial in the early moments of a disturbance—before traditional generators can ramp up. For example, if frequency drops below a threshold (e.g., 49.7Hz in a 50Hz system), BESS automatically discharges energy to help stabilize the grid.

Thanks to their millisecond-level response times and inverter-based architecture, BESS are ideal for delivering FFR. This makes them especially valuable in power systems with low inertia and high renewable penetration, where traditional mechanical generators are too slow to react.

2. FCR-D (Frequency Containment Reserve – Disturbance)
FCR-D is designed to respond to larger frequency deviations outside the normal operating range—typically below 49.9Hz or above 50.1Hz. It kicks in within 30 seconds and works to contain the disturbance until slower reserves or rebalancing measures take over.

BESS are well-suited for FCR-D services due to their ability to provide both symmetrical and asymmetrical support—either injecting or absorbing power depending on whether the frequency drops or spikes. This service is widely used in Nordic and Baltic markets and requires a stable, controllable, and fast-acting source of power regulation, making BESS a natural fit.

3. FCR-N (Frequency Containment Reserve – Normal)
Unlike FFR and FCR-D, which are triggered by significant events, FCR-N provides continuous frequency balancing during normal grid operation (within 49.9–50.1Hz). It is used to smooth out small, ongoing imbalances between generation and load.

BESS systems excel at this task because they can make precise power adjustments in real time. Whether charging or discharging, BESS ensure the system frequency stays as close as possible to its nominal value. FCR-N is essential for grid operators to maintain high-quality, stable power in systems with variable demand and fluctuating renewable generation.

4. M-FFR (Moderate Fast Frequency Response)
M-FFR is a medium-speed frequency response, designed to fill the gap between ultra-fast FFR and slower reserves like FCR-D. It typically activates within 2 to 10 seconds after a frequency event. This staged approach to frequency control helps ensure stability throughout the entire response timeline.

BESS provide an excellent platform for M-FFR due to their flexible control systems, allowing them to layer response times and power levels as needed. This adds resilience to the grid by supporting both initial shock absorption and continued stabilization.

Why BESS is Ideal for Frequency Regulation
Battery energy storage offers multiple advantages in frequency regulation:
    •    Ultra-fast response times
    •    High precision control
    •    Emission-free operation
    •    Reduced wear and maintenance compared to traditional generators
As frequency control becomes more dynamic and layered, BESS are becoming essential assets for transmission operators and energy providers worldwide.

FFR, FCR-D, FCR-N, and M-FFR form the backbone of modern frequency regulation strategies. Each service plays a unique role in stabilizing power systems, from milliseconds to minutes after a disturbance. Battery Energy Storage Systems, with their speed, accuracy, and flexibility, are uniquely positioned to deliver all these services effectively. As the energy transition accelerates, integrating BESS for grid support will be critical to ensuring a reliable, sustainable future.

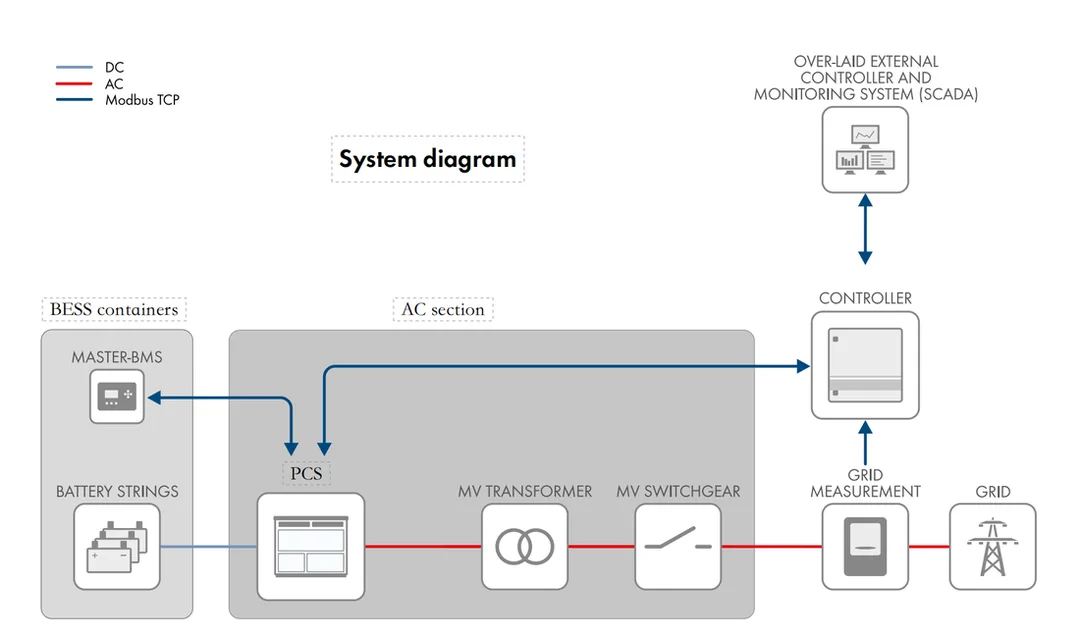

BESS system diagram for grid frequency control services.

---
