TMS Design and Main Components in Battery Energy Storage Systems (BESS)

Battery Energy Storage Systems (BESS) play a crucial role in stabilizing power grids, integrating renewable energy, and ensuring energy efficiency. One of the most critical subsystems within a BESS is the **Thermal Management System (TMS)**, which is responsible for maintaining optimal battery operating temperatures. Proper TMS design ensures battery longevity, safety, and overall system performance.

Importance of Thermal Management in BESS
Temperature fluctuations can significantly impact the performance and lifespan of lithium-ion batteries used in BESS. Without proper thermal management, batteries are prone to thermal runaway, capacity degradation, and reduced efficiency. The TMS is designed to regulate temperature, prevent overheating, and enhance system reliability.

TMS Design Considerations in BESS
An effective TMS design must address several critical aspects:
1. **Uniform Temperature Distribution**: Prevents localized hotspots that can lead to battery degradation.
2. **Energy Efficiency**: Minimizes power consumption of the cooling or heating system.
3. **Scalability and Modularity**: Ensures flexibility for different BESS sizes and applications.
4. **Redundancy and Reliability**: Incorporates backup mechanisms to enhance system safety.
5. **Integration with BMS (Battery Management System)**: Works in conjunction with BMS for real-time monitoring and control.

Key Components of TMS in BESS
A well-designed TMS consists of multiple components, each playing a vital role in maintaining optimal battery conditions:

#### 1. **Cooling Systems**

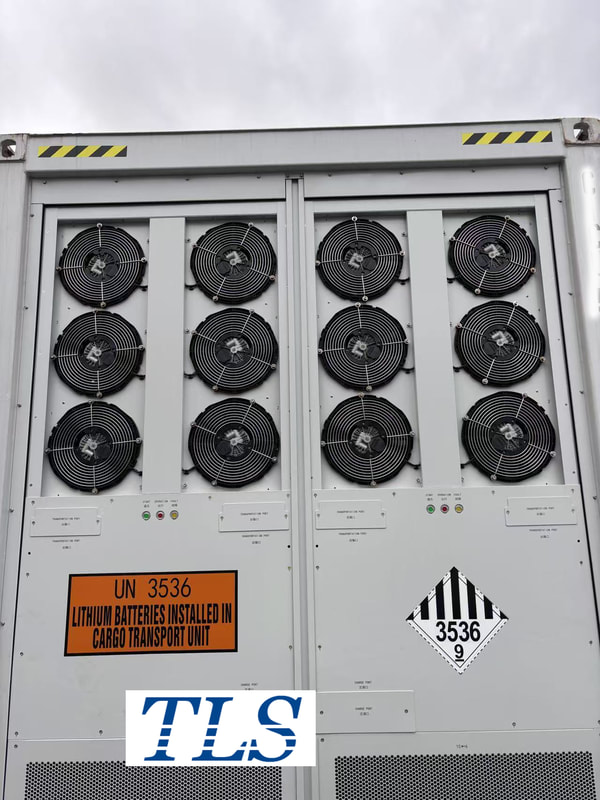

   - **Air Cooling**: Uses fans to circulate air and dissipate heat. Suitable for small-to-medium BESS applications.

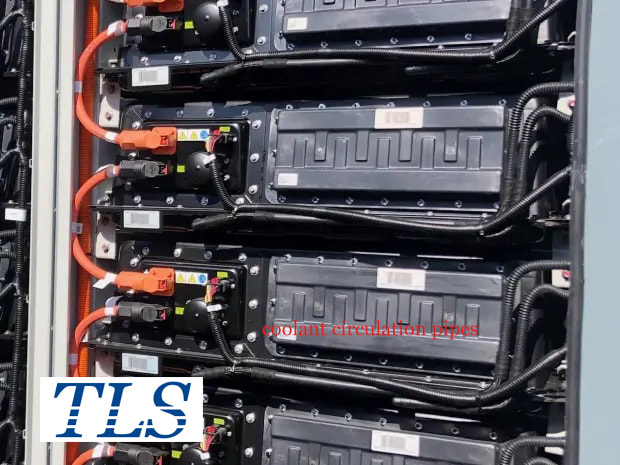

   - **Liquid Cooling**: Employs coolant to transfer heat away from the battery pack, ideal for high-power applications requiring efficient heat dissipation.
   - **Phase Change Material (PCM) Cooling**: Absorbs and releases heat during phase transitions, providing passive cooling for enhanced thermal stability.

#### 2. **Heating Systems**
   - **Electric Heaters**: Used in low-temperature environments to prevent performance degradation.
   - **Heat Pumps**: Improve energy efficiency by recycling heat within the system.

#### 3. **Thermal Insulation**
   - Insulation materials help in maintaining stable temperatures and reducing external environmental impacts.

#### 4. **Temperature Sensors**
   - **Thermocouples and RTDs (Resistance Temperature Detectors)**: Provide real-time temperature monitoring and feedback to the BMS.

#### 5. **Control Systems**
   - Advanced algorithms optimize temperature regulation based on real-time data from sensors.
   - Smart controllers adjust cooling/heating mechanisms dynamically to maintain efficiency.

Future Trends in TMS for BESS
- **AI and Machine Learning Integration**: Predictive analytics for better thermal management and failure prevention.
- **Advanced Materials**: Development of high-performance coolants and thermal interface materials.
- **Hybrid Cooling Solutions**: Combining different cooling methods to enhance efficiency and reliability.

The Thermal Management System (TMS) is a fundamental component of any Battery Energy Storage System (BESS), ensuring safety, performance, and longevity. An optimized TMS design, incorporating efficient cooling, heating, insulation, and control systems, is essential for meeting the demands of modern energy storage applications. As technology advances, innovations in TMS will continue to enhance the reliability and efficiency of BESS solutions.
