The global transition toward renewable energy has placed unprecedented demands on power grids, making large-scale energy storage no longer an option, but a geographical and infrastructural necessity. At the heart of this grid stabilization effort is the prefabricated Lithium-ion (Li-ion) Battery Energy Storage System (BESS) cabin. These modular, self-contained units are engineered to bridge the gap between intermittent renewable generation and steady grid demand.

Designing a BESS cabin is a complex exercise in geo-adaptability and high-density electrical engineering. Because these systems are deployed across diverse geographical landscapes—from the freezing altitudes of the Andes to the sweltering, corrosive coastal deserts of the Middle East—their technical specifications must meet stringent international standards for environmental resilience, thermal management, and catastrophic failure mitigation.

Structural Integrity and Geographical Adaptability

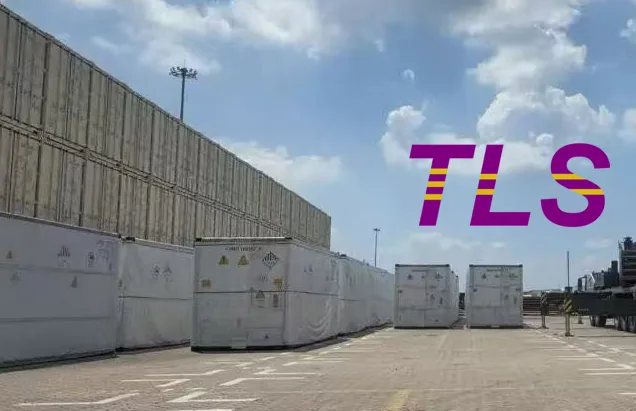

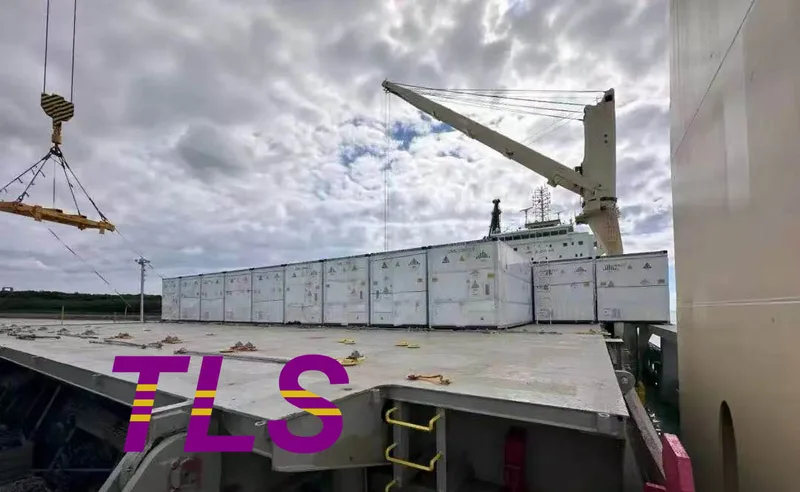

The foundational architecture of a prefabricated BESS cabin is typically based on standard ISO 20-foot or 40-foot high-cube shipping containers. This standardization allows for seamless global logistics via standard freight vessels, trains, and flatbed trucks. However, the similarities to standard shipping containers end at the dimensional footprint.

• Enclosure and Protection Ratings: The outer shell is constructed from heavy-gauge cold-rolled steel, engineered to achieve an Ingress Protection rating of at least IP54 to IP65. This prevents fine desert dust and torrential rain from penetrating the highly sensitive electronics inside.
• Thermal Insulation: To combat extreme ambient temperatures, the interior walls, ceiling, and floor are lined with fire-retardant thermal insulation, typically high-density rock wool or polyurethane foam, achieving a high R-value to reduce the cooling load on internal HVAC systems.
• Anti-Corrosion Profiling (C3 to C5-M): Depending on the geographical deployment, the exterior is treated with multi-layer marine-grade epoxy and polyurethane coatings. A C5-M rating is mandatory for offshore wind integration or coastal deployments to prevent rapid salt-fog corrosion.
• Seismic and Wind Load Endurance: Cabins deployed in seismically active regions (like California or Japan) are structurally reinforced to meet UBC Zone 4 seismic standards. Furthermore, the structural anchors and roof designs are rated to withstand cyclonic wind speeds up to 150 mph.

Battery Architecture and Energy Density

The core payload of the cabin is the battery array. Over the past five years, the industry has almost universally adopted Lithium Iron Phosphate (LFP / LiFePO4) chemistry for stationary storage over Nickel Manganese Cobalt (NMC). While slightly less energy-dense than NMC, LFP offers a significantly longer cycle life (often exceeding 6,000 to 8,000 cycles) and a much higher thermal runaway threshold, making it the safer choice for densely packed utility-scale storage.

Modern prefabricated cabins have transitioned from 1000V DC architectures to 1500V DC systems. Increasing the voltage allows for longer battery strings, which reduces the required cabling cross-section, lowers copper costs, and decreases electrical transmission losses.

By utilizing high-capacity cells (such as 280Ah or the newer 314Ah formats), a modern 20-foot prefabricated cabin can house an astonishing energy density of 3.44 MWh to over 5 MWh. The batteries are arranged hierarchically: cells are packed into modules, modules are slotted into racks, and multiple racks are paralleled onto a common DC busbar.

Thermal Management Systems (TMS)

Lithium-ion batteries are highly sensitive to temperature fluctuations. Operating outside the optimal window of 15°C to 35°C accelerates cellular degradation and drastically reduces cycle life. Furthermore, a massive temperature variance across a single battery rack causes uneven charging and discharging, leading to premature system failure. To manage this, the cabin relies on a sophisticated Thermal Management System.

Air Cooling vs. Liquid Cooling:

• Air-Cooled Systems (HVAC): Traditionally, cabins used industrial-grade HVAC units pushing chilled air through specialized ducting into the battery aisles. While reliable and easier to maintain, air cooling struggles with temperature uniformity and requires significant internal cabin space for air circulation aisles.
• Liquid-Cooled Systems: The current industry standard for high-density cabins is liquid cooling. A water-ethylene glycol mixture is pumped through micro-channel cold plates positioned directly against the battery modules. Liquid has a heat capacity up to 3,000 times greater than air, allowing it to rapidly absorb heat during aggressive charge/discharge cycles. Liquid cooling maintains a maximum cell temperature difference (ΔT) of less than 3°C across the entire multi-megawatt cabin, extending battery life by up to 20% and completely eliminating the need for internal maintenance aisles, thereby maximizing the footprint.

Safety and Fire Suppression Systems (FSS)

Because thermal runaway in a Li-ion system generates its own oxygen and burns at extreme temperatures, traditional firefighting methods are ineffective. The safety specifications of a BESS cabin are governed by strict standards like NFPA 855 and UL 9540A, requiring a multi-tiered, automated approach to hazard mitigation.

1. Early Detection: The cabin roof and racks are lined with redundant sensor arrays monitoring temperature, smoke, and most importantly, combustible gases (specifically Hydrogen and Carbon Monoxide, which are off-gassed moments before a cell vents).
2. Clean Agent Suppression: Upon detection of an anomaly, the system automatically discharges a clean extinguishing agent, such as Novec 1230 or FM-200. These agents flood the cabin to suppress the fire chemically by removing heat without leaving conductive residue that would ruin surviving equipment.
3. Water Sprinkler Backup: If the clean agent fails to halt the thermal runaway, a secondary dry-pipe water deluge system can be connected to external fire department feeds to drown the racks and prevent adjacent rack propagation.
4. Deflagration Venting: In the worst-case scenario where off-gassing creates an explosive atmosphere inside the container, active exhaust fans attempt to purge the gas. If a deflagration (explosion) occurs, engineered explosion relief panels built into the roof or doors will instantly burst at a specific pressure (e.g., 50 psf), directing the explosive force safely upward or outward, preventing the heavy steel container from fragmenting like a bomb.

Electrical Control: BMS and EMS Integration

A BESS cabin is a highly intelligent digital node on the grid. The Battery Management System (BMS) operates in a three-tier hierarchy (Cell level, Rack level, System level), taking millisecond-by-millisecond readings of voltage, current, and temperature to ensure safe operation.

The BMS communicates continuously via Modbus TCP/IP, CAN bus, or IEC 61850 protocols to the overarching Energy Management System (EMS) and the Power Conversion System (PCS) — the heavy-duty inverters usually located on an adjacent skid that convert the cabin's DC power into grid-ready AC power. If the BMS detects an internal short or a grid fault, it can trigger DC contactors and motorized breakers to isolate the cabin from the grid in less than a few milliseconds.

Looking Forward

The technical specifications of prefabricated Li-ion BESS cabins will continue to evolve as grid demands intensify. Future iterations will likely feature solid-state batteries, advanced AI-driven predictive maintenance algorithms, and even denser liquid-cooling architectures. By standardizing high-density energy storage into rugged, geo-adaptable containers, engineers have created the universal building block required to finally decouple global power grids from fossil-fuel dependency.
