TR which has been designed to protect against toxic gas include the following:
- Positively pressurized (minimum of 50Pa)
- Airtight
- Fresh air is stored air cylinder to ensure availability of air for the duration of TR considering maximum TR POB, potential leaks sources, door opening, etc
- Entrances with double sets of doors (airlock facility with air curtain to purge toxic gas trapped with personnel entering the airlock) and located as far as possible away from sources of H2S, interlock shall be in place to prevent both airlock doors being opened simultaneously or to alarm to warn of this condition. The location on the doors to buildings should be such that entry to the building is from side which is not directly facing to facilities to reduce the potential toxic gas ingress while in use.
- Doors shall be closed all the time except when in use. Or be automatic closing, for example by magnetic hold open, released on gas detection. Attention should be paid to avoid hazards with automatically closing doors such as trapped fingers, e.g. doors should be slow closing.
- HVAC shall be automatically shut off on detection of toxic gas at the air intakes, and dampers in the air intakes and exhaust shall close to shut in the building. Reliability of detection shall be determined as part of the design, and shall comply with the requirement for the protection.
- Toxic gas detectors shall be provided at HVAC inlet as well as within the airlock. Alarm provision shall be provided accordingly.
- A mechanism to allow manual initiation of HVAC shutdown from within the TR.
- TR leak tightness test shall be carried out to ensure the gas tightness and to confirm the air exchange rate considered in design of TR.
- Published on
We are pleased to get a order of H2S temporary refuge (TR) shelter from a Kazakhstan client. At a facility, such as chemical processing plant or a floating production storage and offloading (FPSO), or a floating vessel, offshore platform or a industrial manufacturer, there are typically large volumes of flammable and explosive chemicals being used, stored, proceeded and transported. These potentially dangerous situations should occur. Depending on toxicity or intensity of the chemicals, a chemical release or blast can cause severe effects to personnels. Toxic gases produced from an explosion or loss of containment can lead to disorientation, incapacitation, or death.
Drilling barge
20pax temporary refuge shelter | toxic gas refuge | H2S temporary refuge | 9 meters temporary refuge shelter | GA drawing of temporary refuge shelter
- Published on

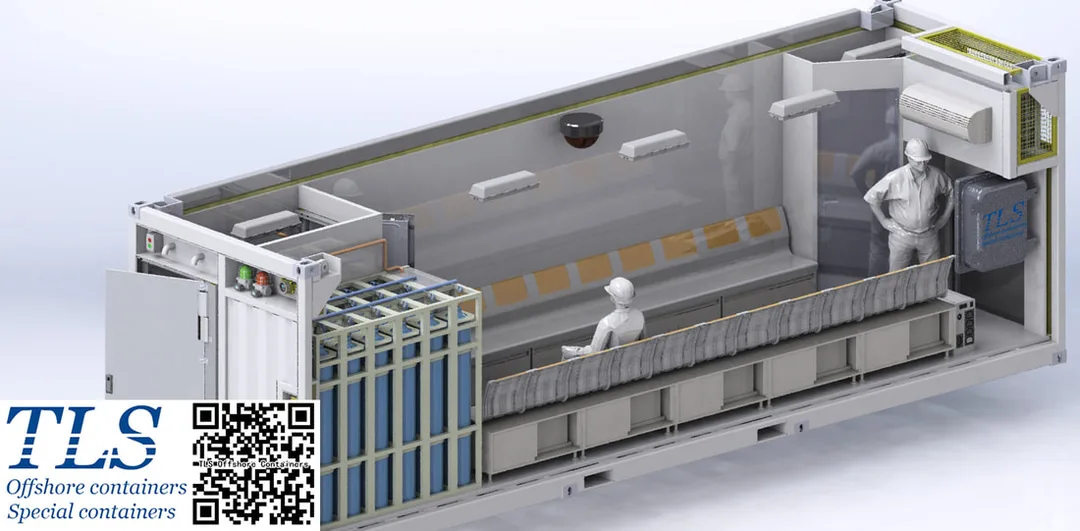

The temporary refuge shelter (TR) or toxic gas refuge (TGR) is designed for drilling platform, offshore barge, oil & gas, petroleum, and chemical industries. The temporary refuge shelter is designed to protect personnel against H2S gases and other hazardous gases that can appear in case of an uncontrolled release. The design of the TR is that everybody can rush into the shelter immediately without any time-consuming air-locking process. During the stay of the people inside the TR they can breathe normally from the atmosphere in the room. The shelter is protected by over pressurization during stand-by as well as during emergency.
More information about temporary refuge (TR) shelter | toxic gas refuge (TGR) | safe haven cabin
Don’t hesitate to contact us sales@tls-containers.com for more information about the temporary refuge shelter and toxic gas refuge. We are eager to explain the possibilities for your applications.
Please download TLS containerised solutions of temporary refuge shelter product brochure for reference.
More information about temporary refuge (TR) shelter | toxic gas refuge (TGR) | safe haven cabin
Don’t hesitate to contact us sales@tls-containers.com for more information about the temporary refuge shelter and toxic gas refuge. We are eager to explain the possibilities for your applications.
Please download TLS containerised solutions of temporary refuge shelter product brochure for reference.
- Published on
Temporary shelter (TR) shelters (sometimes called toxic gas shelters (TGR), safe harbor pods, H2S temporary shelters, TR pressurizing units) are most important for ensuring the safety of personnel. Flammable and explosive chemicals are commonly used, stored, handled and transported in large quantities in facilities such as chemical processing plants or floating production, storage and offloading (FPSO), or in floating ships, offshore platforms or industrial manufacturers. These potentially dangerous situations should happen. Depending on the toxicity or intensity of the chemical, the release or explosion of the chemical may seriously affect persons. Explosive or closed loss of gas can lead to disorientation, incapacitation or death.
The temporary refuge has the double functions as dayroom during normal operation and as temporary shelter functions in emergency situations. The TR is used as normal control room, office space or even canteen when operated in normal situation. In the event of an emergency such as an explosion or chemical release, a temporary shelter is a safe option in the situation that evacuation is not possible and is an important component of emergency management. When preventive control fails, the installation of temporary shelters, such as safe havens, in-place shelters and toxic gas shelters, is a mitigation measure that reduces loss of life and damage to property and equipment. Ultimately, these temporary shelters help improve survival.
In response, TLS temporary refuge shelter (toxic gas refuge shelter, or Safe haven cabin) provides a safe "access" area for toxic chemical releases, fires, explosions or other dangerous emergencies, ranging from hundreds to hundreds of people.
The temporary refuge has the double functions as dayroom during normal operation and as temporary shelter functions in emergency situations. The TR is used as normal control room, office space or even canteen when operated in normal situation. In the event of an emergency such as an explosion or chemical release, a temporary shelter is a safe option in the situation that evacuation is not possible and is an important component of emergency management. When preventive control fails, the installation of temporary shelters, such as safe havens, in-place shelters and toxic gas shelters, is a mitigation measure that reduces loss of life and damage to property and equipment. Ultimately, these temporary shelters help improve survival.
In response, TLS temporary refuge shelter (toxic gas refuge shelter, or Safe haven cabin) provides a safe "access" area for toxic chemical releases, fires, explosions or other dangerous emergencies, ranging from hundreds to hundreds of people.
- Published on
The Temporary refuge shelter is a place or sanctuary where persons are adequately protected while remaining in the installation in a major disaster such as chemical release, explosion, etc, it can protect people from associated risks, and people from there to communicating, monitoring and controlling equipment necessary to ensure their physical safety, and to safely and completely evacuate from there if necessary.
The temporary refuge shelter switches HVAC from fresh air mode to full recirculation mode to prevent potentially toxic gases from entering and the external gas detector activates the fire valve to close. TR will also provide a minimum breathing air concentration from the compressed air cylinder for at least 1 hour or longer. The location of the temporary shelter ensures the safety of personnel for a period to the convening of the call until the incident has been investigated and controlled or equipment has been successfully evacuated.
The temporary refuge shelter has adequate medical and welfare facilities as well as emergency communications.TR enclosures are designed for external installation and are equipped with air supply piping to the interior of the TR muster area. The TR shield control panel is designed to be installed internally within the TR area. When TR shelter went into operation, it was designed as a fail-safe system, meaning that if the shelter suffered damage or an air seal leak, clean air would leak out of the shelter instead of being inhaled by contaminated air.
The temporary refuge shelter switches HVAC from fresh air mode to full recirculation mode to prevent potentially toxic gases from entering and the external gas detector activates the fire valve to close. TR will also provide a minimum breathing air concentration from the compressed air cylinder for at least 1 hour or longer. The location of the temporary shelter ensures the safety of personnel for a period to the convening of the call until the incident has been investigated and controlled or equipment has been successfully evacuated.
The temporary refuge shelter has adequate medical and welfare facilities as well as emergency communications.TR enclosures are designed for external installation and are equipped with air supply piping to the interior of the TR muster area. The TR shield control panel is designed to be installed internally within the TR area. When TR shelter went into operation, it was designed as a fail-safe system, meaning that if the shelter suffered damage or an air seal leak, clean air would leak out of the shelter instead of being inhaled by contaminated air.
- Published on
The purpose of a temporary refuge shelter (or safe haven, H2S refuge shelter, or shelter in place) is to keep you safe when a chemical release or blast cause severe health effects. Toxic gases produced from an explosion or loss of containment, when inhaled, can lead to disorientation, incapacitation or death.
Two protective actions commonly used in the event of a blast or chemical release are evacuation or to seek temporary refuge in a shelter in place or safe haven. Time, size of the hazard, and location are just a few variables which can impact your ability to evacuate safely. When evacuation is not possible, the shelters will provide a safe alternative and are an essential part of emergency management.
Installation protective shelters such as safe havens, blast-resistant buildings and SIPs, is a mitigation control to reduce the loss of life, and damage to property and equipment, when preventative controls fail, When it comes down to it, these shelters help to improve survivability.
Two protective actions commonly used in the event of a blast or chemical release are evacuation or to seek temporary refuge in a shelter in place or safe haven. Time, size of the hazard, and location are just a few variables which can impact your ability to evacuate safely. When evacuation is not possible, the shelters will provide a safe alternative and are an essential part of emergency management.
Installation protective shelters such as safe havens, blast-resistant buildings and SIPs, is a mitigation control to reduce the loss of life, and damage to property and equipment, when preventative controls fail, When it comes down to it, these shelters help to improve survivability.
- Published on
When the gas protection function is enabled, the high-pressure air would be depressed by depressurizing system and then fresh air would be supplied to the main room. A micro-positive pressure of 50pa would be kept in the main room and 25pa in the air-lock area. Due to the internal pressure in the temporary refuge shelter is slightly higher than the atmosphere pressure, the internal air will vent through the check valve and the hazardous gas will be blocked outside.
Control room of temporary refuge shelter, toxic gas refuge cabin
- Published on
Temporary refuge shelter, Toxic gas refuge cabin, H2S refuge shelter
The toxic gas refuge design will comply to the following main features:
a) The TGR must be designed for a H2S atmosphere.
b) TGR is provide protection against fire for one hour.
c) TGR will resist to external Heat Stress due to fire of inflammable gas. No internal Heat Stress has been
considered, due to the inflammable gas detectors installed onboard which will automatically shut down auxiliary systems and dampers of the System which could permit:
- the circulation of gas inside the HVAC system.
- fire igniting sparks (electric contacts not rated explosion proof).
d) TGR will provide recovery to POB in case of detection of gas mix including at least: H2S and hydro-carbon Lower Explosion Limit (LEL) and Temporary smoke with particles suspension.
e) TGR will allow to provide temporary medical assistance to injured personnel who cannot use standard means of survival.
f) TGR will allow to provide temporary medical assistance to personnel hosted inside the hospital.
g) The System shall be completely automatic.
a) The TGR must be designed for a H2S atmosphere.
b) TGR is provide protection against fire for one hour.
c) TGR will resist to external Heat Stress due to fire of inflammable gas. No internal Heat Stress has been
considered, due to the inflammable gas detectors installed onboard which will automatically shut down auxiliary systems and dampers of the System which could permit:
- the circulation of gas inside the HVAC system.
- fire igniting sparks (electric contacts not rated explosion proof).
d) TGR will provide recovery to POB in case of detection of gas mix including at least: H2S and hydro-carbon Lower Explosion Limit (LEL) and Temporary smoke with particles suspension.
e) TGR will allow to provide temporary medical assistance to injured personnel who cannot use standard means of survival.
f) TGR will allow to provide temporary medical assistance to personnel hosted inside the hospital.
g) The System shall be completely automatic.
- Published on
The Temporary Refuge (T.R.) shelter (or safe haven shelter, toxic gas refuge) is a safe and sealed area for the people protection during environmental contamination from poisonous gases which can be present in operating areas where oil and/or gas research, extraction and pre- production are performed. The temporary emergency shelter should be provided on all offshore installations. It is required to have a defined performance standard related to its survivability when exposed to a major accident that includes, but is not limited to, ingress of smoke, flammable and toxic gas. HVAC forms an essential part of this. As the TR is the last space for the crew before abandoning the vessel, rig or platform, the HVAC system should create and maintain a comfortable and safe indoor condition free of any explosive and/or toxic gas-air mixtures. The air quality and pressure inside the TR-zone is than of top priority. This can be created by the special TR pressurisation shelter.
Temporary refuge shelter, safe haven, toxic gas refuge, H2S temporary refuge, TR, TGR, SIP
- Published on
- Fire and gas detection system send an alarm
- All the personnel run to the muster point near the TR Complex
- The TR F&G system run the emergency sequence operation, close the F&G dampers and lock the external doors
- The diesel generators stop and the electric power is supplied by batteries
- The HVAC system is switched from “fresh air” mode to “full recirculation” mode.
- Is activated the compressed air pressurisation system and the BA system.
- The air lock BA washing system is ready to start
- The air lock doors are unlocked for the first mustering sequence
- A predetermined number of personnel go inside the air lock (the TR doors are still closed)
- Start the BA washing sequence inside the air lock (the air lock doors are now closed)
- A toxic gas analyser verify the absence of gas (if the gas is revealed, start an additional washing sequence)
- The TR rooms doors can be opened.
- Start another mustering sequence (during the mustering, people outside the TR complex waiting for their turn are connected with the outdoor BA Cascade system)
- People inside the TR rooms take their sit or their numbered position, waiting for the rescue vehicle or for the end of the alarm.
- In case of TR evacuation (at the end of the 2 or 3 hours of emergency capacity of the TR), will start the disembarking sequence (through the air lock with only 1 washing sequence).
