Our office containers are manufactured in house to meet the highest industry standards. All units are designed to optimize workspace efficiency, meet environment and acoustic requirements, and house your specialist equipment and resources in a safe and comfortable environment. Our Office containers can be outfitted and modified to perform any number of functions to suit your specific project requirements. These functional containers provide a high quality for clients.
Features and benefits
Technical specifications
Electrical Connection
Connection is 380-690Vac, 3Ph+E, 50/60Hz. Module is supplied with a 30m power cable as standard.
Global compliance
ATEX, IECEx, CSC, EN 12079, DNV 2.7-1, A60 SOLAS
Features and benefits
- Detection and alarm system with Combined Pressurization, Fire and Gas detection (CPFG) system with all ancillary items for Zone 1 / zone 2 usage
- Includes H2S and CH4 gas detection, smoke detection, manual call point, pressurization fan, loss of pressure and flow devices.
- 2 split type HVAC systems
- A60 Fire Dampers.
- A60 window and A60 escape hatch (800mm x 800mm)
- Optional sprinkler head and piping can easily be connected to rig sprinkler system.
- Fitted with non-combustible B15 wall panels to ensure high thermal resistance and maximum noise reduction.
- CSC frame for minimized mobilization costs
- Easy access to all serviceable equipment for maintenance.
- CO2 dry powder fire extinguisher provided.
- Non-porous epoxy desktop, easy to clean, stain resistant and impermeable to most chemicals.
Technical specifications
- Fire Rating: A60 SOLAS
- HVAC: 2 x 18,000 BTU Split Units – duty and standby
- Detection and Alarm System: Connection to main Rig / Vessel Alarm System included
- Framework Design Temperature: -20°C to +50°C
Electrical Connection
Connection is 380-690Vac, 3Ph+E, 50/60Hz. Module is supplied with a 30m power cable as standard.
Global compliance
ATEX, IECEx, CSC, EN 12079, DNV 2.7-1, A60 SOLAS

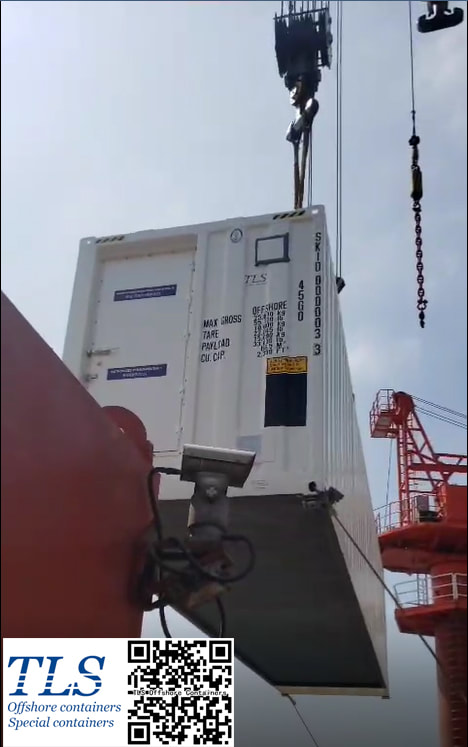

zone 1 / zone 2 rated office container, DNV2.7-1 certified, IEC60079-13 classified, 20ft office module, equipped with CPFG
zone 1 / zone 2 rated office container, DNV2.7-1 certified, IEC60079-13 classified, 20ft office module, equipped with CPFG
PRESSURISED LABORATORY CABIN, PRESSURISED WORKSHOP CONTAINER, MUD LOGGING UNIT, MUD LOGGING CABIN, PRESSURISED MODULES, OFFSHORE PRESSURISED MODULES
DNV 2.7-1, A60 Fire Rated and Zone I / zone II
Flexible and customised dimension and layout, 10ft/12ft/15ft/16ft/20ft/26ft/40ft etc
Lead time: 3-4 months.
which includes:
Engineering : Structural drawings, Architectural drawings and Documentation package c/w as built drawings and Certifications (CSC certificate, DNV2.7-1/EN12079 certificate, A60/Zone 1/Zone 2 certificate of conformity).
Fabrication : Structural materials to DNV 2.7-1 and A60 fire rated specification, Welding procedures, Welding inspections and Secondary steel provisions.
Assembly : 1 x A60 Main door, 1 x A60 Escape hatch, A60 Thermal Insulation, 1 x B15 Airlock Door w/ viewing glass, self- fabricated internal panel for wall, ceiling and airlock compartment.
Testing and Inspection: MPI and load testing in accordance with DNV 2.7-1, A60 insulation certification by DNV and Factory Acceptance Test (FAT) , Pressurised, Fire and Gas System,
Electrical Work : Lighting and small power Distribution Board(DB) c/w circuit breakers, Cabling within Laboratory unit for lighting and power points, Conduit wiring for lightings, Trunking wiring for 220V, 8 x Double gang 230V 13A switch socket (Non-Ex), 3 x IP rated 2x36W fluorescent lighting, 1 x Non Ex rated light switch, MCT frames c/w MCT inserts, Earth bosses, 1 x Exe PJB at recessed area.
Safety Equipment : Purge, Pressurized, Fire and Gas Control Panel, 2 x CH4 Detector, 1 x H2S Detector, 1 x Smoke Detector, 1 x Heat Detector, Pressure Switches and gauge, 1 x Ex Loss of Pressure Alarm, A60 Shutdown dampers, 1 x Emergency Lightings, 1 x Emergency Shut-down Button, 1 x Ex-proof Pressurisation Blower set & 1 x DNV 2.7-1 compliance lifting sling set.
Air Conditioning System: 1 set 14,000BTU Split System c/w indoor evaporator set, indoor compressor set, indoor aircon circuitry box, outdoor copper condenser coil in stainless steel housing & Ex condenser motor.
(20ft cabin)
Air Conditioning System: 2 set 14,000BTU Split System c/w indoor evaporator set, indoor compressor set, indoor aircon circuitry box, outdoor copper condenser coil in stainless steel housing & Ex condenser motor.
(40ft cabin)
Furnishing : N.A.
Painting Work : Preparation : Blasting to S.A. 2.5, Painting System : Three (3) coat System of 1st coat (65micron) with zinc rich epoxy primer, 2nd coat (75micron) with red lead epoxy primer, final coat (50micron) with Polyurethane coat.
Please download Pressurised cabin product brochure for reference.
Please don't hesitate to contact us at sales@tls-containers.com for any inquiries.
DNV 2.7-1, A60 Fire Rated and Zone I / zone II
Flexible and customised dimension and layout, 10ft/12ft/15ft/16ft/20ft/26ft/40ft etc
Lead time: 3-4 months.
which includes:
Engineering : Structural drawings, Architectural drawings and Documentation package c/w as built drawings and Certifications (CSC certificate, DNV2.7-1/EN12079 certificate, A60/Zone 1/Zone 2 certificate of conformity).
Fabrication : Structural materials to DNV 2.7-1 and A60 fire rated specification, Welding procedures, Welding inspections and Secondary steel provisions.
Assembly : 1 x A60 Main door, 1 x A60 Escape hatch, A60 Thermal Insulation, 1 x B15 Airlock Door w/ viewing glass, self- fabricated internal panel for wall, ceiling and airlock compartment.
Testing and Inspection: MPI and load testing in accordance with DNV 2.7-1, A60 insulation certification by DNV and Factory Acceptance Test (FAT) , Pressurised, Fire and Gas System,
Electrical Work : Lighting and small power Distribution Board(DB) c/w circuit breakers, Cabling within Laboratory unit for lighting and power points, Conduit wiring for lightings, Trunking wiring for 220V, 8 x Double gang 230V 13A switch socket (Non-Ex), 3 x IP rated 2x36W fluorescent lighting, 1 x Non Ex rated light switch, MCT frames c/w MCT inserts, Earth bosses, 1 x Exe PJB at recessed area.
Safety Equipment : Purge, Pressurized, Fire and Gas Control Panel, 2 x CH4 Detector, 1 x H2S Detector, 1 x Smoke Detector, 1 x Heat Detector, Pressure Switches and gauge, 1 x Ex Loss of Pressure Alarm, A60 Shutdown dampers, 1 x Emergency Lightings, 1 x Emergency Shut-down Button, 1 x Ex-proof Pressurisation Blower set & 1 x DNV 2.7-1 compliance lifting sling set.
Air Conditioning System: 1 set 14,000BTU Split System c/w indoor evaporator set, indoor compressor set, indoor aircon circuitry box, outdoor copper condenser coil in stainless steel housing & Ex condenser motor.
(20ft cabin)
Air Conditioning System: 2 set 14,000BTU Split System c/w indoor evaporator set, indoor compressor set, indoor aircon circuitry box, outdoor copper condenser coil in stainless steel housing & Ex condenser motor.
(40ft cabin)
Furnishing : N.A.
Painting Work : Preparation : Blasting to S.A. 2.5, Painting System : Three (3) coat System of 1st coat (65micron) with zinc rich epoxy primer, 2nd coat (75micron) with red lead epoxy primer, final coat (50micron) with Polyurethane coat.
Please download Pressurised cabin product brochure for reference.
Please don't hesitate to contact us at sales@tls-containers.com for any inquiries.
PRESSURISED LABORATORY CABIN, PRESSURISED WORKSHOP CONTAINER, MUD LOGGING UNIT, MUD LOGGING CABIN
A MUD logging unit is installed on the rig when geologic information must be retrieved on a timely basis. If the formations drilled are not well known or if a specific geologic horizon is targeted, mineralogical data from cuttings brought to the surface with the mud might be essential. MUD logging units can discover and evaluate oil & gas reservoirs rapidly, provide complete drilling parameters and monitor toxic gases, thus ensuring drilling safety, enhancing drilling efficiency and reducing operation cost.
As mud logging units are normally located in the hazardous zone 1 or zone 2, where fire or explosion hazards may exist, and the all the measurement equipment installed inside the mud logging units are not explosion proof, therefore the mud logging units should be positively pressurized by blowing fresh air without flammable gases, which creates a safe working environment not only for electric equipment inside, but also for mud loggers and working personnel.
Our explosion proof and intelligent pressurized containers are designed to meet the requirement of clients, suitable for onshore or offshore drilling, A0 or A60 fire rated. Intelligent pressurized containers are equipped with CPFG (combined pressurization, fire and gas control panels), gas detectors, pressurization fan, fire dampers, etc, which is suitable to be used as mud logging cabin.
TLS provides intelligent pressurized containers to global clients for many years. The pressurized container dimension and specifications can be customized according to client’s requirement.
Main Features:
1.Positive Pressure & Explosion-Proof Container
2.Wireless data acquisition system
3. SGC-3K Multicomponent Chromatograph
4.SL-IR-II CO2 Analyzer
5.SL-SAS Safety Alarm System
6.CVD Constant Volume Degasser
7.SS - 3 mud logging Software System
Please don’t hesitate to contact us at sales@tls-containers.com if you have the requirement.
As mud logging units are normally located in the hazardous zone 1 or zone 2, where fire or explosion hazards may exist, and the all the measurement equipment installed inside the mud logging units are not explosion proof, therefore the mud logging units should be positively pressurized by blowing fresh air without flammable gases, which creates a safe working environment not only for electric equipment inside, but also for mud loggers and working personnel.
Our explosion proof and intelligent pressurized containers are designed to meet the requirement of clients, suitable for onshore or offshore drilling, A0 or A60 fire rated. Intelligent pressurized containers are equipped with CPFG (combined pressurization, fire and gas control panels), gas detectors, pressurization fan, fire dampers, etc, which is suitable to be used as mud logging cabin.
TLS provides intelligent pressurized containers to global clients for many years. The pressurized container dimension and specifications can be customized according to client’s requirement.
Main Features:
1.Positive Pressure & Explosion-Proof Container
- Positive Pressure & Explosion-Proof with DNV 2.7-1 certificate.
- In compliance with IEC 60079-13 Standard
- A60 level fire-proof certificate
2.Wireless data acquisition system
- Explosion-proof design with IP67 protectionOver-current, over-voltage & short circuit protection
- Low-power consumption, can work continuously for at least 20 days with a single charge
- Communication distance: more than 300m
- WITS protocol, compatible with various kinds of mud logging units
3. SGC-3K Multicomponent Chromatograph
- Rapid online analysis of 12 kinds of hydrocarbon component.
- Gas in and gas out, elimination the influence of background gas
- Constant volume degassor
- Detection components: C1-C8 ,benzene, toluene & TG.
- Minimum detectable concentration: 10ppm
- Shortest analytical cycle: 90s(C1- C8)
4.SL-IR-II CO2 Analyzer
- Based on infrared absorption principle
- Detection range：0.2%～100%
- Response time ：≤10s
- Detection deviation：±2%FS
- Drifting zero：±2.5%FSRepeatable deviation ：＜2%
5.SL-SAS Safety Alarm System
- Automatic audio-visual alarm for any parameters
- Effectively prevent drilling accidents
- Anti-explosion & protection level: Exd Ⅱ CT6, IP66
6.CVD Constant Volume Degasser
- Extraction amount of drilling fluid : ≥30.5L / min
- Measurement deviation of supplemental air : 1%
- Adjustable temperature range for heating drilling fluid : 0-140 ℃
- Degassing efficiency: ≥90%
7.SS - 3 mud logging Software System
- Open frame structure
- Real-time formation pressure detection system
- Web publishing system for real-time data on wellsite
- Gas detection & correction software
- Remote online acquisition system
Please don’t hesitate to contact us at sales@tls-containers.com if you have the requirement.
