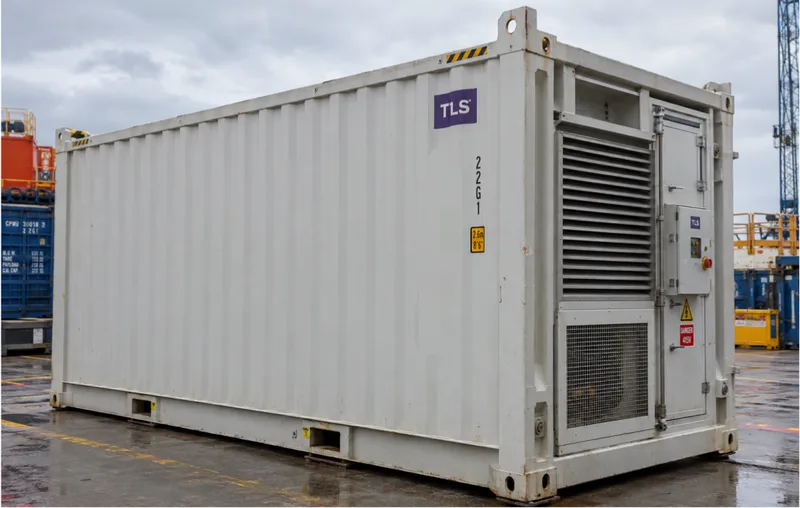

A positive-pressure container keeps its inside air pressure slightly higher than the surrounding area by supplying fresh air. When properly designed for the site, this airflow helps reduce the chance of outside contaminants entering through small gaps. It allows selected equipment or work activities to be placed inside a controlled enclosure in locations where the surrounding atmosphere may present a hazard.
Positive pressure is one part of a complete safety design. It does not make every container suitable for every hazardous area. The project must define the area classification, hazards, operating requirements and applicable standards before the enclosure and its systems are specified.
How the basic principle works
Air is drawn from a suitable location, as required and supplied into the container. The supply system maintains internal pressure above the surrounding pressure. Air then leaves through designed outlets or controlled leakage paths.
The actual arrangement may include air intakes, fans or blowers, pressure monitoring, alarms and automatic responses. The selected design depends on the enclosure size, number of occupants, equipment heat, site conditions and project safety requirements.
Why the equipment and room layout matter

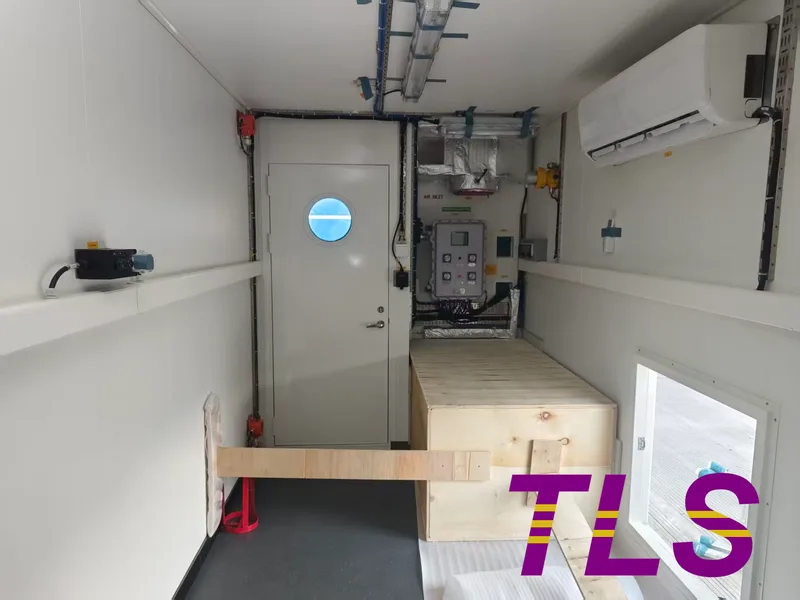

The air supply has to reach the areas where people and equipment are located. Large cabinets, partitions or poorly placed openings can affect airflow. The design team should consider where equipment will sit, where operators work, how doors are used and where air enters and exits.
This is why the customer’s equipment layout is useful early in the project. It helps the engineers coordinate the enclosure, air path, access doors and service areas rather than treating ventilation as an afterthought.
Understand monitoring and alarms
Pressure monitoring can indicate whether the system is maintaining its intended condition. Depending on the project, the system may also monitor gas or other conditions and trigger alarms or defined actions if limits are reached.
The alarm thresholds and automatic responses must be set by the project design and applicable requirements. Operators need clear procedures for responding to alarms, and the system needs inspection and maintenance according to its approved documentation.
Positive pressure is not the same as an explosion-proof enclosure
Positive pressure and explosion protection are related to hazardous-area design, but they are not interchangeable terms. A positive-pressure system is one method that may be used to create a protected interior for specified equipment or personnel. The complete design must address the enclosure, ventilation system, electrical equipment, monitoring, shutdown actions and the site’s hazardous-area classification.
Do not select a container based on the phrase “positive pressure” alone. Confirm the project classification, equipment type, applicable standards and required certificates with the responsible engineering team.
Information needed for a project design
Before requesting a proposal, provide the site area classification, expected hazards, intended use, number of occupants, equipment layout, heat loads, utility availability, operating conditions and required standards. The project should also define alarm interfaces, emergency actions, inspection and documentation requirements.
These inputs allow the supplier and project engineers to review a configuration suited to the actual application. Performance claims and certifications should be confirmed for the specific design and contract.
FAQ
1.Does positive pressure stop all hazardous gases from entering?
It is designed to help prevent ingress under the conditions defined for the system. Performance depends on the approved design, correct operation, maintained seals and required maintenance; it should not be treated as a blanket guarantee.
2.Can any equipment be installed inside a positive-pressure container?
No. Equipment suitability depends on the area classification, system design and project requirements. The equipment list should be reviewed by the responsible engineering team.
3.What happens if the pressure falls?
The monitoring and alarm response should be defined in the project design. Depending on the system, alarms or automatic actions may be required. Operators must follow the approved response procedure.
4.Is positive pressure the same as an explosion-proof rating?
No. The terms describe different design concepts. Confirm the required hazardous-area protection method and certification for the complete project.
Conclusion
A positive-pressure container is only as effective as the design behind it. The enclosure, air supply, equipment layout, pressure monitoring and alarm response must work together and suit the conditions of the specific site. Positive pressure is one part of that design—not a stand-alone guarantee or a substitute for confirming the required hazardous-area protection. A clear project design basis helps ensure that the container and its interfaces are planned as one coordinated solution.
