20 ft laboratory container rated for Safe zone (negative pressure)
Internal Fitment:
Electrical:
Air conditioning
Applicable Codes and Standards

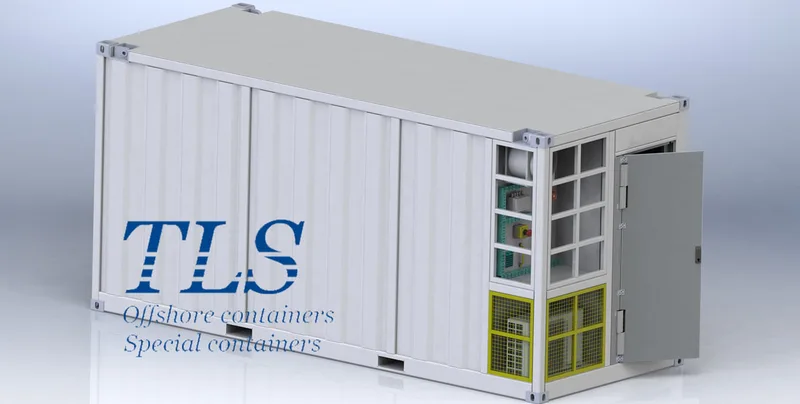

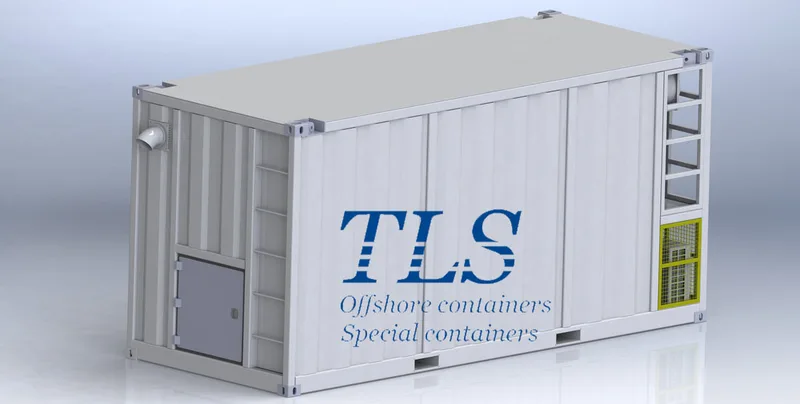

- standard 20 ft HC container dimensions (6058*2438*2896mm)
- Lifting points: 4pcs recessed pad eyes

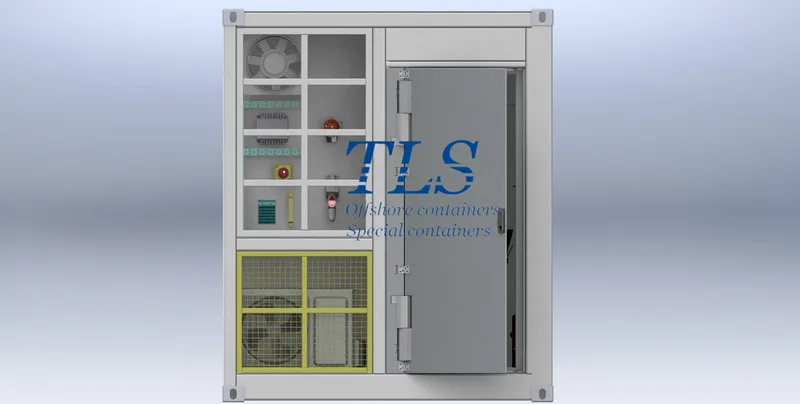

- Recess: full height recess for Air-con compressor and electrical penetrations
- A60 walls, ceiling and flooring
- Water inlet / outlet connection
- Compressed air connection
- With ventilation system to renew air in the laboratory 6 times per hour in normal operation and 20 times per hour in case of emergency

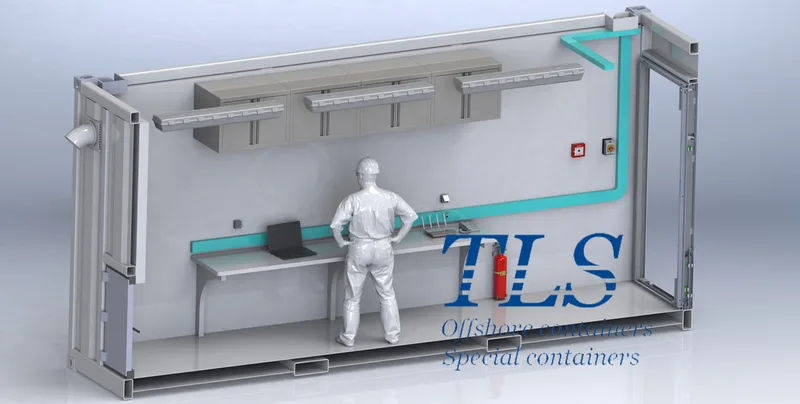

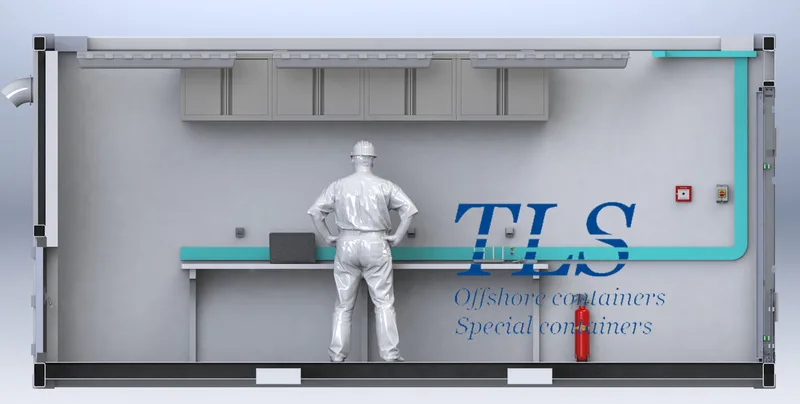

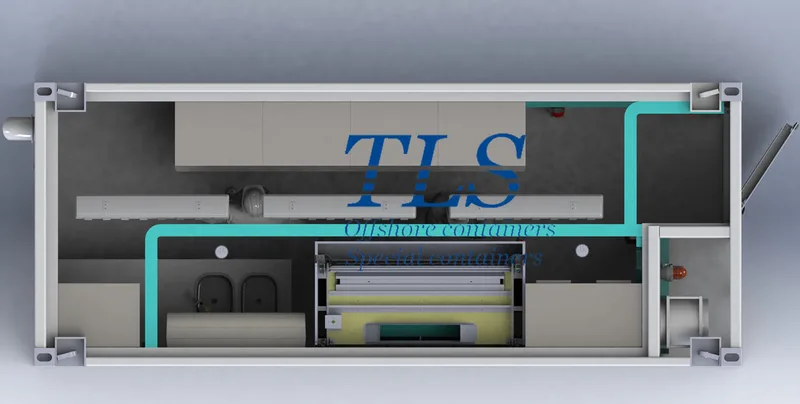

Internal Fitment:
- Workbenches - (anti-acid material) including drawers cabinet
- Overhead cabinet
- Eyewash

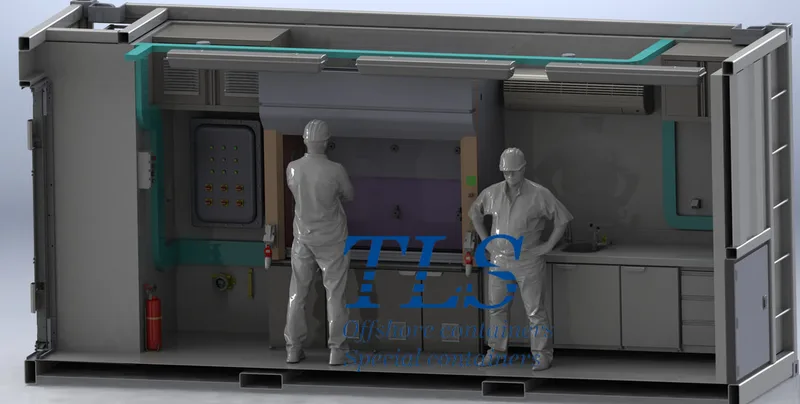

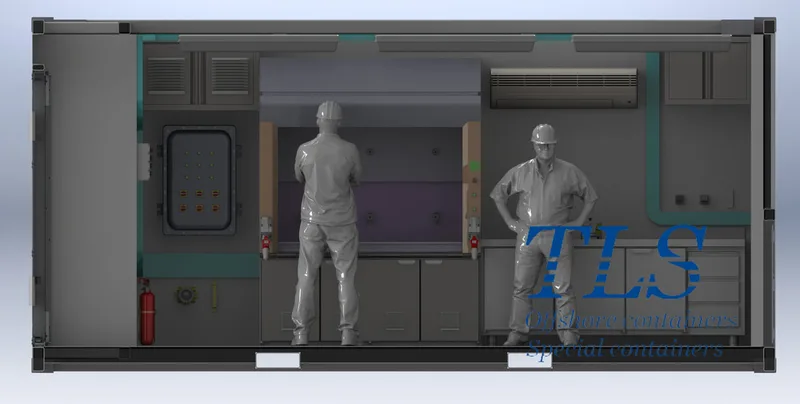

- Fume hood - Ex type (with Ex exhaust fan, Ex lighting, Ex switch, Ex sockets)
- Fire detection system (including heat detector and smoke detector)
- Gas detection CH4 and H2S
- Compressed air connection and Nitrogen connection
- Portable fire extinguisher
Electrical:
- Electrical supply external supply system designed for Safe Area.
- Electrical equipment inside the laboratory to be rated explosion proof
- Control panel - Ex type (automatically response when fire, smoke, toxic gas or flammable gas occur)
- Ex Lighting - 3 pcs (1pc emergency light with battery, Ex-type)
- Ex sockets (220V 3 PIN European style), 5 pcs
- MCT (1 pc, Roxtec)
- Emergency shutdown - Ex type
- Exhaust fans (1pc installed inside fume hood, 1pc installed outside) - Ex type
- Phone and network cabling
Air conditioning
- One Split Type AC unit - Ex Type (working temperature -20°C / +50°C, T3), 24000BTU
Applicable Codes and Standards
- Bureau Veritas or other major IACS Classification Societies
