How Should You Plan Foundations Spacing and Access Around a BESS Container

Summary

Plan the foundation, equipment spacing, and access routes as one coordinated site system. The layout must support structural loads, drainage, cable and pipe interfaces, fire separation, emergency response, maintenance, component replacement, and future decommissioning.

There is no universal foundation detail or separation distance for every BESS. Final requirements depend on the equipment configuration, geotechnical data, adopted codes, fire-test evidence, hazards, and approval by the relevant authorities.

The Short Answer

Start with the operating and emergency envelopes, then design the civil works around them.

The equipment footprint alone is not enough. A workable BESS plot also needs door-swing zones, technician access, ventilation and exhaust clearances, fire-service approach, cable and pipe corridors, drainage, lifting space, and safe routes for replacement equipment. The foundation must carry the actual equipment and environmental loads while keeping the container level and its interfaces aligned.

Site planning should therefore begin before the supplier freezes the general arrangement. Waiting until after equipment selection often produces avoidable clashes between foundations, doors, trenches, PCS skids, transformers, fences, and emergency access.

Foundation Design Starts with Verified Loads

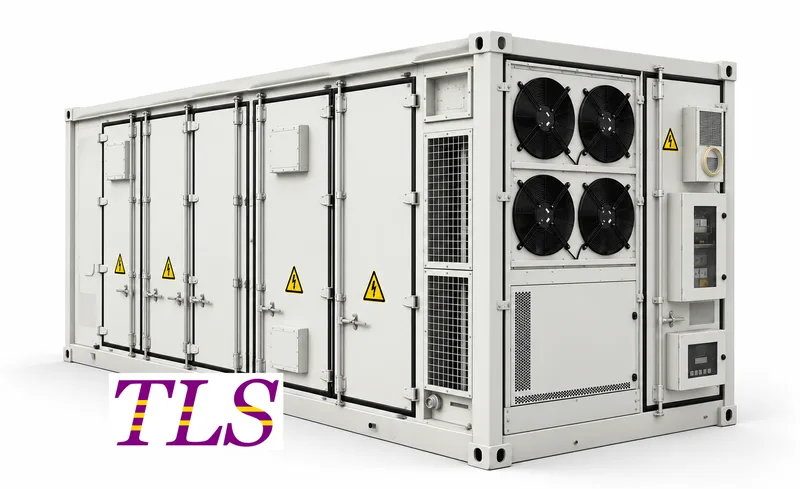

A BESS container may look like a standard freight container, but its support conditions can be different. Internal batteries and auxiliaries create concentrated loads. Doors, service bays, pipework, cable entries, and cooling equipment can also impose location-specific requirements.

The structural and geotechnical engineers should receive a supplier-issued load package that identifies:

Maximum operating and transport mass, with the applicable configuration stated
Center of gravity and support reactions at each bearing point
Permitted support locations and allowable differential level or settlement
Anchor locations, design actions, and base-frame details
Seismic restraint requirements and equipment anchorage loads
Wind actions, including attached equipment and open-door conditions where relevant
Lifting arrangement and temporary loads during installation or replacement
Cable, drainage, fire-water, coolant, and auxiliary penetrations

Do not use a preliminary brochure weight to finalize concrete or piling. Equipment configuration can change the reactions even when the external dimensions remain the same.

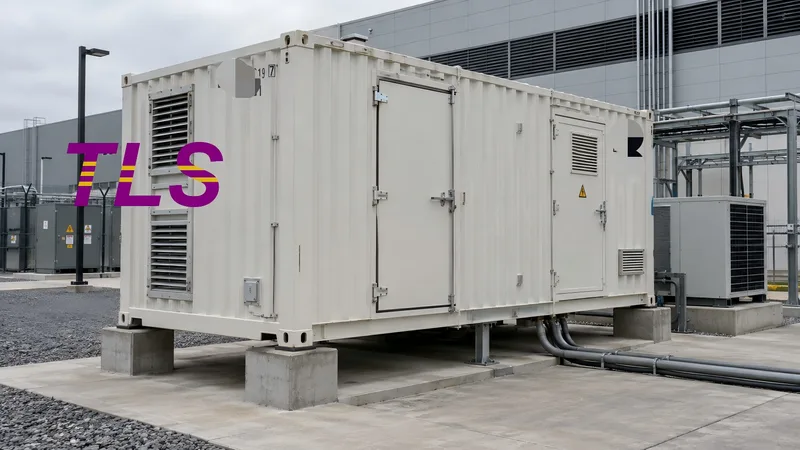

Choose the Foundation Concept for the Site

Common concepts include a reinforced-concrete slab, strip foundations, discrete pedestals, grade beams, or piled supports. Selection depends on bearing capacity, settlement, frost depth, groundwater, flood level, seismic conditions, local construction practice, and the routing of buried services.

The foundation design should address:

Strength and stability under dead, wind, seismic, flood, snow, ice, and other applicable loads
Total and differential settlement limits compatible with the enclosure and internal equipment
Sliding, overturning, uplift, anchorage, and accidental actions required by the project
Drainage slopes without twisting the equipment support plane
Corrosion protection at anchors, embedded steel, and dissimilar-metal interfaces
Access for installation, grouting, inspection, tightening, and later removal
Separation between structural reinforcement and the grounding design where coordination is required

In the United States, ASCE/SEI 7-22 addresses loads and load combinations for hazards that include wind, seismic, flood, snow, rain, ice, and fire. Other jurisdictions use different structural standards. The project engineer must apply the locally adopted code and site-specific hazard data.

Drainage and Elevation Are Part of Equipment Protection

Standing water around a BESS restricts access and can expose foundations, cable trenches, and low-level penetrations to avoidable risk. Finished grades should direct water away from the equipment and should not trap runoff between adjacent foundations.

The layout should coordinate:

Finished floor or base elevation relative to design flood levels
Surface drainage and erosion control
Trench drains, sumps, and discharge routes where used
Cable-entry elevation and sealing
Fire-water runoff strategy where required by the authority or environmental plan
Snow storage, wind-driven rain, splash, and roof drainage
Vehicle wheel loads near trenches and foundation edges

Drainage assumptions should appear on the civil drawings rather than remain as a site-installation decision.

Spacing Must Follow the Approved System Configuration

There is no single spacing number that is valid for every battery chemistry, enclosure, fire-protection arrangement, and jurisdiction.

Applicable fire and building codes may set default separation distances or allow alternatives supported by fire and explosion testing. The installed equipment, orientation, state of charge, internal layout, optional fire systems, adjacent exposures, and separation used in the test evidence must be compared with the proposed site arrangement.

UL Solutions notes that fire and explosion test data can inform enclosure design and separation decisions. The 2024 International Fire Code also distinguishes walk-in ESS units from cabinets, which matters because personnel access and hazard controls differ.

The authority having jurisdiction, fire service, owner, insurer, and design team should review the layout against the adopted editions of the applicable codes. A separation shown in a supplier drawing should not be treated as approval for a different site or configuration.

Access Has Four Different Purposes

One access aisle rarely satisfies every operational need. Review access by function.

Routine Operation

Operators need safe routes to local panels, emergency stops, disconnects, indicators, and inspection points. Door swings and removable panels must not block the only walkway.

Maintenance

Technicians need working space for filters, pumps, fans, valves, electrical compartments, battery racks, and diagnostic equipment. The layout should account for tools, temporary barriers, arc-flash boundaries where applicable, and safe handling of heavy parts.

Emergency Response

Emergency responders may need appliance access, hose deployment, observation positions, isolation controls, and a route that does not pass through the most credible hazard area. Access assumptions should be agreed with the authority and fire service, then reflected in the emergency response plan.

Replacement and Decommissioning

A site that can be commissioned may still be impossible to repair economically. Check whether a crane, forklift, or replacement vehicle can reach the equipment after fences, transformers, overhead lines, landscaping, and neighboring containers are installed. Preserve the swept path, outrigger area, lifting radius, and overhead clearance required by the agreed replacement method.

Where workplace exit routes apply, they must remain usable and unobstructed. OSHA’s exit-route requirements provide a useful US reference, but they do not replace the project’s fire, electrical, and local building-code review.

Coordinate Every Interface on One General Arrangement

The general arrangement should show more than equipment rectangles. It should include:

Foundation edges, bearing points, anchors, and equipment orientation
All doors, escape doors, panels, ladders, louvers, vents, and exhaust outlets
PCS, transformer, switchgear, auxiliary transformer, and control equipment
AC, DC, communication, grounding, drainage, coolant, and fire-water routes
Cable trenches, pull pits, bend radii, and entry directions
Fences, gates, roads, turning areas, bollards, and impact protection
Fire-service access, hydrants or water interfaces where applicable, and emergency isolation points
Working clearances, lifting zones, temporary laydown areas, and replacement paths
Surface levels, slopes, drainage flow, flood elevations, and retaining structures
Future expansion space and construction access for later phases

Run a multidisciplinary clash review before issuing civil drawings for construction. Small positional changes can affect door access, cable lengths, fire spacing, transformer clearances, and crane reach at the same time.

Key Inputs the Buyer Should Provide

Before the supplier confirms site requirements, the buyer or EPC contractor should provide:

Topographic survey, plot limits, and proposed equipment coordinates
Geotechnical report, groundwater level, frost conditions, and soil aggressiveness
Applicable structural, fire, electrical, environmental, and occupational-safety codes with adopted editions
Wind, seismic, snow, ice, flood, ambient temperature, altitude, and other site design data
Site drainage philosophy and required finished elevations
Fire strategy, emergency response concept, water availability, and authority comments
Road geometry, transport envelope, crane limits, and construction sequencing
Electrical single-line diagram and preliminary cable schedule
Preferred cable entry, trench, grounding, communication, drainage, and utility interfaces
Maintenance philosophy, replacement method, spare-equipment route, and expansion plan

The supplier should respond with equipment reactions, interface drawings, clearance requirements, and explicit assumptions. Final civil and layout approval remains a project engineering activity.

Frequently Asked Questions

Can every BESS container sit on four corner foundations?

No. Some designs permit corner supports; others require continuous or intermediate support. Use the supplier’s approved support reactions and deflection limits for the exact configuration.

What is the required distance between BESS containers?

The answer depends on the adopted code, system configuration, test evidence, adjacent exposures, and authority approval. Do not copy a distance from another project without confirming that the conditions match.

Should cable trenches be placed directly under the container?

Only if the equipment entries, structural design, drainage, sealing, installation sequence, and maintenance access support that arrangement. A trench can conflict with bearing zones or create a water path if coordination is poor.

How much maintenance space is enough?

Enough for the largest planned task, including door and panel movement, tools, barriers, component handling, and electrical safety boundaries. The supplier should identify task-specific access envelopes.

When should the fire service review the layout?

During concept design, before foundations and access roads are fixed. Early review reduces the risk of later changes to spacing, gates, water interfaces, signage, or emergency controls.
