How Should a Containerized Equipment Package Be Designed for Coastal and Offshore Corrosion

Summary

A corrosion-resistant containerized equipment package needs more than a high-performance paint. The design should start with the actual exposure, then coordinate material selection, coating systems, drainage, ventilation, joints, fasteners, electrical interfaces, fabrication, inspection, repair, and maintenance. Coastal distance alone does not define the environment, and no generic coating label can guarantee a fixed service life without project-specific conditions and quality control.

The Short Answer

Design corrosion protection as a system.

First, characterize salt deposition, humidity, temperature, time of wetness, industrial pollutants, immersion or splash exposure, condensation, washdown, and maintenance access. Then select compatible materials and protective systems for each micro-environment. Finally, control fabrication and application quality, record the inspection results, and define how damage will be repaired through the asset life.

Offshore and coastal packages fail early when specifications focus on the external wall coating but overlook cut edges, welds, crevices, roof details, door hardware, fasteners, cable entries, HVAC coils, internal condensation, and damage during transport or installation.

Define the Environment Before Selecting a Coating

The project should distinguish the general atmosphere from the local conditions at each component.

ISO 9223 classifies atmospheric corrosivity using first-year corrosion rates and considers factors including temperature and humidity, sulfur dioxide, and airborne salinity. ISO 12944-2 explains that the local environment and the micro-environment at the material surface influence corrosion stress and coating selection.

That means “coastal” is not a complete design input. The supplier should know:

Distance from the shoreline and expected chloride deposition
Offshore, nearshore, port, rooftop, onshore, or sheltered location
Relative humidity, temperature range, condensation frequency, and time of wetness
Prevailing wind, salt spray, wave splash, washdown, and rain exposure
Industrial emissions, dust, chemicals, or cleaning agents
Direct seawater exposure, intermittent wetting, burial, or standing water
Ultraviolet exposure and color or gloss-retention requirements
Planned inspection, cleaning, touch-up, and full-maintenance intervals

Different zones on the same package may need different treatments. A sun-heated roof, a shaded base rail, an HVAC coil, a bolted joint, and an internal cold surface do not experience the same moisture cycle.

Use Materials That Work Together

Material selection should consider both inherent corrosion resistance and compatibility with adjoining materials.

Galvanic corrosion can occur when dissimilar metals are electrically connected in the presence of an electrolyte. Salt water and persistent condensation make that risk more severe. The design may need compatible fasteners, insulating washers or sleeves, sealed interfaces, suitable coatings, and a geometry that prevents water retention. The solution depends on the metal pair, area ratio, electrical continuity, exposure, and required structural performance.

Stainless steel is not automatically immune to coastal attack. Grade, surface condition, chloride exposure, crevice geometry, contamination during fabrication, and cleaning practice all matter. Aluminum, galvanized steel, carbon steel, and coated fasteners also require project-specific compatibility checks.

Cathodic protection is a separate engineering method used for appropriate immersed or buried structures. DNV-RP-B401 addresses conceptual and detailed cathodic-protection design using aluminum- or zinc-based galvanic anodes. It should not be added to a container package by rule of thumb or treated as a substitute for sound detailing and coatings.

Design Out Water Traps and Crevices

Good geometry reduces the amount of work the protective system must do.

The enclosure and support frame should shed water and remain inspectable. Key details include:

Sloped roofs, drip edges, and drainage paths that do not discharge onto doors or electrical entries
Open or sealed structural details that avoid inaccessible moisture traps
Continuous welds or properly sealed joints where intermittent welds would create crevices
Rounded edges and prepared welds that allow the specified coating film to build uniformly
Drain holes positioned where they remain open after installation
Base details that avoid persistent contact with wet concrete or trapped debris
Door sills, hinges, latches, and gasket channels that can drain and be cleaned
Cable glands, conduit entries, and penetrations oriented and sealed against water entry
Separation of condensate drains from structural cavities and electrical areas
Access to inspect and repair hidden faces, anchor zones, and interfaces

Avoid details that depend on sealant alone where movement, ultraviolet exposure, or maintenance can break the seal. Sealants should be compatible with the substrate, coating, gasket, temperature range, and cleaning chemicals.

Specify the Coating as a Complete System

A useful coating specification identifies the substrate, surface preparation, primer, intermediate and finish coats, nominal dry-film thickness for each coat, stripe-coat locations, application limits, curing requirements, repair procedure, color, inspection method, and acceptance criteria.

The ISO 12944 series provides a framework for protective paint systems on steel structures, including Part 9 for offshore and related structures. A reference to an environmental category alone is incomplete. The project must also define the durability objective, exposure zones, substrate, preparation standard, coating system, inspection plan, and maintenance assumptions.

Edges, welds, cutouts, bolt heads, drainage features, and difficult geometries often receive less film build than flat panels. A specified stripe coat and measurable inspection hold points can address these weak locations. Fabrication sequence also matters: welding, grinding, drilling, and hot work after coating can destroy the intended system unless the repair process is controlled.

No coating specification should be presented as a guaranteed service life without stating the environment, design, application quality, damage allowance, inspection regime, and maintenance responsibility. Durability classifications are planning tools, not maintenance-free warranties.

Protect Internal Spaces and Functional Components

External paint does not protect the equipment inside.

Internal corrosion can result from condensation, chloride carried through ventilation, wet clothing or tools, leakage, washdown, or temperature cycling around cooled surfaces. The design should review:

Ventilation air intake location and filtration
Positive pressure or controlled ventilation where appropriate
Condensation risk at walls, pipes, ducts, cable plates, and thermal bridges
Insulation continuity and vapor control
HVAC coil, fan, fastener, and casing materials
Drain-pan material, slope, trap, and blockage monitoring
Internal coating of frames, floors, cavities, and inaccessible surfaces
Ingress protection of electrical enclosures and connectors
Conformal coating or environmental protection for electronic assemblies where justified
Space heaters, humidity control, and shutdown conditions

Each measure must be checked against fire safety, ventilation, thermal management, hazardous-gas management, maintainability, and energy use. Corrosion control cannot override another safety function.

Validate Components for the Intended Exposure

Laboratory tests can compare materials or verify a specified resistance, but a test duration does not translate directly into years of field life.

IEC 60068-2-52 specifies cyclic salt-mist testing for components or equipment intended to withstand salt-laden atmospheres. The project specification should state the relevant method, specimen configuration, preconditioning, acceptance criteria, and post-test functional checks.

Results should be interpreted together with field exposure, design details, and maintenance conditions.

Component review should cover doors and hardware, louvers, fasteners, HVAC coils, cable glands, connectors, lighting, sensors, control panels, nameplates, external junction boxes, lifting points, and exposed pipework. A container coating certificate does not establish corrosion resistance for these separate items.

Control Fabrication and Inspection

Protective performance depends heavily on execution. The inspection and test plan should include defined hold points for:

Material identification and traceability where required
Surface condition before preparation
Soluble-salt testing when specified
Surface preparation grade and profile
Ambient temperature, steel temperature, humidity, and dew-point margin during application
Stripe coating and coverage of edges, welds, and fasteners

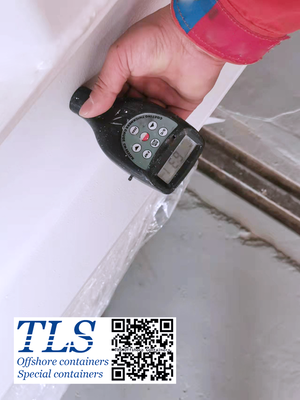

Wet- and dry-film thickness
Cure and recoat intervals
Holiday or discontinuity testing where appropriate to the system
Adhesion or other qualification testing when specified
Final visual inspection, color, labeling, and cleanliness
Repair of transport, lifting, installation, or commissioning damage

Records should identify the coating product batch, location, applicator, date, environmental conditions, readings, nonconformities, and repairs. Photographs help but do not replace measured results.

Plan Maintenance Before Delivery

Even a well-designed package needs inspection and cleaning. The operations plan should define safe access, inspection intervals, fresh-water washing where appropriate, acceptable cleaning methods, touch-up materials, repair preparation, color matching, spare gaskets and hardware, and criteria for escalation to a larger repair.

Areas that deserve routine attention include roof drainage, base rails, door sills, hinges, fasteners, lifting points, penetrations, HVAC intake and discharge areas, condensate drains, anchors, and any coating damaged by tools or moving parts.

The supplier should provide a repair procedure compatible with the original system. Field repairs made with an unidentified paint can create adhesion or compatibility problems and make later inspection difficult.

Key Inputs the Buyer Should Provide

For a project-specific corrosion design, the buyer should provide:

Installation location and whether the package is offshore, coastal, port-side, rooftop, sheltered, or exposed
Atmospheric data, chloride or salinity information, humidity, temperature, rainfall, ultraviolet exposure, and pollutants
Immersion, splash, washdown, chemical, dust, or condensation exposure
Applicable ISO, IEC, DNV, owner, class, or regulatory requirements with editions stated
Required design life and maintenance philosophy, without assuming they are identical to coating durability
Substrate and material restrictions, preferred coating products, color, and finish requirements
Inspection authority, documentation format, witness points, and acceptance criteria
Transport route, sea fastening, lifting method, storage conditions, and expected installation damage risks
Cleaning agents, operational fluids, fire-system media, and potential leak exposures
Access constraints for washing, inspection, and field repair

The final corrosion-protection schedule should be reviewed against the package drawings and bill of materials, not issued as a generic note.

Frequently Asked Questions

Is a high corrosivity category enough to specify the package?

No. It helps characterize exposure, but the specification still needs substrate preparation, the full coating system, detail design, component materials, inspection, repair, and maintenance requirements.

Does a salt-spray test prove a 20-year service life?

No. Accelerated tests can support comparison or qualification under defined conditions. They do not create a universal conversion from test hours to field years.

Should every fastener be stainless steel?

Not automatically. The grade, strength, galling risk, galvanic compatibility, crevice exposure, coating, and maintenance method all need review.

Is offshore corrosion protection the same as coastal protection?

No. Offshore packages can face more severe salt deposition, splash, continuous wetting, restricted maintenance, vibration, and classification or owner requirements. The actual exposure zones must be defined.

Can cathodic protection replace paint?

For appropriate immersed or buried structures, cathodic protection can work with coatings as part of an engineered system. It does not protect all atmospheric surfaces and should not compensate for poor drainage or incompatible materials.
