In a battery energy storage system (BESS), the Power Conversion System (PCS) and Battery Management System (BMS) must work as one coordinated control loop. The BMS defines the battery’s safe operating boundaries, while the PCS converts power and executes charging or discharging commands. Reliable communication between them prevents battery damage, improves availability, and allows the system to respond safely to changing conditions.
What Does the BMS Do?
The BMS is the battery’s monitoring and protection layer. It measures cell and pack voltage, current, temperature, insulation status, state of charge (SOC), and state of health (SOH). Based on these inputs, it determines whether charging or discharging is permitted and calculates the maximum allowable charge and discharge power.
These limits are dynamic. A battery close to full charge, for example, cannot continue accepting maximum power. A pack with low SOC, a weak cell, an abnormal temperature, or reduced SOH may also require power derating. The BMS continuously updates the limits so the battery remains inside its safe operating area.
What Does the PCS Do?
The PCS manages bidirectional energy conversion between the DC battery and the AC grid or load. It receives a power target from the energy management system (EMS), then regulates voltage, current, active power, and reactive power.
However, an EMS command is not absolute. The PCS must compare the requested power with its own rating and the real-time limits supplied by the BMS. The lowest safe limit becomes the effective command. This hierarchy ensures that commercial objectives—such as peak shaving, frequency regulation, or energy arbitrage—never override battery safety.
How Do the PCS and BMS Communicate?
PCS–BMS communication commonly uses CAN, RS485, or industrial Ethernet, with protocols selected according to system architecture. Typical exchanged data includes SOC, SOH, pack voltage, current, temperature, alarm level, contactor status, charge and discharge enable signals, and maximum allowable power or current.
A robust design also includes heartbeat messages, timestamps, sequence counters, checksums, and timeout rules. These mechanisms help both devices identify stale, corrupted, or missing data instead of treating an old operating limit as valid.
How Does Charge and Discharge Power Limiting Work?

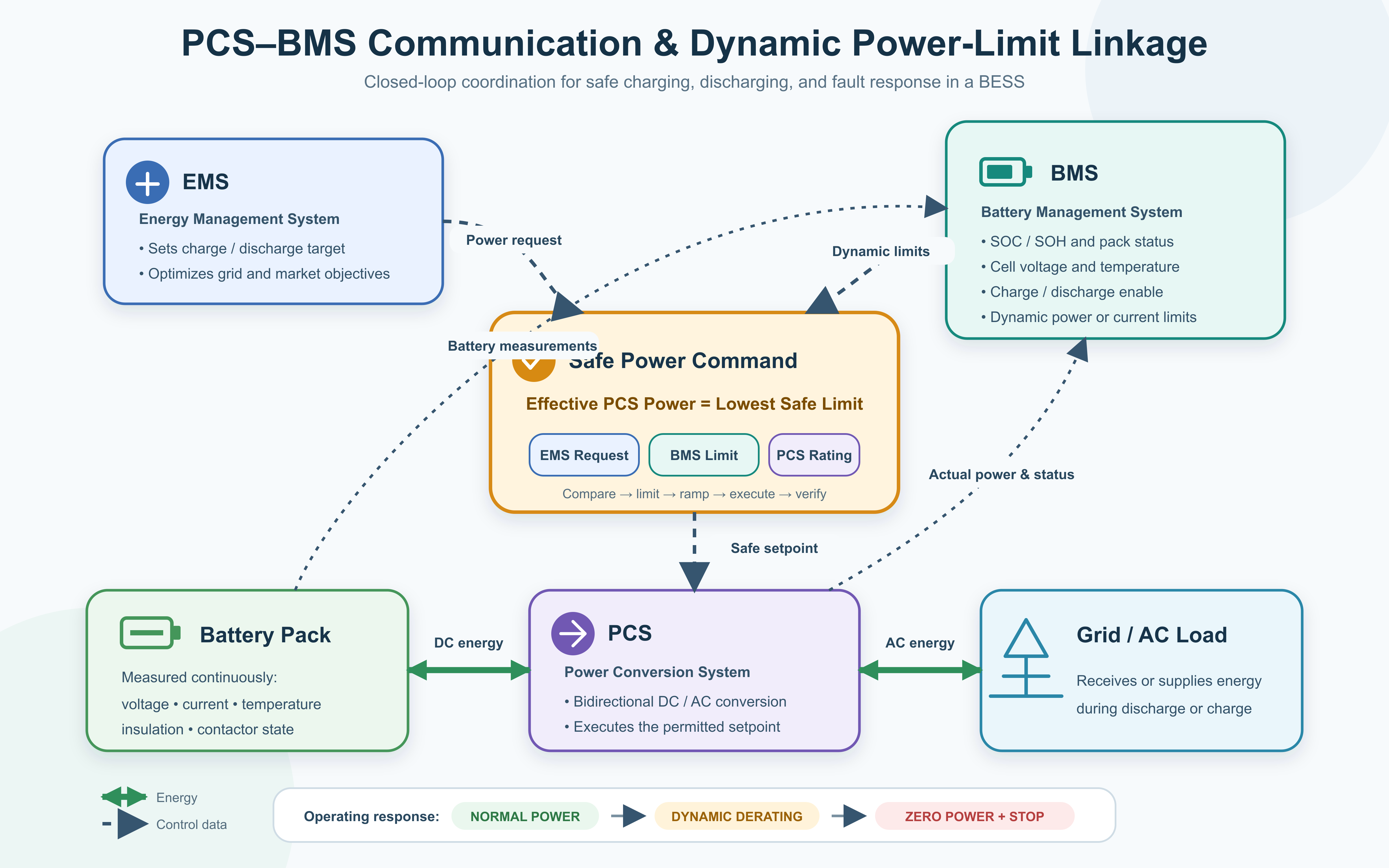

The linkage mechanism follows a simple principle: request, compare, limit, execute, and verify. First, the EMS sends a target. Next, the PCS checks the BMS limits and local equipment constraints. It then ramps toward the permitted value rather than changing power abruptly. Meanwhile, the BMS continues monitoring the battery and recalculating the boundary.
As SOC or cell voltage approaches the upper threshold, allowable charging power gradually falls. When SOC or voltage approaches the lower threshold, discharge power is reduced. High or low temperature can trigger derating, while a critical fault can set the allowable power to zero and initiate an orderly stop.
What Happens If Communication Fails?
PCS–BMS communication loss should produce a fail-safe response. After a defined timeout, the PCS should ramp power to zero, stop charging or discharging, and report an alarm. Critical protections should not depend on software communication alone. Contactors, emergency-stop circuits, hardware interlocks, and independent overcurrent or overvoltage protection provide additional safety layers.
Key Takeaway
A safe BESS does not treat the PCS and BMS as separate devices. Their real-time communication creates a closed-loop protection system: the BMS defines what the battery can safely deliver or absorb, and the PCS ensures actual power never exceeds that boundary. Clear data definitions, fast limit updates, controlled ramp rates, fault prioritization, and fail-safe behavior are essential for safe operation, longer battery life, and dependable energy-storage performance.
