Explosion-Proof Design of Functional Containers: Adapting to Zone 1 and Zone 2 Applications

In high-risk industries such as oil & gas, chemical processing, and hydrogen electrolysis, the operating environment often contains flammable gases or vapors. This requires containers used in such areas to comply with strict explosion-proof standards.

As a provider of customized functional container solutions, TLS fully understands the differences between Zone 1 and Zone 2 hazardous areas and adapts container structure, materials, and systems accordingly.

1. Zone 1 vs Zone 2 – Risk Levels Define Design Requirements

• Zone 1: Areas where explosive gas atmospheres are likely to occur during normal operation.
• Zone 2: Areas where explosive gas atmospheres are unlikely during normal operation, and only occur for short periods under abnormal conditions.

This distinction means that Zone 1 applications demand higher and more consistent safety performance, while Zone 2 designs may allow for certain optimizations and cost-effectiveness trade-offs.

2. Container Structure – From Sealing to Ventilation

• Positive Pressure Explosion-Proof System

For both Zone 1 and Zone 2 applications, TLS equips containers with positive pressure ventilation systems with dedicated control logic, maintaining a clean internal atmosphere and preventing the ingress of flammable gases.

Zone 1 applications require a redundant fan system (N+1) with a backup power supply to ensure system operation. The standby fan has a fast gas replacement start-up mode and incorporates gas leakage detection and automatic power-off to ensure a safe positive pressure environment is maintained at all times inside the enclosure.

For Zone 2, a single-fan configuration can be used with adjustable start/stop strategies based on on-site risk levels and operating cycles, optimizing cost-performance balance.

• Sealing and Material Treatment

All welding seams, pipe penetrations, and door frames must meet airtightness standards. Materials must comply with fire and corrosion resistance requirements, especially for marine or high-humidity environments.

3. Electrical and Control System Explosion-Proof Strategies

• Selection of Electrical Components

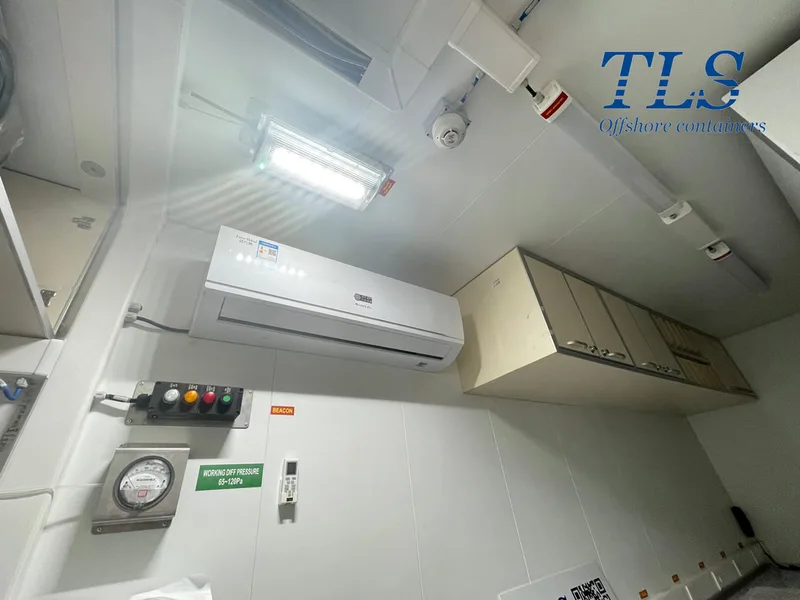

In Zone 1, all equipment such as lighting, sockets, and air conditioners must be explosion-proof certified (e.g., Ex d or Ex e under ATEX or IECEx standards). Zone 2 can allow certain non-explosion-proof devices, but they must be protected through positive pressure or gas detection systems.

• Control Logic Differentiation

Zone 1 systems often have redundant controllers and independent protection circuits to ensure no single-point failure compromises safety. Zone 2 allows for simplified control but still requires essential features such as power cut-off, pressure alarms, and gas concentration monitoring.

4. External Interfaces and Explosion-Proof Penetrations

Every cable or pipe penetration is a potential leakage point—especially in high-risk Zone 1 areas—so safety measures must be implemented from the source:

• Cable entries must use explosion-proof cable glands (e.g., EExe certified) with secure compression seals.
• Pipework should use flexible connections with explosion-proof fittings to avoid damage from vibration or tension.
• All interface positions and routing must avoid high-temperature or high-vibration zones, while leaving sufficient maintenance space.

5. Design Adaptation Process – Starting from Risk Assessment

TLS participates in the client’s risk assessment process from the very beginning. Based on the area classification drawings provided, we develop targeted explosion-proof designs to ensure every detail meets the relevant standards.
Upon delivery, TLS also provides complete design drawings, interface documentation, and explosion-proof compliance files for client review and record-keeping.

Conclusion – True Adaptation is Safety in the Details

Adapting to Zone 1 and Zone 2 requirements is not simply a matter of choosing different components—it requires a holistic approach to container structure, ventilation, electrical systems, and safety logic.

Through project-based design, component-level certification, and system-level validation, TLS ensures every explosion-proof container is not only compliant but also safe, reliable, and maintainable.
