A Factory Acceptance Test (FAT) is a critical procedure to verify the functionality, safety, and reliability of equipment before it’s deployed. In the case of the Pressurized Container, which serves as an essential component in explosion-proof control systems, the FAT ensures that all systems are working optimally and safely under real operational conditions. Below is a comprehensive guide on how the FAT for a pressurized container is performed, covering everything from visual inspection to system performance tests.
1. Visual Inspection: Ensuring Proper Installation and Functionality
The FAT begins with a thorough visual inspection of the equipment and its installation. This includes verifying the placement of key elements like the Ex d CPFG control box, emergency shutdown switches, and combustible gas detectors, which are integral to the system's safety and operational capabilities. Below are the key components inspected:
2. Insulation Resistance Test: Verifying Electrical Integrity
An insulation resistance test is carried out to ensure that all electrical components are properly insulated, which is necessary for preventing electrical faults or short circuits.
3. Power-On Inspection: Validating Electrical Power Systems
The next phase of the FAT involves verifying that the electrical systems are powered on correctly:
4. System Display Screen Operation: Ensuring User Interface Functionality
During the FAT, the system's display screens undergo a series of checks to confirm proper operation and functionality. These checks include:
5. Function Check: Testing System Operations Under Various Conditions
In this phase, the system is put through a series of operational checks under various conditions to ensure it reacts correctly to real-world scenarios:
Conclusion:
Once all the checks have been completed and all tests have been successfully passed, the equipment is deemed ready for deployment. The FAT report will detail each test's result, any issues encountered, and the corrective actions taken. The successful completion of the FAT ensures that the Pressurized Container will function safely and efficiently in real-world applications, meeting all required standards and regulations.
This detailed testing process helps prevent costly failures or safety hazards once the equipment is put into operation. By thoroughly evaluating the system’s performance and safety mechanisms, the FAT ensures that the pressurized container will operate smoothly in explosive environments, providing reliable protection for both personnel and equipment.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More information,please visit the below website: https://www.tls-containers.com/tls-blog/category/container-test
Keywords: #Factory Acceptance Test (FAT),#PDU Pressurized Container,#Explosion-proof systems,#Visual inspection,#Insulation resistance test,#Electrical integrity,#Emergency shutdown systems,#Combustible gas detection,#System performance testing,#Safety mechanisms,#Operational reliability,#Differential pressure components,#Grounding systems,#Alarm system functionality,#Emergency shutdown test,#Real-world scenario testing.
1. Visual Inspection: Ensuring Proper Installation and Functionality
The FAT begins with a thorough visual inspection of the equipment and its installation. This includes verifying the placement of key elements like the Ex d CPFG control box, emergency shutdown switches, and combustible gas detectors, which are integral to the system's safety and operational capabilities. Below are the key components inspected:
- Control and Emergency Power Systems: This includes explosion-proof boxes, emergency power switches, and the safety mechanisms such as gas detectors (e.g., H2S detectors), temperature/smoke sensors, and fire alarms.
- Differential Pressure Components: Ensuring that the differential pressure transmitters and gauges are properly connected to the gas pipes is essential to maintaining positive pressure and preventing hazardous situations.
- Emergency Systems: The presence of emergency shutdown switches, alarms, lights, and fire extinguishers are verified.
- Grounding and Cable Inspections: A detailed check is performed on grounding systems, cable glands, and cable penetration sealing modules (MCT) to ensure proper insulation and prevent electrical hazards.
- Seal and Label Checks: Another crucial aspect is checking the pressurized room seals and the door labels, which should clearly indicate warnings about the pressurized nature of the room, ensuring that personnel follow the correct safety procedures.
2. Insulation Resistance Test: Verifying Electrical Integrity
An insulation resistance test is carried out to ensure that all electrical components are properly insulated, which is necessary for preventing electrical faults or short circuits.
3. Power-On Inspection: Validating Electrical Power Systems
The next phase of the FAT involves verifying that the electrical systems are powered on correctly:
- Voltage Measurements: The input voltage of the CPFG control box and its control power supply output are checked.
- PLC Power Supply: The power supply to the PLC is verified, with the fuse checked to ensure that the system is properly powered and operational.
- Touch Screen Check: The system's touch screen should display normal operations and be responsive to commands.

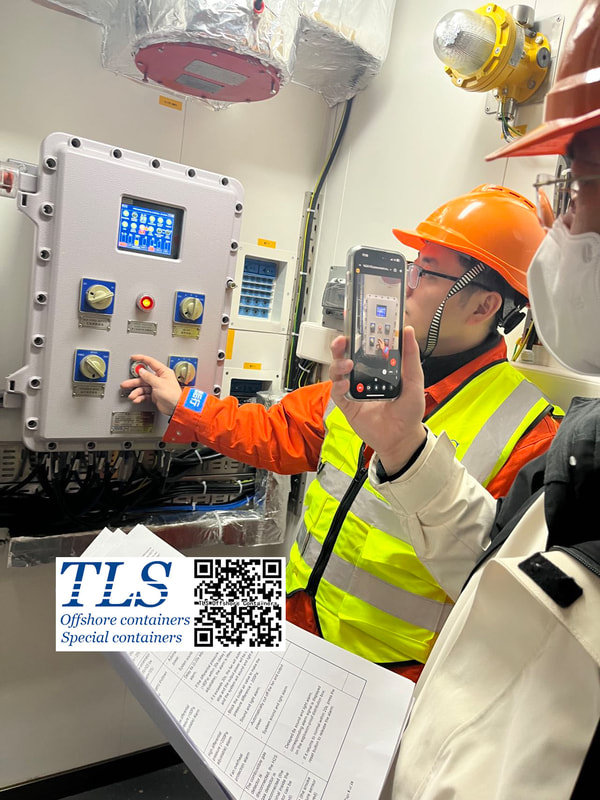

4. System Display Screen Operation: Ensuring User Interface Functionality
During the FAT, the system's display screens undergo a series of checks to confirm proper operation and functionality. These checks include:
- Screen Cycling: Ensuring that the system cycles through different screens correctly, from the main display to alarm and status screens.
- Debug Mode: Ensuring that the system enters debugging mode for troubleshooting and configuration purposes.
- Alarm Confirmation and Testing: Checking that the alarm system operates correctly, providing audible and visual alerts when needed.
5. Function Check: Testing System Operations Under Various Conditions
In this phase, the system is put through a series of operational checks under various conditions to ensure it reacts correctly to real-world scenarios:
- Normal and Bypass Operations: The system is tested in both normal and bypass modes to confirm that power and fan operations can be toggled appropriately.

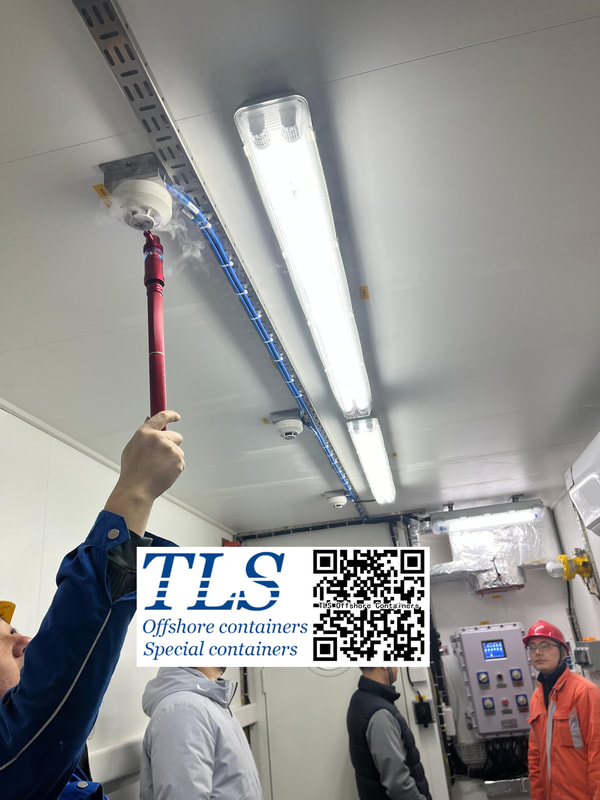

- Alarm Tests: Various alarms are simulated, including combustible gas detection, low and high gas concentrations, fire alarms, and H2S gas detection. The system should automatically cut off power and sound alarms when necessary.
- Fan and Flow Rate Testing: The fan system and airflow are monitored, ensuring that the fan responds to changes in pressure or other alarm conditions, and that ventilation is maintained as per system requirements.
- Emergency Shutdown Test: The system’s emergency shutdown mechanism is triggered during simulated emergencies, ensuring that power is safely cut off in the event of a fault.
- Sensor Integrity Test: Sensor disconnections are simulated to ensure that the system responds promptly with alarms and performs an automatic shutdown if necessary.
Conclusion:
Once all the checks have been completed and all tests have been successfully passed, the equipment is deemed ready for deployment. The FAT report will detail each test's result, any issues encountered, and the corrective actions taken. The successful completion of the FAT ensures that the Pressurized Container will function safely and efficiently in real-world applications, meeting all required standards and regulations.
This detailed testing process helps prevent costly failures or safety hazards once the equipment is put into operation. By thoroughly evaluating the system’s performance and safety mechanisms, the FAT ensures that the pressurized container will operate smoothly in explosive environments, providing reliable protection for both personnel and equipment.
