Comprehensive Guide to Cross-Cut Test for Container Painting Adhesion: Ensuring Durability and Longevity

The durability and longevity of a container’s paint job are critical, especially for containers exposed to harsh environmental conditions. The adhesion of paint to the container’s surface plays a vital role in preventing rust, corrosion, and deterioration. One of the most reliable methods to test this adhesion is the Cross-Cut Test. This article will delve into the importance of paint adhesion testing, the procedure of the Cross-Cut Test, and its significance in maintaining container quality.

Why Paint Adhesion Testing is Crucial for Containers
Containers, especially those used in shipping and storage, are constantly exposed to extreme weather conditions, saltwater, and rough handling. Over time, these factors can cause the paint to peel, chip, or wear off, leading to rust and structural damage. Ensuring strong paint adhesion is vital for:
  •  Corrosion Resistance: Good paint adhesion acts as a protective barrier against moisture and corrosive elements.
  •  Aesthetic Maintenance: Strong adhesion prevents paint from flaking, keeping the container looking new and professional.
  •  Cost Efficiency: Regularly checking adhesion helps prevent costly repairs or repainting due to premature paint failure.

What is the Cross-Cut Test?
The Cross-Cut Test, also known as the cross-hatch test, is a widely used method to evaluate the adhesion strength of a paint or coating on a substrate. It is a simple yet effective test that provides immediate results, making it ideal for both laboratory and on-site inspections.
​
​The Cross-Cut Test Procedure
The Cross-Cut Test involves the following steps:
1.    Surface Preparation: Clean the test area on the container’s painted surface to remove any dirt, grease, or contaminants that could affect the test results.
2.    Cutting the Grid: Using a specialized cutting tool, a grid pattern (usually 6x6) is made on the painted surface. Each cut should penetrate through the paint layer down to the substrate. The standard grid size is typically 1mm x 1mm, but it may vary depending on the paint thickness and type.
3.    Applying Adhesive Tape: A piece of adhesive tape is then firmly applied over the grid pattern. It’s essential to ensure that the tape adheres well to the surface.
4.    Removing the Tape: The tape is quickly pulled off at a consistent angle. The force of removing the tape pulls on the paint within the grid cuts.
5.    Evaluating the Results: The adhesion of the paint is evaluated based on the amount of paint removed by the tape. The results are graded from 0 to 5, with 0 indicating no paint removal (excellent adhesion) and 5 indicating severe paint removal (poor adhesion).

Importance of Cross-Cut Test Results
The results from the Cross-Cut Test are crucial for assessing the quality of the container’s paint job. A low score (0-1) indicates that the paint is firmly adhered to the surface and is likely to withstand environmental stresses. Conversely, a high score (4-5) suggests poor adhesion, which may lead to premature paint failure and the need for repainting or other protective measures.
The Cross-Cut Test is an essential procedure for evaluating the adhesion strength of container paint. By regularly performing this test, container owners and operators can ensure the longevity and durability of their containers, ultimately protecting their investments. Ensuring proper paint adhesion not only maintains the container’s structural integrity but also enhances its appearance and reduces long-term maintenance costs.

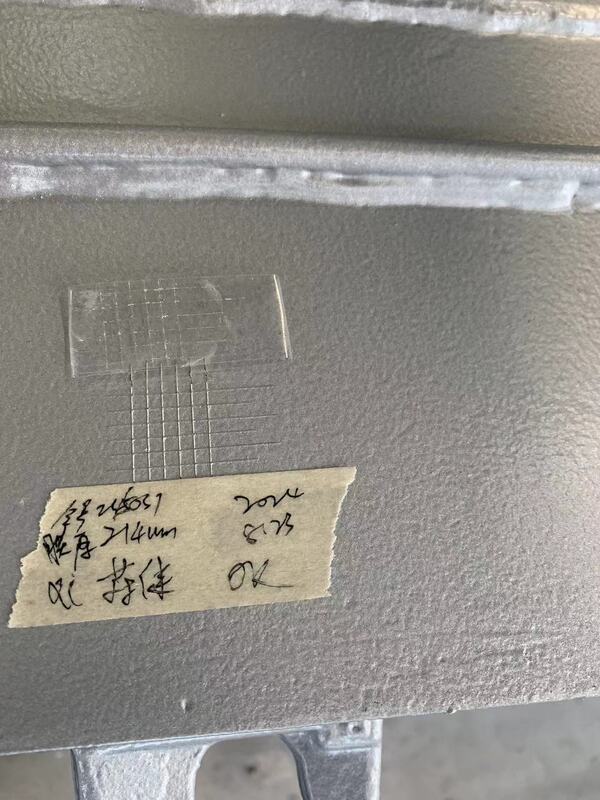

Paint Adhesion Testing

---
