A modern Battery Energy Storage System, or BESS, depends on three major control components: the Battery Management System (BMS), Energy Management System (EMS), and Power Conversion System (PCS). Although they perform different tasks, these systems work together to ensure that stored energy is managed safely, converted efficiently, and dispatched according to grid or customer requirements.

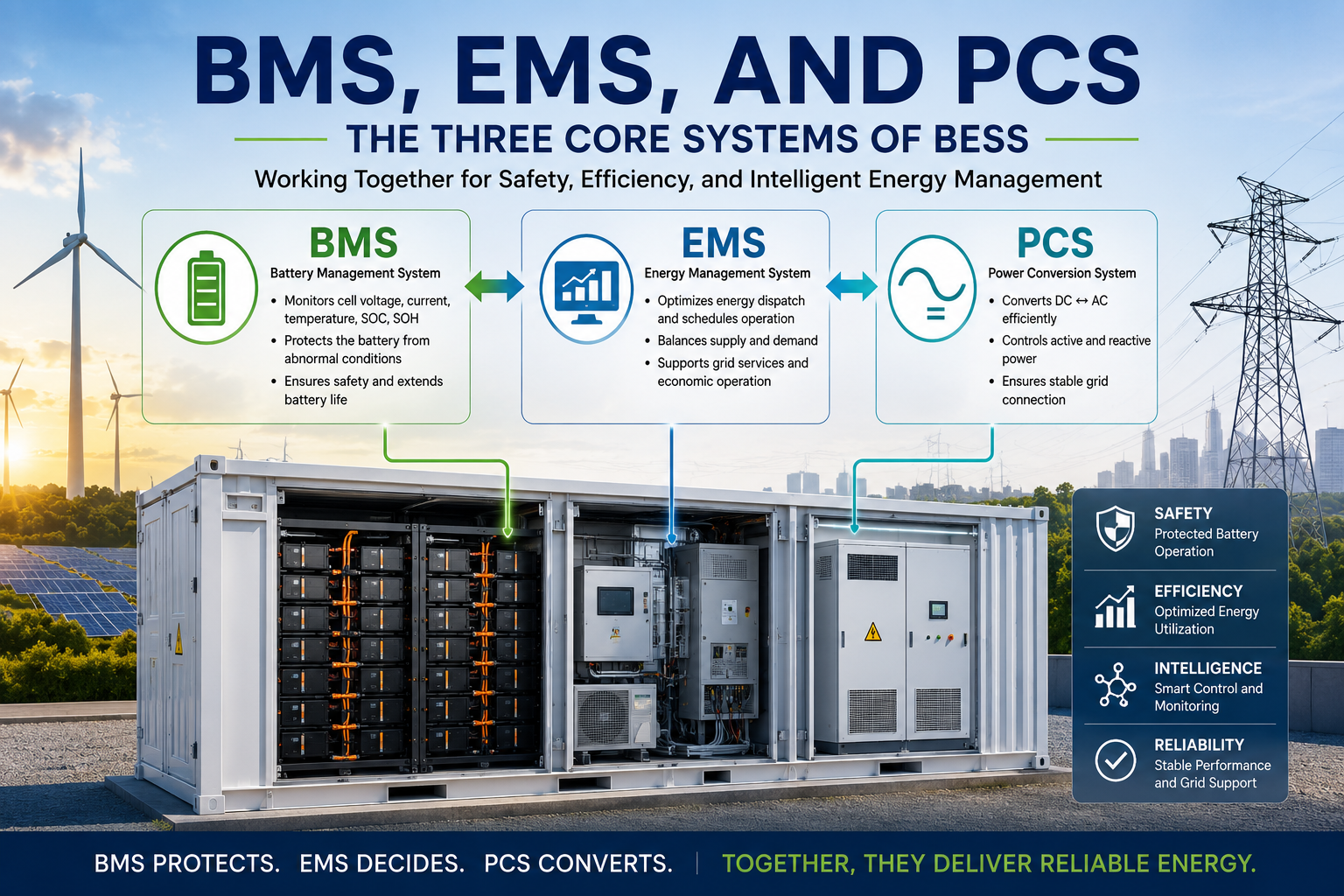

In simple terms, the BMS protects the battery, the EMS makes operating decisions, and the PCS converts electrical power.
What Is a Battery Management System?
The Battery Management System is responsible for monitoring and protecting the battery cells, modules, racks, and complete battery system.
The BMS continuously measures important operating data, including:
- Cell voltage
- Battery current
- Cell and module temperature
- State of Charge (SOC)
- State of Health (SOH)
- Insulation resistance
- Charge and discharge limits
The BMS prevents the battery from operating outside its safe limits. When it detects overvoltage, undervoltage, overcurrent, excessive temperature, insulation failure, or other abnormal conditions, it can issue warnings, reduce available power, or disconnect the affected battery circuit.
In large containerized BESS projects, the BMS commonly uses a hierarchical architecture. Battery monitoring units supervise individual cells and modules, rack-level controllers manage battery racks, and a master BMS coordinates the complete DC battery system.
The BMS also communicates the battery’s allowable charging and discharging power to the PCS and EMS. This helps protect battery life while ensuring reliable system performance. IEC guidance describes the BMS as the system that monitors and controls battery charging and discharging, while the U.S. Department of Energy emphasizes its role in safety, efficiency, reliability, alarms, and emergency shutdown functions.
What Is an Energy Management System?
The Energy Management System acts as the operational brain of the BESS.
It collects data from the BMS, PCS, electricity meters, thermal management system, fire protection system, grid connection point, and external dispatch platform. Based on this information, the EMS determines when the battery should charge, discharge, remain on standby, or provide grid-support services.
Typical EMS functions include:
- Peak shaving
- Load shifting
- Energy arbitrage
- Renewable-energy smoothing
- Demand management
- Frequency regulation
- Power scheduling
- SOC optimization
- Remote monitoring and reporting
For example, when electricity prices are low, the EMS may instruct the system to charge. When prices or site demand increase, it may command the battery to discharge. In a grid-support project, the EMS can respond to external signals and send active-power or reactive-power setpoints to the PCS.
An effective EMS must consider battery limitations received from the BMS. It cannot safely request 3 MW of discharge power if the BMS reports that temperature, SOC, or voltage conditions only permit 2 MW.
NREL studies show that energy storage control systems can support applications such as peak shaving, capacity firming, voltage regulation, renewable-energy integration, and economic dispatch.
What Is a Power Conversion System?
The Power Conversion System is the electrical bridge between the DC battery and the AC grid or load.
During charging, the PCS converts AC electricity into DC electricity for storage in the battery. During discharging, it converts battery DC power into grid-compatible AC power.
The PCS controls:
- Active power
- Reactive power
- Output voltage
- Output frequency
- Power factor
- Charging and discharging direction
- Grid synchronization
- Protection and fault response
Depending on the project design, the PCS may also provide voltage support, frequency response, black-start capability, and off-grid operation. Power conditioning equipment such as bidirectional inverters is essential because batteries operate with DC electricity, while most commercial and utility networks use AC electricity.
How Do the BMS, EMS, and PCS Work Together?
The BMS reports battery conditions and safe operating limits. The EMS analyses system requirements and calculates the required power command. The PCS then executes that command by controlling the physical flow of electricity.
This coordinated relationship can be summarized as:
BMS: Is the battery safe and ready?
EMS: What should the BESS do?
PCS: How should the electrical power be converted and delivered?
Reliable communication among these three systems is essential for BESS safety, efficiency, availability, and long-term profitability. A properly integrated BMS, EMS, and PCS allows a battery energy storage system to respond intelligently to changing battery conditions, site loads, renewable-energy production, electricity prices, and grid requirements.
