Containerized Battery Energy Storage Systems (BESS) concentrate large amounts of electrical and chemical energy within a compact enclosure. As BESS installations increase in capacity and energy density, safety depends not on a single protection device but on the coordinated operation of the Battery Management System (BMS), gas detection, fire detection and suppression, HVAC, emergency shutdown, and explosion venting systems.
A well-designed BESS uses these systems as multiple layers of protection to detect abnormal conditions early, isolate electrical faults, control fire hazards, and reduce the consequences of thermal runaway.
What Does the BMS Do in a BESS?
The Battery Management System (BMS) is one of the first layers of protection. It continuously monitors battery parameters including cell voltage, current, temperature, State of Charge (SOC), and State of Health (SOH).
When abnormal conditions such as overtemperature, overvoltage, undervoltage, or excessive current are detected, the BMS generates alarms and can initiate protective actions. Depending on system design, these actions may include stopping charging or discharging and opening battery contactors to isolate the affected electrical circuit.
The BMS can also transmit operating status and alarms to the Energy Management System (EMS) or supervisory control platform.
Why Does a BESS Need Gas Detection?
During battery failure or thermal runaway, lithium-ion cells can release gases before or during a fire event. Therefore, containerized BESS installations commonly incorporate multiple types of detection.
These may include smoke detectors, heat detectors, and combustible or flammable gas sensors. Monitoring gases such as hydrogen and relevant volatile compounds can provide another layer of early warning.
Gas detection signals are typically transmitted to a fire alarm or safety controller, where predefined logic determines the appropriate response.
How Does the Fire Alarm Control System Coordinate BESS Safety?
The Fire Alarm Control Panel (FACP) can function as a central coordination point for fire-related protection.
It may receive signals from smoke detectors, heat detectors, gas sensors, manual alarm devices, the BMS, and other safety equipment.
When predetermined alarm conditions are confirmed, the control system can initiate several actions, including:
- Activating audible and visual alarms
- Initiating the fire suppression system
- Stopping or changing HVAC operation
- Initiating electrical emergency shutdown
- Sending alarms to the EMS or remote monitoring platform
- Activating designated ventilation or explosion-protection equipment
The exact sequence must be engineered according to the battery technology, enclosure design, fire strategy, applicable codes, and results of system-level hazard assessments and testing.
Fire Suppression and Explosion Venting
Fire suppression represents another important protection layer. Depending on the application and jurisdiction, a BESS may use an engineered suppression solution intended to control fire conditions and limit propagation.
However, fire suppression and explosion protection address different hazards.
If flammable gases accumulate inside an enclosed BESS, ignition may create a rapid pressure rise. Explosion venting or other explosion-control measures can be designed to manage this pressure and direct it toward a predetermined safer location.
Explosion protection therefore needs to be considered together with gas generation, ventilation strategy, ignition risks, enclosure strength, and fire protection—not treated as an isolated component.

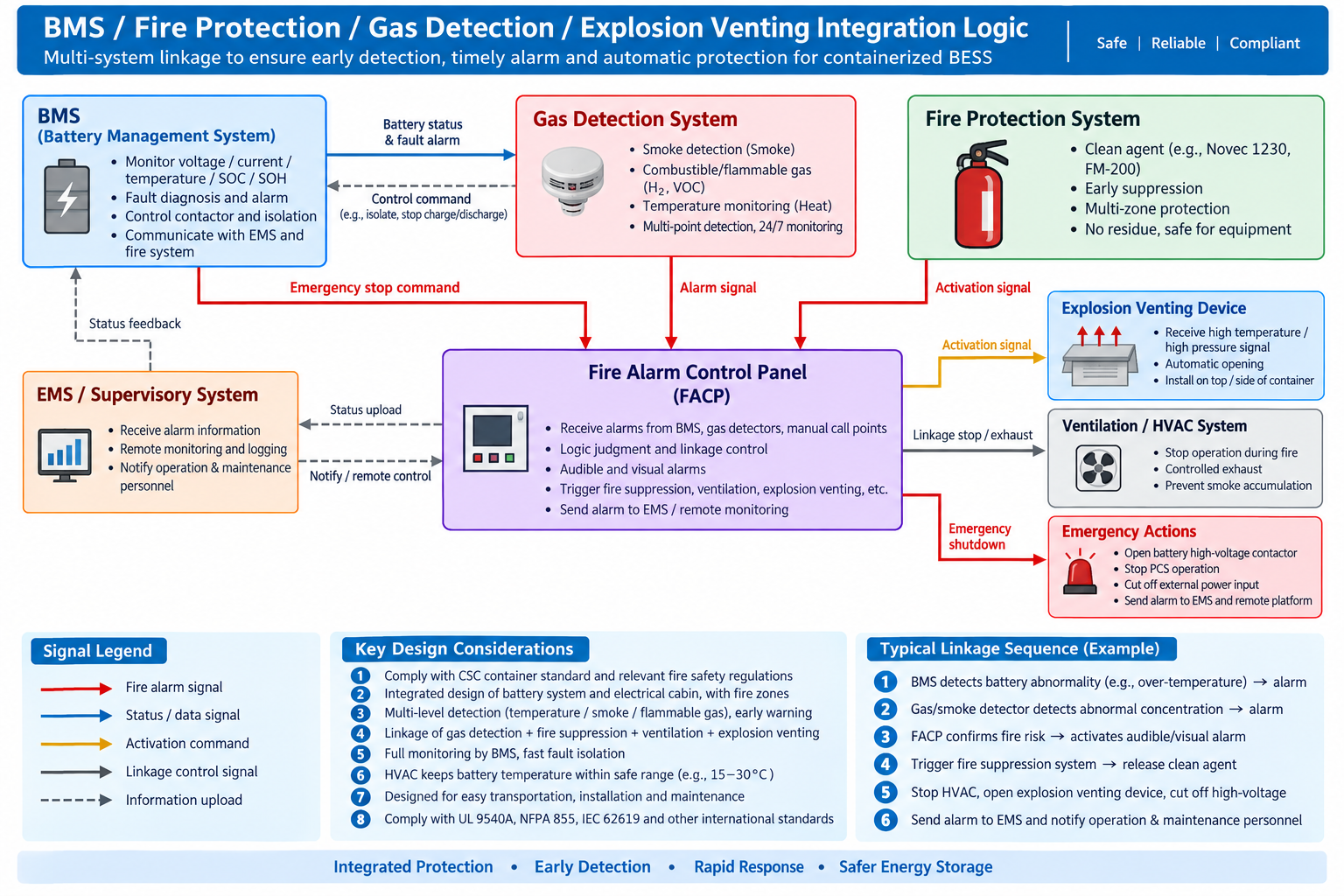

A Typical BESS Safety Linkage Sequence
A simplified event sequence could begin when the BMS identifies abnormal battery temperature and issues an alarm. Gas or smoke detection may subsequently identify additional signs of failure.
The fire alarm or safety controller evaluates these inputs and, according to the programmed cause-and-effect matrix, initiates the required responses. These can include alarms, electrical isolation, fire suppression, HVAC control, explosion-protection actions, and notification to remote operators.
This coordinated architecture provides early detection, rapid isolation, controlled response, and multiple independent protection layers.
Designing Safer Containerized BESS Solutions
Effective BESS safety should begin at the system-design stage. Battery arrangement, compartmentation, detector locations, HVAC, electrical isolation, fire suppression, gas management, emergency controls, and explosion protection should be engineered as an integrated system.
Standards and guidance such as UL 9540A, NFPA 855, and IEC 62619, together with applicable local fire, electrical, building, and transportation requirements, can form part of the compliance framework.
For containerized BESS manufacturers and project developers, the objective is therefore not simply to install more safety devices. It is to ensure that the BMS, fire protection, gas detection, HVAC, emergency shutdown, EMS, and explosion-protection systems communicate and respond correctly as one coordinated safety architecture.
