The NVIDIA Vera Rubin NVL72 DSX POD demonstrates how modular infrastructure can accelerate artificial intelligence data center (AIDC) deployment. By combining computing equipment with coordinated networking, cooling, and physical infrastructure, the approach shifts more integration work into the factory. For developers, the practical opportunity is faster deployment, repeatable engineering, and capacity expansion aligned with demand.

As of November 2026, NVIDIA describes the DSX Pod as a factory-built, integrated system incorporating seven liquid-cooled compute racks and 17 kilometers of Spectrum-X networking cables. NVIDIA’s accompanying presentation identifies the Vera Rubin NVL72 DSX POD with 25 exaFLOPS of AI performance. This advertised figure represents AI computing capability; actual application throughput depends on precision, workload, software, and system utilization. NVIDIA GTC Berlin keynote

Modular AIDC solutions organize infrastructure into repeatable deployment units. A successful module brings together equipment accommodation, service access, power distribution interfaces, cooling connections, and cable routing. These interfaces must be engineered together because high GPU density increases the consequences of inadequate cooling, restricted maintenance access, or poorly coordinated installation.

One advantage is shorter deployment time. Factory assembly allows enclosure fabrication and equipment integration to proceed while site teams prepare foundations, utility connections, and supporting infrastructure. Completing more work before shipment can reduce installation tasks at the destination. The benefit is especially relevant where construction labor is constrained or deployment schedules leave little room for rework.

A second advantage is more consistent quality. Repeated manufacturing processes make structural inspections, dimensional checks, and interface verification easier to standardize. Factory testing can identify integration problems before modules reach the site. Site commissioning remains necessary, but teams can focus on connecting and validating prepared systems rather than resolving every interface during construction.

Modular infrastructure also supports phased investment. Operators can develop capacity in blocks as electricity availability, customer commitments, and computing demand increase. This approach can reduce the need to complete an entire facility before activating initial capacity. Expansion still requires planning for shared infrastructure, including substations, heat rejection equipment, networking, and emergency access.

Thermal integration is another advantage. NVIDIA describes Vera Rubin systems designed for closed-loop liquid cooling, with coolant temperatures reaching 45 degrees Celsius. For modular AIDC projects, this makes early coordination of piping routes, cooling distribution equipment, leak management, and service clearances particularly valuable. Energy and water outcomes depend on the complete cooling design and local climate. NVIDIA platform overview

TLS Energy International is actively involved in modularized AIDC solutions, providing AIDC enclosures that support the physical infrastructure surrounding computing systems. TLS’s published offering includes configurable modular enclosures for IT, power, and cooling equipment, alongside integrated containerized systems. This positions enclosure engineering as a practical contribution to the broader development of deployable AI infrastructure. TLS containerized data center solutions

An AIDC enclosure must accommodate equipment loads, transport conditions, installation methods, and operational maintenance. Project specifications should define structural requirements, environmental protection, cable penetrations, cooling interfaces, fire protection provisions, and access arrangements. These details determine how effectively the enclosure supports integration and operation throughout the facility’s service life.

For buyers, supplier evaluation should begin with documented interfaces and acceptance criteria. Confirm rack dimensions, floor loading, lifting arrangements, corrosion protection, cooling connections, electrical boundaries, and inspection requirements before fabrication. Clearly assigned responsibilities help enclosure manufacturers, equipment suppliers, and site contractors coordinate delivery.

The Vera Rubin NVL72 DSX POD illustrates the value of treating AI infrastructure as an integrated deployment system. TLS Energy International’s AIDC enclosure offering addresses the physical housing requirements of modular projects. Developers can apply this approach by defining repeatable modules, verifying interfaces early, and matching deployment phases to available power and commercial demand.

Meta description: Offshore living quarters work best when sleeping, sanitary, office and shared spaces are planned together. See how TLS accommodation modules can be configured and connected for offshore projects.

An offshore accommodation project is rarely just a request for beds. Personnel need places to sleep, wash, store belongings, work, meet and eat. A well-planned living quarter brings these functions together as a coordinated group of modules, with the layout, utilities, fire boundaries and access planned for the host vessel or platform.

TLS designs offshore accommodation modules for functions including sleeping cabins, offices, meeting rooms, mess rooms, galley facilities, sanitary units and workshops. Modules can be configured around the required layout, capacity, equipment and certification basis. [TLS multi-level accommodation overview]

Start with the way people will use the space

The first planning decision is how the crew will use the accommodation throughout a shift and between shifts. A sleeping cabin needs beds, storage, lighting and a comfortable indoor environment. A sanitary module has different priorities: privacy, durable finishes, hot water, drainage and access for cleaning and maintenance. An office or meeting module needs work surfaces, seating, power and communications. A mess or galley space has its own equipment and service requirements.

Separating these functions into suitable spaces can make the overall arrangement easier to use and maintain. It also helps project teams identify which rooms need to sit together, where shared circulation is needed, and which functions require dedicated utility connections. The right combination depends on personnel numbers, operating pattern and the footprint available on the vessel or platform.

Configure each module for its function

TLS accommodation modules can include single or bunk beds, lockers with hanging and shelving space, desks and chairs, en-suite shower rooms, hot-water systems and air conditioning with individual thermostat control. Depending on the project, modules may also include fire and gas detection, emergency lighting and other specified systems. The interior fit-out is selected to suit the intended occupancy and room purpose rather than applying one layout to every project. [TLS project portfolios]

Room planning needs to account for more than furniture count. Bed placement affects access and circulation. Storage needs to remain usable without blocking doors or equipment.

Bathrooms need coordinated water, waste and ventilation connections. Electrical outlets, lighting, alarms and communications need to match the host facility. Resolving these details together helps avoid a room that fits on a drawing but is awkward to use in service.

Design the layout as a connected living quarter

For larger accommodation requirements, individual modules can form a broader living-quarter arrangement. TLS describes modules that can be stacked or linked, with project options such as deck-mounting pads, twist-lock connections and linking kits. These arrangements require engineering for the specific installation: structural support, module connections, fire boundaries, escape routes and utility distribution all need to work across the combined layout.[TLS multi-level accommodation overview]

TLS's project portfolio includes offshore living quarters for 120 people and a drilling camp in New Zealand. These examples show how accommodation can be planned at different scales, from individual cabins to multi-module facilities. Each project still needs its own layout and interface review. [TLS project portfolios]

Coordinate comfort with offshore requirements

Habitability and offshore performance have to be considered together. HVAC, noise, lighting, sanitary facilities and internal finishes affect daily use. Structure, lifting, installation, corrosion exposure, fire protection and emergency access affect the module's suitability for its location. Utility connections for power, fresh water, drainage, communications, HVAC and alarm systems must also align with the host facility.

Applicable requirements depend on the project. TLS's published accommodation information references DNV 2.7-1, EN 12079, ABS and fire-protection requirements as project-dependent design or certification bases. A60 fire protection applies to specified boundaries and assemblies; it should be defined for the actual layout and not assumed to cover every module or configuration automatically. [TLS accommodation module solutions]

A living quarter designed around the project

The practical advantage of modular accommodation is that sleeping, sanitary, office and shared spaces can be configured as a coordinated facility while retaining a transportable modular form.

TLS works from the intended use, occupancy, layout, host-facility interfaces and applicable project requirements to develop the accommodation arrangement, equipment scope and engineering documents.

FAQ

What functions can TLS offshore accommodation modules provide?

Depending on the project, they can provide sleeping cabins, offices, meeting rooms, mess rooms, galley facilities, sanitary spaces and workshops.

Can the modules be arranged for different occupancy levels?

Yes. TLS offers customized layouts and equipment for the required capacity. The final arrangement depends on available footprint, room functions, access and project requirements.

Can separate modules be linked or stacked?

Project-specific linked or stacked arrangements are possible. Structural support, connections, fire boundaries, escape routes and service distribution should be reviewed for the combined facility.

Which standards apply to an offshore accommodation project?

The project may specify DNV 2.7-1, EN 12079, ABS and fire-protection requirements. The required standards and certification scope should be confirmed for the module design and installation.

What makes an accommodation layout practical?

It coordinates occupant numbers and daily routines with furniture, circulation, sanitary facilities, maintenance access, utilities and emergency arrangements.

Meta description:

TLS Energy delivered a 6 MW/6 MWh battery energy storage system in Sweden, configured for FFR, FCR-D, FCR-N and mFRR. Explore its system configuration and qualification testing milestones.

Project Overview

TLS Energy delivered a 6 MW/6 MWh battery energy storage system (BESS) for a major Swedish energy provider. The system was configured to support four ancillary services: Fast Frequency Reserve (FFR), Frequency Containment Reserve for Disturbances (FCR-D), Frequency Containment Reserve for Normal Operation (FCR-N), and Manual Frequency Restoration Reserve (mFRR).

The installation combined two DC battery container units using lithium iron phosphate (LFP) technology, two 4,000 kVA power stations and an energy management system (EMS). The project progressed through service-specific qualification testing, with test results submitted to Sweden’s transmission system operator, Svenska kraftnät, in early 2025.

Read TLS Energy’s project announcement.

1. The Project Requirement: One System, Four Grid Services

The customer needed a battery storage system capable of supporting different aspects of grid frequency management. These services do not all respond to the same operating conditions or serve the same purpose.

• FFR — Fast Frequency Reserve: Provides a rapid response when grid frequency changes sharply.
• FCR-D — Frequency Containment Reserve for Disturbances: Helps contain significant frequency deviations following a disturbance.
• FCR-N — Frequency Containment Reserve for Normal Operation: Supports frequency regulation during normal grid operation.
• mFRR — Manual Frequency Restoration Reserve: Supports the restoration of frequency balance through activated reserve capacity.

Supporting multiple services requires more than installing batteries with sufficient energy capacity. The system must also respond according to the relevant service requirements, while its power conversion and control functions work together.

For this Swedish project, the configuration brought together battery storage, power stations and EMS control to support the intended grid-service applications.

2. System Configuration: Battery Storage, Power Conversion and EMS

The published project configuration included three main elements.

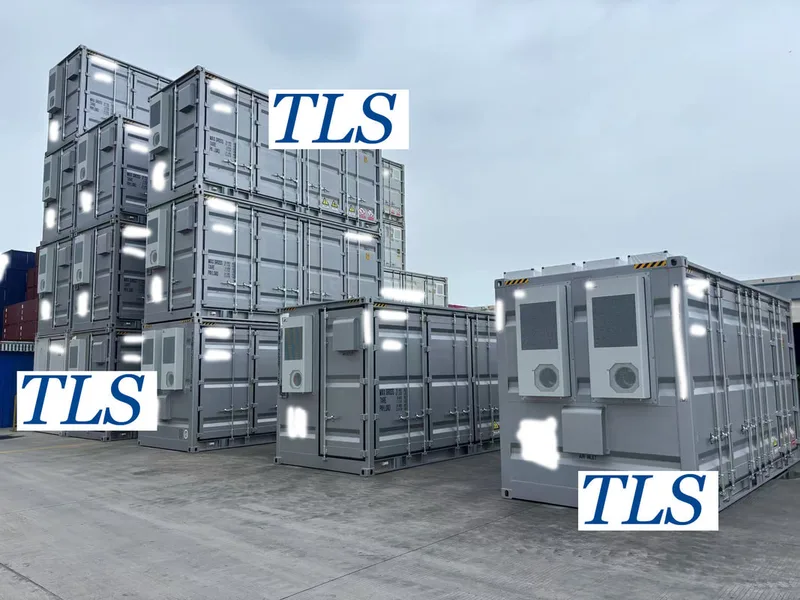

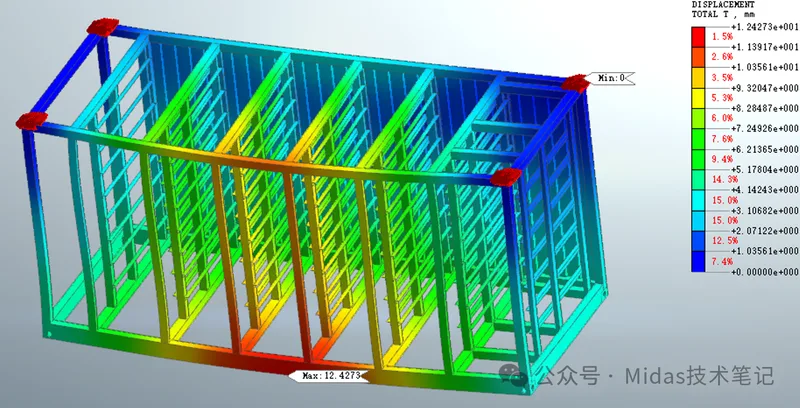

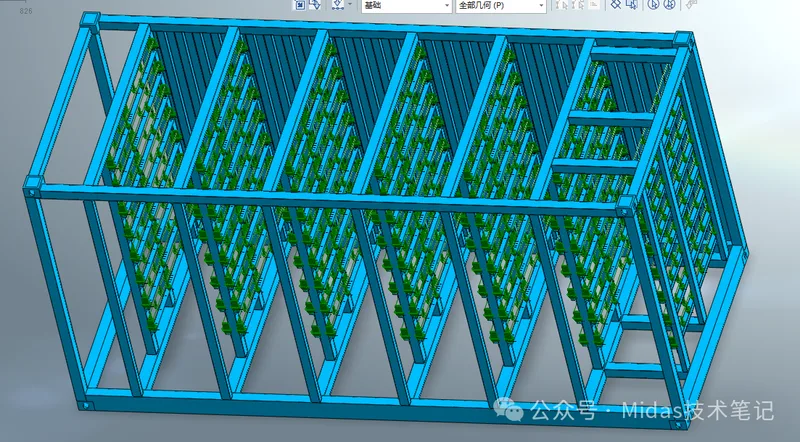

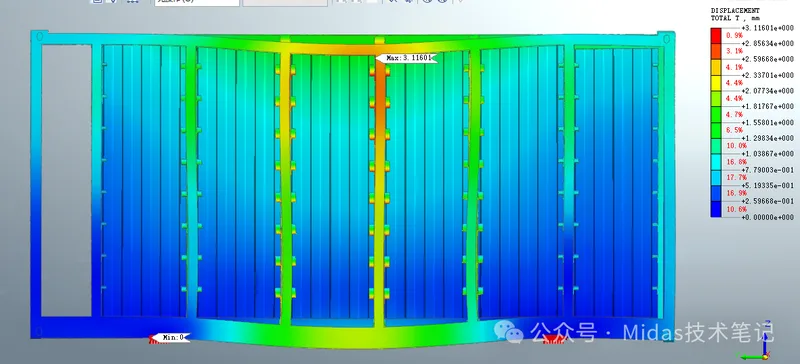

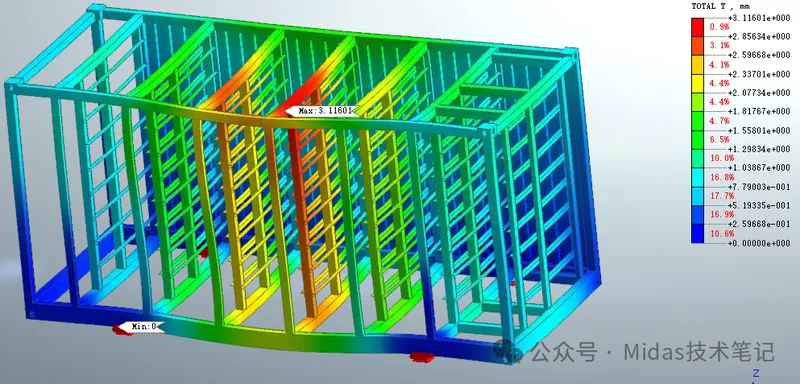

DC battery containers

Two DC container units housed LFP battery technology. LFP chemistry is widely used in stationary energy storage because of its thermal stability and cycle-life characteristics. In this project, the battery containers formed the energy storage part of the wider installation.

Power stations

The system included two 4,000 kVA power stations designed for DC-coupled integration. Their role within the system was to support power conversion and grid interaction, connecting the battery storage capability with the wider electrical installation.

Energy management system (EMS)

The EMS provided system-level operating coordination. For a BESS serving multiple grid services, energy management and control are important because the system must operate within its available power and energy limits while following the requirements of the selected service.

These elements perform different but interdependent functions. Battery capacity alone does not determine whether a system can provide a particular ancillary service; power conversion, control behaviour and qualification requirements also matter.

3. Qualification Testing: From Configuration to Grid-Service Readiness

A BESS intended for ancillary services must demonstrate that it can meet the relevant technical requirements. The qualification process is therefore an important part of project delivery, beyond equipment supply and installation.

TLS Energy’s published project update records the following testing milestones:

The results were submitted to Svenska kraftnät, Sweden’s transmission system operator. These milestones document the project's progress through testing for all four named services.

The public project updates do not disclose detailed test curves, response-time measurements, acceptance thresholds or individual approval documents. Accordingly, the dates above describe the reported testing and submission milestones rather than independently verifying the formal qualification status of each service.

Read the qualification testing update.

4. Applicable Requirements and Project Outcome

For a BESS participating in Sweden’s ancillary-service market, the relevant technical requirements depend on the service being provided and the applicable qualification process administered by Svenska kraftnät.

The available TLS project reports identify the four services and document the testing submissions, but do not name specific IEC or EN standards or publish the complete project acceptance criteria. It would therefore be inaccurate to assign additional standard numbers to this project without confirmation from the approved technical documentation.

TLS Energy’s project announcement reports that the system was commissioned and deployed to support grid stabilisation and frequency regulation. The subsequent qualification update documents the testing milestones in early 2025.

The case illustrates an important distinction in BESS delivery: completing the physical installation is one milestone, while demonstrating suitability for the intended grid services is another. Both the equipment configuration and the service-specific qualification process matter to the final application.

5. Key Takeaways for BESS Project Developers

This Swedish project highlights three considerations when developing a battery energy storage system for grid services:

• Define the services early. FFR, FCR-D, FCR-N and mFRR serve different frequency-management purposes and should be considered during system planning.
• Assess the complete system. Battery containers, power conversion and EMS control must be considered as an integrated configuration rather than as independent products.
• Include qualification in the delivery plan. Testing and documentation for the intended services should be considered alongside equipment integration and commissioning.

For project developers, the key question is not simply how much energy a BESS can store, but whether the complete system is configured and qualified for its intended operating role.

FAQ

What was the capacity of TLS Energy’s Swedish BESS project?

TLS Energy’s published project overview identifies the system as a 6 MW/6 MWh battery energy storage system.

Which grid services was the system designed to support?

The project was configured for FFR, FCR-D, FCR-N and mFRR.

Can TLS Energy configure BESS solutions for other grid-service requirements?

TLS Energy can review a project’s intended application, power and energy requirements, battery configuration, power conversion and control architecture to assess a suitable containerised BESS solution.
