Visual inspection and non-destructive testing are commonly used to inspect container welds. Magnetic particle inspection is one of the types of non-destructive testing. Magnetic particle inspection is a method of observing defects using magnetic powders as a display medium. After the ferromagnetic material workpiece is magnetized, as the existence of discontinuity, the magnetic field lines on the surface and near the surface of the workpiece are locally distorted to generate a leakage magnetic field, which adsorbs the magnetic powder applied on the surface of the workpiece and forms a visible magnetic field under suitable illumination，and the location, size, shape, and severity of the discontinuities are shown.
TLS normally uses black magnetic paste for flaw detection. This method has high sensitivity to detect small defects on the surface of the workpiece. The steps are:
Any requirements about specialized shipping containers, please feel free to contact us.
TLS normally uses black magnetic paste for flaw detection. This method has high sensitivity to detect small defects on the surface of the workpiece. The steps are:
- Pour and spray the magnetic levitation over the workpiece to be examined, and the flow rate of the levitation should be slow to prevent the magnetic imprints from being washed away.
- Use a fixed device. It is easy to operate and has high efficiency.
- Demagnetization. Reduce residual magnetism in the inspected workpiece so that it can be processed or used normally.
- After magnetic particle inspection, residual magnetic levitation on the surface is removed and dried.Our QAs are all certified through strict examinations.
Any requirements about specialized shipping containers, please feel free to contact us.

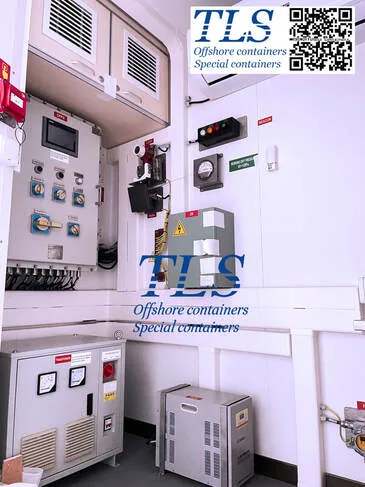

CPFG Systems offers a range of systems, together with Remote I/O manufacturers, suitable for hazardous and safe areas, either as a combination of both, or as zone of operation specific systems.
- Designed to be user friendly.
- Significant cost savings in hardware and wiring.
- Reduced cabling.
- Reduced cabling consumption (ducts, seals, penetrations, etc.).
- Reduced on-site installation time for personnel.
- Factory acceptance testing of systems.
- Reduced design time.
- Reduced on-site maintenance.
- No need for local instrumentation to aggregate signals.
For the functions of sea containers, such as transporting refrigerated, living or working, etc., it is necessary to carry out modifications to meet the requirements of thermal insulation and fire protection of the container. Normally, the sea land containers provided by TLS can comply with the A60 standard.
Classification society standard A60 level specific requirements:
What type of refractory material is A60 fireproof?
The material is required to have a certain rigidity and fire resistance for more than 1 hour, during which time the integrity is maintained to prevent the passage of smoke and flame.

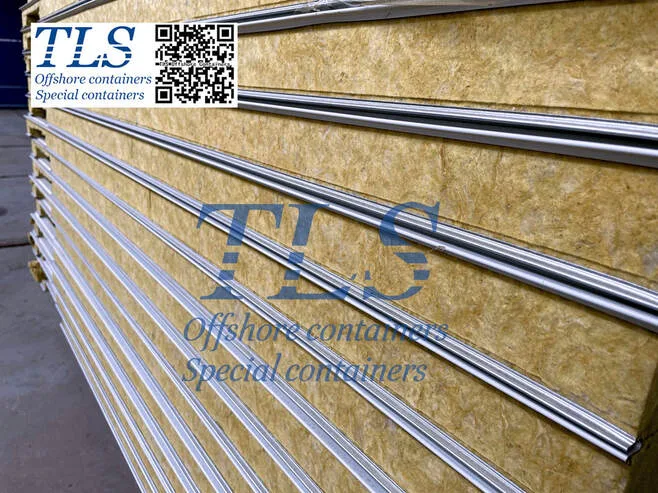

Rock wool and ceramic fiber wool are two different materials, both of which can be used as insulation materials for A60 fire protection but must be approved by the relevant classification society.
Classification society standard A60 level specific requirements:
- Steel or equivalent material, the thickness is 4.5±0.5mm.
- Appropriate anti-flexion reinforcement, where the distance between the aggregates should be about 600 mm.
- Made of approved non-combustible materials, so that within 60 minutes, the average temperature rise of the backside does not exceed 140℃, and the temperature rise of any point on the backside does not exceed 180℃.
What type of refractory material is A60 fireproof?
The material is required to have a certain rigidity and fire resistance for more than 1 hour, during which time the integrity is maintained to prevent the passage of smoke and flame.
Rock wool and ceramic fiber wool are two different materials, both of which can be used as insulation materials for A60 fire protection but must be approved by the relevant classification society.
Containers are no longer a traditional transport tool that can only be used to carry goods. More and more container types are known to us. In order to meet the needs of different container types, the correct selection of doors has also become an important step in the design process.
Before choosing, please answer the following questions：
What does this container need to be used for?
Do large-sized items need to be placed in the container?
Are containers used as offices or homes?
Do we need to go inside the container frequently?
5 Basic Types of Container Doors for Your Reference

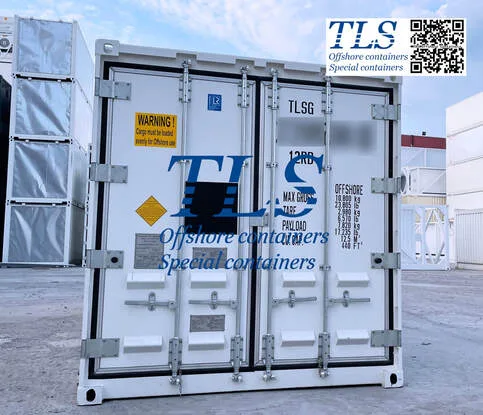

1. Cargo door
"Original" doors for shipping containers. Usually installed at the end of the container. These heavy duty doors are weatherproof and very secure. They open outward, and the secure cam and locking system are robustly designed to deter theft and reduce the risk of damage from inclement weather and other environmental threats.
Applicable environment：Large objects need to be easily placed in the container
Features: Affordable, no modification or installation required.
Before choosing, please answer the following questions：
What does this container need to be used for?
Do large-sized items need to be placed in the container?
Are containers used as offices or homes?
Do we need to go inside the container frequently?
5 Basic Types of Container Doors for Your Reference
1. Cargo door
"Original" doors for shipping containers. Usually installed at the end of the container. These heavy duty doors are weatherproof and very secure. They open outward, and the secure cam and locking system are robustly designed to deter theft and reduce the risk of damage from inclement weather and other environmental threats.
Applicable environment：Large objects need to be easily placed in the container
Features: Affordable, no modification or installation required.

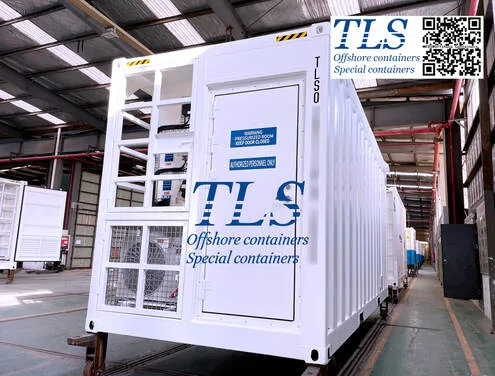

2. Personnel door
Use in case of storing smaller items or as a laboratory, office, house etc. They are usually installed on the end face of the container and have good sealing performance. According to the different use environments, there are doors that meet the level of B30 and A60.
Applicable environment: It is frequently used for easy entry and exit of people, (movable office building, portable office station, laboratory shipping container)
Features: Easy to use, various styles and standards to choose from
Use in case of storing smaller items or as a laboratory, office, house etc. They are usually installed on the end face of the container and have good sealing performance. According to the different use environments, there are doors that meet the level of B30 and A60.
Applicable environment: It is frequently used for easy entry and exit of people, (movable office building, portable office station, laboratory shipping container)
Features: Easy to use, various styles and standards to choose from

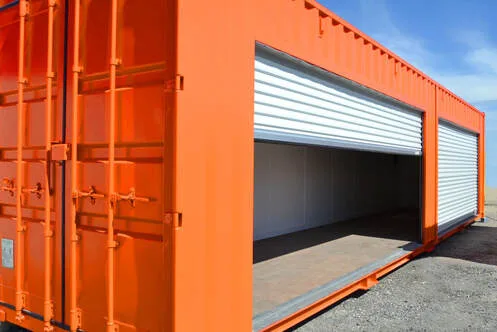

3. Roll-Up Doors
Sometimes referred to as overhead doors, they are welded to the container walls, are usually rolled up from the bottom, can be locked, are easy to maneuver and are relatively lightweight.
Applicable environment: Used to store large objects or equipment
Features: Save space, easy to operate
Sometimes referred to as overhead doors, they are welded to the container walls, are usually rolled up from the bottom, can be locked, are easy to maneuver and are relatively lightweight.
Applicable environment: Used to store large objects or equipment
Features: Save space, easy to operate

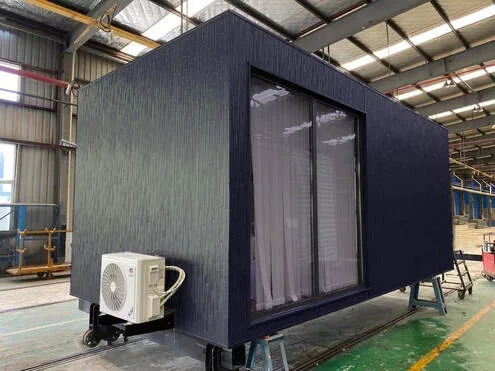

4. Glass door
Sliding glass doors are the same height and width as double-width personnel doors, but they are made of durable glass with a vinyl frame. These doors come with safety locks to protect the interior, although they shouldn't be considered as secure or durable as the alternative doors mentioned above, since they are transparent.
Applicable environment: Office, storefront |shop or living space.
Features: Create better lighting for the interior in accordance with the environment, and the design is more fashionable
Sliding glass doors are the same height and width as double-width personnel doors, but they are made of durable glass with a vinyl frame. These doors come with safety locks to protect the interior, although they shouldn't be considered as secure or durable as the alternative doors mentioned above, since they are transparent.
Applicable environment: Office, storefront |shop or living space.
Features: Create better lighting for the interior in accordance with the environment, and the design is more fashionable

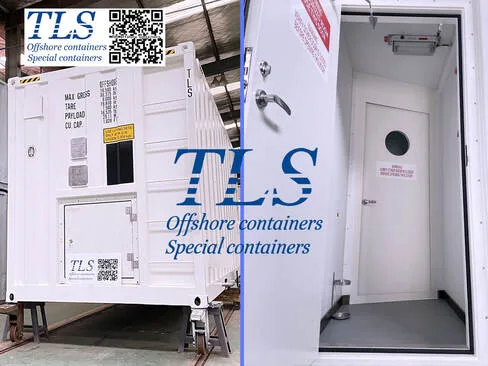

5. Combination door
For containers with larger space or special needs, it is usually also considered to design multiple channels
For containers with larger space or special needs, it is usually also considered to design multiple channels
The design of any container building should be tailored to the specific needs of each project.
Feel free to contact us ,we customize special containers as you need.
Feel free to contact us ,we customize special containers as you need.

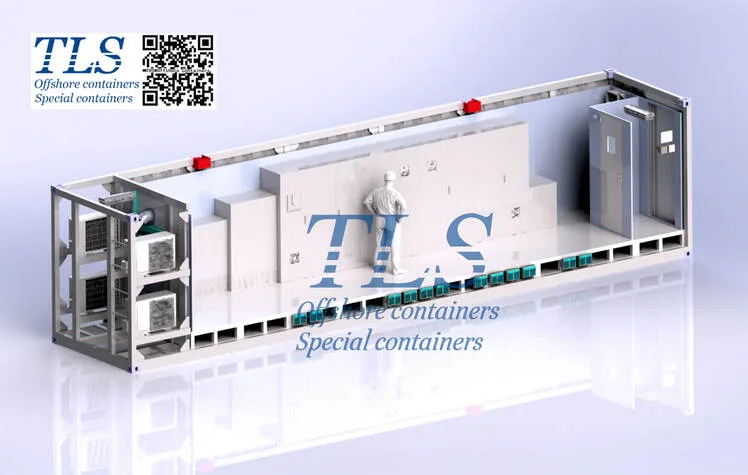

As early as the 1950s, the motor center was widely used by the automotive industry to control manufacturing, and many industrial motor companies used motor control center to install directly and other equipment at the location center. Although many motor control centers（MCCs） are located directly on the factory floor, there are additional benefits to having the motor control center located in the shell of a shipping container.
- Protect the motor control center, which can improve it to a certain extent and prolong the service life of the internal equipment of the motor under the condition of no interference and operation under the temperature, and improve the operation efficiency of the whole system.
- The outer shell of the shipping container is more convenient for transportation and transfer, and the installation is convenient and fast, which provides possibility for temporary call or emergency replacement.
- The traditional work of MCC system and maintenance is simplified. The containerized motor control center usually carries out integrated control on the assembled equipment. The monitoring and regulation of the system also improves the efficiency of daily maintenance and use.
- Because of the protection from the shell, motor control center for the environment becomes less demanding, TLS provide containerization motor control center housing can be according to your requirements designed to conform to the DNV2.7-1, A60 fire, IECEx | ATEX explosion-proof, can be used in ZONE1 | ZONE2 environmental standards.
