As renewable energy continues to expand worldwide, Battery Energy Storage Systems (BESS) play a vital role in stabilizing grids, supporting peak shaving, and ensuring backup power. Yet, one of the most important—often overlooked—design parameters in storage systems is the relationship between DC-side battery ratios (P rating) and AC-side power conversion system (PCS) capacity. Understanding how these two aspects align is key to ensuring that your energy storage investment meets performance, safety, and cost goals.

In this article, we’ll explain the difference between DC-side and AC-side power, explore common battery ratios (0.25P, 0.5P, 1P, 2P), and guide you on how to select the right ratio based on your application scenario.

What is DC-Side Battery Ratio (P Rating)?
The DC side refers to the battery side of the storage system. Its ratio, often expressed as P (Power/Capacity), describes how quickly a battery can discharge or charge relative to its stored energy.
  • 1P → The battery can fully discharge in 1 hour (e.g., 1MW power, 1MWh capacity).
  • 0.5P → The battery takes 2 hours to discharge fully (e.g., 500kW power, 1MWh capacity).
  • 2P → The battery can discharge completely in half an hour (e.g., 2MW power, 1MWh capacity).
Key Insight:
  • Higher P ratio = faster response, shorter duration.
  • Lower P ratio = longer duration, lower power output.
This simple ratio is crucial in determining whether a BESS is designed for power-centric applications (like frequency regulation) or energy-centric applications (like peak shifting).

What is AC-Side PCS Power?
The AC side is represented by the PCS (Power Conversion System), which manages the flow of energy between the DC batteries and the AC power grid.
  • PCS power rating indicates the maximum output to the grid.
  • Typically, PCS power ≤ DC battery power × efficiency (95–98%).
  • PCS size selection is influenced by the battery ratio—oversizing wastes cost, undersizing limits performance.

For example, if the DC side delivers 1,000kW, the PCS might be sized at 950–980kW to match efficiency. Proper alignment ensures optimal cost and utilization.

Matching Battery Ratios to Application Scenarios
Choosing the right battery ratio (DC P rating) is not one-size-fits-all. Each energy storage application has different requirements in terms of duration, speed, and power output.
1. Frequency Regulation and Grid Stabilization
  • Requirements: Fast response, high power output, short discharge duration.
  • Recommended Ratio: 1P – 2P
  • Example: Batteries respond instantly to frequency fluctuations in the grid, but only for minutes at a time.

2. Peak Shaving and Energy Arbitrage
  • Requirements: Long discharge duration (2–4 hours), moderate power.
  • Recommended Ratio: 0.25P – 0.5P
  • Example: A factory reduces peak electricity costs by discharging stored energy during high-tariff periods.

3. Backup Power and Black Start
  • Requirements: Reliable energy reserve with sufficient power for emergency loads.
  • Recommended Ratio: 0.5P – 1P
  • Example: A hospital uses BESS as a backup to maintain operations during grid outages.

4. Renewable Energy Integration (Solar + Storage / Wind + Storage)
  • Requirements: Varies depending on whether the system smooths short-term fluctuations or shifts large blocks of energy.
  • Recommended Ratio:
     1) 1P for smoothing short-term volatility.
     2) 0.25P – 0.5P for longer-duration energy shifting
  • Example: Solar farms storing energy at noon and releasing it in the evening to balance demand.

Cost and Design Considerations
When designing a storage system, the balance between CAPEX (capital cost), OPEX (operation), and LCOS (Levelized Cost of Storage) must be considered:
  • Higher P ratios require larger PCS systems and higher power battery modules, which increase cost but deliver faster performance.
  • Lower P ratios maximize energy per dollar invested, but cannot provide high-power services.
  • Hybrid strategies sometimes deploy multiple ratios in one project, dedicating one portion of the system for high-power grid services and another for long-duration applications.

Conclusion
The relationship between DC-side ratios and AC-side PCS power is fundamental in energy storage design. By aligning the correct battery ratio (0.25P to 2P) with your application needs, you can optimize performance, reduce costs, and extend system life.
  • 1P–2P → Best for frequency regulation and fast response.
  • 0.25P–0.5P → Ideal for peak shaving and long-duration discharge.
  • 0.5P–1P → Balanced choice for backup and renewable support.

As global demand for renewable energy integration accelerates, smart ratio selection ensures that BESS projects remain both technically effective and financially viable.

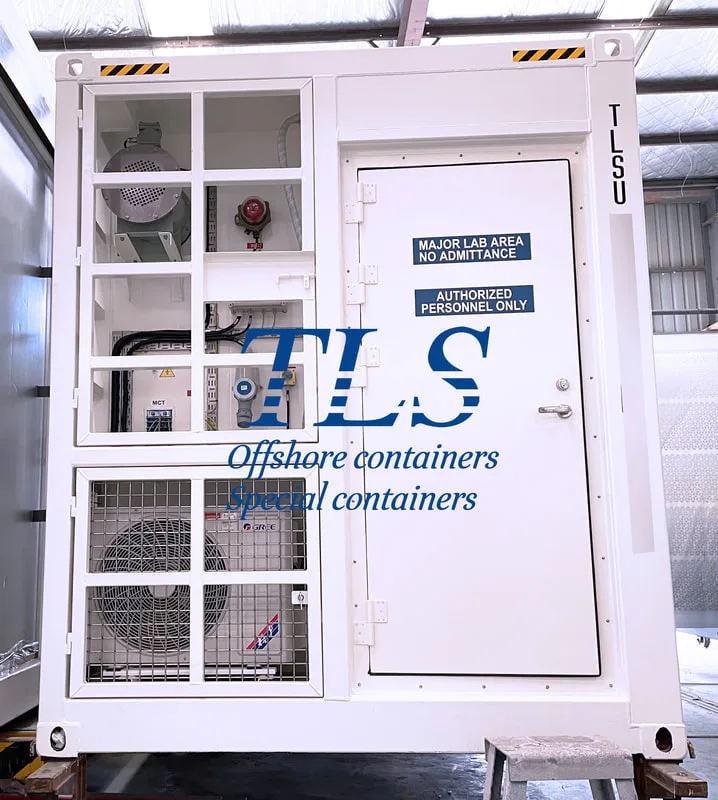

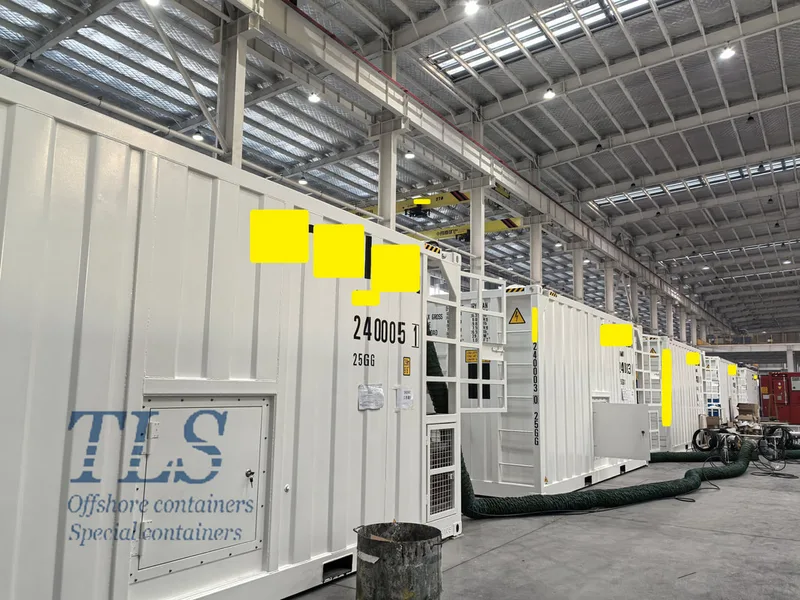

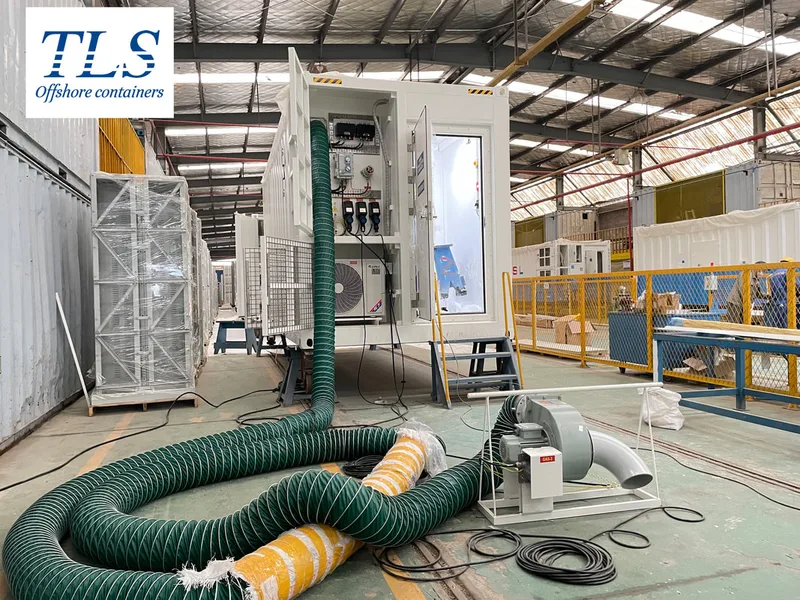

Positive pressure containers are widely used in chemical, fine chemical, and oil & gas industries to protect electrical equipment from explosion and environmental hazards. Engineers are often more concerned with practical layout and configuration to ensure system stability and safety. Here are some key aspects:

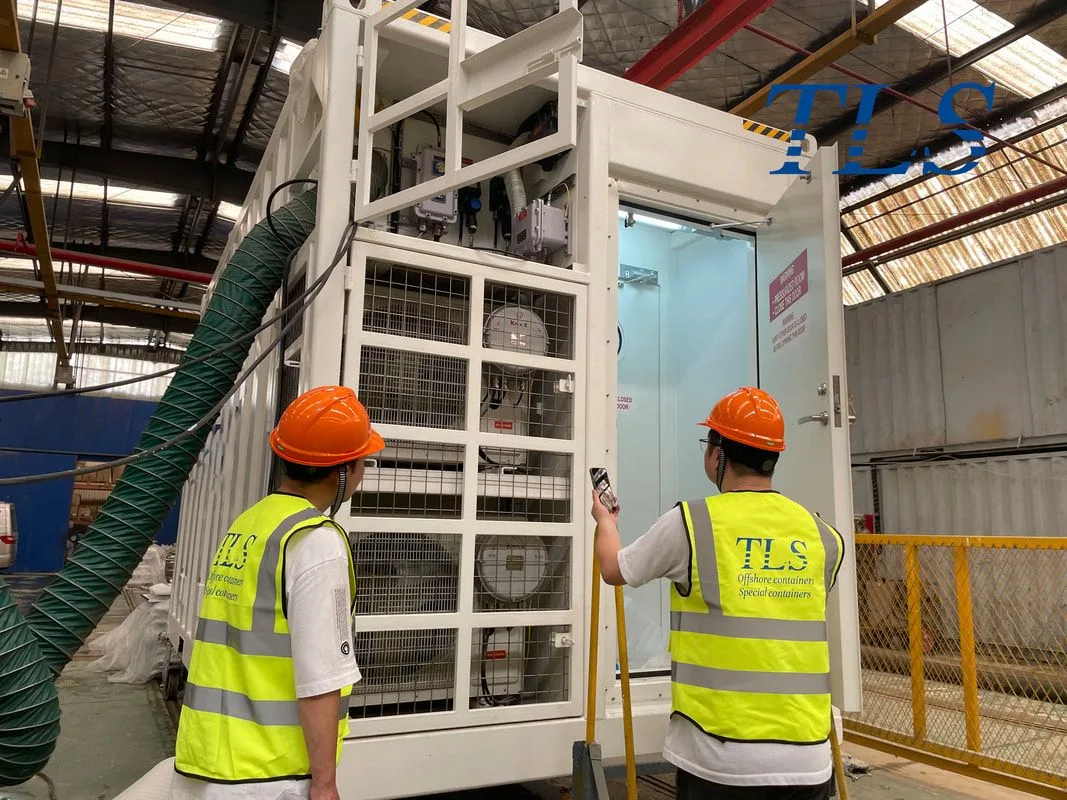

1. Fan and Air Duct LayoutThe ventilation system is the core of a positive pressure container. Usually, one main fan and one backup fan are installed. The control logic allows switching between them for redundancy. Air ducts should be as straight as possible to reduce airflow resistance. Air inlets should be placed away from possible leak points and equipped with high-efficiency filters to prevent combustible gases from entering.

2. Cable and Terminal ConfigurationCable entry is a critical part of the enclosure design.
  • Bend radius: Keep a proper bend radius to avoid long-term stress on the cable sheath.
  • Fixing method: Use explosion-proof cable clamps to prevent loosening due to vibration or thermal expansion.
  • Extra space: Leave some space near terminal blocks for maintenance and future expansion.

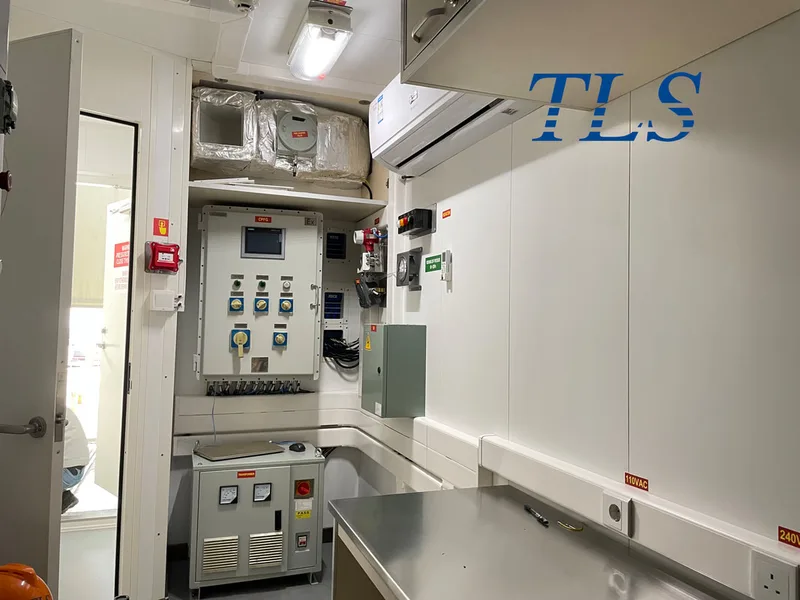

3. Pressure Monitoring and Alarm SystemPositive pressure enclosures must have pressure monitoring points with real-time display on the control panel.
  • If pressure drops below the set limit, audible and visual alarms should trigger automatically.
  • Advanced systems may also cut off power to prevent operation under low pressure.
  • Monitoring points should be easy to view and maintain during inspections.

4. Internal Equipment LayoutEquipment inside the enclosure should consider heat dissipation, maintenance convenience, and airflow:
  • Heat dissipation: High-heat devices (like inverters or power modules) should be placed near airflow paths to remove heat efficiently.
  • Maintenance: Frequently operated or replaced components should be near the front or access doors.
  • Airflow organization: Avoid dead airflow spots to reduce dust accumulation and overheating risks.

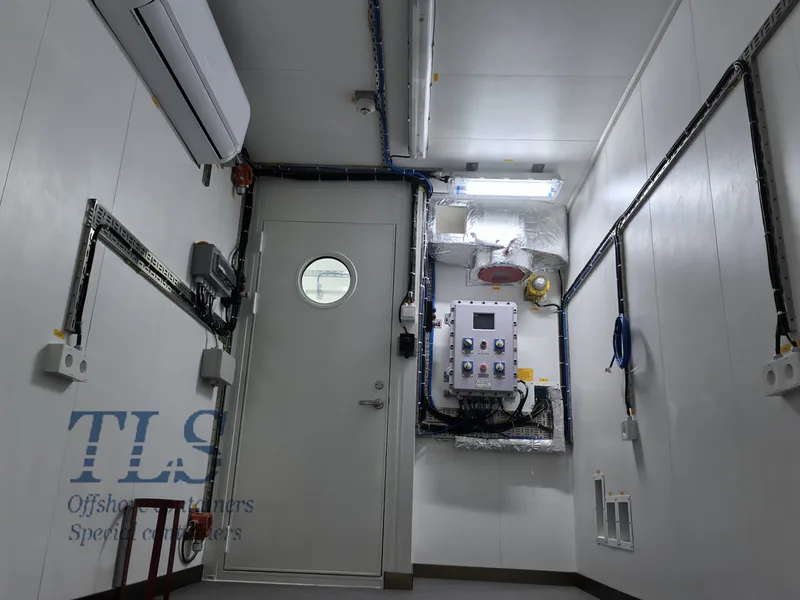

5. Doors and Observation WindowsDoors are not only for sealing but also for daily usability. Common design features:
  • Double-layer sealing: Improves positive pressure maintenance.
  • Observation window: Allows easy visual inspection, made with explosion-proof glass and a metal frame.
  • Access door: Should be at a suitable height for single-person operation.

6. Maintenance and Inspection ProvisionsPositive pressure containers require regular inspection. Design considerations include:
  • Bottom exhaust openings for venting during maintenance.
  • Access panels near cable trays for adding or replacing cables.
  • Manual test interfaces near pressure sensors to check accuracy.

Summary:
The key function of a positive pressure container is not just maintaining pressure, but also using proper layout and configuration to maximize effectiveness, protect equipment, ensure easy operation, and allow future maintenance. TLS emphasizes careful and practical design details to provide higher safety and reliability in real applications.

TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.

Keywords: #Positive pressure enclosure,#Ventilation system,#Redundant fan,#Air duct layout,#Explosion-proof,#Cable entry,#Terminal blocks,#Heat dissipation,#Maintenance convenience,#Airflow organization,#Observation window,#Double-layer sealing,#Pressure monitoring,#Alarm system,#Safety and reliability

Written by Snowy

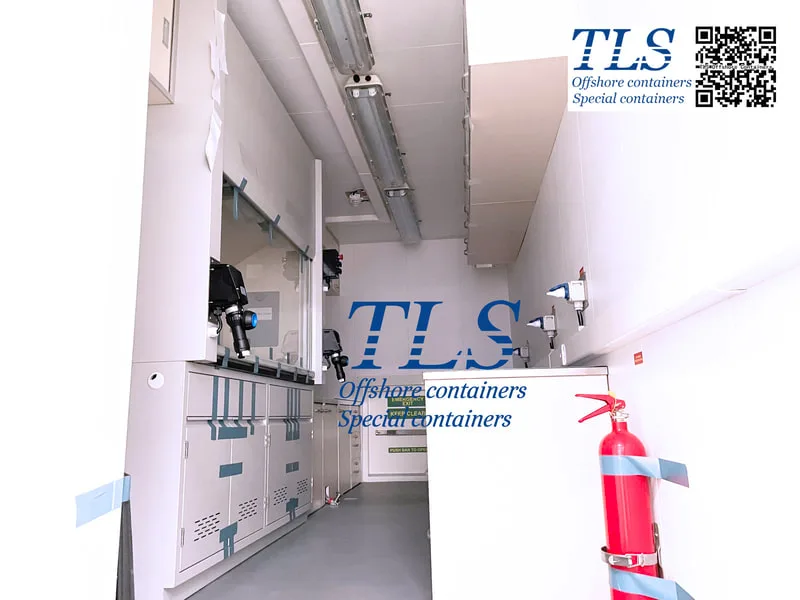

On the vast ocean, every inch of space aboard offshore platforms, FPSOs, or drilling vessels is highly valuable. Every operation must be carefully planned and executed. Conducting oil and gas sample analysis, water quality monitoring, or chemical reagent handling in such restricted environments is a challenge: traditional laboratories are unsuitable due to limited space, constrained equipment layouts, and safety concerns.

To address this challenge, TLS introduces the Offshore Laboratory Container—a modular laboratory solution specifically designed for offshore confined spaces. With standardized structures and integrated systems, it maximizes functionality while ensuring safety and reliability.

Modular Customization for Diverse Tasks

Different offshore operations demand different laboratory capabilities. The TLS Offshore Lab Container offers flexible customization options, including:
  • Chemical storage and handling modules for safe reagent management
  • Crude oil/water sample preparation and testing areas to improve sample processing efficiency
  • Independent cleaning zones and waste liquid collection units for safer operations
  • Optional add-ons such as gas cylinder racks, refrigeration units, purification systems, and UPS backup power to support special mission requirements

Integrated Systems, Rapid Deployment

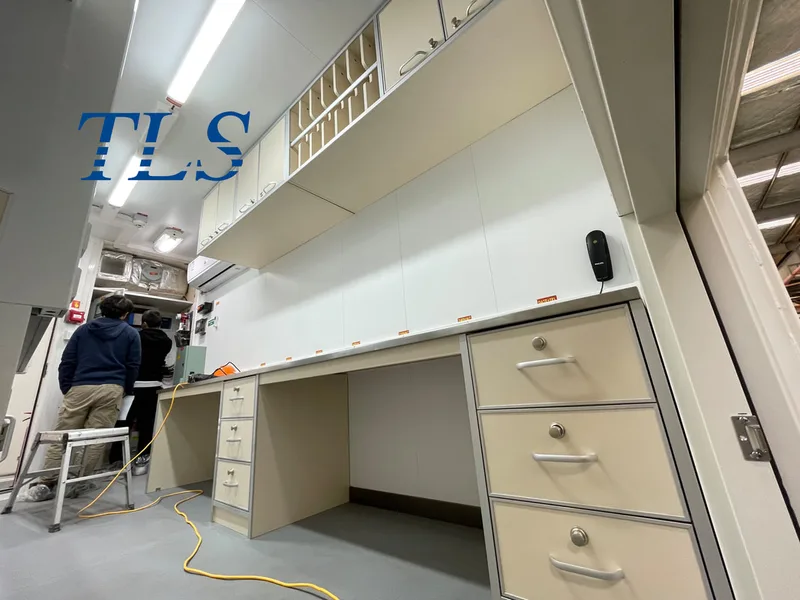

Built on standard 20ft or 40ft container structures, TLS Offshore Lab Containers are factory-integrated with laboratory benches, anti-corrosion flooring, storage cabinets, sinks, ventilation systems, and gas piping systems—ensuring safe and efficient operation. Electrical systems, including explosion-proof sockets, lighting, and distribution panels, are pre-installed to simplify field use and maintenance. The compact yet comprehensive design allows deployment without requiring structural modifications to the offshore platform, enabling quick setup and immediate use.

Engineered for Offshore Conditions

Offshore operations present highly complex and demanding environments. TLS Lab Containers are designed to withstand these challenges, featuring:
  • Explosion protection: Electrical systems configurable for Zone 1 / Zone 2 environments, ensuring operational safety
  • Weather resistance: Durable container body and equipment selections suitable for marine environments
  • Structural strength: Reinforced design to withstand frequent vibrations on vessels and platforms
  • Compliance assurance: Certified designs aligned with industry standards and project delivery requirements
TLS Offshore Laboratory Containers are not just “functional”—they are engineered solutions, tailored to deliver safe, controlled, and reliable working environments for offshore laboratory operations.

Conclusion
​
In offshore environments where space is limited and conditions are demanding, building a laboratory that is both safe and efficient is no longer a challenge. With modular design, integrated systems, and strong adaptability to field conditions, TLS Offshore Laboratory Containers provide dependable scientific support for every offshore project—ensuring reliable testing that can “sail with the mission,” safely, efficiently, and consistently.

​TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.

Please download Laboratory container brochure for reference.
​
Keywords: #Offshore Laboratory Container,#Modular Offshore Lab,#FPSO Laboratory Solutions,#Compact Marine Laboratory,#Zone 1 Zone 2 Lab Container,#Offshore Chemical Analysis Lab,#Oil & Gas Sample Testing Container,#Marine Water Quality Laboratory,#Explosion-Proof Laboratory Container,#Containerized Offshore Lab,#Portable Offshore Laboratory,#Offshore Lab Engineering Solutions,#Modular Laboratory for Drilling Vessels,#Offshore Research Container,#Marine Laboratory Container Solutions

Written by Snowy
