Summary
An offshore accommodation container is a functional module designed to provide temporary or long-term living space for offshore workers. It is widely used on oil and gas platforms, offshore wind installation vessels, pipe-laying ships, engineering support vessels, and onshore remote sites like mining areas, deserts, and polar regions. Compared to standard ISO containers, offshore living modules must withstand frequent lifting, marine corrosion, harsh weather, and continuous operation, requiring higher standards in structure, safety, and equipment.
Why Must Offshore Accommodation Containers Comply with International Standards?
Offshore living modules are not just living spaces; they are critical facilities to protect personnel safety. International projects usually require containers to meet DNV 2.7-1 and EN 12079 standards to ensure safe sea-land transport, offshore lifting, and long-term service. Meanwhile, CSC certification allows global shipping and multi-modal transport. For project owners, compliance with international standards means higher safety, smoother inspections, and easier project delivery.
What Key Configurations Should a High-Quality Offshore Living Container Have?
1. Extreme Weather Resistance
Offshore equipment is exposed to high salt spray, high humidity, and extreme climates. TLS Offshore Containers designs 20ft living modules to operate in environments from -30°C to 70°C. The exterior uses a C5-grade marine anti-corrosion coating to increase corrosion resistance and extend service life.
2. A60 Fireproof Standard
Offshore living areas require strict fire safety. TLS accommodation containers use an A60 fireproof insulation structure and self-closing A60 fire doors. The ventilation system features active fire dampers, and the bathroom has an independent mechanical exhaust to reduce fire and smoke risks.
3. Marine-Grade Electrical and HVAC Systems
To reduce on-site installation work, the electrical system is fully integrated before leaving the factory, using marine-grade flame-retardant cables. For hot climates, it features a split marine air conditioning system (4P) with two T3-class high-temperature indoor units, perfect for regions like the Middle East.
4. Plug-and-Play Quick Deployment
On-site construction time is highly limited. TLS containers feature a plug-and-play design with pre-installed freshwater inlets, greywater outlets, blackwater outlets, and standard power connections, allowing fast pipeline hookups on site.

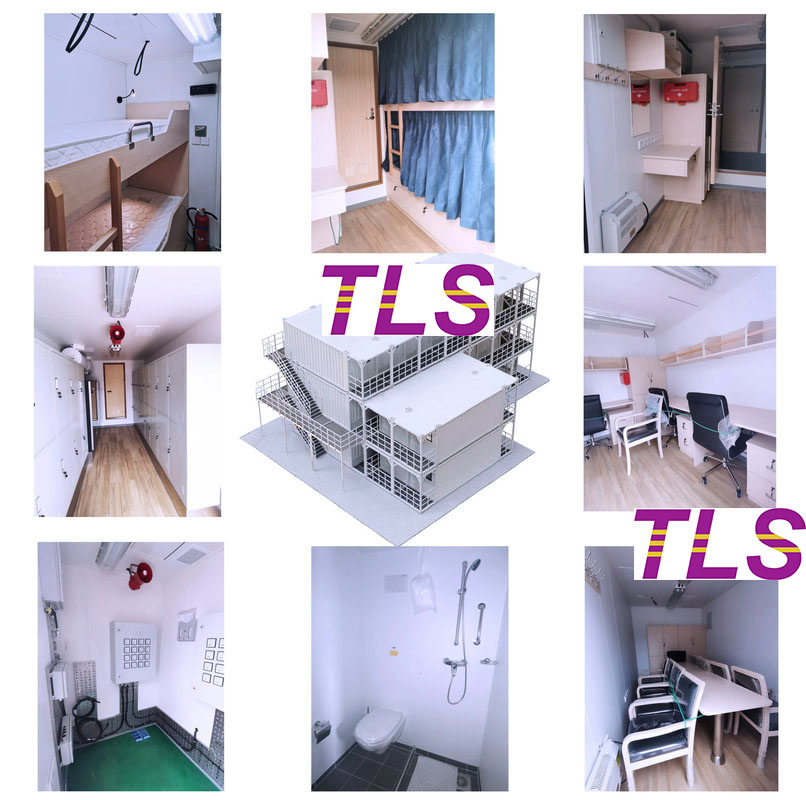

5. Comfortable Long-Term Living Space
The standard two-bedroom, one-bathroom layout accommodates two workers. Each room includes a single bed, wardrobe, desk, and office chair, with pre-wired connections for TV, internet, and phone. The bathroom includes a 60L water heater (5000W-6000W) and heater fans for all-weather use.
Where Can TLS Offshore Accommodation Containers Be Applied?
Beyond traditional oil and gas platforms, these 20ft containers are ideal for:
- Offshore wind installation and maintenance vessels
- Marine engineering and construction ships
- Pipe-laying vessels
- Polar research bases
- Desert and mining camps
- Integrated temporary office and living projects
Based on project needs, they can also be customized into single executive cabins or office-living combo units, and can work seamlessly with Gangway modules.
Frequently Asked Questions (FAQ)
Q1: What temperature range can these accommodation containers handle?
A: They are designed to operate from -30°C to 70°C, suitable for polar regions and hot seas.
Q2: What international certifications are required?
A: Standard certifications include DNV 2.7-1, EN 12079, and CSC. BV or LR classification society certifications are also optional.
Q3: Why is the A60 fire rating so important?
A: The A60 standard provides a longer protection time during a fire, which is a standard safety requirement for offshore living quarters.
Q4: Can these containers be used for onshore projects?
A: Yes. Remote sites like mining areas, deserts, and polar camps widely use these modular living solutions.
Conclusion
An offshore accommodation container is more than a mobile room; it is an integrated solution combining structural safety, fire protection, anti-corrosion, HVAC, electrical systems, and quick deployment. TLS Offshore Containers provides customized, certified offshore living solutions tailored to various marine engineering and onshore extreme environment projects.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
As AI data centers push toward rack densities that would have been unthinkable five years ago, one component quietly holds the entire cooling architecture together. It isn't the GPU. It isn't the cooling tower. It's the Coolant Distribution Unit — and if you're serious about understanding next-generation data center design, the CDU deserves your full attention.
What Is a CDU, and Why Should You Care?
Think of a CDU — short for Coolant Distribution Unit — as the hydronic control hub of a liquid-cooled server rack. Just as a home radiant heating system uses a manifold to distribute hot water from a boiler to individual room circuits and return it in a continuous loop, a CDU distributes chilled coolant from a facility's external cooling plant to every GPU cold plate inside a rack, then collects the heated fluid on the return path.
The elegance of the CDU lies in what it keeps separate. Inside every CDU is a plate heat exchanger — a compact device made of corrugated metal plates that allows thermal energy to transfer between two fluid streams without the fluids ever mixing. On one side flows the facility's primary coolant loop, circulating between the CDU and an outdoor dry cooler that rejects heat to the ambient air. On the other side flows the secondary loop, which travels directly through the cold plates pressed against the GPUs.
This two-loop architecture is more than an engineering preference. It's a containment strategy. Outdoor water circuits can harbor minerals, biological growth, and contaminants. Keeping that fluid entirely separate from the precision microchannel cold plates protecting million-dollar accelerators is not optional — it's essential.
Precision, Not Just Plumbing
What separates a CDU from a glorified water pump is its ability to manage three interdependent variables simultaneously: flow rate, pressure, and temperature.
Inside a single high-density AI rack, dozens of GPU cold plates may be operating in parallel. Each accelerator has a different thermal profile depending on its workload. The CDU must apportion coolant flow to each branch with enough precision that no chip starves for cooling — while simultaneously avoiding excess flow that wastes pump energy and stresses the plumbing. Hydraulic balancing across dozens of parallel circuits is a genuinely hard fluid dynamics problem, and it's one that cheap or poorly engineered CDUs fail at consistently.
Pressure management is even less forgiving. Modern GPU cold plates use microchannel flow paths just 100 microns wide — roughly the width of a human hair. These structures are extraordinarily efficient at pulling heat out of silicon, but they are also fragile. A pressure spike can crack a flow channel and flood a rack. A sustained pressure drop means insufficient coolant circulation and thermal runaway. The CDU must maintain stability within tolerances of ±0.05 bar across thousands of operating hours.
Temperature control closes the loop. For NVIDIA's Rubin-generation GPU clusters, the secondary side inlet temperature must hold steady at approximately 45°C. The CDU achieves this through a combination of variable-frequency pump control and modulation of the heat exchange rate on the primary side — governed by PID control algorithms that continuously read sensor data and adjust outputs in real time. This isn't thermostat logic. It's feedback-driven thermal management running at the systems level.
The Rubin Challenge: Twice the Power, the Same Space
The demands on CDU engineering have escalated sharply with each GPU generation, but the leap to Rubin-class infrastructure is particularly striking.
Where previous-generation GB-series racks required CDUs with roughly 1.3 MW of cooling capacity, Rubin racks demand 2.3 to 2.6 MW — approximately double — while the physical footprint of the CDU expands by only 200 millimeters in width. Engineers must fit twice the thermal throughput into roughly the same cabinet envelope. This requires fundamentally more efficient plate heat exchangers, higher-performance pump impellers engineered to minimize vibration and noise at elevated power levels, and a control architecture sophisticated enough to manage not just one rack but an entire coordinated tier of AI compute infrastructure.
There is also a reliability tension that the industry has not yet fully resolved. Traditional CDU design specifies redundant pumps so that a single hardware failure does not take down an entire rack. But the space constraints of Rubin-class CDUs have pushed some vendors to eliminate pump redundancy, trading a well-established safety margin for physical feasibility. The consequence — increased single-point-of-failure risk in racks worth tens of millions of dollars — is a trade-off the industry is still actively debating.
Why CDU Expertise Is a Genuine Moat
The precision engineering required to build a reliable CDU at Rubin-class specifications explains why capable suppliers remain scarce. Accurate multi-circuit flow balancing, sustained micron-level pressure stability, closed-loop temperature control, integrated leak detection, automatic fluid replenishment, and predictive fault logic — these are not features that can be bolted on after the fact. They reflect deep, accumulated expertise in fluid mechanics, materials science, embedded control systems, and large-scale thermal simulation.
As GPU power densities continue to climb and liquid cooling transitions from premium option to baseline requirement, the CDU will only grow in strategic importance. Understanding what a CDU actually does — and what distinguishes an exceptional one from an adequate one — is no longer optional knowledge for anyone involved in AI infrastructure planning, data center procurement, or cooling system design.
The GPU gets the headlines. The CDU keeps it alive.
What Is a CDU, and Why Should You Care?
Think of a CDU — short for Coolant Distribution Unit — as the hydronic control hub of a liquid-cooled server rack. Just as a home radiant heating system uses a manifold to distribute hot water from a boiler to individual room circuits and return it in a continuous loop, a CDU distributes chilled coolant from a facility's external cooling plant to every GPU cold plate inside a rack, then collects the heated fluid on the return path.
The elegance of the CDU lies in what it keeps separate. Inside every CDU is a plate heat exchanger — a compact device made of corrugated metal plates that allows thermal energy to transfer between two fluid streams without the fluids ever mixing. On one side flows the facility's primary coolant loop, circulating between the CDU and an outdoor dry cooler that rejects heat to the ambient air. On the other side flows the secondary loop, which travels directly through the cold plates pressed against the GPUs.
This two-loop architecture is more than an engineering preference. It's a containment strategy. Outdoor water circuits can harbor minerals, biological growth, and contaminants. Keeping that fluid entirely separate from the precision microchannel cold plates protecting million-dollar accelerators is not optional — it's essential.
Precision, Not Just Plumbing
What separates a CDU from a glorified water pump is its ability to manage three interdependent variables simultaneously: flow rate, pressure, and temperature.
Inside a single high-density AI rack, dozens of GPU cold plates may be operating in parallel. Each accelerator has a different thermal profile depending on its workload. The CDU must apportion coolant flow to each branch with enough precision that no chip starves for cooling — while simultaneously avoiding excess flow that wastes pump energy and stresses the plumbing. Hydraulic balancing across dozens of parallel circuits is a genuinely hard fluid dynamics problem, and it's one that cheap or poorly engineered CDUs fail at consistently.
Pressure management is even less forgiving. Modern GPU cold plates use microchannel flow paths just 100 microns wide — roughly the width of a human hair. These structures are extraordinarily efficient at pulling heat out of silicon, but they are also fragile. A pressure spike can crack a flow channel and flood a rack. A sustained pressure drop means insufficient coolant circulation and thermal runaway. The CDU must maintain stability within tolerances of ±0.05 bar across thousands of operating hours.
Temperature control closes the loop. For NVIDIA's Rubin-generation GPU clusters, the secondary side inlet temperature must hold steady at approximately 45°C. The CDU achieves this through a combination of variable-frequency pump control and modulation of the heat exchange rate on the primary side — governed by PID control algorithms that continuously read sensor data and adjust outputs in real time. This isn't thermostat logic. It's feedback-driven thermal management running at the systems level.
The Rubin Challenge: Twice the Power, the Same Space
The demands on CDU engineering have escalated sharply with each GPU generation, but the leap to Rubin-class infrastructure is particularly striking.
Where previous-generation GB-series racks required CDUs with roughly 1.3 MW of cooling capacity, Rubin racks demand 2.3 to 2.6 MW — approximately double — while the physical footprint of the CDU expands by only 200 millimeters in width. Engineers must fit twice the thermal throughput into roughly the same cabinet envelope. This requires fundamentally more efficient plate heat exchangers, higher-performance pump impellers engineered to minimize vibration and noise at elevated power levels, and a control architecture sophisticated enough to manage not just one rack but an entire coordinated tier of AI compute infrastructure.
There is also a reliability tension that the industry has not yet fully resolved. Traditional CDU design specifies redundant pumps so that a single hardware failure does not take down an entire rack. But the space constraints of Rubin-class CDUs have pushed some vendors to eliminate pump redundancy, trading a well-established safety margin for physical feasibility. The consequence — increased single-point-of-failure risk in racks worth tens of millions of dollars — is a trade-off the industry is still actively debating.
Why CDU Expertise Is a Genuine Moat
The precision engineering required to build a reliable CDU at Rubin-class specifications explains why capable suppliers remain scarce. Accurate multi-circuit flow balancing, sustained micron-level pressure stability, closed-loop temperature control, integrated leak detection, automatic fluid replenishment, and predictive fault logic — these are not features that can be bolted on after the fact. They reflect deep, accumulated expertise in fluid mechanics, materials science, embedded control systems, and large-scale thermal simulation.
As GPU power densities continue to climb and liquid cooling transitions from premium option to baseline requirement, the CDU will only grow in strategic importance. Understanding what a CDU actually does — and what distinguishes an exceptional one from an adequate one — is no longer optional knowledge for anyone involved in AI infrastructure planning, data center procurement, or cooling system design.
The GPU gets the headlines. The CDU keeps it alive.
Offshore laboratories often operate close to hazardous areas where flammable gases or toxic substances may be present. In these environments, maintaining a safe indoor atmosphere is just as important as protecting the laboratory structure itself.
Many engineering teams ask the same questions before selecting an offshore laboratory container:
This article explains the basic principles of intelligent pressure control in offshore laboratories and shows how TLS designs containerized laboratory solutions to improve safety, reliability, and compliance for Zone 1 and Zone 2 applications.
Positive Pressure or Negative Pressure? It Depends on the Laboratory Application
Pressure control is one of the most important safety features in an offshore laboratory.
For laboratories installed near hazardous areas, positive pressure is commonly used. Clean air is continuously supplied into the container so that the internal pressure remains higher than the outside atmosphere. This prevents flammable gases from entering the laboratory and creates a safe environment for personnel and equipment.
However, laboratories handling hazardous chemicals or volatile samples may require negative pressure. In this case, air flows into the laboratory rather than out, preventing harmful gases generated during testing from escaping into surrounding work areas.
The correct pressure strategy should always be determined by the laboratory process and project risk assessment.
Why Explosion-Proof Equipment Alone Is Not Enough
A common misconception is that explosion-proof electrical equipment alone can guarantee laboratory safety. In reality, pressure control, ventilation, and gas detection work together as one integrated safety system.
TLS laboratory containers can be designed with explosion-proof HVAC equipment, certified electrical components, combustible gas detectors, and H₂S monitoring systems. These systems continuously monitor the laboratory environment and help prevent hazardous gases from reaching dangerous concentrations.
Before laboratory equipment is energized, the container can also perform an automatic air purge to remove any potentially hazardous gases that may have accumulated during shutdown.
Instead of relying on a single protective measure, the laboratory uses multiple layers of protection to reduce operational risk.
Intelligent Control Improves Safety During Unexpected Events
Offshore conditions can change quickly. Gas leaks, pressure loss, or ventilation failures require an immediate response. TLS integrates pressure monitoring, gas detection, ventilation control, and emergency shutdown logic into one intelligent control system. If combustible gas or H₂S reaches the alarm level, or if the internal pressure cannot be maintained within the required range, the system can automatically:
Why Engineering Design Matters More Than Individual Components
Selecting certified components is important, but overall system design has an even greater impact on laboratory safety.
A reliable offshore laboratory should consider:
TLS develops offshore laboratory containers by integrating these elements into one complete engineering solution rather than treating them as separate systems.
Conclusion
Safe offshore laboratories require more than explosion-proof equipment. They depend on the combination of intelligent pressure control, effective ventilation, reliable gas detection, and automatic emergency response.
Whether positive pressure is used to keep hazardous gases outside or negative pressure is used to contain hazardous substances inside, the objective remains the same: maintaining a safe working environment throughout the laboratory's operation.
With extensive experience in offshore laboratory containers, pressurized modules, and hazardous-area container solutions, TLS provides engineered systems that support reliable operation in Zone 1 and Zone 2 environments while helping customers meet international project requirements.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Please download the Laboratory container brochure for reference.
Keywords：#offshore laboratory container, #pressurized laboratory container, #positive pressure laboratory, #negative pressure laboratory, #Zone 1 laboratory container, #Zone 2 laboratory container, #explosion-proof laboratory, #ATEX IECEx laboratory, #offshore pressurized module, #hazardous area laboratory
Many engineering teams ask the same questions before selecting an offshore laboratory container:
- When should an offshore laboratory use positive pressure or negative pressure?
- Why are explosion-proof equipment and gas detection systems both necessary?
- How can a laboratory remain safe if gas is detected or pressure is lost?
This article explains the basic principles of intelligent pressure control in offshore laboratories and shows how TLS designs containerized laboratory solutions to improve safety, reliability, and compliance for Zone 1 and Zone 2 applications.
Positive Pressure or Negative Pressure? It Depends on the Laboratory Application
Pressure control is one of the most important safety features in an offshore laboratory.
For laboratories installed near hazardous areas, positive pressure is commonly used. Clean air is continuously supplied into the container so that the internal pressure remains higher than the outside atmosphere. This prevents flammable gases from entering the laboratory and creates a safe environment for personnel and equipment.
However, laboratories handling hazardous chemicals or volatile samples may require negative pressure. In this case, air flows into the laboratory rather than out, preventing harmful gases generated during testing from escaping into surrounding work areas.
The correct pressure strategy should always be determined by the laboratory process and project risk assessment.
Why Explosion-Proof Equipment Alone Is Not Enough
A common misconception is that explosion-proof electrical equipment alone can guarantee laboratory safety. In reality, pressure control, ventilation, and gas detection work together as one integrated safety system.
TLS laboratory containers can be designed with explosion-proof HVAC equipment, certified electrical components, combustible gas detectors, and H₂S monitoring systems. These systems continuously monitor the laboratory environment and help prevent hazardous gases from reaching dangerous concentrations.
Before laboratory equipment is energized, the container can also perform an automatic air purge to remove any potentially hazardous gases that may have accumulated during shutdown.
Instead of relying on a single protective measure, the laboratory uses multiple layers of protection to reduce operational risk.
Intelligent Control Improves Safety During Unexpected Events
Offshore conditions can change quickly. Gas leaks, pressure loss, or ventilation failures require an immediate response. TLS integrates pressure monitoring, gas detection, ventilation control, and emergency shutdown logic into one intelligent control system. If combustible gas or H₂S reaches the alarm level, or if the internal pressure cannot be maintained within the required range, the system can automatically:
- Activate audible and visual alarms
- Adjust the ventilation system
- Isolate the laboratory if necessary
- Disconnect power to non-essential electrical equipment
Why Engineering Design Matters More Than Individual Components
Selecting certified components is important, but overall system design has an even greater impact on laboratory safety.
A reliable offshore laboratory should consider:
- Hazardous area classification (Zone 1 or Zone 2)
- Pressure control strategy
- Ventilation airflow design
- Gas detection and alarm logic
- Explosion-proof electrical integration
- Compliance with applicable international standards
TLS develops offshore laboratory containers by integrating these elements into one complete engineering solution rather than treating them as separate systems.
Conclusion
Safe offshore laboratories require more than explosion-proof equipment. They depend on the combination of intelligent pressure control, effective ventilation, reliable gas detection, and automatic emergency response.
Whether positive pressure is used to keep hazardous gases outside or negative pressure is used to contain hazardous substances inside, the objective remains the same: maintaining a safe working environment throughout the laboratory's operation.
With extensive experience in offshore laboratory containers, pressurized modules, and hazardous-area container solutions, TLS provides engineered systems that support reliable operation in Zone 1 and Zone 2 environments while helping customers meet international project requirements.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Please download the Laboratory container brochure for reference.
Keywords：#offshore laboratory container, #pressurized laboratory container, #positive pressure laboratory, #negative pressure laboratory, #Zone 1 laboratory container, #Zone 2 laboratory container, #explosion-proof laboratory, #ATEX IECEx laboratory, #offshore pressurized module, #hazardous area laboratory
Written by Snowy
Overview
In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.
Layer 1: Pressurization Protection (External Defenses)
Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
Conclusion
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Hazardous area laboratory container, #Pressurized laboratory cabin offshore, #Explosion proof laboratory design, #IEC 60079-13 pressurized room, #Mud logging unit dual layer safety, #Exd certified laboratory HVAC, #Zone1 positive pressure container, #NFPA496 purged enclosure lab, #Offshore lab container explosion protection
In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
- Why does a pressurization system only address half of the explosion risk equation?
- What are the primary internal operational hazards that pressurization cannot mitigate?
- How do leading operators combine Ex protection and positive pressure to achieve compliance?
- What are the critical engineering takeaways from historic containment failures?
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.
Layer 1: Pressurization Protection (External Defenses)
- Maintains a continuous positive pressure barrier against the surrounding Zone 1 or Zone 2 environment.
- Utilizes automatic purging sequences to clear the atmosphere before electrical systems are energized.
- Integrates differential pressure monitoring and automatic gas detection interlocks to shut down power if pressure drops.
Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
- Treats the interior space as a potentially hazardous zone due to active sample testing.
- Mandates the installation of certified explosion-proof (Ex d, Ex e, or Ex i) lighting, switches, and junction boxes.
- Utilizes specialized explosion-proof HVAC systems and ventilation fans to safely exhaust internal vapors while preventing ignition.
Conclusion
- Directional Defense: Pressurization protects a laboratory container from external hazardous atmospheres, while explosion-proof electrical equipment protects the container from internal sample-generated hazards.
- Risk Multiplication: Relying on positive pressure alone creates a dangerous containment trap for internal chemical spills or gas leaks, turning a localized sample leak into an immediate explosion risk.
- Industry Best Practice: High-risk applications—including Offshore Laboratories, Mud Logging Units, Well Testing Labs, and Chemical Analysis Containers—must employ a dual-protection design to guarantee both personnel safety and regulatory compliance.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Hazardous area laboratory container, #Pressurized laboratory cabin offshore, #Explosion proof laboratory design, #IEC 60079-13 pressurized room, #Mud logging unit dual layer safety, #Exd certified laboratory HVAC, #Zone1 positive pressure container, #NFPA496 purged enclosure lab, #Offshore lab container explosion protection
Written by Oliver
Overview
In the high-stakes offshore energy and maritime sectors, equipment failure isn’t just an inconvenience—it’s a critical financial and safety risk. Offshore containers act as the backbone of global subsea and topside operations, protecting high-value assets in the world’s most unforgiving environments. This comprehensive guide outlines how TLS Offshore Containers leverages precision engineering, rigorous third-party compliance, and specialized manufacturing to produce industry-leading units.
Key Questions Answered in This Guide:
The Reality of Offshore Stress vs. Standard Shipping
Standard ISO shipping containers are engineered for predictable, uniform stacking on cargo ships. In contrast, offshore containers must survive extreme dynamic loading. These units are frequently hoisted from moving vessels to heaving platforms in open seas, facing severe wind, unpredictable waves, and sudden structural snags.
To withstand these harsh realities, true offshore units must be built to the industry's ultimate triple-crown standards: DNV 2.7-1, EN 12079, and ISO 10855.
1. Advanced Engineering for Extreme Environments
The lifecycle of a high-performance container begins with data-driven design focused on mitigating environmental extremes:
2. Certified Fabrication and Specialized Coatings
A container's structural integrity is entirely dependent on its weakest weld. Top-tier manufacturing enforces absolute precision across the factory floor:
3. Rigorous Third-Party Testing and Certification
Before any unit enters service, it must pass a battery of standardized physical stress tests witnessed by independent classification societies such as DNV, ABS, or Lloyd’s Register:
4. Integrated Lifting and Lifespan Management
Safety does not stop at the container frame; it extends to the rigging and ongoing operational compliance:
Summary and Key Takeaways
Core Differences: Offshore vs. Standard Containers
Essential Pillars of Quality Production
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #DNV 2.7-1 offshore containers, #Offshore container manufacturer, #DNV certified lifting slings, #CCU container production, #Marine cargo basket manufacturing, #ISO 10855 compliant containers, #Workshop cabin design, #Custom offshore engineering solutions, #4-point lift test offshore containers
In the high-stakes offshore energy and maritime sectors, equipment failure isn’t just an inconvenience—it’s a critical financial and safety risk. Offshore containers act as the backbone of global subsea and topside operations, protecting high-value assets in the world’s most unforgiving environments. This comprehensive guide outlines how TLS Offshore Containers leverages precision engineering, rigorous third-party compliance, and specialized manufacturing to produce industry-leading units.
Key Questions Answered in This Guide:
- Why do offshore containers require significantly higher manufacturing standards than standard shipping containers?
- What specific engineering, material, and fabrication protocols prevent catastrophic failure in arctic and marine environments?
- How does rigorous third-party testing (including 2-point and 4-point lift tests) validate structural safety before deployment?
- What integrated rigging and lifecycle maintenance solutions are required to ensure long-term fleet compliance?
The Reality of Offshore Stress vs. Standard Shipping
Standard ISO shipping containers are engineered for predictable, uniform stacking on cargo ships. In contrast, offshore containers must survive extreme dynamic loading. These units are frequently hoisted from moving vessels to heaving platforms in open seas, facing severe wind, unpredictable waves, and sudden structural snags.
To withstand these harsh realities, true offshore units must be built to the industry's ultimate triple-crown standards: DNV 2.7-1, EN 12079, and ISO 10855.
1. Advanced Engineering for Extreme Environments
The lifecycle of a high-performance container begins with data-driven design focused on mitigating environmental extremes:
- Material Resilience: Standard steel fails under extreme cold. Offshore production relies on specialized carbon steel (such as S355J2) that retains critical ductility at temperatures dropping to -20°C, and down to -40°C for arctic-specific applications.
- Structural Safety Margins: Traditional engineering often relies on guesswork. Advanced Finite Element Analysis (FEA) simulates worst-case dynamic impacts and uneven lifting scenarios, ensuring the entire frame structure never approaches its yield point.
- Corrosion Prevention: Salt-heavy marine environments cause rapid localized oxidation. Modern designs eliminate "water traps" and integrate automated drainage pathways to extend the physical lifespan of the asset.
2. Certified Fabrication and Specialized Coatings
A container's structural integrity is entirely dependent on its weakest weld. Top-tier manufacturing enforces absolute precision across the factory floor:
- Weld Traceability: Every critical joint must be executed by certified professionals adhering to strict Welding Procedure Specifications, with full traceability records maintained for every piece of workmanship.
- Industrial Marine Coatings: Standard paint peels under heavy UV and salt exposure. Applying specialized C5-M standard marine paint systems ensures the steel survives decades of continuous exposure.
- Application-Specific Design: Fabrication must adapt to the cargo. Whether producing heavy-duty cargo baskets, pressurized cabins, or complex offshore workshops, the structural frame must be custom-tailored to the specific equipment it protects.
3. Rigorous Third-Party Testing and Certification
Before any unit enters service, it must pass a battery of standardized physical stress tests witnessed by independent classification societies such as DNV, ABS, or Lloyd’s Register:
- The 4-Point Lift Test: The container is loaded to 2.5 times its Maximum Gross Weight to verify overall structural safety under extreme crane operations.
- The 2-Point Lift Test: This simulates dangerous offshore "snagging" incidents. The unit is lifted from just two points to guarantee the main frame will not buckle under asymmetric load stress.
- Nondestructive Examination: Following heavy load testing, technicians utilize Magnetic Particle Inspection (MPI) to scan for microscopic surface cracks in the welds that are invisible to the naked eye.
4. Integrated Lifting and Lifespan Management
Safety does not stop at the container frame; it extends to the rigging and ongoing operational compliance:
- Certified Lifting Sets: Every unit must be equipped with dedicated wire rope slings and shackles matched perfectly to the unit's Maximum Gross Weight. These sets are permanently attached to prevent field operators from using incorrect or unrated rigging.
- Unique Identification: Rigging sets must be individually tagged with independent certifications and serial numbers for rapid safety audits.
- Life-Cycle Support: To prevent operational degradation, operators must follow structured maintenance schedules. Annual visual inspections and periodic NDE tests are mandatory to keep the fleet in "fit-for-purpose" condition.
Summary and Key Takeaways
Core Differences: Offshore vs. Standard Containers
- Environment: Standard containers handle predictable stacking; offshore containers endure violent, dynamic marine and arctic conditions.
- Material Strength: Offshore units require low-temperature carbon steel (S355J2) to prevent cracking in temperatures as low as -40°C.
- Certification: Offshore units require mandatory independent third-party validation (DNV, ABS, Lloyd's) through destructive and non-destructive testing.
Essential Pillars of Quality Production
- Data-Driven Engineering: Utilizing Finite Element Analysis (FEA) to eliminate water traps and simulate worst-case impact scenarios.
- Precision Craftsmanship: Implementing 100% traceable welding and applying C5-M standard high-performance marine coatings.
- Extreme Load Verification: Passing mandatory 2.5x gross weight lift tests and post-test Magnetic Particle Inspections (MPI).
- Operational Security: Utilizing permanently attached, uniquely tagged, and certified lifting slings to eliminate human error in the field.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #DNV 2.7-1 offshore containers, #Offshore container manufacturer, #DNV certified lifting slings, #CCU container production, #Marine cargo basket manufacturing, #ISO 10855 compliant containers, #Workshop cabin design, #Custom offshore engineering solutions, #4-point lift test offshore containers
