Forced air-cooling technology is a critical component in energy storage systems, ensuring optimal operating temperatures and efficient performance. Understanding the key factors and components of this technology is essential for maximizing the effectiveness of air cooling in energy storage systems. In this article, we will explore the key elements that contribute to the success of forced air-cooling technology, highlighting its importance and potential benefits for energy storage systems.
Conclusion:
Forced air-cooling technology plays a vital role in energy storage systems, ensuring efficient cooling and optimal performance. Customized air duct designs, efficient airflow distribution, and well-designed control systems are key factors that contribute to the success of this technology. By implementing these components effectively, energy storage systems can achieve enhanced efficiency, prolong battery lifespan, and ensure reliable operation. With the continued advancements in forced air-cooling technology, we can expect even greater optimization of energy storage systems, leading to increased sustainability and effectiveness in the future.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
#Forced air-cooling #Energy storage systems #Air duct design #Airflow distribution #Heat exchange #Battery cooling #Parallel ventilation #Serial ventilation #Temperature regulation #Air conditioner control
- Customized Air Duct Design:
- Efficient Airflow Distribution:
- Key Components of Air Duct Design:
- Main Air Duct: Responsible for transporting airflow from the air conditioner outlet to the respective air duct outlets.
- Wind Baffles: Positioned within the main air duct, wind baffles help distribute gas flow evenly among the air duct outlets, maintaining a consistent airflow rate.
- Air Duct Outlets: These outlets deliver the cooled air to the battery modules, ensuring effective heat exchange and cooling.
- Wind Baffles at Battery Rack Ends: Placed at both ends of the battery rack, these wind baffles prevent air leakage and ensure efficient airflow within the rack, maximizing cooling effectiveness.
- Control Systems for Temperature Regulation:
- Air Conditioner Control: Monitors the internal temperature of the system and triggers cooling or heating actions accordingly. This ensures that the overall system temperature remains within the desired range.
- Battery Module Fan Control: Enables temperature adjustment on a per-battery basis. By regulating fan speed or airflow, the control system maintains optimal temperatures for each battery, preventing overheating and maximizing performance.
Conclusion:
Forced air-cooling technology plays a vital role in energy storage systems, ensuring efficient cooling and optimal performance. Customized air duct designs, efficient airflow distribution, and well-designed control systems are key factors that contribute to the success of this technology. By implementing these components effectively, energy storage systems can achieve enhanced efficiency, prolong battery lifespan, and ensure reliable operation. With the continued advancements in forced air-cooling technology, we can expect even greater optimization of energy storage systems, leading to increased sustainability and effectiveness in the future.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
#Forced air-cooling #Energy storage systems #Air duct design #Airflow distribution #Heat exchange #Battery cooling #Parallel ventilation #Serial ventilation #Temperature regulation #Air conditioner control
Written by Oliver

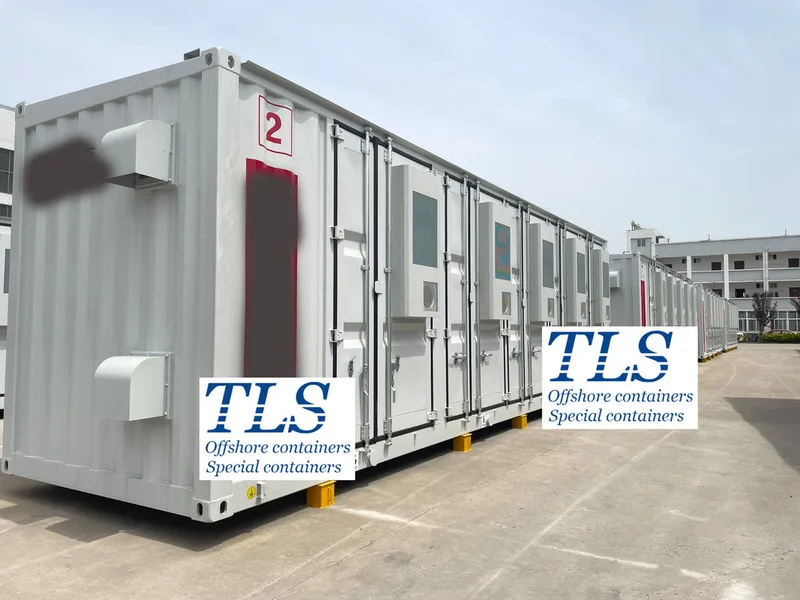

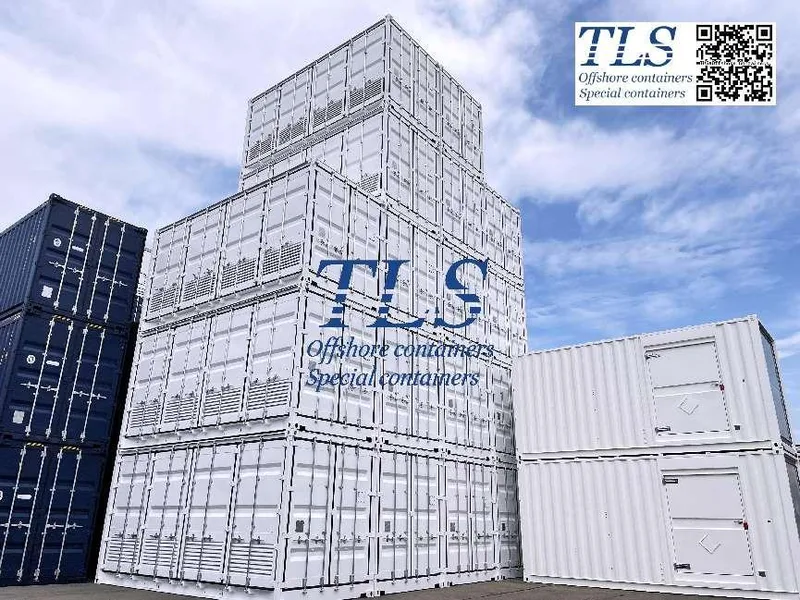

Designing a Battery Energy Storage System (BESS) container enclosure requires a comprehensive understanding of several key factors. This guide provides an in-depth look at these considerations, helping you navigate the process effectively.
Firstly, understanding the specific requirements of your BESS is crucial. This encompasses the system's capacity, the type of batteries used, expected operating conditions, and any site-specific requirements.
Thermal management is another significant aspect. Given the heat generated by batteries, the enclosure design must incorporate effective thermal management strategies. These could range from ventilation systems and cooling systems to insulation, based on the system's specific needs.
Safety is paramount in BESS enclosure design. Incorporating features such as fire suppression systems, emergency exits, and safety signage is essential. Additionally, the design should deter unauthorized access.
The design should also facilitate ease of maintenance. This can be achieved through features like removable panels, easy access to all system parts, and clear component labeling.
Compliance with standards and regulations is non-negotiable. The enclosure design must adhere to local building codes, electrical codes, and battery-specific standards. Notably, the container enclosure should be ISO and CSC certified for transportation.
The enclosure design should also allow for seamless integration with other systems. These could include the electrical grid, renewable energy sources, or building management systems.
Once the design is complete, it's important to build a prototype and test it under various conditions. This ensures the final product meets all requirements and performs as expected.
After testing and necessary design revisions, the final enclosure can be manufactured and installed.

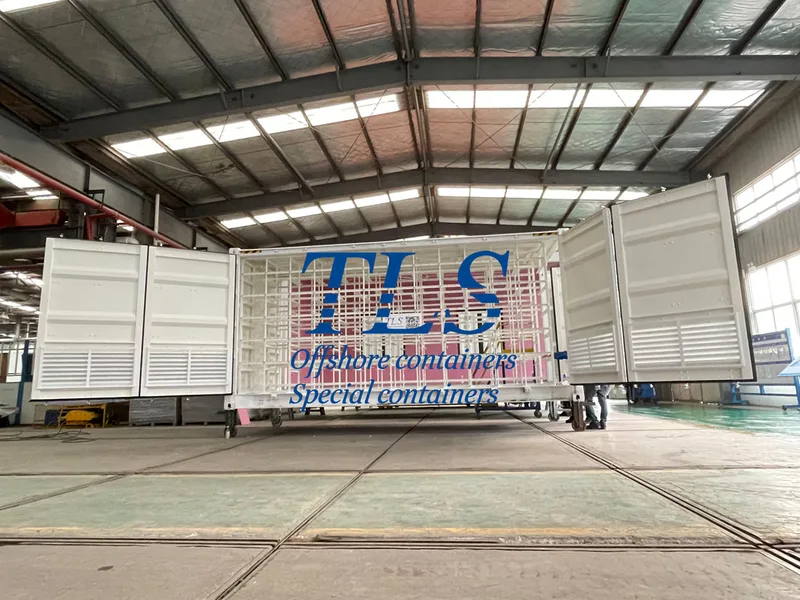

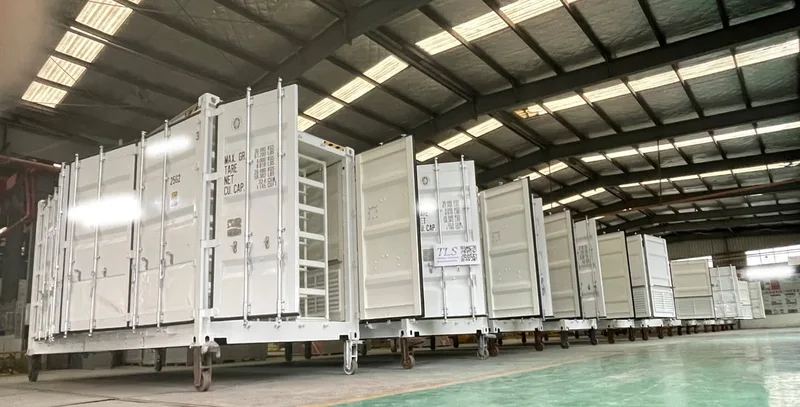

When it comes to manufacturing BESS container enclosures, TLS Offshore Containers International stands out as a leading player. They specialize in producing high-quality, ISO and CSC certified containers that meet the stringent requirements of BESS installations. Their containers are designed with safety, durability, and ease of maintenance in mind, making them a preferred choice for many BESS projects."
Firstly, understanding the specific requirements of your BESS is crucial. This encompasses the system's capacity, the type of batteries used, expected operating conditions, and any site-specific requirements.
Thermal management is another significant aspect. Given the heat generated by batteries, the enclosure design must incorporate effective thermal management strategies. These could range from ventilation systems and cooling systems to insulation, based on the system's specific needs.
Safety is paramount in BESS enclosure design. Incorporating features such as fire suppression systems, emergency exits, and safety signage is essential. Additionally, the design should deter unauthorized access.
The design should also facilitate ease of maintenance. This can be achieved through features like removable panels, easy access to all system parts, and clear component labeling.
Compliance with standards and regulations is non-negotiable. The enclosure design must adhere to local building codes, electrical codes, and battery-specific standards. Notably, the container enclosure should be ISO and CSC certified for transportation.
The enclosure design should also allow for seamless integration with other systems. These could include the electrical grid, renewable energy sources, or building management systems.
Once the design is complete, it's important to build a prototype and test it under various conditions. This ensures the final product meets all requirements and performs as expected.
After testing and necessary design revisions, the final enclosure can be manufactured and installed.
When it comes to manufacturing BESS container enclosures, TLS Offshore Containers International stands out as a leading player. They specialize in producing high-quality, ISO and CSC certified containers that meet the stringent requirements of BESS installations. Their containers are designed with safety, durability, and ease of maintenance in mind, making them a preferred choice for many BESS projects."

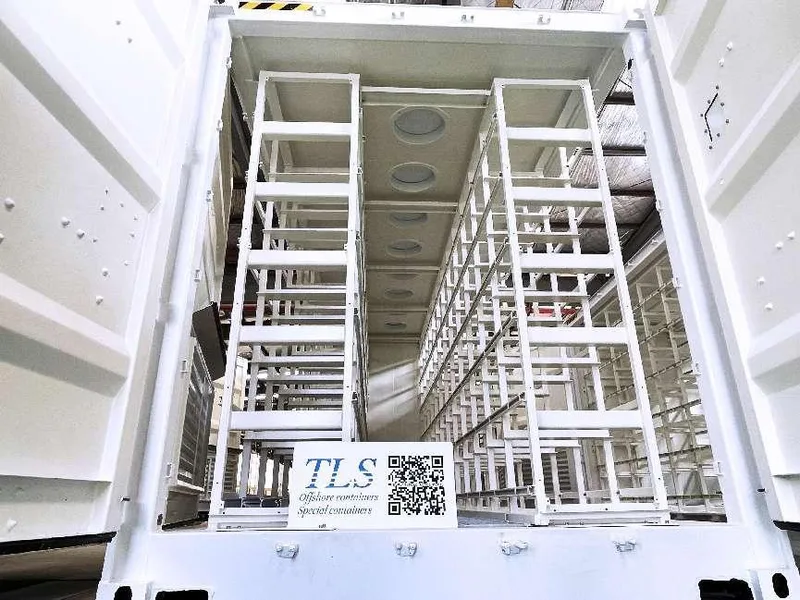

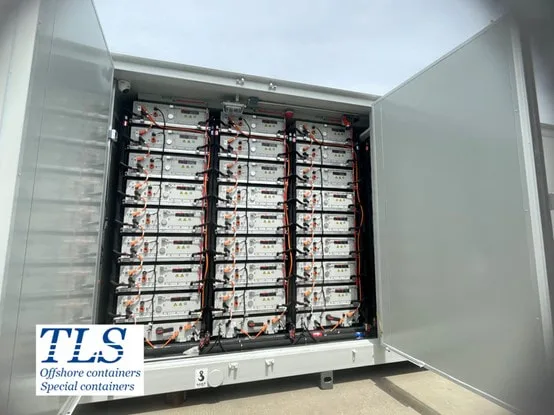

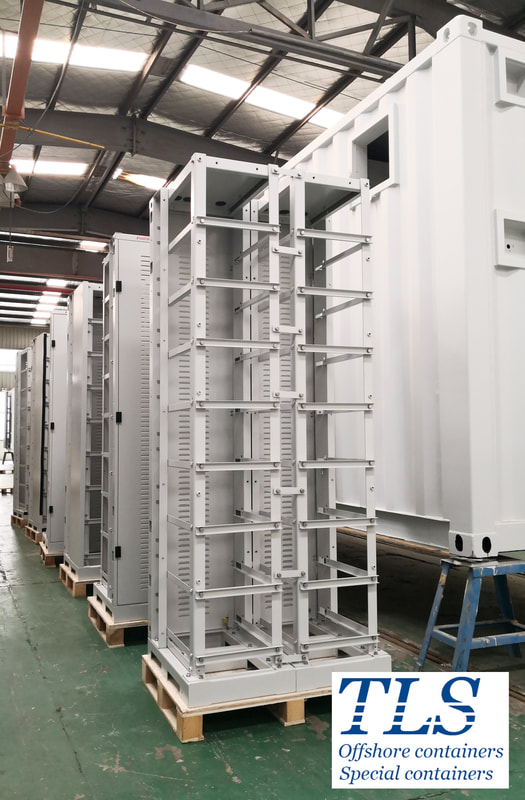

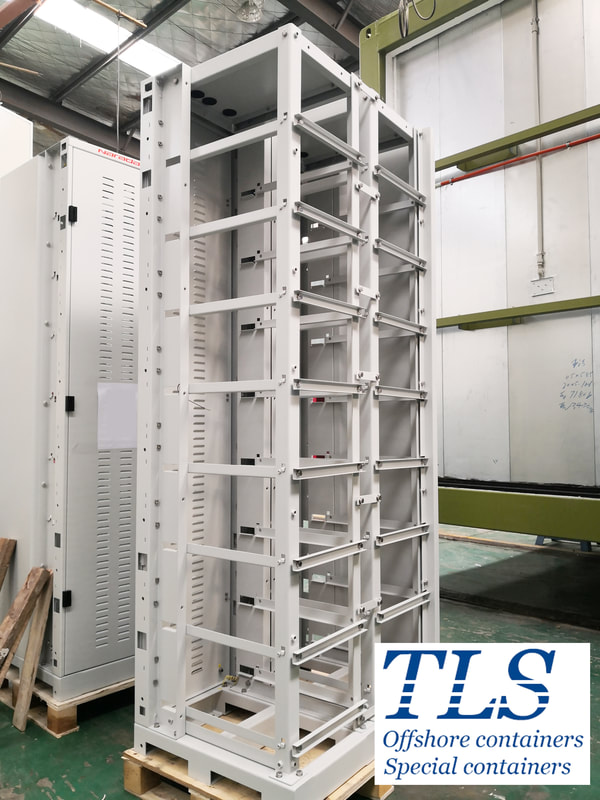

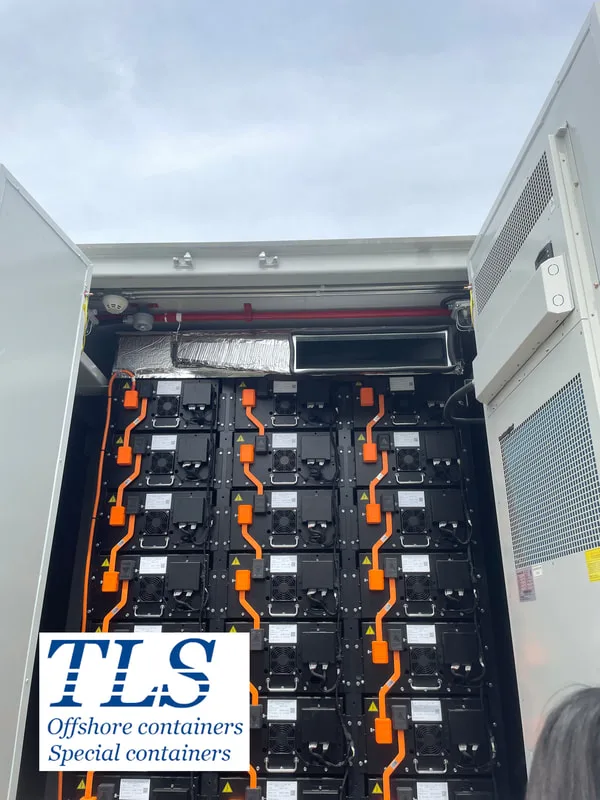

In a Battery Energy Storage System (BESS) container, the design of the battery rack plays a crucial role in the system's overall performance, safety, and longevity. The battery rack is essentially the structure that houses the individual battery modules, and its design involves several key considerations.
1. Material Selection: The material used for the battery rack should be durable and resistant to the environmental conditions within the BESS container. Typically, materials like stainless steel or aluminum are used due to their strength, corrosion resistance, and relatively light weight.
2. Thermal Management: The design of the battery rack should facilitate effective thermal management. This could involve the use of air or liquid cooling systems, and the rack should be designed to allow for efficient heat dissipation.
3. Accessibility and Maintenance: The battery rack should be designed to allow for easy access to the individual battery modules for maintenance or replacement. This often involves the use of sliding or removable trays.
4. Safety Considerations: The rack should be designed with safety in mind. This includes features such as insulation to prevent electrical shorts, and containment structures to prevent the spread of any potential thermal events.
5. Space Optimization: The design of the battery rack should make efficient use of the available space within the BESS container. This often involves stacking the battery modules in multiple layers, while still allowing for adequate ventilation and cooling.
6. Modularity: A modular design allows for flexibility in terms of the system's capacity and power. It allows for easy expansion or reduction of the system's capacity by adding or removing battery modules.
7. Structural Stability: Given the substantial weight of the battery modules, the rack needs to be structurally stable to withstand the load, as well as any external forces such as those experienced during transportation.
8. Compliance with Standards: The design of the battery rack should comply with relevant safety and performance standards, such as those outlined by the National Electrical Manufacturers Association (NEMA) or the International Electrotechnical Commission (IEC).
In conclusion, the design of the battery rack in a BESS container is a complex task that requires careful consideration of various factors. A well-designed battery rack can significantly enhance the performance, safety, and longevity of the BESS, making it a critical component of the system.
1. Material Selection: The material used for the battery rack should be durable and resistant to the environmental conditions within the BESS container. Typically, materials like stainless steel or aluminum are used due to their strength, corrosion resistance, and relatively light weight.
2. Thermal Management: The design of the battery rack should facilitate effective thermal management. This could involve the use of air or liquid cooling systems, and the rack should be designed to allow for efficient heat dissipation.
3. Accessibility and Maintenance: The battery rack should be designed to allow for easy access to the individual battery modules for maintenance or replacement. This often involves the use of sliding or removable trays.
4. Safety Considerations: The rack should be designed with safety in mind. This includes features such as insulation to prevent electrical shorts, and containment structures to prevent the spread of any potential thermal events.
5. Space Optimization: The design of the battery rack should make efficient use of the available space within the BESS container. This often involves stacking the battery modules in multiple layers, while still allowing for adequate ventilation and cooling.
6. Modularity: A modular design allows for flexibility in terms of the system's capacity and power. It allows for easy expansion or reduction of the system's capacity by adding or removing battery modules.
7. Structural Stability: Given the substantial weight of the battery modules, the rack needs to be structurally stable to withstand the load, as well as any external forces such as those experienced during transportation.
8. Compliance with Standards: The design of the battery rack should comply with relevant safety and performance standards, such as those outlined by the National Electrical Manufacturers Association (NEMA) or the International Electrotechnical Commission (IEC).
In conclusion, the design of the battery rack in a BESS container is a complex task that requires careful consideration of various factors. A well-designed battery rack can significantly enhance the performance, safety, and longevity of the BESS, making it a critical component of the system.
The design of Battery Energy Storage System (BESS) containers has evolved significantly over the years, driven by advancements in technology, changing market demands, and lessons learned from operational experience. Here are some of the key trends shaping the design of BESS containers today:
1. Modularity: Modularity is a major trend in BESS container design. Modular systems are easier to scale up or down, allowing for greater flexibility in meeting specific energy storage needs. This approach also simplifies maintenance and replacement of individual components.
2. Thermal Management: As BESS containers house high-energy-density batteries, effective thermal management is crucial to ensure safety and prolong battery life. Advanced cooling systems, such as liquid cooling or phase change materials, are increasingly being incorporated into BESS container designs.
3. Safety Enhancements: Safety is paramount in BESS design. This includes features to prevent, detect, and mitigate thermal runaway, such as advanced Battery Management Systems (BMS), fire suppression systems, and designs that allow for safe venting of gases.
4. Integration of Advanced Technologies: The integration of advanced technologies, such as AI and IoT, is becoming more common in BESS container design. These technologies enable real-time monitoring and predictive maintenance, improving the efficiency and reliability of the system.
5. Energy Efficiency: With growing emphasis on sustainability, designs that maximize energy efficiency are in demand. This includes the use of energy-efficient components, as well as designs that minimize energy loss, such as advanced insulation and optimized layouts.
6. Customization: As BESS applications become more diverse, there is a growing trend towards customization of BESS container designs to meet specific application requirements. This can include factors such as size, power and energy capacity, and integration with other systems.
7. Compliance with Standards: As the BESS industry matures, there is a growing emphasis on compliance with safety and performance standards. This includes standards related to electrical safety, fire safety, environmental impact, and more.
In conclusion, the design of BESS containers is a dynamic field, with ongoing advancements in technology and evolving market needs driving continuous innovation. As we look to the future, we can expect to see further enhancements in areas such as safety, efficiency, modularity, and integration of advanced technologies.
1. Modularity: Modularity is a major trend in BESS container design. Modular systems are easier to scale up or down, allowing for greater flexibility in meeting specific energy storage needs. This approach also simplifies maintenance and replacement of individual components.
2. Thermal Management: As BESS containers house high-energy-density batteries, effective thermal management is crucial to ensure safety and prolong battery life. Advanced cooling systems, such as liquid cooling or phase change materials, are increasingly being incorporated into BESS container designs.
3. Safety Enhancements: Safety is paramount in BESS design. This includes features to prevent, detect, and mitigate thermal runaway, such as advanced Battery Management Systems (BMS), fire suppression systems, and designs that allow for safe venting of gases.
4. Integration of Advanced Technologies: The integration of advanced technologies, such as AI and IoT, is becoming more common in BESS container design. These technologies enable real-time monitoring and predictive maintenance, improving the efficiency and reliability of the system.
5. Energy Efficiency: With growing emphasis on sustainability, designs that maximize energy efficiency are in demand. This includes the use of energy-efficient components, as well as designs that minimize energy loss, such as advanced insulation and optimized layouts.
6. Customization: As BESS applications become more diverse, there is a growing trend towards customization of BESS container designs to meet specific application requirements. This can include factors such as size, power and energy capacity, and integration with other systems.
7. Compliance with Standards: As the BESS industry matures, there is a growing emphasis on compliance with safety and performance standards. This includes standards related to electrical safety, fire safety, environmental impact, and more.
In conclusion, the design of BESS containers is a dynamic field, with ongoing advancements in technology and evolving market needs driving continuous innovation. As we look to the future, we can expect to see further enhancements in areas such as safety, efficiency, modularity, and integration of advanced technologies.
In the context of a Battery Energy Storage System (BESS), MW (megawatts) and MWh (megawatt-hours) are two crucial specifications that describe different aspects of the system's performance. Understanding the difference between these two units is key to comprehending the capabilities and limitations of a BESS.
1. MW (Megawatts): This is a unit of power, which essentially measures the rate at which energy is used or produced. In a BESS, the MW rating typically refers to the maximum amount of power that the system can deliver at any given moment. For instance, a BESS rated at 5 MW can deliver up to 5 megawatts of power instantaneously. This specification is important for applications that require high power over short periods, such as frequency regulation in power grids or fast charging of electric vehicles.
2. MWh (Megawatt-hours): This is a unit of energy, which measures the total amount of electricity that can be stored or delivered over time. In a BESS, the MWh rating typically refers to the total amount of energy that the system can store. For instance, a BESS rated at 20 MWh can deliver 1 MW of power continuously for 20 hours, or 2 MW of power for 10 hours, and so on. This specification is important for applications that require energy delivery over extended periods, such as load shifting or backup power supply.
The MW and MWh specifications of a BESS are both important, but they serve different purposes. The MW rating determines how much power the system can deliver at any moment, while the MWh rating determines how long the system can deliver that power. In other words, the MW rating is about the "speed" of energy delivery, while the MWh rating is about the "distance" or duration of energy delivery.
In terms of their importance in the design and operation of a BESS, both specifications are crucial. The MW rating is primarily determined by the power capabilities of the battery cells and the power electronics in the system, such as inverters and converters. The MWh rating, on the other hand, is primarily determined by the energy capacity of the battery cells and the total number of cells in the system.
In conclusion, understanding the MW and MWh specifications of a BESS is essential for assessing its suitability for different applications. A system with a high MW rating but a low MWh rating might be suitable for short-duration, high-power applications, while a system with a low MW rating but a high MWh rating might be more suitable for long-duration, low-power applications. Therefore, the selection of a BESS should always be based on a careful consideration of both its MW and MWh specifications, in relation to the specific requirements of the intended application.
1. MW (Megawatts): This is a unit of power, which essentially measures the rate at which energy is used or produced. In a BESS, the MW rating typically refers to the maximum amount of power that the system can deliver at any given moment. For instance, a BESS rated at 5 MW can deliver up to 5 megawatts of power instantaneously. This specification is important for applications that require high power over short periods, such as frequency regulation in power grids or fast charging of electric vehicles.
2. MWh (Megawatt-hours): This is a unit of energy, which measures the total amount of electricity that can be stored or delivered over time. In a BESS, the MWh rating typically refers to the total amount of energy that the system can store. For instance, a BESS rated at 20 MWh can deliver 1 MW of power continuously for 20 hours, or 2 MW of power for 10 hours, and so on. This specification is important for applications that require energy delivery over extended periods, such as load shifting or backup power supply.
The MW and MWh specifications of a BESS are both important, but they serve different purposes. The MW rating determines how much power the system can deliver at any moment, while the MWh rating determines how long the system can deliver that power. In other words, the MW rating is about the "speed" of energy delivery, while the MWh rating is about the "distance" or duration of energy delivery.
In terms of their importance in the design and operation of a BESS, both specifications are crucial. The MW rating is primarily determined by the power capabilities of the battery cells and the power electronics in the system, such as inverters and converters. The MWh rating, on the other hand, is primarily determined by the energy capacity of the battery cells and the total number of cells in the system.
In conclusion, understanding the MW and MWh specifications of a BESS is essential for assessing its suitability for different applications. A system with a high MW rating but a low MWh rating might be suitable for short-duration, high-power applications, while a system with a low MW rating but a high MWh rating might be more suitable for long-duration, low-power applications. Therefore, the selection of a BESS should always be based on a careful consideration of both its MW and MWh specifications, in relation to the specific requirements of the intended application.
