Overview: In laboratory environments involving flammable gases, volatile solvents, or high-risk chemical samples, explosion protection is a zero-compromise baseline. However, many facilities mistakenly treat purged pressurized enclosures as standard laboratory boxes with a basic safety sticker, overlooking the core mechanical control mechanisms. This oversight often turns minor vapor leaks or unexpected depressurization into catastrophic accidents. True explosion proofing never relies on luck—it depends on rigorous system engineering. This technical guide directly addresses three critical operational pain points:
1. The First Shield: A High-Availability Positive Pressure Maintenance Corridor
Purge and pressurization (Type p protection) serves as the primary active defense mechanism for laboratory enclosures. Put simply, the system maintains an internal air pressure slightly higher than the surrounding ambient atmosphere. Due to this pressure differential, external flammable gases physically cannot migrate into the testing environment, systematically eliminating the "combustible material" component of the fire triangle.
However, achieving effective pressurization requires more than just forcing unguided air into the box; the flow path must be intelligently regulated:
2. The Second Shield: Advanced Electrical Isolation and Segregation Barriers
While positive pressure successfully locks out external dangers, the enclosure itself contains multiple internal electrical components (such as blowers, interior lighting, heating elements, and control modules). If these components are not individually protected, an internal chemical leak will transform them into lethal ignition sources.
To prevent this, the internal electrical architecture must undergo rigorous zoning and component upgrades:
3. The Third Shield: Directional Overpressure Relief and Structural Buffering
Sound engineering leaves no room for optimism; it actively plans for worst-case scenarios. Whether dealing with sudden external supply gas surges or an unpredicted internal exothermic reaction that spikes vapor pressures, the enclosure must possess the structural capability to vent pressure safely without shattering.
Conclusion: Three Ironclad Rules for Purged Lab Enclosure Procurement
A truly reliable purged laboratory enclosure never validates its safety through a basic compliance certificate alone; its real capability is determined by uncompromised engineering details. When evaluating equipment designs and procurement specifications, prioritize these three fundamental concepts:
Please download the Laboratory container brochure for reference.
Keywords: #Purged Enclosure,#Explosion Proof Laboratory,#Type p Pressurization ,#Hazardous Area Classification,#ATEX Certified Enclosure,#Differential Pressure Control,#IECEx Electrical Safety,#Blast Relief Panel，#Ignition Source Isolation，#Positive Pressure E-House
- Active Ingress Prevention: How do you guarantee that internal pressure remains precisely controlled to lock out hazardous gases?
- Eliminating Internal Ignition Sources: How do you execute precise electrical zoning and hardware isolation for fans, lighting, and controllers?
- Extreme Event Mitigation: What structural buffers must be engineered into the enclosure to safely vent pressure if an unexpected runaway reaction occurs?
1. The First Shield: A High-Availability Positive Pressure Maintenance Corridor
Purge and pressurization (Type p protection) serves as the primary active defense mechanism for laboratory enclosures. Put simply, the system maintains an internal air pressure slightly higher than the surrounding ambient atmosphere. Due to this pressure differential, external flammable gases physically cannot migrate into the testing environment, systematically eliminating the "combustible material" component of the fire triangle.
However, achieving effective pressurization requires more than just forcing unguided air into the box; the flow path must be intelligently regulated:
- Dual-Redundant Motor Blowers: The system features a standard "one-duty, one-standby" redundant fan setup integrated with variable frequency drives (VFDs). If the primary blower suffers a mechanical failure or rpm drop, the standby unit instantly engages to prevent a sudden pressure drop.
- Smart Differential Pressure Monitoring: Internal high-precision pressure sensors communicate continuously with a central PLC. If a partially clogged filter or a degraded door seal causes a minor pressure drop, the system automatically recalibrates and adjusts the air makeup volume to maintain the configured safety threshold.
- Emergency Safety Interlocks: Upon detecting extreme depressurization or critical electrical anomalies, the system immediately triggers audio-visual alarms, cuts off high-risk gas feeds, or shuts down core testing equipment to prevent hazard propagation.
2. The Second Shield: Advanced Electrical Isolation and Segregation Barriers
While positive pressure successfully locks out external dangers, the enclosure itself contains multiple internal electrical components (such as blowers, interior lighting, heating elements, and control modules). If these components are not individually protected, an internal chemical leak will transform them into lethal ignition sources.
To prevent this, the internal electrical architecture must undergo rigorous zoning and component upgrades:
- Rigid Power and Control Segregation: Following international hazardous area classification standards (such as ATEX / IECEx), high-voltage power lines and low-voltage control circuits are routed through independent, physically isolated compartments to eliminate cross-interference and sparking risks.

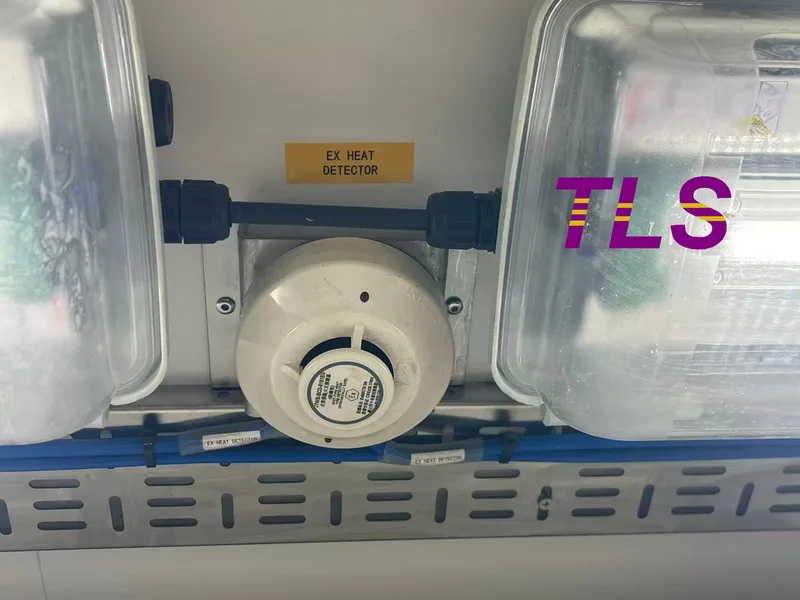

- Fully Certified Explosion-Proof Hardware: Every internal luminaire, power outlet, and junction box within the workspace is upgraded to heavy-duty, certified explosion-proof variants.
- Secondary Pressurized Sub-Enclosures: For the main electrical distribution panel, a "box-within-a-box" dual-layer purge strategy can be implemented. Even if the outer enclosure shell experiences a physical breach, the core electronics remain safely insulated within their own independent airtight zone.
3. The Third Shield: Directional Overpressure Relief and Structural Buffering
Sound engineering leaves no room for optimism; it actively plans for worst-case scenarios. Whether dealing with sudden external supply gas surges or an unpredicted internal exothermic reaction that spikes vapor pressures, the enclosure must possess the structural capability to vent pressure safely without shattering.
- Automated Overpressure Relief: High-sensitivity, weighted or spring-loaded pressure relief valves are integrated into the upper roof plate. If internal pressure breaches safety boundaries, the valves cycle open instantly to evacuate excess volume, protecting the main shell from structural deformation.
- Engineered Frangible Blowout Panels: Specialized structural "weak points," such as targeted blowout panels or explosion-rated viewing windows, are engineered into specific safe directions. In the event of a sudden deflagration, the massive pressure wave is directionally channeled outward, preventing the main metallic framework from tearing apart destructively.
- Airtight Continuous Welding and Ductile Framing: The main chassis is fabricated from high-ductility steel panels utilizing continuous, multi-pass seal welding. This ensures flawless gas retention during normal operations and allows the steel to flex and absorb kinetic energy during a blast event, preventing brittle fractures and dangerous high-velocity shrapnel fly-off.
Conclusion: Three Ironclad Rules for Purged Lab Enclosure Procurement
A truly reliable purged laboratory enclosure never validates its safety through a basic compliance certificate alone; its real capability is determined by uncompromised engineering details. When evaluating equipment designs and procurement specifications, prioritize these three fundamental concepts:
- Evaluate the Control Loop, Not Just Blower Capacity: High-quality explosion protection relies entirely on the responsiveness of the PLC and sensor feedback loop. A large fan is meaningless if the system cannot dynamically, stably, and intelligently maintain the target differential pressure under changing seal conditions.
- Insist on Component-Level Zoning: Never accept the flawed assumption that an overall pressurized shell allows for the use of standard commercial electronics inside. Every internal light, wire run, and terminal strip must be strictly specified and laid out according to Zone 1 / Zone 2 explosion-proof protocols.
- Never Treat Safety Relief as an Optional Add-On: Disasters manifest during unpredicted failures. A certified laboratory enclosure must feature automated overpressure valves and targeted blowout sections capable of safely vectoring a blast wave away from personnel—this is the absolute baseline for protecting laboratory staff.
Please download the Laboratory container brochure for reference.
Keywords: #Purged Enclosure,#Explosion Proof Laboratory,#Type p Pressurization ,#Hazardous Area Classification,#ATEX Certified Enclosure,#Differential Pressure Control,#IECEx Electrical Safety,#Blast Relief Panel，#Ignition Source Isolation，#Positive Pressure E-House
Written by Snowy
Summary
In offshore oil & gas exploration, marine research, and offshore wind projects, the traditional workflow of “offshore sampling – onshore laboratory testing” often leads to long testing cycles, high logistics costs, and sample contamination risks. TLS’s 20ft Offshore Mobile Laboratory Container is designed for safe-area offshore operations, allowing laboratory analysis capabilities to be deployed directly onsite for real-time testing and faster operational decision-making.
This article answers several key questions:
Why Are More Offshore Projects Adopting Mobile Laboratory Containers?
Under traditional offshore workflows, drilling fluids, core samples, water samples, and environmental samples often need to be transported back to onshore laboratories for analysis, resulting in delays of days or even weeks.
TLS Offshore Mobile Laboratory Containers enable onsite testing for:
Compared with building permanent offshore laboratories, TLS modular laboratory solutions require no complex structural modifications and offer:
Designed for Harsh Offshore EnvironmentsMarine-Grade Anti-Corrosion and High-Strength Structure
TLS Offshore Laboratory Containers are manufactured with weather-resistant steel and industrial-grade anti-corrosion systems to withstand:
Precision HVAC Climate Control
Laboratory instruments require stable environmental conditions for accurate operation.
TLS integrates industrial-grade HVAC systems capable of:
Plug-and-Play Deployment
TLS Offshore Laboratory Containers can integrate:
Why Choose TLS?
TLS specializes in modular offshore functional containers and customized special container solutions, offering:
Conclusion: Three Key Considerations When Selecting an Offshore Mobile Laboratory
When evaluating offshore laboratory containers, operators should focus on the following key factors:
1. Standardized Logistics and Fast Deployment Capability
Standard 20ft ISO dimensions improve transportation compatibility and offshore relocation efficiency.
2. Reliable Temperature and Humidity Control
In high-salinity and high-humidity environments, HVAC precision and anti-condensation performance directly affect testing accuracy and equipment lifespan.
3. Long-Term Marine Corrosion Protection
High-quality anti-corrosion systems and highly prefabricated designs help reduce maintenance requirements and extend operational lifecycle.
TLS 20ft Offshore Mobile Laboratory Containers are more than transportable laboratory spaces — they are high-performance onsite scientific analysis platforms for modern offshore operations. As offshore industries continue moving toward greater efficiency and digitalization, mobile laboratory containers are becoming an increasingly important part of future offshore infrastructure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords:#Offshore Mobile Laboratory Container,#Offshore Laboratory Container,#Offshore Lab Container Solution,#20ft Offshore Laboratory Container,#Marine Laboratory Container#Offshore Testing Laboratory,#Modular Offshore Laboratory,#Offshore Oil and Gas Laboratory Container,#Offshore Wind Laboratory Container,#Mobile Laboratory Container for Offshore Projects
In offshore oil & gas exploration, marine research, and offshore wind projects, the traditional workflow of “offshore sampling – onshore laboratory testing” often leads to long testing cycles, high logistics costs, and sample contamination risks. TLS’s 20ft Offshore Mobile Laboratory Container is designed for safe-area offshore operations, allowing laboratory analysis capabilities to be deployed directly onsite for real-time testing and faster operational decision-making.
This article answers several key questions:
- Why are offshore mobile laboratories becoming increasingly important for offshore operations?
- How can laboratory equipment remain stable in high-salinity, high-humidity, and dynamic marine environments?
- How do offshore laboratory containers achieve plug-and-play deployment?
- Which offshore industries and applications are best suited for mobile laboratory solutions?
Why Are More Offshore Projects Adopting Mobile Laboratory Containers?
Under traditional offshore workflows, drilling fluids, core samples, water samples, and environmental samples often need to be transported back to onshore laboratories for analysis, resulting in delays of days or even weeks.
TLS Offshore Mobile Laboratory Containers enable onsite testing for:
- Drilling fluid analysis
- Core sample testing
- Water quality monitoring
- Chemical analysis
- Environmental parameter testing
Compared with building permanent offshore laboratories, TLS modular laboratory solutions require no complex structural modifications and offer:
- Standard 20ft ISO dimensions
- Global transportation compatibility
- Fast lifting and relocation capability
- Multi-project reusability
Designed for Harsh Offshore EnvironmentsMarine-Grade Anti-Corrosion and High-Strength Structure
TLS Offshore Laboratory Containers are manufactured with weather-resistant steel and industrial-grade anti-corrosion systems to withstand:
- High salt spray exposure
- High humidity conditions
- Vessel vibration and movement
- Dynamic offshore impacts
Precision HVAC Climate Control
Laboratory instruments require stable environmental conditions for accurate operation.
TLS integrates industrial-grade HVAC systems capable of:
- Precise temperature and humidity control
- Condensation prevention
- Continuous air circulation
- Stable internal microclimate management
Plug-and-Play Deployment
TLS Offshore Laboratory Containers can integrate:
- Fire detection systems
- Gas suppression systems
- Emergency lighting
- Electrical quick-connect interfaces
- Water supply, drainage, and communication interfaces
Why Choose TLS?
TLS specializes in modular offshore functional containers and customized special container solutions, offering:
- ISO-standard modular design
- Marine-grade anti-corrosion structure
- Customized laboratory layouts
- Integrated HVAC and utility systems
- Offshore safety-compliant design
- Rapid deployment capability
Conclusion: Three Key Considerations When Selecting an Offshore Mobile Laboratory
When evaluating offshore laboratory containers, operators should focus on the following key factors:
1. Standardized Logistics and Fast Deployment Capability
Standard 20ft ISO dimensions improve transportation compatibility and offshore relocation efficiency.
2. Reliable Temperature and Humidity Control
In high-salinity and high-humidity environments, HVAC precision and anti-condensation performance directly affect testing accuracy and equipment lifespan.
3. Long-Term Marine Corrosion Protection
High-quality anti-corrosion systems and highly prefabricated designs help reduce maintenance requirements and extend operational lifecycle.
TLS 20ft Offshore Mobile Laboratory Containers are more than transportable laboratory spaces — they are high-performance onsite scientific analysis platforms for modern offshore operations. As offshore industries continue moving toward greater efficiency and digitalization, mobile laboratory containers are becoming an increasingly important part of future offshore infrastructure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords:#Offshore Mobile Laboratory Container,#Offshore Laboratory Container,#Offshore Lab Container Solution,#20ft Offshore Laboratory Container,#Marine Laboratory Container#Offshore Testing Laboratory,#Modular Offshore Laboratory,#Offshore Oil and Gas Laboratory Container,#Offshore Wind Laboratory Container,#Mobile Laboratory Container for Offshore Projects
Written by Snowy

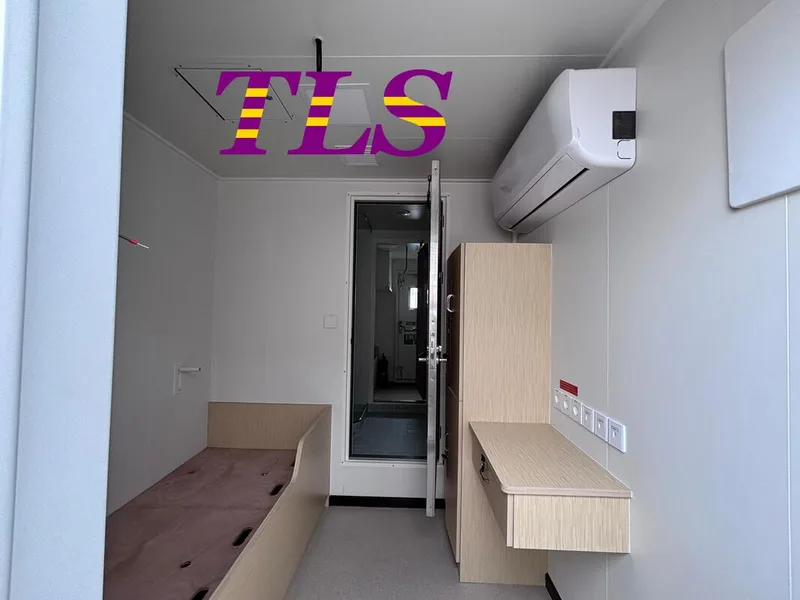

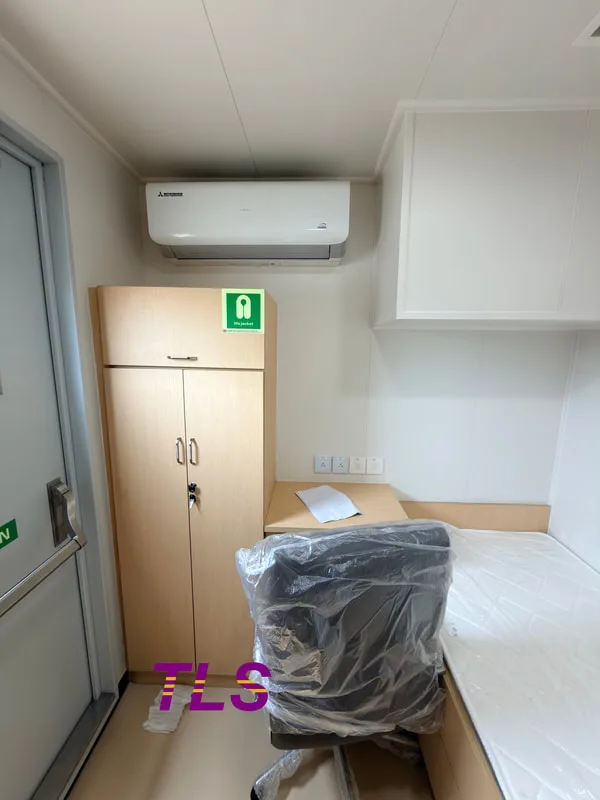

Overview: In desert oilfields, offshore platforms, polar stations, and remote mining sites, accommodation containers are no longer just temporary shelters. They have become critical living spaces where personnel rest, recover, and maintain operational readiness during long-term deployments.
For projects involving extended on-site stays, a reliable accommodation module must address much more than basic shelter. The real challenges are often practical and continuous:
1. Thermal Insulation & Climate Control: More Than Just Installing an Air Conditioner
In high-temperature deserts or extremely cold regions, standard containers often suffer from:
Multi-Layer Insulation Structure
TLS accommodation containers typically adopt a multi-layer insulated wall structure that includes:
At the same time, the container design aims to reduce thermal bridging effects, preventing steel structural members from directly transferring heat or cold into the interior.
The goal is not simply fast cooling or heating — it is maintaining a stable indoor temperature over long operating periods.
Climate Control Designed for Industrial Projects
Unlike standard residential systems, long-term industrial accommodation projects require:
2. Structural Safety: Accommodation Modules Also Protect Personnel
In offshore, mining, and remote industrial projects, accommodation containers often experience:
High-Strength Steel Structural Design
TLS accommodation modules utilize fully welded steel frame structures designed to enhance:
Protection for Harsh Environments
Depending on project conditions, TLS focuses on:
3. Long-Term Living Comfort: More Than Just a Place to Sleep
For personnel stationed on-site for extended periods, accommodation quality directly impacts:
Air Quality & Ventilation Design
While highly sealed structures help isolate harsh external environments, they may also reduce indoor air quality.
TLS accommodation containers are designed with provisions for:
Space Layout & Noise Reduction
Within limited container dimensions, the interior layout must balance:
4. Modular Design: Flexible for Different Project Scales
Project requirements can vary significantly depending on workforce size and operational functions.
TLS modular accommodation containers can support:
Conclusion
In extreme environment projects, accommodation containers are far more than temporary shelters.
They directly influence:
For long-term field operations, the true value of an accommodation container is not defined by how many features it includes — but by whether it can continuously provide a stable, safe, and comfortable living environment under demanding conditions.
More information about accommodation modules, offshore accommodation cabins, gallery module, mess module, etc. Please download the TLS accommodation modular brochure, TLS 20ft offshore accommodation container, and TLS ABS-approved offshore accommodation module brochure for reference.
Keywords: #Modular accommodation container,#Extreme environment accommodation,#Offshore accommodation module,#Remote camp container solutions,#Modular living container,#Mining camp accommodation,#Insulated accommodation container,#Containerized living quarters,#Modular workforce housing,#Long-term accommodation container
For projects involving extended on-site stays, a reliable accommodation module must address much more than basic shelter. The real challenges are often practical and continuous:
- Can the interior remain comfortable despite extreme outdoor temperature fluctuations?
- Will the structure withstand strong winds, salt spray, sandstorms, and repeated transportation?
- Can air quality, humidity, and noise levels support long-term human wellbeing?
- How can limited space still provide practical living, storage, and resting functions?
- Environmental adaptability
- Structural safety
- Long-term living comfort
1. Thermal Insulation & Climate Control: More Than Just Installing an Air Conditioner
In high-temperature deserts or extremely cold regions, standard containers often suffer from:
- Excessive indoor heat during summer
- Severe heat loss during winter
- Condensation on internal walls
- Uneven temperature distribution
Multi-Layer Insulation Structure
TLS accommodation containers typically adopt a multi-layer insulated wall structure that includes:
- High-density rock wool insulation
- High-strength steel exterior panels
At the same time, the container design aims to reduce thermal bridging effects, preventing steel structural members from directly transferring heat or cold into the interior.
The goal is not simply fast cooling or heating — it is maintaining a stable indoor temperature over long operating periods.
Climate Control Designed for Industrial Projects
Unlike standard residential systems, long-term industrial accommodation projects require:
- Continuous operation capability
- Adaptation to extreme climates
- Stable temperature control
- Low failure rates
2. Structural Safety: Accommodation Modules Also Protect Personnel
In offshore, mining, and remote industrial projects, accommodation containers often experience:
- Repeated lifting operations
- Combined sea and land transportation
- High wind pressure environments
- High humidity and salt spray corrosion
High-Strength Steel Structural Design
TLS accommodation modules utilize fully welded steel frame structures designed to enhance:
- Lifting strength
- Structural torsion resistance
- Long-distance transportation stability
- Reduced risk of deformation and fatigue damage during long-term use
Protection for Harsh Environments
Depending on project conditions, TLS focuses on:
- Anti-corrosion coating systems
- Moisture protection
- Wind resistance
- Seismic stability
3. Long-Term Living Comfort: More Than Just a Place to Sleep
For personnel stationed on-site for extended periods, accommodation quality directly impacts:
- Rest and sleep quality
- Daily work performance
- Fatigue recovery
- Psychological comfort
Air Quality & Ventilation Design
While highly sealed structures help isolate harsh external environments, they may also reduce indoor air quality.
TLS accommodation containers are designed with provisions for:
- Fresh air system interfaces
- Exhaust systems
- Optimized ventilation pathways
Space Layout & Noise Reduction
Within limited container dimensions, the interior layout must balance:
- Sleeping areas
- Storage space
- Sanitary facilities
- Walking and access space
- Wall sound insulation
- Sealed doors and windows
- Equipment vibration reduction
4. Modular Design: Flexible for Different Project Scales
Project requirements can vary significantly depending on workforce size and operational functions.
TLS modular accommodation containers can support:
- Horizontal expansion
- Multi-level stacking
- Functional area combinations
- Dormitories
- Dining areas
- Offices
- Public recreation spaces
Conclusion
In extreme environment projects, accommodation containers are far more than temporary shelters.
They directly influence:
- Personnel safety
- Long-term operational stability
- Living comfort
- Overall project efficiency
For long-term field operations, the true value of an accommodation container is not defined by how many features it includes — but by whether it can continuously provide a stable, safe, and comfortable living environment under demanding conditions.
More information about accommodation modules, offshore accommodation cabins, gallery module, mess module, etc. Please download the TLS accommodation modular brochure, TLS 20ft offshore accommodation container, and TLS ABS-approved offshore accommodation module brochure for reference.
Keywords: #Modular accommodation container,#Extreme environment accommodation,#Offshore accommodation module,#Remote camp container solutions,#Modular living container,#Mining camp accommodation,#Insulated accommodation container,#Containerized living quarters,#Modular workforce housing,#Long-term accommodation container
Written by Snowy
Overview
Factory Acceptance Testing (FAT) is a mandatory safety validation protocol for industrial pressurized containers used in hazardous, explosion-proof environments. By testing structural integrity, electrical insulation, and automated purge systems before deployment, FAT bridges the gap between theoretical engineering and field survival.
This comprehensive guide leverages empirical data and industry trends to answer the following critical questions:
The Cost of Skipping FAT: A Real-World Failure Lesson
In high-pressure industrial engineering, a single unsealed cable entry or a lagging differential pressure gauge is not just a minor deficiency—it is a catastrophic hazard.
When compressed project timelines lead teams to bypass comprehensive factory testing, the consequences invariably surface during field integration. For instance, an undetected mismatch between a control system's software logic and its differential pressure transmitter can cause internal fans to miscalculate positive airflow. Without factory simulation, such errors go unnoticed until the system is deployed in a hazardous area.
If the container fails to maintain its required overpressure environment, ambient trace gases can breach the enclosure, triggering an immediate, automated emergency shutdown. This leads to unscheduled facility downtime, expensive emergency engineering call-outs, and intense regulatory scrutiny. A system may look perfect on a blueprint, but until it is physically stressed under factory conditions, its safety remains an unverified assumption.
Field Performance Data: Tested vs. Untested Systems
Data collected across multiple industrial automation projects demonstrates a massive divergence in operational reliability between systems that undergo strict FAT and those rushed directly to the field.
The 4-Step Technical Validation Framework
1. Visual Inspection and Mechanical Integrity
The FAT process begins with a meticulous visual audit. This is the first line of defense against installation errors before the system is ever energized. Engineers systematically inspect the explosion-proof CPFG control box, emergency stop buttons, gas detectors (H₂S and combustible gases), smoke sensors, and fire alarms. Crucially, they verify that differential pressure transmitters are perfectly aligned, electrical wiring insulation is intact, and all cable entries are completely sealed to prevent pressure leaks.
2. Electrical Integrity and Grounding Protection
A pressure container's safety system is only as reliable as its electrical foundation. Engineers perform high-voltage insulation resistance tests to guarantee that all internal components are fully protected against unexpected short circuits or current leaks. Additionally, voltage distribution checks are run across PLCs and touchscreens to ensure steady power regulation and eliminate voltage spikes that could fry sensitive monitoring components.
3. User Interface and Operator Command Verification
When an emergency occurs, operators must be able to act within seconds. Interface testing focuses heavily on real-world usability under stress. Engineers simulate critical errors to evaluate screen navigation clarity, debugging mode efficiency, and alarm display prominence. The system must prove that commands executed via the touchscreen are received and acted upon by the internal PLCs instantly, leaving zero room for lag or ambiguous error codes.
4. Functional Stress Testing and Simulated Failures
Functional testing is where the vessel proves its capability under realistic operational stress. Rather than testing for ideal conditions, engineers intentionally simulate system failures to measure the container's automated defenses:
Summary
1. Core Purpose of FAT
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #pressure container factory acceptance testing guide, #explosion proof control system, #differential pressure transmitter, #positive airflow, #hazardous zone enclosure, #emergency shutdown system, #high voltage insulation, #commissioning downtime, #factory validation safety, #industrial automation defect
Factory Acceptance Testing (FAT) is a mandatory safety validation protocol for industrial pressurized containers used in hazardous, explosion-proof environments. By testing structural integrity, electrical insulation, and automated purge systems before deployment, FAT bridges the gap between theoretical engineering and field survival.
This comprehensive guide leverages empirical data and industry trends to answer the following critical questions:
- What specific risks are mitigated by executing a rigorous FAT protocol?
- How do simulated failure metrics predict real-world equipment reliability?
- What are the quantifiable financial and operational costs of bypassing factory testing?
The Cost of Skipping FAT: A Real-World Failure Lesson
In high-pressure industrial engineering, a single unsealed cable entry or a lagging differential pressure gauge is not just a minor deficiency—it is a catastrophic hazard.
When compressed project timelines lead teams to bypass comprehensive factory testing, the consequences invariably surface during field integration. For instance, an undetected mismatch between a control system's software logic and its differential pressure transmitter can cause internal fans to miscalculate positive airflow. Without factory simulation, such errors go unnoticed until the system is deployed in a hazardous area.
If the container fails to maintain its required overpressure environment, ambient trace gases can breach the enclosure, triggering an immediate, automated emergency shutdown. This leads to unscheduled facility downtime, expensive emergency engineering call-outs, and intense regulatory scrutiny. A system may look perfect on a blueprint, but until it is physically stressed under factory conditions, its safety remains an unverified assumption.
Field Performance Data: Tested vs. Untested Systems
Data collected across multiple industrial automation projects demonstrates a massive divergence in operational reliability between systems that undergo strict FAT and those rushed directly to the field.
- Defect Capture Rate: Rigorous FAT protocols successfully capture 95% of early-stage integration errors, such as inverted sensor wiring, loose grounding bars, and software bugs, before the equipment leaves the factory floor.
- On-Site Commissioning Efficiency: Systems that pass a full FAT cycle experience a 40% reduction in on-site commissioning time, as field technicians only need to perform standard hookups rather than complex troubleshooting.
- Emergency Response Latency: During simulated failure tests, properly calibrated systems achieve an alarm display latency of under 500 milliseconds from the moment a sensor is triggered, ensuring operators have the split-second notice required to prevent an incident.
The 4-Step Technical Validation Framework
1. Visual Inspection and Mechanical Integrity
The FAT process begins with a meticulous visual audit. This is the first line of defense against installation errors before the system is ever energized. Engineers systematically inspect the explosion-proof CPFG control box, emergency stop buttons, gas detectors (H₂S and combustible gases), smoke sensors, and fire alarms. Crucially, they verify that differential pressure transmitters are perfectly aligned, electrical wiring insulation is intact, and all cable entries are completely sealed to prevent pressure leaks.
2. Electrical Integrity and Grounding Protection
A pressure container's safety system is only as reliable as its electrical foundation. Engineers perform high-voltage insulation resistance tests to guarantee that all internal components are fully protected against unexpected short circuits or current leaks. Additionally, voltage distribution checks are run across PLCs and touchscreens to ensure steady power regulation and eliminate voltage spikes that could fry sensitive monitoring components.
3. User Interface and Operator Command Verification
When an emergency occurs, operators must be able to act within seconds. Interface testing focuses heavily on real-world usability under stress. Engineers simulate critical errors to evaluate screen navigation clarity, debugging mode efficiency, and alarm display prominence. The system must prove that commands executed via the touchscreen are received and acted upon by the internal PLCs instantly, leaving zero room for lag or ambiguous error codes.
4. Functional Stress Testing and Simulated Failures
Functional testing is where the vessel proves its capability under realistic operational stress. Rather than testing for ideal conditions, engineers intentionally simulate system failures to measure the container's automated defenses:
- Mode Switching: Testing the system’s ability to switch seamlessly between normal and bypass operational modes without dropping internal pressure.
- Fan & Airflow Optimization: Automated fans must dynamically adjust their RPMs to maintain a stable, positive internal pressure environment against external fluctuations.
- Emergency Shutdown (ESD): Simulating extreme hazards—such as disconnecting key pressure sensors or exposing detectors to simulated hazardous gas—to ensure the ESD system immediately triggers a safe, total power cutoff.
Summary
1. Core Purpose of FAT
- System Integration: To proactively validate that positive pressure, airflow, gas detection, and emergency power-offs operate perfectly in tandem under real-world operational stress.
- Hazard Mitigation: To ensure the vessel provides a fully stable, explosion-proof environment before exposure to hazardous field conditions.
- Efficiency Gains: Dramatically reduces on-site commissioning times by 40%.
- Risk Reduction: Eliminates 95% of pre-deployment defects at the factory floor.
- Financial Protection: Prevents catastrophic on-site operational failures, costly field modifications, and unexpected facility downtime.
- Regulatory Alignment: Successfully passing FAT guarantees full compliance with international explosion-proof standards.
- Asset Protection: Secures both human life and capital investments from day one of deployment.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #pressure container factory acceptance testing guide, #explosion proof control system, #differential pressure transmitter, #positive airflow, #hazardous zone enclosure, #emergency shutdown system, #high voltage insulation, #commissioning downtime, #factory validation safety, #industrial automation defect
Written by Oliver
Introduction: As global industries continue shifting toward project-based operations and remote worksites, companies are demanding more from temporary office facilities. In offshore energy, mining, petrochemical plants, and large-scale infrastructure projects, office spaces must now deliver not only flexibility and rapid deployment, but also exceptional safety, durability, and long-term operational reliability.Designed for some of the world’s harshest industrial environments, TLS modular office containers combine rugged structural engineering with intelligent environmental control and hazardous-area protection technologies. More than a temporary workspace, they function as fully integrated operational hubs that help companies maintain productivity while protecting personnel in dangerous locations.
This article explores how TLS modular office containers address three critical challenges faced by modern industrial projects:
1. Modular Design: Combining Structural Strength with Flexible Workspace Solutions
In remote industrial projects, office facilities must be both adaptable and structurally reliable. Traditional temporary buildings or modified shipping containers often struggle to meet the demands of offshore platforms, desert operations, or heavy industrial sites.
TLS modular office containers are specifically engineered to overcome these limitations.
Industrial-Grade Corrosion Protection and Weather Resistance
TLS office containers utilize high-strength welded steel structures designed for long-term deployment in aggressive environments. The exterior surfaces are protected with a C5-grade anti-corrosion coating system, offering superior resistance against:
Whether deployed in North Sea offshore projects, Middle Eastern desert operations, or arctic exploration camps, TLS office containers are built to maintain structural integrity and minimize maintenance requirements over extended service life cycles.
Flexible Modular Layout and Rapid Deployment
TLS offers standardized 20ft and 40ft modular office units designed for easy transportation and fast on-site installation.
Because electrical systems, lighting, HVAC, piping, and communication infrastructure are pre-integrated before delivery, the containers can be rapidly configured into multiple functional layouts, including:
In addition, the standardized transport dimensions simplify global shipping and enable efficient relocation between project sites with minimal reconstruction work.
2. Hazardous Area Protection: Positive Pressure Explosion-Proof Technology
For industries such as oil & gas, petrochemical processing, and offshore drilling, personnel safety is the highest operational priority.
One of the key advantages of TLS modular office containers is the integration of Positive Pressure Explosion-Proof Systems, a technology traditionally used in industrial control rooms and electrical shelters.
Positive Pressure Safety Barrier
The system continuously maintains the interior pressure slightly higher than the surrounding environment using dedicated explosion-proof ventilation equipment.
This controlled pressure differential creates a protective air barrier that prevents:
As a result, personnel inside the office container remain protected even when external hazardous gases are present.
Compliance with International Hazardous Area Standards
TLS office containers can be designed to comply with internationally recognized hazardous-area standards, including:
IECEx & ATEX. The systems are suitable for deployment in:
Intelligent Gas Detection and Safety Interlock Systems
To further enhance operational safety, TLS integrates advanced gas detection systems around the container perimeter.
These systems continuously monitor for:
3. Comfortable and Energy-Efficient Working Environments
Extreme climates and industrial noise can negatively affect worker concentration, decision-making, and operational performance.
TLS modular office containers are designed not only for safety, but also for long-term human comfort and productivity.
Stable Indoor Climate Control
Each office module can be equipped with industrial-grade heating and cooling systems capable of maintaining stable indoor temperatures even under severe external climate conditions.
Combined with high-performance insulation and thermal bridge reduction design, the HVAC system helps create a comfortable indoor working environment in:
Noise Reduction and Air Quality Management
The insulated structural design also helps reduce external industrial noise, improving communication and reducing fatigue for on-site personnel.
Fresh air circulation and optional air filtration systems further enhance indoor air quality, supporting healthier and more productive working conditions during long-term occupancy.
4. Typical Application Scenarios
Thanks to their durability, hazardous-area compliance, and rapid deployment capability, TLS modular office containers are widely used across multiple industries worldwide.
Conclusion: Three Key Considerations When Selecting Modular Office Containers
Modular office containers should not be viewed as temporary shelters alone. In hazardous and remote industrial environments, they serve as integrated platforms that directly impact operational continuity, personnel safety, and project efficiency.
When evaluating modular office solutions, companies should focus on three critical factors:
1. Structural Reliability and Corrosion Protection
Long-term projects in offshore or corrosive environments require purpose-built steel structures with high-grade anti-corrosion systems and professional insulation design to ensure durability throughout repeated transportation and redeployment cycles.
2. Positive Pressure Protection and Gas Safety Systems
For hazardous-area operations, certified positive pressure systems and intelligent gas detection interlocks are essential for actively isolating dangerous gases and protecting personnel.
3. Rapid Deployment and Lifecycle Mobility
The best modular office solutions should support standardized transportation, fast installation, plug-and-play utility integration, and damage-free relocation to maximize asset utilization across multiple projects.
By combining structural durability, hazardous-area protection, and intelligent environmental control, TLS modular office containers provide a safer, more efficient, and more sustainable workspace solution for the world’s most demanding industrial environments.
Keywords:#Modular Office Container,#Hazardous Area Office Container,#Positive Pressure Explosion-Proof Container,#Offshore Modular Workspace,#IECEx ATEX Office Container
This article explores how TLS modular office containers address three critical challenges faced by modern industrial projects:
- How can modular office containers withstand corrosive, dusty, and extreme-temperature environments?
- How can personnel safety be protected in hazardous oil, gas, and chemical zones?
- How can comfortable, energy-efficient working conditions be maintained inside highly sealed steel structures?
1. Modular Design: Combining Structural Strength with Flexible Workspace Solutions
In remote industrial projects, office facilities must be both adaptable and structurally reliable. Traditional temporary buildings or modified shipping containers often struggle to meet the demands of offshore platforms, desert operations, or heavy industrial sites.
TLS modular office containers are specifically engineered to overcome these limitations.
Industrial-Grade Corrosion Protection and Weather Resistance
TLS office containers utilize high-strength welded steel structures designed for long-term deployment in aggressive environments. The exterior surfaces are protected with a C5-grade anti-corrosion coating system, offering superior resistance against:
- Salt-laden offshore air
- Chemical corrosion
- Desert dust and sand
- Extreme humidity
- Severe temperature fluctuations
Whether deployed in North Sea offshore projects, Middle Eastern desert operations, or arctic exploration camps, TLS office containers are built to maintain structural integrity and minimize maintenance requirements over extended service life cycles.
Flexible Modular Layout and Rapid Deployment
TLS offers standardized 20ft and 40ft modular office units designed for easy transportation and fast on-site installation.
Because electrical systems, lighting, HVAC, piping, and communication infrastructure are pre-integrated before delivery, the containers can be rapidly configured into multiple functional layouts, including:
- Private management offices
- Open-plan operational workspaces
- Project meeting rooms
- Technical control rooms
- Emergency command centers
In addition, the standardized transport dimensions simplify global shipping and enable efficient relocation between project sites with minimal reconstruction work.
2. Hazardous Area Protection: Positive Pressure Explosion-Proof Technology
For industries such as oil & gas, petrochemical processing, and offshore drilling, personnel safety is the highest operational priority.
One of the key advantages of TLS modular office containers is the integration of Positive Pressure Explosion-Proof Systems, a technology traditionally used in industrial control rooms and electrical shelters.
Positive Pressure Safety Barrier
The system continuously maintains the interior pressure slightly higher than the surrounding environment using dedicated explosion-proof ventilation equipment.
This controlled pressure differential creates a protective air barrier that prevents:
- Flammable gases
- Explosive vapors
- Toxic contaminants
As a result, personnel inside the office container remain protected even when external hazardous gases are present.
Compliance with International Hazardous Area Standards
TLS office containers can be designed to comply with internationally recognized hazardous-area standards, including:
IECEx & ATEX. The systems are suitable for deployment in:
- Zone 1 hazardous areas
- Zone 2 hazardous areas
Intelligent Gas Detection and Safety Interlock Systems
To further enhance operational safety, TLS integrates advanced gas detection systems around the container perimeter.
These systems continuously monitor for:
- Combustible gases
- Toxic gases
- Pressure abnormalities
- If abnormal conditions are detected, the system can automatically trigger:
- Audible and visual alarms
- Ventilation control responses
- Emergency shutdown interlocks
3. Comfortable and Energy-Efficient Working Environments
Extreme climates and industrial noise can negatively affect worker concentration, decision-making, and operational performance.
TLS modular office containers are designed not only for safety, but also for long-term human comfort and productivity.
Stable Indoor Climate Control
Each office module can be equipped with industrial-grade heating and cooling systems capable of maintaining stable indoor temperatures even under severe external climate conditions.
Combined with high-performance insulation and thermal bridge reduction design, the HVAC system helps create a comfortable indoor working environment in:
- Arctic cold regions
- Tropical heat
- Desert operations
- Offshore environments with large day-night temperature swings
Noise Reduction and Air Quality Management
The insulated structural design also helps reduce external industrial noise, improving communication and reducing fatigue for on-site personnel.
Fresh air circulation and optional air filtration systems further enhance indoor air quality, supporting healthier and more productive working conditions during long-term occupancy.
4. Typical Application Scenarios
Thanks to their durability, hazardous-area compliance, and rapid deployment capability, TLS modular office containers are widely used across multiple industries worldwide.
- Offshore Platforms and FPSO Facilities: Used as operational offices, technical workspaces, or extensions of accommodation modules for offshore engineering teams.
- Onshore Oil & Gas and Petrochemical Plants: Installed near hazardous operating zones as temporary command centers, process monitoring rooms, or digital control offices.
- Mining and Remote Infrastructure Projects: Function as mobile project headquarters that can relocate alongside project development phases.
- Scientific Research and Extreme Climate Expeditions: Provide secure, insulated workstations for polar research, desert exploration, and remote field operations.
Conclusion: Three Key Considerations When Selecting Modular Office Containers
Modular office containers should not be viewed as temporary shelters alone. In hazardous and remote industrial environments, they serve as integrated platforms that directly impact operational continuity, personnel safety, and project efficiency.
When evaluating modular office solutions, companies should focus on three critical factors:
1. Structural Reliability and Corrosion Protection
Long-term projects in offshore or corrosive environments require purpose-built steel structures with high-grade anti-corrosion systems and professional insulation design to ensure durability throughout repeated transportation and redeployment cycles.
2. Positive Pressure Protection and Gas Safety Systems
For hazardous-area operations, certified positive pressure systems and intelligent gas detection interlocks are essential for actively isolating dangerous gases and protecting personnel.
3. Rapid Deployment and Lifecycle Mobility
The best modular office solutions should support standardized transportation, fast installation, plug-and-play utility integration, and damage-free relocation to maximize asset utilization across multiple projects.
By combining structural durability, hazardous-area protection, and intelligent environmental control, TLS modular office containers provide a safer, more efficient, and more sustainable workspace solution for the world’s most demanding industrial environments.
Keywords:#Modular Office Container,#Hazardous Area Office Container,#Positive Pressure Explosion-Proof Container,#Offshore Modular Workspace,#IECEx ATEX Office Container
