As Europe transitions to a low-carbon power system with high penetration of renewable energy, maintaining grid stability has become more complex and critical. One essential component of grid reliability is frequency regulation, which ensures the grid’s frequency remains stable at 50 Hz. Any imbalance between electricity generation and consumption will cause frequency deviations. To address this, Europe’s Transmission System Operators (TSOs) manage a sophisticated frequency regulation market composed of three core reserve types: FCR (Frequency Containment Reserve), aFRR (automatic Frequency Restoration Reserve), and mFRR (manual Frequency Restoration Reserve).
These services are essential to stabilize the grid in real-time and ensure power quality, while also offering revenue opportunities for flexible energy assets such as Battery Energy Storage Systems (BESS), virtual power plants, and renewable generators.
What is FCR (Frequency Containment Reserve)?
FCR, or primary frequency control, is the first line of defense when grid frequency deviates from the 50 Hz target. When the frequency drops below or rises above the deadband (49.99–50.01 Hz), FCR providers automatically respond by increasing or decreasing their power output within 30 seconds, sustaining that response for at least 15 minutes.
FCR is a fully automated and decentralized service, meaning each asset independently measures grid frequency and reacts without any instruction from the TSO. The European system maintains a combined 3,000 MW of upward and downward FCR capacity available for immediate activation.
The FCR market operates through a daily auction, divided into six four-hour periods for the following day. Bids must be symmetric, meaning participants offer equal upward and downward capacity. All accepted bids are settled at a uniform clearing price—the highest accepted bid—ensuring fair compensation.
FCR only pays for capacity (availability), not for actual energy usage. The minimum bid size is 1 MW, with bids categorized as divisible or indivisible (the latter capped at 25 MW).
What is aFRR (automatic Frequency Restoration Reserve)?
aFRR, or secondary frequency control, is activated automatically by the TSO within 5 minutes of a frequency imbalance event. aFRR helps restore system balance by dispatching additional or reduced generation or load. It builds on the response initiated by FCR and continues until frequency returns to its nominal value.
Unlike FCR, aFRR includes both a capacity market and an energy market:
• The capacity market compensates providers for reserving flexible capacity.
• The energy market compensates for actual power regulation delivered.
Daily auctions for capacity begin 7 days before delivery and close the day before (D-1). The energy market uses intraday auctions, closing 25 minutes before delivery. Both upward (generation increase or load reduction) and downward (generation decrease or load increase) bids are allowed.
Market participants submit price-quantity bids, which are aggregated and sorted in a Common Merit Order List (CMOL). The TSO uses an Activation Optimization Function (AOF) to determine which bids to activate, taking into account grid constraints, cross-border interconnections, and overall system efficiency.
Minimum bid size for aFRR is also 1 MW, with a required 15-minute minimum duration of availability. Bids must be divisible, and there is no strict minimum activation duration.
What is mFRR (manual Frequency Restoration Reserve)?
mFRR, or tertiary frequency control, is used when longer or larger imbalances occur. Unlike aFRR, mFRR is typically activated manually or semi-automatically by the TSO and is designed to support or replace aFRR if the frequency imbalance persists.
mFRR must be fully activated within 12.5 minutes of the TSO’s signal, and delivery must last at least 5 minutes. Like aFRR, mFRR includes both capacity and energy markets, with similar daily and intraday bidding processes.
Activation types include:
• Scheduled activation: Assets are dispatched at a specific time.
• Direct activation: TSO can activate assets anytime within 15 minutes of the scheduled time.
Bid complexity in mFRR is higher due to various parameters:
• Preparation period: Time needed to start delivery (up to 12.5 minutes).
• Ramping period: Time to reach full power.
• Deactivation period and maximum delivery duration are country-specific.
Suppliers can submit divisible or indivisible bids, and define mutually exclusive relationships between bids, such as:
• Exclusive Group Orders (only one of a group of bids can be accepted),
• Parent-Child Linking (child bids activate only if parent bids are accepted).
Minimum bid size is 1 MW. mFRR is cleared using a uniform price auction, similar to aFRR, though pay-as-bid models may still apply in some cases.
Opportunities for Flexible Assets and Energy Storage
As Europe increasingly opens its balancing markets to renewable and aggregated resources, FCR, aFRR, and mFRR present major opportunities for flexible assets like BESS to earn revenue. In many regions, minimum bid sizes have been reduced and aggregators are allowed to participate, enabling even small distributed assets to enter the market.
However, growing competition has pushed prices down, especially in the mFRR market. Optimizing bidding strategy, leveraging automation, and participating in both capacity and energy markets are essential for success.
Understanding the structure and differences between FCR, aFRR, and mFRR is crucial for stakeholders in the European energy market. Each market serves a unique role in maintaining grid stability, and together they offer a layered and responsive approach to frequency regulation. As market access widens and renewable energy adoption grows, participating in these ancillary service markets represents a strategic opportunity for energy innovators, battery operators, and aggregators alike.
These services are essential to stabilize the grid in real-time and ensure power quality, while also offering revenue opportunities for flexible energy assets such as Battery Energy Storage Systems (BESS), virtual power plants, and renewable generators.
What is FCR (Frequency Containment Reserve)?
FCR, or primary frequency control, is the first line of defense when grid frequency deviates from the 50 Hz target. When the frequency drops below or rises above the deadband (49.99–50.01 Hz), FCR providers automatically respond by increasing or decreasing their power output within 30 seconds, sustaining that response for at least 15 minutes.
FCR is a fully automated and decentralized service, meaning each asset independently measures grid frequency and reacts without any instruction from the TSO. The European system maintains a combined 3,000 MW of upward and downward FCR capacity available for immediate activation.
The FCR market operates through a daily auction, divided into six four-hour periods for the following day. Bids must be symmetric, meaning participants offer equal upward and downward capacity. All accepted bids are settled at a uniform clearing price—the highest accepted bid—ensuring fair compensation.
FCR only pays for capacity (availability), not for actual energy usage. The minimum bid size is 1 MW, with bids categorized as divisible or indivisible (the latter capped at 25 MW).
What is aFRR (automatic Frequency Restoration Reserve)?
aFRR, or secondary frequency control, is activated automatically by the TSO within 5 minutes of a frequency imbalance event. aFRR helps restore system balance by dispatching additional or reduced generation or load. It builds on the response initiated by FCR and continues until frequency returns to its nominal value.
Unlike FCR, aFRR includes both a capacity market and an energy market:
• The capacity market compensates providers for reserving flexible capacity.
• The energy market compensates for actual power regulation delivered.
Daily auctions for capacity begin 7 days before delivery and close the day before (D-1). The energy market uses intraday auctions, closing 25 minutes before delivery. Both upward (generation increase or load reduction) and downward (generation decrease or load increase) bids are allowed.
Market participants submit price-quantity bids, which are aggregated and sorted in a Common Merit Order List (CMOL). The TSO uses an Activation Optimization Function (AOF) to determine which bids to activate, taking into account grid constraints, cross-border interconnections, and overall system efficiency.
Minimum bid size for aFRR is also 1 MW, with a required 15-minute minimum duration of availability. Bids must be divisible, and there is no strict minimum activation duration.
What is mFRR (manual Frequency Restoration Reserve)?
mFRR, or tertiary frequency control, is used when longer or larger imbalances occur. Unlike aFRR, mFRR is typically activated manually or semi-automatically by the TSO and is designed to support or replace aFRR if the frequency imbalance persists.
mFRR must be fully activated within 12.5 minutes of the TSO’s signal, and delivery must last at least 5 minutes. Like aFRR, mFRR includes both capacity and energy markets, with similar daily and intraday bidding processes.
Activation types include:
• Scheduled activation: Assets are dispatched at a specific time.
• Direct activation: TSO can activate assets anytime within 15 minutes of the scheduled time.
Bid complexity in mFRR is higher due to various parameters:
• Preparation period: Time needed to start delivery (up to 12.5 minutes).
• Ramping period: Time to reach full power.
• Deactivation period and maximum delivery duration are country-specific.
Suppliers can submit divisible or indivisible bids, and define mutually exclusive relationships between bids, such as:
• Exclusive Group Orders (only one of a group of bids can be accepted),
• Parent-Child Linking (child bids activate only if parent bids are accepted).
Minimum bid size is 1 MW. mFRR is cleared using a uniform price auction, similar to aFRR, though pay-as-bid models may still apply in some cases.
Opportunities for Flexible Assets and Energy Storage
As Europe increasingly opens its balancing markets to renewable and aggregated resources, FCR, aFRR, and mFRR present major opportunities for flexible assets like BESS to earn revenue. In many regions, minimum bid sizes have been reduced and aggregators are allowed to participate, enabling even small distributed assets to enter the market.
However, growing competition has pushed prices down, especially in the mFRR market. Optimizing bidding strategy, leveraging automation, and participating in both capacity and energy markets are essential for success.
Understanding the structure and differences between FCR, aFRR, and mFRR is crucial for stakeholders in the European energy market. Each market serves a unique role in maintaining grid stability, and together they offer a layered and responsive approach to frequency regulation. As market access widens and renewable energy adoption grows, participating in these ancillary service markets represents a strategic opportunity for energy innovators, battery operators, and aggregators alike.
Battery Management Systems (BMS) are indispensable components within Battery Energy Storage Systems (BESS), responsible for safeguarding battery performance, extending service life, and ensuring operational safety. A well-designed BMS continuously monitors and manages battery health through precise data collection, real-time state estimation, and robust safety measures.
### Real-Time Data Acquisition
At the heart of any effective BMS lies precise data acquisition. Accurate monitoring of parameters like voltage, current, and temperature provides essential insights into battery health and performance. Voltage sensors in the BMS closely track each individual battery cell's voltage as well as the overall battery pack, quickly identifying anomalies such as overcharging or deep discharging. Current sensors, often based on Hall effect or shunt resistors, accurately measure charging and discharging currents, helping the BMS optimize energy utilization and prevent damage from excessive currents. Temperature sensors placed strategically throughout the battery system enable the BMS to prevent overheating or suboptimal performance in extreme temperatures, thus maintaining safe operating conditions.
### Precise State Estimation
State estimation is crucial for the effective management of BESS. The BMS calculates the State of Charge (SOC) and State of Health (SOH), two critical metrics that determine battery usage and lifecycle management. SOC estimation ensures users have accurate information about available battery capacity, utilizing sophisticated methods like ampere-hour counting, open-circuit voltage measurements, Kalman filtering, and increasingly advanced machine learning algorithms. Accurate SOH estimation involves monitoring internal resistance, capacity fade, and charging cycles to predict the battery's remaining lifespan, enabling proactive maintenance and replacement schedules.
### Comprehensive Safety Protection
Safety is a primary responsibility of the BMS, achieved through vigilant monitoring and protective interventions. Overcharging can cause dangerous thermal events; hence, the BMS actively regulates charge levels, terminating charging at optimal voltages. Likewise, over-discharge protection prevents permanent battery damage by disconnecting loads at safe voltage thresholds. Overcurrent protection ensures that current levels stay within safe operational limits, safeguarding against heat build-up and potential thermal runaway conditions. Overheat protection is equally critical, activating cooling systems or reducing operational load when temperatures exceed predefined safety parameters.
### Advanced Energy Management
Beyond safety and monitoring, BMS enhances battery efficiency and longevity through advanced energy management. Intelligent charging strategies, such as constant current, constant voltage, and pulse charging, optimize battery life by adapting charging profiles to real-time battery conditions and environmental factors. Moreover, BMS includes sophisticated cell-balancing techniques, employing either passive balancing—using resistors to dissipate excess energy—or active balancing—transferring energy between cells. Active balancing efficiently manages battery cells' energy, minimizing imbalance and maximizing overall performance.
### Seamless Communication and User Interaction
Effective BMS integration within BESS includes seamless communication with other systems like energy management controllers, power converters, and remote monitoring platforms. Communication protocols allow the BMS to relay critical battery data, facilitating coordinated control and predictive maintenance actions. For users, BMS provides essential feedback regarding battery status, alerts for potential issues, and detailed health reports through user-friendly interfaces, enhancing user confidence and enabling informed decision-making.
In conclusion, Battery Management Systems are essential for optimizing the safety, efficiency, and longevity of Battery Energy Storage Systems. With continued technological advancements, BMS will further enhance the performance and reliability of BESS, playing a pivotal role in the sustainable energy landscape.
### Real-Time Data Acquisition
At the heart of any effective BMS lies precise data acquisition. Accurate monitoring of parameters like voltage, current, and temperature provides essential insights into battery health and performance. Voltage sensors in the BMS closely track each individual battery cell's voltage as well as the overall battery pack, quickly identifying anomalies such as overcharging or deep discharging. Current sensors, often based on Hall effect or shunt resistors, accurately measure charging and discharging currents, helping the BMS optimize energy utilization and prevent damage from excessive currents. Temperature sensors placed strategically throughout the battery system enable the BMS to prevent overheating or suboptimal performance in extreme temperatures, thus maintaining safe operating conditions.
### Precise State Estimation
State estimation is crucial for the effective management of BESS. The BMS calculates the State of Charge (SOC) and State of Health (SOH), two critical metrics that determine battery usage and lifecycle management. SOC estimation ensures users have accurate information about available battery capacity, utilizing sophisticated methods like ampere-hour counting, open-circuit voltage measurements, Kalman filtering, and increasingly advanced machine learning algorithms. Accurate SOH estimation involves monitoring internal resistance, capacity fade, and charging cycles to predict the battery's remaining lifespan, enabling proactive maintenance and replacement schedules.
### Comprehensive Safety Protection
Safety is a primary responsibility of the BMS, achieved through vigilant monitoring and protective interventions. Overcharging can cause dangerous thermal events; hence, the BMS actively regulates charge levels, terminating charging at optimal voltages. Likewise, over-discharge protection prevents permanent battery damage by disconnecting loads at safe voltage thresholds. Overcurrent protection ensures that current levels stay within safe operational limits, safeguarding against heat build-up and potential thermal runaway conditions. Overheat protection is equally critical, activating cooling systems or reducing operational load when temperatures exceed predefined safety parameters.
### Advanced Energy Management
Beyond safety and monitoring, BMS enhances battery efficiency and longevity through advanced energy management. Intelligent charging strategies, such as constant current, constant voltage, and pulse charging, optimize battery life by adapting charging profiles to real-time battery conditions and environmental factors. Moreover, BMS includes sophisticated cell-balancing techniques, employing either passive balancing—using resistors to dissipate excess energy—or active balancing—transferring energy between cells. Active balancing efficiently manages battery cells' energy, minimizing imbalance and maximizing overall performance.
### Seamless Communication and User Interaction
Effective BMS integration within BESS includes seamless communication with other systems like energy management controllers, power converters, and remote monitoring platforms. Communication protocols allow the BMS to relay critical battery data, facilitating coordinated control and predictive maintenance actions. For users, BMS provides essential feedback regarding battery status, alerts for potential issues, and detailed health reports through user-friendly interfaces, enhancing user confidence and enabling informed decision-making.
In conclusion, Battery Management Systems are essential for optimizing the safety, efficiency, and longevity of Battery Energy Storage Systems. With continued technological advancements, BMS will further enhance the performance and reliability of BESS, playing a pivotal role in the sustainable energy landscape.

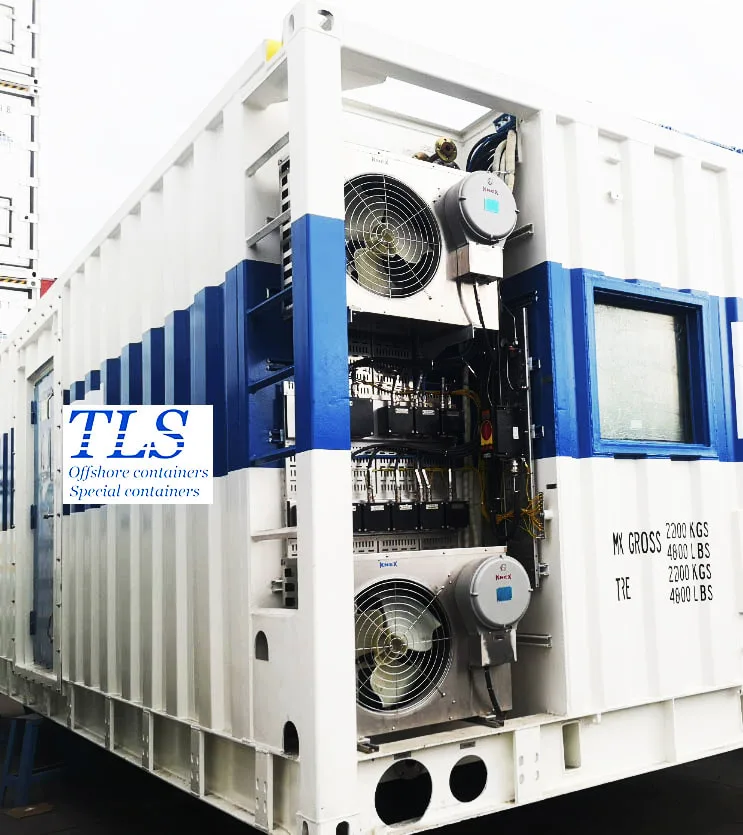

Offshore industries demand robust solutions to ensure the safety, comfort, and productivity of workers operating in remote and challenging environments. TLS A60 accommodation modules are designed to meet these stringent requirements, offering a secure and comfortable living space for offshore personnel. Let’s explore why these modules are an essential asset for offshore operations.
1. Designed for Extended Offshore Stays
Offshore professionals often spend weeks or even months away from home, working in confined spaces. TLS addresses this challenge with flexible accommodation options, offering modules for 1, 2, 3, 4, or even 8 workers. These customized solutions ensure that offshore personnel have a comfortable and functional living space, fostering well-being and efficiency even in demanding maritime conditions.
2. Uncompromising Safety Standards
Safety is a top priority in offshore environments, and TLS A60 accommodation modules are built to exceed industry safety benchmarks. Designed with A60 fire-rated construction, these modules provide superior fire resistance, safeguarding workers in high-risk settings. Each unit undergoes rigorous quality control to ensure compliance with offshore safety standards, reinforcing TLS’s commitment to worker protection.
3. Comfort in Harsh Environments
Harsh offshore conditions necessitate accommodations that go beyond basic safety requirements. TLS A60 modules are designed with worker comfort in mind, featuring ergonomic layouts, climate control, noise insulation, and customizable furniture. These features create a more hospitable living environment, enhancing productivity and overall morale among offshore teams.
4. Compliance with Industry Regulations
TLS manufactures its A60 accommodation modules in strict adherence to international standards, including those set by the American Bureau of Shipping (ABS). This compliance ensures that each module is built to withstand offshore challenges while meeting evolving industry requirements. Clients can trust TLS for reliable and fully certified accommodation solutions.
5. A Comprehensive Offshore Living Solution
Beyond individual accommodation units, TLS provides an all-encompassing offshore living solution. By integrating safety, comfort, and compliance, TLS A60 modules play a crucial role in supporting offshore operations. Whether used for oil and gas platforms, wind farms, or marine projects, these modules enhance worker well-being and operational efficiency.
Conclusion
In the ever-evolving offshore industry, reliable and high-quality accommodations are vital for workforce safety and comfort. TLS A60 accommodation modules set the benchmark for offshore living, offering industry-leading fire protection, ergonomic designs, and full regulatory compliance.
Ensure the best for your offshore personnel—choose TLS A60 accommodation modules for unparalleled safety, comfort, and durability. Contact us today to learn more!
