In the fast-evolving landscape of modern energy management, Battery Energy Storage Systems (BESS) play a crucial role in facilitating renewable energy integration, peak load shaving, and grid stability. Although batteries can theoretically operate from 0% to 100% State of Charge (SOC), consistently cycling the battery at these extremes is not recommended in real-world applications. Instead, experts and manufacturers generally advise operating within narrower SOC windows—often 10%–90% or 20%–80%—to maximize the battery’s lifespan and ensure stable, efficient performance. Below, we examine the reasons behind this best practice and how it can benefit your energy storage system.
1. Prolonged Battery Lifespan
One of the key drivers for adopting an optimal SOC range is to prolong the lifespan of the battery. When a battery is repeatedly discharged close to 0% or charged all the way to 100%, it experiences higher levels of mechanical and chemical stress. This stress can damage the electrode materials, leading to capacity fade and a shortened service life. By staying within an SOC “buffer”—such as 10%–90%—you reduce the strain on the electrodes, decreasing the rate of degradation and extending the battery’s usable lifespan.
2. Mitigating Thermal and Voltage Stress
Operating lithium-ion batteries at their extreme ends of SOC often introduces thermal and voltage stress. At low SOC levels, internal resistance may rise, causing additional heat during discharge; at high SOC levels, the voltage is near the maximum threshold, making the cells more susceptible to thermal runaway if temperatures rise unexpectedly. With a narrower SOC range, the battery typically stays in a stable voltage region, reducing the risk of overheating and preventing sudden performance drops or potential safety hazards.
3. Consistent and Reliable Performance
By maintaining some reserve capacity at both the upper and lower end of the SOC, a BESS can better handle unexpected load surges or dips in generation. If the battery is constantly operated from 0% to 100%, there is less flexibility for rapid dispatch when unexpected changes occur. Operating in the mid-range provides a safety buffer that allows the system to accommodate fluctuations, ensuring smooth, continuous power delivery and quicker response times.
4. Manufacturer Recommendations
Many lithium-ion battery manufacturers offer guidance on safe operating windows for their specific chemistry and form factor. These recommendations are rooted in extensive testing to determine how battery materials behave under varying conditions. Following these manufacturer guidelines is critical not only for protecting warranty coverage but also for ensuring optimal performance over the life of the system.
5. Balancing Efficiency and Safety
Balancing efficiency and safety is central to BESS design. While restricting the SOC range means you may not always utilize the full capacity of the battery, the trade-off is a longer-lasting system with more consistent power output. This balance is especially important for commercial installations where the cost of battery replacement can impact the overall return on investment.
Although a battery can theoretically cycle from 0% to 100% SOC, best practices dictate operating within a narrower range—such as 10%–90% or 20%–80% to minimize stress and extend system life. This operational strategy pays dividends in enhanced reliability, improved safety, and long-term cost savings. By understanding and adhering to these guidelines, BESS operators can maximize the performance and longevity of their energy storage systems, ensuring stable power delivery and reduced maintenance costs over time.
1. Prolonged Battery Lifespan
One of the key drivers for adopting an optimal SOC range is to prolong the lifespan of the battery. When a battery is repeatedly discharged close to 0% or charged all the way to 100%, it experiences higher levels of mechanical and chemical stress. This stress can damage the electrode materials, leading to capacity fade and a shortened service life. By staying within an SOC “buffer”—such as 10%–90%—you reduce the strain on the electrodes, decreasing the rate of degradation and extending the battery’s usable lifespan.
2. Mitigating Thermal and Voltage Stress
Operating lithium-ion batteries at their extreme ends of SOC often introduces thermal and voltage stress. At low SOC levels, internal resistance may rise, causing additional heat during discharge; at high SOC levels, the voltage is near the maximum threshold, making the cells more susceptible to thermal runaway if temperatures rise unexpectedly. With a narrower SOC range, the battery typically stays in a stable voltage region, reducing the risk of overheating and preventing sudden performance drops or potential safety hazards.
3. Consistent and Reliable Performance
By maintaining some reserve capacity at both the upper and lower end of the SOC, a BESS can better handle unexpected load surges or dips in generation. If the battery is constantly operated from 0% to 100%, there is less flexibility for rapid dispatch when unexpected changes occur. Operating in the mid-range provides a safety buffer that allows the system to accommodate fluctuations, ensuring smooth, continuous power delivery and quicker response times.
4. Manufacturer Recommendations
Many lithium-ion battery manufacturers offer guidance on safe operating windows for their specific chemistry and form factor. These recommendations are rooted in extensive testing to determine how battery materials behave under varying conditions. Following these manufacturer guidelines is critical not only for protecting warranty coverage but also for ensuring optimal performance over the life of the system.
5. Balancing Efficiency and Safety
Balancing efficiency and safety is central to BESS design. While restricting the SOC range means you may not always utilize the full capacity of the battery, the trade-off is a longer-lasting system with more consistent power output. This balance is especially important for commercial installations where the cost of battery replacement can impact the overall return on investment.
Although a battery can theoretically cycle from 0% to 100% SOC, best practices dictate operating within a narrower range—such as 10%–90% or 20%–80% to minimize stress and extend system life. This operational strategy pays dividends in enhanced reliability, improved safety, and long-term cost savings. By understanding and adhering to these guidelines, BESS operators can maximize the performance and longevity of their energy storage systems, ensuring stable power delivery and reduced maintenance costs over time.
Battery Energy Storage Systems (BESS) are vital for balancing energy supply and demand, storing excess power from renewable sources, and enhancing grid stability. However, during operation, a common issue that may arise is undervoltage, which can lead to system inefficiency or even damage if not properly managed. In this article, we will explore what causes undervoltage in BESS, specifically when it occurs on the battery side, and how to prevent it.
What is Undervoltage in BESS?

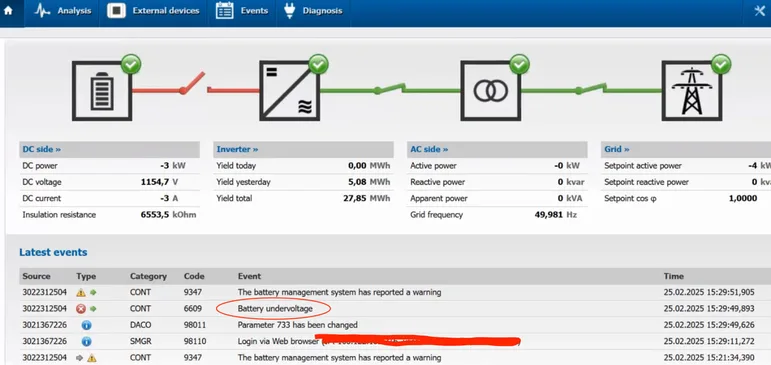

Undervoltage occurs when the voltage of the battery pack in a Battery Energy Storage System drops below a predefined threshold, typically set by the system’s Battery Management System (BMS). When this happens, the system automatically triggers protective measures to prevent further damage to the battery and the overall system. If the undervoltage condition is not addressed, it could result in battery degradation, system failure, or even unsafe operating conditions.
Common Cause: Discharging to Zero
One of the primary reasons for battery undervoltage is when the battery discharges to its lower voltage limit. In a well-functioning BESS, the Power Conversion System (PCS) is responsible for converting and managing the energy flow between the battery and the grid. However, if the PCS continues discharging the battery even after it has reached its minimum voltage level, it can lead to a critical undervoltage situation.
How PCS Contributes to Undervoltage
The Power Conversion System (PCS) should monitor the battery voltage in real-time and halt discharging when the battery reaches its low voltage threshold. If the PCS fails to recognize the drop in voltage or does not stop the discharge in time, it can result in over-discharging, which significantly lowers the battery’s charge. This situation can trigger undervoltage protection and potentially lead to shutdowns, operational inefficiency, or even permanent damage to the battery.
How to Prevent Undervoltage in BESS
To ensure optimal performance and longevity of a Battery Energy Storage System, it’s essential to take the following preventive measures:
1. Proper BMS Settings:
The Battery Management System (BMS) is responsible for monitoring the battery voltage and managing charge and discharge cycles. Ensuring that the BMS is correctly calibrated to set appropriate low-voltage thresholds can prevent the battery from being over-discharged. The system should halt discharging when the voltage approaches the safe limit.
2. Enhanced Monitoring and Control by PCS:
The PCS should be designed to communicate effectively with the BMS, ensuring that it pauses or limits power output when the battery reaches its voltage threshold. This coordination between the PCS and BMS ensures that the system stops further discharging before the undervoltage protection kicks in.
3. Regular Maintenance and Testing:
Consistent maintenance and testing of both the BMS and PCS can help identify potential issues before they cause significant problems. Regular checks on the battery’s voltage levels, calibration of sensors, and the PCS’s response time to voltage changes can prevent undervoltage situations.
4. System Redundancy and Backup:
Installing redundant systems or backup power sources can help mitigate the risk of undervoltage during peak load periods. If one system fails to prevent undervoltage, a backup system can take over, maintaining the integrity of the entire BESS.
Undervoltage in Battery Energy Storage Systems is a preventable issue that can be managed with proper system design, real-time monitoring, and regular maintenance. By ensuring that the BMS and PCS work in sync to monitor voltage levels and manage the discharge process effectively, BESS operators can significantly reduce the risk of undervoltage, ensuring efficient and safe operation of the energy storage system. Properly addressing undervoltage will also help extend the life of the battery and maintain system performance, making BESS a reliable solution for modern energy management.
What is Undervoltage in BESS?
Undervoltage occurs when the voltage of the battery pack in a Battery Energy Storage System drops below a predefined threshold, typically set by the system’s Battery Management System (BMS). When this happens, the system automatically triggers protective measures to prevent further damage to the battery and the overall system. If the undervoltage condition is not addressed, it could result in battery degradation, system failure, or even unsafe operating conditions.
Common Cause: Discharging to Zero
One of the primary reasons for battery undervoltage is when the battery discharges to its lower voltage limit. In a well-functioning BESS, the Power Conversion System (PCS) is responsible for converting and managing the energy flow between the battery and the grid. However, if the PCS continues discharging the battery even after it has reached its minimum voltage level, it can lead to a critical undervoltage situation.
How PCS Contributes to Undervoltage
The Power Conversion System (PCS) should monitor the battery voltage in real-time and halt discharging when the battery reaches its low voltage threshold. If the PCS fails to recognize the drop in voltage or does not stop the discharge in time, it can result in over-discharging, which significantly lowers the battery’s charge. This situation can trigger undervoltage protection and potentially lead to shutdowns, operational inefficiency, or even permanent damage to the battery.
How to Prevent Undervoltage in BESS
To ensure optimal performance and longevity of a Battery Energy Storage System, it’s essential to take the following preventive measures:
1. Proper BMS Settings:
The Battery Management System (BMS) is responsible for monitoring the battery voltage and managing charge and discharge cycles. Ensuring that the BMS is correctly calibrated to set appropriate low-voltage thresholds can prevent the battery from being over-discharged. The system should halt discharging when the voltage approaches the safe limit.
2. Enhanced Monitoring and Control by PCS:
The PCS should be designed to communicate effectively with the BMS, ensuring that it pauses or limits power output when the battery reaches its voltage threshold. This coordination between the PCS and BMS ensures that the system stops further discharging before the undervoltage protection kicks in.
3. Regular Maintenance and Testing:
Consistent maintenance and testing of both the BMS and PCS can help identify potential issues before they cause significant problems. Regular checks on the battery’s voltage levels, calibration of sensors, and the PCS’s response time to voltage changes can prevent undervoltage situations.
4. System Redundancy and Backup:
Installing redundant systems or backup power sources can help mitigate the risk of undervoltage during peak load periods. If one system fails to prevent undervoltage, a backup system can take over, maintaining the integrity of the entire BESS.
Undervoltage in Battery Energy Storage Systems is a preventable issue that can be managed with proper system design, real-time monitoring, and regular maintenance. By ensuring that the BMS and PCS work in sync to monitor voltage levels and manage the discharge process effectively, BESS operators can significantly reduce the risk of undervoltage, ensuring efficient and safe operation of the energy storage system. Properly addressing undervoltage will also help extend the life of the battery and maintain system performance, making BESS a reliable solution for modern energy management.
Battery Energy Storage Systems (BESS) are integral to modern energy management, offering solutions for grid stability, renewable energy integration, and energy optimization. However, like all complex systems, BESS can face challenges such as overvoltage and undervoltage, both of which can significantly impact performance and safety. In this article, we will discuss the causes, effects, and preventive measures for overvoltage and undervoltage in BESS, with a special focus on the importance of protection relays and safety systems in ensuring the system operates within safe parameters.
What is Overvoltage in BESS?
Overvoltage occurs when the voltage in a battery pack exceeds the maximum safe operating voltage, typically during the charging process. This can happen due to excessive charging, malfunctioning components like the Power Conversion System (PCS), or a failure in the Battery Management System (BMS) that prevents proper voltage regulation. Overvoltage can result in battery degradation, overheating, and even dangerous situations like thermal runaway, where the battery could catch fire or explode.
What is Undervoltage in BESS?
On the opposite end, undervoltage happens when the battery voltage drops below a critical threshold, often due to excessive discharging or inadequate charging control. When a battery pack is discharged too far, it risks permanent damage or failure. Undervoltage can be caused by various factors, including faulty BMS settings, failure of the PCS to halt discharge, or environmental conditions that affect the battery’s performance.
The Role of Protection Relays in BESS
To prevent the adverse effects of overvoltage and undervoltage, protection relays are used within BESS to monitor voltage levels and ensure that they remain within safe operating ranges. These relays act as safety mechanisms by immediately detecting abnormal voltage conditions (either too high or too low) and triggering actions to prevent damage, such as:
1. Disconnection of the Battery Pack: When overvoltage or undervoltage conditions are detected, protection relays can disconnect the battery from the grid or load, preventing further degradation or risk of failure.
2. Voltage Regulation: The relays provide signals to the BMS or PCS to regulate the voltage and prevent the system from exceeding or falling below preset thresholds.
Importance of Safety Systems in BESS Design
Incorporating safety systems is crucial in preventing and mitigating the risks associated with overvoltage and undervoltage. These systems protect both the battery and the operators by ensuring that the system remains within its designed operating limits.
1. Battery Management System (BMS): The BMS plays a pivotal role in the safety of the BESS by managing the charging and discharging cycles. It ensures that voltage levels are continuously monitored, and if they approach critical levels, the BMS will initiate corrective measures such as halting charging or discharging or disconnecting the system.
2. Thermal Management Systems (TMS): In many cases, thermal runaway is a consequence of overvoltage, leading to overheating and fires. Thermal management systems, including cooling fans and liquid cooling, work in conjunction with protection relays to maintain safe operating temperatures.
3. Fire Suppression Systems (FSS): In case a thermal event does occur, fire suppression systems are integrated into the BESS design. These systems use gases like CO2 or inert agents to suppress fires caused by electrical failures or overvoltage/undervoltage-related incidents.
4. Emergency Shutdown Systems: These are essential for ensuring that, in the event of overvoltage or undervoltage, the system can quickly and safely be shut down to prevent further damage.
Preventive Measures for Overvoltage and Undervoltage
To avoid the issues caused by overvoltage and undervoltage, several design features and strategies can be implemented:
• Calibrated BMS and PCS: Ensuring that the BMS and PCS are correctly configured and calibrated to stop charging or discharging at the appropriate voltage thresholds.
• Regular Testing and Maintenance: Performing regular testing of all safety and monitoring systems, including protection relays, to ensure they are working as intended.
• Redundancy: Incorporating backup systems like redundant power supplies, communication systems, and cooling mechanisms can provide additional safety in case of system failure.
Overvoltage and undervoltage are critical issues that can impair the operation of Battery Energy Storage Systems and pose safety risks. By employing robust protection relays, safety systems, and incorporating the right design strategies, these issues can be effectively managed. The use of Battery Management Systems (BMS), thermal management systems, and fire suppression systems is essential for safeguarding the BESS and its components. Ensuring these protections are in place allows BESS operators to maximize performance, prevent costly damage, and maintain the safety and reliability of their energy storage systems.
What is Overvoltage in BESS?
Overvoltage occurs when the voltage in a battery pack exceeds the maximum safe operating voltage, typically during the charging process. This can happen due to excessive charging, malfunctioning components like the Power Conversion System (PCS), or a failure in the Battery Management System (BMS) that prevents proper voltage regulation. Overvoltage can result in battery degradation, overheating, and even dangerous situations like thermal runaway, where the battery could catch fire or explode.
What is Undervoltage in BESS?
On the opposite end, undervoltage happens when the battery voltage drops below a critical threshold, often due to excessive discharging or inadequate charging control. When a battery pack is discharged too far, it risks permanent damage or failure. Undervoltage can be caused by various factors, including faulty BMS settings, failure of the PCS to halt discharge, or environmental conditions that affect the battery’s performance.
The Role of Protection Relays in BESS
To prevent the adverse effects of overvoltage and undervoltage, protection relays are used within BESS to monitor voltage levels and ensure that they remain within safe operating ranges. These relays act as safety mechanisms by immediately detecting abnormal voltage conditions (either too high or too low) and triggering actions to prevent damage, such as:
1. Disconnection of the Battery Pack: When overvoltage or undervoltage conditions are detected, protection relays can disconnect the battery from the grid or load, preventing further degradation or risk of failure.
2. Voltage Regulation: The relays provide signals to the BMS or PCS to regulate the voltage and prevent the system from exceeding or falling below preset thresholds.
Importance of Safety Systems in BESS Design
Incorporating safety systems is crucial in preventing and mitigating the risks associated with overvoltage and undervoltage. These systems protect both the battery and the operators by ensuring that the system remains within its designed operating limits.
1. Battery Management System (BMS): The BMS plays a pivotal role in the safety of the BESS by managing the charging and discharging cycles. It ensures that voltage levels are continuously monitored, and if they approach critical levels, the BMS will initiate corrective measures such as halting charging or discharging or disconnecting the system.
2. Thermal Management Systems (TMS): In many cases, thermal runaway is a consequence of overvoltage, leading to overheating and fires. Thermal management systems, including cooling fans and liquid cooling, work in conjunction with protection relays to maintain safe operating temperatures.
3. Fire Suppression Systems (FSS): In case a thermal event does occur, fire suppression systems are integrated into the BESS design. These systems use gases like CO2 or inert agents to suppress fires caused by electrical failures or overvoltage/undervoltage-related incidents.
4. Emergency Shutdown Systems: These are essential for ensuring that, in the event of overvoltage or undervoltage, the system can quickly and safely be shut down to prevent further damage.
Preventive Measures for Overvoltage and Undervoltage
To avoid the issues caused by overvoltage and undervoltage, several design features and strategies can be implemented:
• Calibrated BMS and PCS: Ensuring that the BMS and PCS are correctly configured and calibrated to stop charging or discharging at the appropriate voltage thresholds.
• Regular Testing and Maintenance: Performing regular testing of all safety and monitoring systems, including protection relays, to ensure they are working as intended.
• Redundancy: Incorporating backup systems like redundant power supplies, communication systems, and cooling mechanisms can provide additional safety in case of system failure.
Overvoltage and undervoltage are critical issues that can impair the operation of Battery Energy Storage Systems and pose safety risks. By employing robust protection relays, safety systems, and incorporating the right design strategies, these issues can be effectively managed. The use of Battery Management Systems (BMS), thermal management systems, and fire suppression systems is essential for safeguarding the BESS and its components. Ensuring these protections are in place allows BESS operators to maximize performance, prevent costly damage, and maintain the safety and reliability of their energy storage systems.
Battery Energy Storage Systems (BESS) have become indispensable for modern energy management, supporting renewable energy integration, peak shaving, and grid stability. However, as with any system that deals with significant power flows, BESS can encounter issues—one of the most critical being overcurrent. Overcurrent occurs when the current flowing through the battery, cables, or power electronics exceeds the safe thresholds specified by equipment manufacturers. This can lead to damaging consequences, from reduced battery life to more severe hazards such as electrical fires.

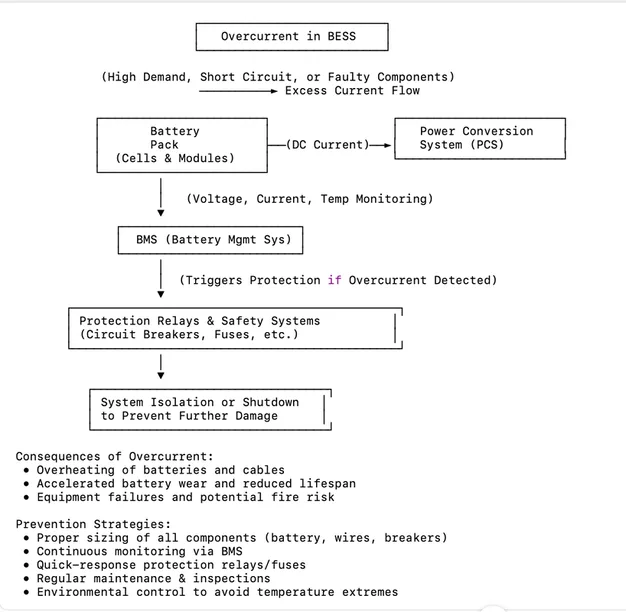

A primary cause of overcurrent is high-demand discharge. If a connected load draws more power than the BESS is rated for, the system may attempt to deliver a current beyond its designed capacity. Similarly, short circuits—arising from damaged wiring or failing components—can trigger sudden surges in current. In addition, incorrectly sized components or a malfunctioning Battery Management System (BMS) can fail to regulate power flow, leaving the system vulnerable to overcurrent conditions. Even environmental factors such as extreme temperatures can compromise a battery’s ability to deliver current safely, forcing it to operate beyond safe limits.
The consequences of overcurrent can be wide-ranging and costly. Firstly, excessive current leads to thermal damage, as the higher flow of electrons generates additional heat in battery cells and cables. This heat accumulation can degrade the battery’s internal structures, melt insulation, and potentially spark fires. Reduced battery lifespan is another significant outcome, as the stress of high currents accelerates internal wear and tear. In severe cases, equipment failures may occur; busbars and connectors subjected to persistent overcurrent are at risk of open circuits and insulation breakdown. Safety hazards are a pressing concern, especially if a severe short circuit or prolonged overcurrent ignites an electrical fire or induces thermal runaway in lithium-ion cells.
Fortunately, several strategies can effectively prevent overcurrent. First and foremost, proper system sizing is essential. Each BESS component—from the battery modules and busbars to the protective devices—must be matched to the peak current the system can deliver. This also extends to the BMS, which must continuously monitor voltage, current, and temperature to ensure that charging and discharging stay within safe parameters. Protective devices, such as circuit breakers and fuses rated for the BESS’s capacity, play a pivotal role in disconnecting or isolating the system when current exceeds acceptable limits. Regular maintenance and inspections can further mitigate risks by identifying worn cables, corroded connections, or malfunctioning breakers before they fail under load. In addition, controlling the environmental conditions—ensuring optimal temperature and humidity—helps maintain the battery’s stability and prevents unexpected current spikes.
Overcurrent is a serious threat that every BESS operator must address. By implementing robust design practices—including correct component sizing, reliable BMS integration, and well-tested protective devices—operators can minimize overcurrent risks. Alongside systematic maintenance and environmental controls, these measures preserve system integrity, prolong battery life, and safeguard personnel and assets. As BESS technology continues to transform how we store and use energy, understanding and preventing overcurrent remains fundamental to achieving stable, efficient, and secure energy storage solutions.

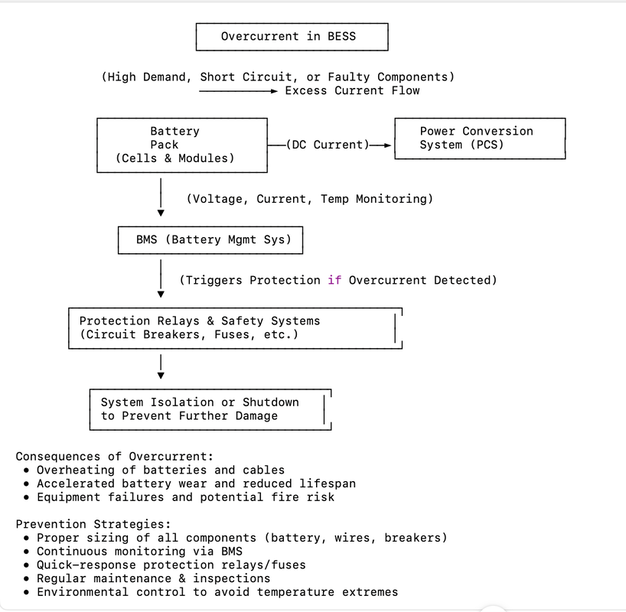

A primary cause of overcurrent is high-demand discharge. If a connected load draws more power than the BESS is rated for, the system may attempt to deliver a current beyond its designed capacity. Similarly, short circuits—arising from damaged wiring or failing components—can trigger sudden surges in current. In addition, incorrectly sized components or a malfunctioning Battery Management System (BMS) can fail to regulate power flow, leaving the system vulnerable to overcurrent conditions. Even environmental factors such as extreme temperatures can compromise a battery’s ability to deliver current safely, forcing it to operate beyond safe limits.
The consequences of overcurrent can be wide-ranging and costly. Firstly, excessive current leads to thermal damage, as the higher flow of electrons generates additional heat in battery cells and cables. This heat accumulation can degrade the battery’s internal structures, melt insulation, and potentially spark fires. Reduced battery lifespan is another significant outcome, as the stress of high currents accelerates internal wear and tear. In severe cases, equipment failures may occur; busbars and connectors subjected to persistent overcurrent are at risk of open circuits and insulation breakdown. Safety hazards are a pressing concern, especially if a severe short circuit or prolonged overcurrent ignites an electrical fire or induces thermal runaway in lithium-ion cells.
Fortunately, several strategies can effectively prevent overcurrent. First and foremost, proper system sizing is essential. Each BESS component—from the battery modules and busbars to the protective devices—must be matched to the peak current the system can deliver. This also extends to the BMS, which must continuously monitor voltage, current, and temperature to ensure that charging and discharging stay within safe parameters. Protective devices, such as circuit breakers and fuses rated for the BESS’s capacity, play a pivotal role in disconnecting or isolating the system when current exceeds acceptable limits. Regular maintenance and inspections can further mitigate risks by identifying worn cables, corroded connections, or malfunctioning breakers before they fail under load. In addition, controlling the environmental conditions—ensuring optimal temperature and humidity—helps maintain the battery’s stability and prevents unexpected current spikes.
Overcurrent is a serious threat that every BESS operator must address. By implementing robust design practices—including correct component sizing, reliable BMS integration, and well-tested protective devices—operators can minimize overcurrent risks. Alongside systematic maintenance and environmental controls, these measures preserve system integrity, prolong battery life, and safeguard personnel and assets. As BESS technology continues to transform how we store and use energy, understanding and preventing overcurrent remains fundamental to achieving stable, efficient, and secure energy storage solutions.
In industries where explosive or flammable materials are prevalent, ensuring the safety of equipment and personnel is of utmost importance. Positive pressurized containers are designed to meet the strict explosion-proof requirements of these hazardous environments. This blog explores the core principles behind these containers and why they are essential for ensuring operational safety.
What Are Positive Pressurized Containers?
Positive pressurized containers are specially designed enclosures that maintain a controlled internal pressure to prevent the ingress of hazardous gases or dust. These containers are crucial for housing electrical equipment and machinery that may not be explosion-proof but need to be safely operated in environments with a risk of explosion.
How Do Positive Pressurized Containers Work?
The principle behind positive pressurized containers lies in their ability to maintain a higher internal pressure than the surrounding environment, thereby preventing the entry of flammable or explosive materials. Here's a breakdown of the process that makes these containers effective in explosive environments:
Why Positive Pressurized Containers Matter
Positive pressurized containers are an essential safety feature in environments where explosive or flammable materials are present. Their design ensures that non-explosion-proof equipment can safely operate within hazardous zones by creating a safe and controlled environment inside the container. Here are some of the key benefits:

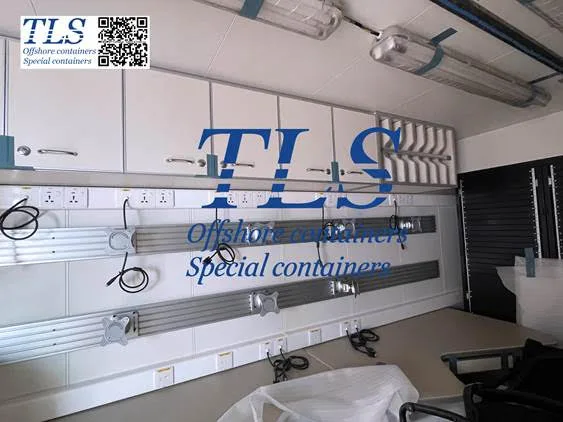

TLS Offshore Pressurized Containers
At TLS Offshore Containers, we prioritize safety and compliance. Our positive pressurized containers are designed and manufactured to meet the highest standards in the industry. With cutting-edge features and robust testing procedures, our containers provide a secure and explosion-proof environment for your operations, no matter how demanding the conditions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Explosion-proof containers, #Hazardous environment safety, #Positive pressure ventilation system, #Explosion-proof equipment housing, #Safety containers for explosive areas, #Hazardous area enclosures, #Explosion-proof technology, #Industrial safety containers, #Explosion protection systems, #Safe electrical equipment in hazardous zones, #Flammable material safety solutions
What Are Positive Pressurized Containers?
Positive pressurized containers are specially designed enclosures that maintain a controlled internal pressure to prevent the ingress of hazardous gases or dust. These containers are crucial for housing electrical equipment and machinery that may not be explosion-proof but need to be safely operated in environments with a risk of explosion.

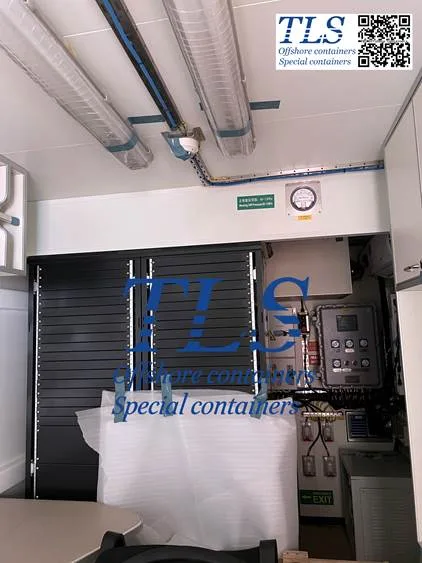

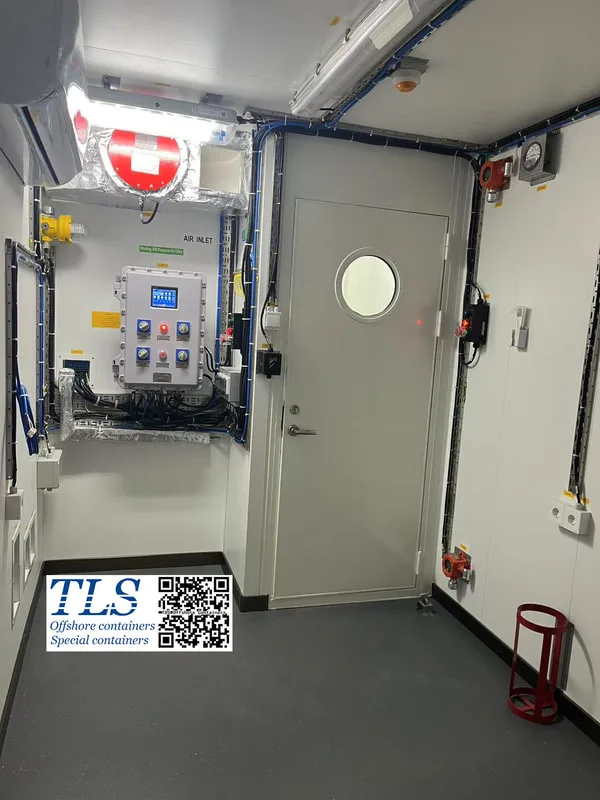

How Do Positive Pressurized Containers Work?
The principle behind positive pressurized containers lies in their ability to maintain a higher internal pressure than the surrounding environment, thereby preventing the entry of flammable or explosive materials. Here's a breakdown of the process that makes these containers effective in explosive environments:
- Automatic System Activation
- Fresh Air Inflow
- Purging Process
- Controlled Power Activation
- Continuous Monitoring and Alarm System
Why Positive Pressurized Containers Matter
Positive pressurized containers are an essential safety feature in environments where explosive or flammable materials are present. Their design ensures that non-explosion-proof equipment can safely operate within hazardous zones by creating a safe and controlled environment inside the container. Here are some of the key benefits:
- Safety: By maintaining a constant positive pressure, these containers help prevent the ingress of hazardous gases and dust, significantly reducing the risk of an explosion.
- Cost-Effective: Companies can use regular non-explosion-proof equipment in positive pressurized containers, saving on the high costs of explosion-proof alternatives.
- Compliance: These containers adhere to the latest safety standards and regulations, ensuring that your operations remain in compliance with industry requirements.
TLS Offshore Pressurized Containers
At TLS Offshore Containers, we prioritize safety and compliance. Our positive pressurized containers are designed and manufactured to meet the highest standards in the industry. With cutting-edge features and robust testing procedures, our containers provide a secure and explosion-proof environment for your operations, no matter how demanding the conditions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Explosion-proof containers, #Hazardous environment safety, #Positive pressure ventilation system, #Explosion-proof equipment housing, #Safety containers for explosive areas, #Hazardous area enclosures, #Explosion-proof technology, #Industrial safety containers, #Explosion protection systems, #Safe electrical equipment in hazardous zones, #Flammable material safety solutions
