Energy Management Systems (EMS) play an increasingly vital role in modern power systems, especially as energy storage solutions and distributed resources continue to expand. By bringing together various hardware and software components, an EMS provides real-time monitoring, decision-making, and control over the charging and discharging of energy storage assets. Below is an in-depth look at EMS architecture, core functionalities, and how these systems adapt to different scenarios.
EMS Architecture Overview
1. Device Layer
The device layer includes essential energy conversion and management units such as the Power Conversion System (PCS) and the Battery Management System (BMS). These components collect real-time data on battery voltage, current, temperature, and state of charge (SOC). They also track PCS parameters like power output and operational status. All this raw data forms the foundation on which the EMS builds its decision-making processes.
2. Communication Layer
This layer addresses link stability, protocols, and data transfer. Common standards include CAN bus and Modbus, both of which enable various components—PCS, BMS, sensors, and more—to exchange data reliably. High-volume systems, such as large-scale energy storage plants, require stable, rapid data transmission to ensure the EMS receives updates quickly and issues timely control commands.
3. Information Layer
Comprising middleware, databases, and servers, this layer handles the storage and processing of real-time and historical data. By archiving parameters—such as battery performance and charging records—operators can analyze trends, predict maintenance needs, and fine-tune operational strategies. This secure data repository also supports efficient reporting and long-term performance evaluations.
4. Application Layer
The top layer includes user-facing interfaces like web portals or mobile apps, offering visual dashboards for system monitoring, control, data analytics, and fault diagnosis. Through these interfaces, operators can adjust charging schedules, generate custom reports, and set economic operation strategies (e.g., charging at off-peak hours and discharging during peak demand). They can also perform real-time control, ensuring a swift response to unexpected events.
Core EMS Functions
1. Real-Time Monitoring
An EMS continuously gathers operational parameters across the system—battery voltage, current, SOC, SOH, power output, and load metrics. If any reading deviates from preset thresholds, the EMS triggers alerts, allowing immediate investigation and intervention.
2. Comprehensive Data Visualization
Historical and real-time data, including energy flows, battery health trends, and economic returns, can be viewed in customizable dashboards. This level of detail helps decision-makers track performance over time and analyze effectiveness of various strategies.
3. Economic Operation Strategies
By evaluating factors like time-of-use electricity pricing, load demands, and renewable energy forecasts, the EMS sets the optimal charge/discharge schedule. Charging at low-cost, off-peak times and discharging during peak periods helps reduce costs or even generate revenue in market-participating scenarios. Such strategies are particularly useful in microgrids where renewable energy sources, like solar or wind, must be balanced with storage to ensure consistency and cost-effectiveness.
4. Fault Alarms and Event Logging
The EMS logs alarms and categorizes them by severity. Critical issues—such as severe temperature spikes or abnormal battery voltages—are flagged in red, signaling the need for urgent resolution. These detailed logs help operators track problems over time, identify root causes, and prevent recurrences.
5. Energy Dispatch and Scheduling
Using real-time data on load, battery SOC, and grid prices, the EMS optimizes power flows. During low-demand, low-price periods, the system stores energy; during peaks or supply shortages, it discharges to maintain balance. This scheduling enhances system stability and supports grid services like frequency regulation.
Different EMS Scenarios
• Source/Utility-Side Storage
Often designed with a local control station, source-side EMS focuses on grid-level services such as regulating frequency and voltage. Large wind or solar farms rely on EMS functionality to decide when to store excess energy or feed it into the grid, ensuring stability and maximum renewable energy utilization.
• Commercial and Industrial Storage
Due to smaller capacities spread across multiple sites, C&I scenarios require remote monitoring. Here, EMS solutions integrate seamlessly with cloud-based platforms, offering centralized control of numerous distributed facilities. The primary goals are reducing energy bills (by peak shaving), providing backup power, and ensuring swift adjustments to changing load requirements.
Conclusion
Energy Management Systems provide the backbone for modern energy storage solutions, uniting hardware and software components into a cohesive whole. By monitoring system metrics, executing economic dispatch strategies, and furnishing real-time control interfaces, an EMS optimizes both reliability and profitability—whether at the grid level or in commercial and industrial settings. As the energy landscape evolves, the EMS will remain a linchpin for integrating diverse resources, reducing operational costs, and strengthening overall power stability.
EMS Architecture Overview
1. Device Layer
The device layer includes essential energy conversion and management units such as the Power Conversion System (PCS) and the Battery Management System (BMS). These components collect real-time data on battery voltage, current, temperature, and state of charge (SOC). They also track PCS parameters like power output and operational status. All this raw data forms the foundation on which the EMS builds its decision-making processes.
2. Communication Layer
This layer addresses link stability, protocols, and data transfer. Common standards include CAN bus and Modbus, both of which enable various components—PCS, BMS, sensors, and more—to exchange data reliably. High-volume systems, such as large-scale energy storage plants, require stable, rapid data transmission to ensure the EMS receives updates quickly and issues timely control commands.
3. Information Layer
Comprising middleware, databases, and servers, this layer handles the storage and processing of real-time and historical data. By archiving parameters—such as battery performance and charging records—operators can analyze trends, predict maintenance needs, and fine-tune operational strategies. This secure data repository also supports efficient reporting and long-term performance evaluations.
4. Application Layer
The top layer includes user-facing interfaces like web portals or mobile apps, offering visual dashboards for system monitoring, control, data analytics, and fault diagnosis. Through these interfaces, operators can adjust charging schedules, generate custom reports, and set economic operation strategies (e.g., charging at off-peak hours and discharging during peak demand). They can also perform real-time control, ensuring a swift response to unexpected events.
Core EMS Functions
1. Real-Time Monitoring
An EMS continuously gathers operational parameters across the system—battery voltage, current, SOC, SOH, power output, and load metrics. If any reading deviates from preset thresholds, the EMS triggers alerts, allowing immediate investigation and intervention.
2. Comprehensive Data Visualization
Historical and real-time data, including energy flows, battery health trends, and economic returns, can be viewed in customizable dashboards. This level of detail helps decision-makers track performance over time and analyze effectiveness of various strategies.
3. Economic Operation Strategies
By evaluating factors like time-of-use electricity pricing, load demands, and renewable energy forecasts, the EMS sets the optimal charge/discharge schedule. Charging at low-cost, off-peak times and discharging during peak periods helps reduce costs or even generate revenue in market-participating scenarios. Such strategies are particularly useful in microgrids where renewable energy sources, like solar or wind, must be balanced with storage to ensure consistency and cost-effectiveness.
4. Fault Alarms and Event Logging
The EMS logs alarms and categorizes them by severity. Critical issues—such as severe temperature spikes or abnormal battery voltages—are flagged in red, signaling the need for urgent resolution. These detailed logs help operators track problems over time, identify root causes, and prevent recurrences.
5. Energy Dispatch and Scheduling
Using real-time data on load, battery SOC, and grid prices, the EMS optimizes power flows. During low-demand, low-price periods, the system stores energy; during peaks or supply shortages, it discharges to maintain balance. This scheduling enhances system stability and supports grid services like frequency regulation.
Different EMS Scenarios
• Source/Utility-Side Storage
Often designed with a local control station, source-side EMS focuses on grid-level services such as regulating frequency and voltage. Large wind or solar farms rely on EMS functionality to decide when to store excess energy or feed it into the grid, ensuring stability and maximum renewable energy utilization.
• Commercial and Industrial Storage
Due to smaller capacities spread across multiple sites, C&I scenarios require remote monitoring. Here, EMS solutions integrate seamlessly with cloud-based platforms, offering centralized control of numerous distributed facilities. The primary goals are reducing energy bills (by peak shaving), providing backup power, and ensuring swift adjustments to changing load requirements.
Conclusion
Energy Management Systems provide the backbone for modern energy storage solutions, uniting hardware and software components into a cohesive whole. By monitoring system metrics, executing economic dispatch strategies, and furnishing real-time control interfaces, an EMS optimizes both reliability and profitability—whether at the grid level or in commercial and industrial settings. As the energy landscape evolves, the EMS will remain a linchpin for integrating diverse resources, reducing operational costs, and strengthening overall power stability.
Gaining insight into the key performance parameters of energy storage batteries is crucial for understanding how they are used and how they perform within a storage system. Below is an explanation of several main parameters:
1. Cycle Life
This refers to the number of times the battery can be fully charged and discharged. The length of the cycle life is directly related to the battery’s durability and usage cost. For instance, in scenarios requiring long-term stable energy storage, batteries with a long cycle life are needed. Under proper usage conditions, lithium iron phosphate (LFP) batteries can achieve a high number of cycles. However, some batteries (such as ternary lithium batteries) have faster capacity degradation and shorter lifespans, affecting their suitability for long-term energy storage projects.
2. Capacity
Typically expressed in ampere-hours (Ah). The energy (Wh) can be calculated as Power (W) × Hours (h) = Voltage (V) × Ampere-hours (Ah). For example, a 48V100Ah battery indicates a capacity of 4.8 kWh. The capacity determines how much energy can be stored in a single charge. When selecting a battery, one should consider specific storage needs. For home energy storage systems, factors such as household electricity consumption and the desired duration of stored power should be taken into account to determine the appropriate battery capacity.
3. Charge/Discharge Efficiency
This refers to the energy conversion efficiency during the charging and discharging process. The charge/discharge rate (C-rate) equals the charge or discharge current divided by the rated capacity. For example, if a 100Ah battery is discharged at 15A, the discharge rate is 0.15C. Charging and discharging efficiency affects energy loss during these processes. A high-efficiency battery uses energy more effectively during charging and discharging, reducing waste and significantly contributing to the overall economics and performance of an energy storage system.
4. Depth of Discharge (DOD)
This is the percentage of the battery’s rated capacity that is actually discharged. For the same battery, a deeper DOD typically results in a shorter cycle life. Improving one aspect of performance can often compromise another. For example, at 80% DOD, lithium batteries may achieve 6,000–12,000 cycles. Therefore, in actual use, controlling the depth of discharge properly is necessary to prolong battery life.
5. State of Charge (SOC)
This represents the percentage of remaining battery capacity relative to its rated capacity. An SOC of 0% means the battery is completely discharged, while an SOC of 100% means it is fully charged. As an important parameter in a Battery Management System (BMS), SOC helps reflect remaining battery capacity and operating status in real time. This allows users to understand the current power level and plan charging and discharging more effectively.
6. State of Health (SOH)
This encompasses factors such as capacity, power, and internal resistance. It is defined as the ratio of the battery’s capacity—when discharged from full charge at a certain rate down to its cutoff voltage—to its nominal capacity. In simpler terms, it is the ratio of the battery’s current performance parameters to its rated parameters after some period of use. A brand-new battery is 100% SOH, while a fully degraded battery is 0%. According to IEEE standards, if, after some time in service, the fully charged capacity is less than 80% of the rated capacity, the battery should be replaced. Monitoring SOH helps detect performance decline early, allowing timely action.
Battery Safety and Environmental Considerations
Safety and environmental concerns cannot be overlooked when using batteries. Below are some relevant points and corresponding measures:
1. Safety Risks and Preventive Measures: Overcharge and Over-Discharge
Lithium batteries used improperly—such as being overcharged or exposed to high temperatures or impacts—can undergo internal thermochemical reactions, resulting in thermal runaway. If thermal runaway propagates within a battery module, it can cause a system-level fire. Additionally, toxic and flammable gases may be released, making firefighting difficult. To prevent such risks, choose batteries that comply with relevant safety standards (e.g., IEC62619). At the same time, the Battery Management System (BMS) plays a key role and should be certified under IEC61508 to ensure the battery does not operate beyond its limits. Some storage systems also adopt multi-stage charging (three-stage charging), including constant current, constant voltage, and float charging, to improve safety and avoid overcharging.
2. Battery Module Safety Integration Risks
Battery modules and racks should meet the requirements of UL1973 and IEC62619. Selecting batteries certified by UL9540A means they have been tested to simulate thermal runaway and to check whether a fire would spread. Batteries should be installed in sturdy battery cabinets that keep each unit separate, helping to prevent a fire from spreading to other cabinets. The cabinet housing should have high fire resistance and provide thermal insulation to keep batteries within a suitable temperature range (typically 20°C to 23°C).
1. Cycle Life
This refers to the number of times the battery can be fully charged and discharged. The length of the cycle life is directly related to the battery’s durability and usage cost. For instance, in scenarios requiring long-term stable energy storage, batteries with a long cycle life are needed. Under proper usage conditions, lithium iron phosphate (LFP) batteries can achieve a high number of cycles. However, some batteries (such as ternary lithium batteries) have faster capacity degradation and shorter lifespans, affecting their suitability for long-term energy storage projects.
2. Capacity
Typically expressed in ampere-hours (Ah). The energy (Wh) can be calculated as Power (W) × Hours (h) = Voltage (V) × Ampere-hours (Ah). For example, a 48V100Ah battery indicates a capacity of 4.8 kWh. The capacity determines how much energy can be stored in a single charge. When selecting a battery, one should consider specific storage needs. For home energy storage systems, factors such as household electricity consumption and the desired duration of stored power should be taken into account to determine the appropriate battery capacity.
3. Charge/Discharge Efficiency
This refers to the energy conversion efficiency during the charging and discharging process. The charge/discharge rate (C-rate) equals the charge or discharge current divided by the rated capacity. For example, if a 100Ah battery is discharged at 15A, the discharge rate is 0.15C. Charging and discharging efficiency affects energy loss during these processes. A high-efficiency battery uses energy more effectively during charging and discharging, reducing waste and significantly contributing to the overall economics and performance of an energy storage system.
4. Depth of Discharge (DOD)
This is the percentage of the battery’s rated capacity that is actually discharged. For the same battery, a deeper DOD typically results in a shorter cycle life. Improving one aspect of performance can often compromise another. For example, at 80% DOD, lithium batteries may achieve 6,000–12,000 cycles. Therefore, in actual use, controlling the depth of discharge properly is necessary to prolong battery life.
5. State of Charge (SOC)
This represents the percentage of remaining battery capacity relative to its rated capacity. An SOC of 0% means the battery is completely discharged, while an SOC of 100% means it is fully charged. As an important parameter in a Battery Management System (BMS), SOC helps reflect remaining battery capacity and operating status in real time. This allows users to understand the current power level and plan charging and discharging more effectively.
6. State of Health (SOH)
This encompasses factors such as capacity, power, and internal resistance. It is defined as the ratio of the battery’s capacity—when discharged from full charge at a certain rate down to its cutoff voltage—to its nominal capacity. In simpler terms, it is the ratio of the battery’s current performance parameters to its rated parameters after some period of use. A brand-new battery is 100% SOH, while a fully degraded battery is 0%. According to IEEE standards, if, after some time in service, the fully charged capacity is less than 80% of the rated capacity, the battery should be replaced. Monitoring SOH helps detect performance decline early, allowing timely action.
Battery Safety and Environmental Considerations
Safety and environmental concerns cannot be overlooked when using batteries. Below are some relevant points and corresponding measures:
1. Safety Risks and Preventive Measures: Overcharge and Over-Discharge
Lithium batteries used improperly—such as being overcharged or exposed to high temperatures or impacts—can undergo internal thermochemical reactions, resulting in thermal runaway. If thermal runaway propagates within a battery module, it can cause a system-level fire. Additionally, toxic and flammable gases may be released, making firefighting difficult. To prevent such risks, choose batteries that comply with relevant safety standards (e.g., IEC62619). At the same time, the Battery Management System (BMS) plays a key role and should be certified under IEC61508 to ensure the battery does not operate beyond its limits. Some storage systems also adopt multi-stage charging (three-stage charging), including constant current, constant voltage, and float charging, to improve safety and avoid overcharging.
2. Battery Module Safety Integration Risks
Battery modules and racks should meet the requirements of UL1973 and IEC62619. Selecting batteries certified by UL9540A means they have been tested to simulate thermal runaway and to check whether a fire would spread. Batteries should be installed in sturdy battery cabinets that keep each unit separate, helping to prevent a fire from spreading to other cabinets. The cabinet housing should have high fire resistance and provide thermal insulation to keep batteries within a suitable temperature range (typically 20°C to 23°C).
Power Conversion Systems (PCS) are critical components in energy storage systems. Acting as a “bridge” that switches electrical energy between direct current (DC) and alternating current (AC), PCS enable efficient charging and discharging of batteries for a wide variety of applications. From large-scale renewable energy stations to industrial facilities and even household setups, PCS play a pivotal role in ensuring seamless energy transitions and stable power delivery.
Core Function of PCS
At its heart, a PCS facilitates bidirectional power flow. During charging, it converts AC power from the grid into DC power suitable for the energy storage battery. This capability is especially beneficial in scenarios such as off-peak periods or times when electricity prices are low; the excess or cheaper electricity can be stored in batteries for future use. Conversely, during discharge, the PCS inverts the battery’s DC power back to AC for general consumption or for feeding back into the grid. This is advantageous during periods of peak demand or when the grid experiences a shortfall, allowing stored energy to support critical loads and maintain uninterrupted power supply.
Moreover, in remote or off-grid environments, a PCS can autonomously supply AC power to connected loads without any reliance on the traditional utility grid. This flexibility underlines why PCS technology is indispensable across diverse energy storage deployments.
Key Components and Principles
A typical PCS comprises multiple elements, including inverters and rectifiers, which collaborate to manage AC-DC conversion. Inverters handle the DC-to-AC process when discharging power to loads or the grid, ensuring the output power meets specific voltage, frequency, and waveform requirements. Rectifiers, on the other hand, manage AC-to-DC conversion during charging, enabling the battery to store excess power.
Technically, PCS operation is founded on four-quadrant control principles, meaning the system can handle both active and reactive power management across all quadrants of the power plane. This design lets it stabilize volatile energy inputs (such as wind or solar), ensuring smoother power output and enhanced reliability. Consequently, renewable energy sources become more predictable, boosting their integration into the broader energy ecosystem.
Applications Across Different Scales
1. Large-Scale Energy Storage:
In utility-scale installations, PCS solutions often operate in the megawatt (MW) range or higher. These systems balance grid supply and demand, stabilize voltage and frequency, and smooth out the intermittent nature of wind and solar farms. For example, a large solar farm might store daytime excess solar power via a PCS-equipped battery system, then discharge it at night or during cloudy periods. Moreover, large PCS setups can work in tandem with conventional power plants for fast frequency regulation, enhancing grid stability.
2. Commercial and Industrial Settings:
Commercial and industrial (C&I) users often deploy PCS with power ratings spanning tens of kilowatts (kW) to several megawatts. By charging during low-cost, off-peak hours and discharging during expensive peak hours, businesses can significantly reduce electricity bills through peak shaving. In the event of grid disturbances, the stored energy—converted via PCS—protects sensitive equipment and maintains continuity. Data centers, for instance, can benefit greatly from this approach by ensuring reliable backup power.
3. Residential Energy Storage:
Smaller PCS units, usually in the range of a few kW to around 15 kW, are common in home-based energy storage solutions. These systems pair effectively with rooftop solar panels: the PCS inverts DC power from solar modules to AC for household use, stores any surplus in the battery, and provides backup power in case of outages. By optimizing self-consumption and offering reliable emergency power, homeowners gain both energy independence and cost savings.
Influencing Factors for PCS Selection
When selecting a PCS, system size is a primary consideration: larger systems need higher power ratings, whereas smaller-scale, household systems call for lower capacity. The required power quality—voltage precision, frequency regulation, and response time—further dictates PCS design. Operating environment (temperature, humidity, and enclosure requirements), budget constraints, and compatibility with batteries or monitoring systems all factor into the final choice. Balancing these considerations ensures that the PCS operates at peak performance, supporting stable and efficient energy storage operations.
In conclusion, Power Conversion Systems are indispensable for modern energy storage solutions. By effectively linking DC and AC power, they enable flexible charging, reliable discharging, and stable grid interaction. As more industries and households embrace renewable energy, the role of PCS continues to expand, providing greater energy security, cost savings, and environmental benefits for all.
Core Function of PCS
At its heart, a PCS facilitates bidirectional power flow. During charging, it converts AC power from the grid into DC power suitable for the energy storage battery. This capability is especially beneficial in scenarios such as off-peak periods or times when electricity prices are low; the excess or cheaper electricity can be stored in batteries for future use. Conversely, during discharge, the PCS inverts the battery’s DC power back to AC for general consumption or for feeding back into the grid. This is advantageous during periods of peak demand or when the grid experiences a shortfall, allowing stored energy to support critical loads and maintain uninterrupted power supply.
Moreover, in remote or off-grid environments, a PCS can autonomously supply AC power to connected loads without any reliance on the traditional utility grid. This flexibility underlines why PCS technology is indispensable across diverse energy storage deployments.
Key Components and Principles
A typical PCS comprises multiple elements, including inverters and rectifiers, which collaborate to manage AC-DC conversion. Inverters handle the DC-to-AC process when discharging power to loads or the grid, ensuring the output power meets specific voltage, frequency, and waveform requirements. Rectifiers, on the other hand, manage AC-to-DC conversion during charging, enabling the battery to store excess power.
Technically, PCS operation is founded on four-quadrant control principles, meaning the system can handle both active and reactive power management across all quadrants of the power plane. This design lets it stabilize volatile energy inputs (such as wind or solar), ensuring smoother power output and enhanced reliability. Consequently, renewable energy sources become more predictable, boosting their integration into the broader energy ecosystem.
Applications Across Different Scales
1. Large-Scale Energy Storage:
In utility-scale installations, PCS solutions often operate in the megawatt (MW) range or higher. These systems balance grid supply and demand, stabilize voltage and frequency, and smooth out the intermittent nature of wind and solar farms. For example, a large solar farm might store daytime excess solar power via a PCS-equipped battery system, then discharge it at night or during cloudy periods. Moreover, large PCS setups can work in tandem with conventional power plants for fast frequency regulation, enhancing grid stability.
2. Commercial and Industrial Settings:
Commercial and industrial (C&I) users often deploy PCS with power ratings spanning tens of kilowatts (kW) to several megawatts. By charging during low-cost, off-peak hours and discharging during expensive peak hours, businesses can significantly reduce electricity bills through peak shaving. In the event of grid disturbances, the stored energy—converted via PCS—protects sensitive equipment and maintains continuity. Data centers, for instance, can benefit greatly from this approach by ensuring reliable backup power.
3. Residential Energy Storage:
Smaller PCS units, usually in the range of a few kW to around 15 kW, are common in home-based energy storage solutions. These systems pair effectively with rooftop solar panels: the PCS inverts DC power from solar modules to AC for household use, stores any surplus in the battery, and provides backup power in case of outages. By optimizing self-consumption and offering reliable emergency power, homeowners gain both energy independence and cost savings.
Influencing Factors for PCS Selection
When selecting a PCS, system size is a primary consideration: larger systems need higher power ratings, whereas smaller-scale, household systems call for lower capacity. The required power quality—voltage precision, frequency regulation, and response time—further dictates PCS design. Operating environment (temperature, humidity, and enclosure requirements), budget constraints, and compatibility with batteries or monitoring systems all factor into the final choice. Balancing these considerations ensures that the PCS operates at peak performance, supporting stable and efficient energy storage operations.
In conclusion, Power Conversion Systems are indispensable for modern energy storage solutions. By effectively linking DC and AC power, they enable flexible charging, reliable discharging, and stable grid interaction. As more industries and households embrace renewable energy, the role of PCS continues to expand, providing greater energy security, cost savings, and environmental benefits for all.
In the refrigeration industry, DAIKIN, CARRIER, and THERMO KING stand out as leaders, each excelling in distinct applications. For hazardous goods, chemicals, and pharmaceuticals requiring stringent temperature control, dual refrigeration systems play a crucial role in ensuring safety and reliability. This blog compares these brands and highlights their suitability for transporting sensitive cargo.
Leading Refrigeration Brands1. DAIKIN
② VRV Systems: Offers advanced multi-zone temperature control.
③ Noise Reduction: Ideal for noise-sensitive environments.
② Flexible System Designs: Adaptable to a wide range of industrial applications.
③ Regulatory Compliance: Meets global standards like IATA DGR, ADR, and GDP.
② Precise Temperature Management: Guarantees high accuracy during transport.
③ Durability and Efficiency: Built for long-distance, fuel-efficient operations.
The Importance of Dual Refrigeration SystemsThe transportation of hazardous goods, chemicals, and pharmaceuticals demands strict temperature control and safety standards. Dual refrigeration systems, with their redundancy and precision, provide a reliable solution to maintain cargo integrity, even in the event of a system failure.
THERMO KING Dual Refrigeration Systems
②High Reliability: Ensures uninterrupted operation if one unit fails.
③Remote Monitoring: Real-time temperature and system status tracking.
CARRIER Dual Refrigeration Systems
② Multi-Mode Operation: Independent control of multiple temperature zones for mixed cargo.
③ Regulatory Compliance: Adheres to international standards, ensuring safe transport.
Conclusion
When transporting hazardous goods, chemicals, or pharmaceuticals, selecting a reliable dual refrigeration system is critical for ensuring cargo safety and maintaining quality. THERMO KING and CARRIER offer excellent options tailored to different needs, making them indispensable in cold chain logistics. Evaluate your specific transportation requirements to make the best choice and achieve optimal performance.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Any more information regarding Offshore Reefer container, ISO reefer container, please download TLS offshore reefer containers brochure for your reference
Keywords:#Refrigeration Industry,#DAIKIN,#THERMO KING,#Temperature Control,#Dual Refrigeration Systems,#Hazardous Goods,#Pharmaceuticals,#Cold Chain Logistics,#Eco-Friendly Refrigerants,#Multi-Zone Temperature Control,#Regulatory Compliance,
#Cold Storage,#Transport Refrigeration,#Precision Temperature Management,#Remote Monitoring,#Long-Distance Transport
Leading Refrigeration Brands1. DAIKIN
- Primary Focus: Residential and commercial refrigeration (temperature range: -20°C to 10°C).
- Key Features:
② VRV Systems: Offers advanced multi-zone temperature control.
③ Noise Reduction: Ideal for noise-sensitive environments.
- Typical Applications: High-end residential buildings, offices, and supermarkets requiring efficient heating, cooling, and refrigeration.
- Primary Focus: Commercial and industrial refrigeration, particularly cold chain logistics (temperature range: -30°C to 10°C).
- Key Features:
② Flexible System Designs: Adaptable to a wide range of industrial applications.
③ Regulatory Compliance: Meets global standards like IATA DGR, ADR, and GDP.
- Typical Applications: Cold storage warehouses, logistics transportation, and large-scale commercial facilities.
- Primary Focus: Transportation refrigeration (temperature range: -30°C to 10°C).
- Key Features:
② Precise Temperature Management: Guarantees high accuracy during transport.
③ Durability and Efficiency: Built for long-distance, fuel-efficient operations.
- Typical Applications: Refrigerated trucks, trailers, and containers for pharmaceuticals and hazardous goods.
The Importance of Dual Refrigeration SystemsThe transportation of hazardous goods, chemicals, and pharmaceuticals demands strict temperature control and safety standards. Dual refrigeration systems, with their redundancy and precision, provide a reliable solution to maintain cargo integrity, even in the event of a system failure.
THERMO KING Dual Refrigeration Systems
- Solutions: Offers advanced Dual Temp Systems with multi-zone and redundancy features.
- Key Benefits:
②High Reliability: Ensures uninterrupted operation if one unit fails.
③Remote Monitoring: Real-time temperature and system status tracking.
- Applications: Long-distance transport of hazardous chemicals, pharmaceuticals, and temperature-sensitive goods.
CARRIER Dual Refrigeration Systems
- Solutions: Features the Vector series, including Vector HE 19 and Vector 1950 MT.
- Key Benefits:
② Multi-Mode Operation: Independent control of multiple temperature zones for mixed cargo.
③ Regulatory Compliance: Adheres to international standards, ensuring safe transport.
- Applications: High-safety transport of chemicals and pharmaceuticals in compliance-driven environments.
- THERMO KING: Best suited for high-precision, long-distance transportation of hazardous goods and temperature-sensitive pharmaceuticals.
- CARRIER: Ideal for large-scale, compliance-focused cold chain logistics, particularly in industrial settings.
Conclusion
When transporting hazardous goods, chemicals, or pharmaceuticals, selecting a reliable dual refrigeration system is critical for ensuring cargo safety and maintaining quality. THERMO KING and CARRIER offer excellent options tailored to different needs, making them indispensable in cold chain logistics. Evaluate your specific transportation requirements to make the best choice and achieve optimal performance.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Any more information regarding Offshore Reefer container, ISO reefer container, please download TLS offshore reefer containers brochure for your reference
Keywords:#Refrigeration Industry,#DAIKIN,#THERMO KING,#Temperature Control,#Dual Refrigeration Systems,#Hazardous Goods,#Pharmaceuticals,#Cold Chain Logistics,#Eco-Friendly Refrigerants,#Multi-Zone Temperature Control,#Regulatory Compliance,
#Cold Storage,#Transport Refrigeration,#Precision Temperature Management,#Remote Monitoring,#Long-Distance Transport
Written by Snowy

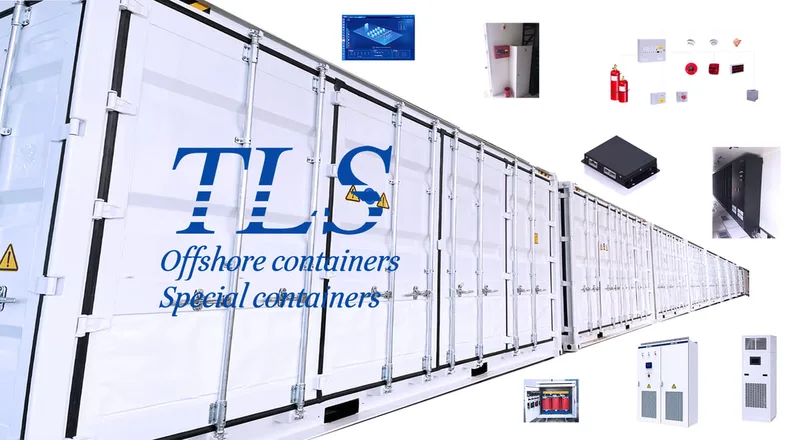

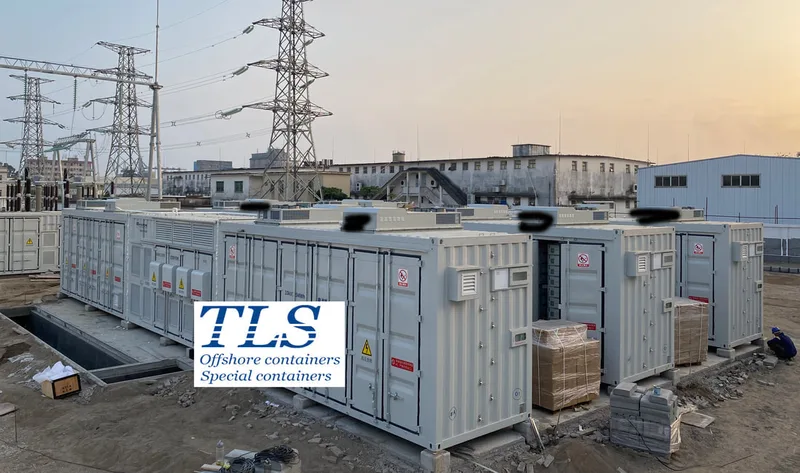

Key Considerations in Energy Storage Container Design The demand for energy storage solutions has surged as renewable energy technologies, such as solar and wind power, become increasingly integrated into global energy systems. Battery Energy Storage Systems (BESS) are crucial in managing the variability of renewable energy sources, and energy storage containers provide an efficient, scalable way to house these systems. Designing a robust, high-performance energy storage container is critical to ensuring safety, efficiency, and cost-effectiveness. In this blog, we explore the key factors that must be considered when designing an energy storage container.
1. Battery Type and Configuration
The foundation of any energy storage system lies in the choice of battery technology. Lithium-ion batteries are the most popular due to their high energy density, long lifespan, and efficiency, but alternatives like lead-acid and flow batteries may also be considered depending on the application. The battery configuration must be carefully designed to optimize the system’s capacity while ensuring ease of maintenance, safe operation, and efficient thermal management.
2. Safety Design
Given the high energy densities involved, safety is paramount in the design of energy storage containers. Several features are essential to prevent accidents:
3. Electrical Systems Integration
The Battery Management System (BMS) plays a critical role in managing battery health by monitoring important metrics like voltage, temperature, and charge levels. The inverter and power electronics must also be selected carefully to facilitate efficient DC to AC conversion, ensuring smooth energy delivery to the grid or other power systems.
In addition, high-quality cabling and connectors are vital for safe and efficient power distribution within the container.
4. Environmental Adaptability
Energy storage systems often operate in a range of environments, from extreme heat to cold. The design must account for environmental factors like:
5. Capacity, Space, and Scalability
Maximizing space efficiency is essential to increase the energy density of the container. Thoughtful layout planning should ensure that the system can house the necessary components, such as batteries, inverters, and cooling systems, without overcrowding. Modular designs allow the system to scale as future energy demands increase or technologies evolve.
6. Grid Integration and Power Management
The design must also account for the system’s ability to connect seamlessly to the power grid or off-grid applications. It should support grid stabilization, demand-response programs, and energy management systems (EMS) to ensure efficient energy transfer and storage.
For off-grid installations, backup power capabilities and islanding protection should also be integrated to safeguard against grid outages.

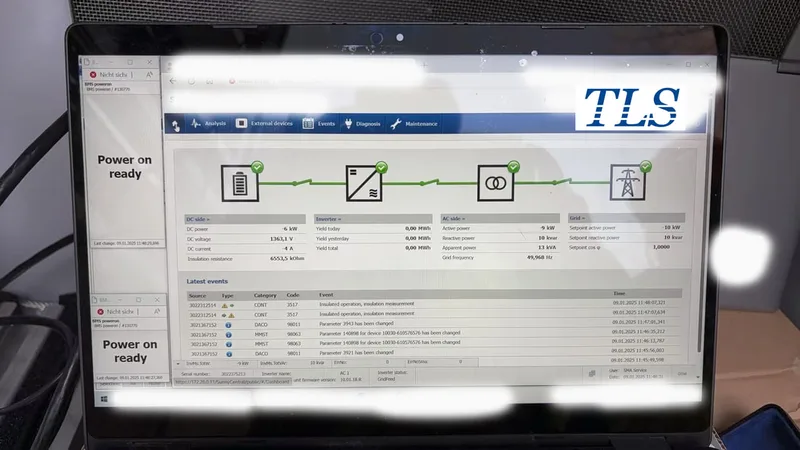

7. Remote Monitoring and Smart Management
As with any modern system, remote monitoring capabilities are critical. The integration of an intelligent management system enables operators to track real-time data, perform diagnostics, and receive maintenance alerts. Predictive analytics can optimize performance by anticipating issues before they arise, reducing downtime and improving system efficiency.

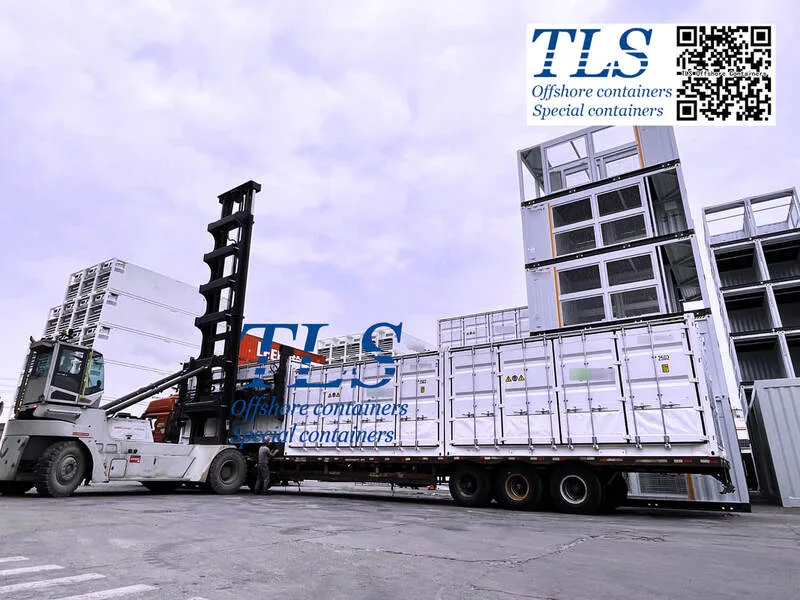

8. Transportability and Logistics
Energy storage containers should be designed with logistical considerations in mind. Adhering to standard shipping dimensions ensures the system can be transported by road, rail, or sea without complications. The container must also be durable enough to withstand the rigors of transportation while keeping the internal equipment safe.
9. Maintainability
A well-designed container should allow for easy maintenance and component replacement. Modular components and accessible layouts reduce downtime during maintenance cycles and make repairs more cost-effective.
10. Cost Efficiency
While it’s important to deliver high-quality performance, the design must also remain cost-effective. Striking a balance between performance and cost is key to ensuring the energy storage system remains competitive in the market. This includes selecting cost-efficient materials, avoiding over-engineering, and focusing on modular designs to allow for flexibility and future upgrades.
Conclusion
Designing an energy storage container is a complex process that requires careful attention to numerous technical, environmental, and logistical factors. Safety, efficiency, and scalability must be balanced to ensure that the energy storage system can provide reliable, long-term performance. As demand for renewable energy solutions continues to rise, well-designed energy storage systems will play a pivotal role in stabilizing power grids, reducing carbon footprints, and advancing the global transition to clean energy.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#Energy Storage Container Design，#Battery Energy Storage Systems (BESS)，#Battery Management System (BMS)，#Thermal Management，#Fire Suppression Systems，#Cooling Systems，#Ingress Protection (IP) Ratings，#Modular Design，#Grid Integration，#Power Electronics，#Remote Monitoring，#Energy Management Systems (EMS)，#Energy Storage System Safety，#Energy Storage System Scalability，#Logistical Considerations for Energy Storage，#Cost Optimization in Energy Storage Design，#Renewable Energy Storage Solutions，#Lithium-ion Battery Design，#Energy Storage System Maintenance.
1. Battery Type and Configuration
The foundation of any energy storage system lies in the choice of battery technology. Lithium-ion batteries are the most popular due to their high energy density, long lifespan, and efficiency, but alternatives like lead-acid and flow batteries may also be considered depending on the application. The battery configuration must be carefully designed to optimize the system’s capacity while ensuring ease of maintenance, safe operation, and efficient thermal management.
2. Safety Design
Given the high energy densities involved, safety is paramount in the design of energy storage containers. Several features are essential to prevent accidents:
- Fire and Explosion Prevention: Energy storage systems, particularly lithium-ion batteries, can be prone to thermal runaway, posing fire risks. Therefore, integrating fire suppression systems, fire-resistant barriers, and temperature regulation mechanisms is crucial.
- Thermal Management: Battery performance can be severely impacted by excessive heat, so an effective cooling system (liquid cooling or air cooling) is required to maintain optimal temperatures for battery health and safety.
- Ingress Protection: The container must be designed to prevent the entry of water, dust, or any foreign particles that could damage internal components. IP (Ingress Protection) ratings ensure that the system can function under various environmental conditions.
3. Electrical Systems Integration
The Battery Management System (BMS) plays a critical role in managing battery health by monitoring important metrics like voltage, temperature, and charge levels. The inverter and power electronics must also be selected carefully to facilitate efficient DC to AC conversion, ensuring smooth energy delivery to the grid or other power systems.
In addition, high-quality cabling and connectors are vital for safe and efficient power distribution within the container.
4. Environmental Adaptability
Energy storage systems often operate in a range of environments, from extreme heat to cold. The design must account for environmental factors like:
- Temperature Extremes: Insulation or heating elements might be required in colder climates to protect the system.
- Corrosion Resistance: For installations in coastal or industrial areas, anti-corrosion materials like galvanized steel or aluminum alloys must be used.
- Structural Integrity: The container should withstand harsh weather conditions, including high winds or seismic activity. Reinforced structures and shockproof designs ensure stability in adverse conditions.
5. Capacity, Space, and Scalability
Maximizing space efficiency is essential to increase the energy density of the container. Thoughtful layout planning should ensure that the system can house the necessary components, such as batteries, inverters, and cooling systems, without overcrowding. Modular designs allow the system to scale as future energy demands increase or technologies evolve.
6. Grid Integration and Power Management
The design must also account for the system’s ability to connect seamlessly to the power grid or off-grid applications. It should support grid stabilization, demand-response programs, and energy management systems (EMS) to ensure efficient energy transfer and storage.
For off-grid installations, backup power capabilities and islanding protection should also be integrated to safeguard against grid outages.
7. Remote Monitoring and Smart Management
As with any modern system, remote monitoring capabilities are critical. The integration of an intelligent management system enables operators to track real-time data, perform diagnostics, and receive maintenance alerts. Predictive analytics can optimize performance by anticipating issues before they arise, reducing downtime and improving system efficiency.
8. Transportability and Logistics
Energy storage containers should be designed with logistical considerations in mind. Adhering to standard shipping dimensions ensures the system can be transported by road, rail, or sea without complications. The container must also be durable enough to withstand the rigors of transportation while keeping the internal equipment safe.
9. Maintainability
A well-designed container should allow for easy maintenance and component replacement. Modular components and accessible layouts reduce downtime during maintenance cycles and make repairs more cost-effective.
10. Cost Efficiency
While it’s important to deliver high-quality performance, the design must also remain cost-effective. Striking a balance between performance and cost is key to ensuring the energy storage system remains competitive in the market. This includes selecting cost-efficient materials, avoiding over-engineering, and focusing on modular designs to allow for flexibility and future upgrades.
Conclusion
Designing an energy storage container is a complex process that requires careful attention to numerous technical, environmental, and logistical factors. Safety, efficiency, and scalability must be balanced to ensure that the energy storage system can provide reliable, long-term performance. As demand for renewable energy solutions continues to rise, well-designed energy storage systems will play a pivotal role in stabilizing power grids, reducing carbon footprints, and advancing the global transition to clean energy.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#Energy Storage Container Design，#Battery Energy Storage Systems (BESS)，#Battery Management System (BMS)，#Thermal Management，#Fire Suppression Systems，#Cooling Systems，#Ingress Protection (IP) Ratings，#Modular Design，#Grid Integration，#Power Electronics，#Remote Monitoring，#Energy Management Systems (EMS)，#Energy Storage System Safety，#Energy Storage System Scalability，#Logistical Considerations for Energy Storage，#Cost Optimization in Energy Storage Design，#Renewable Energy Storage Solutions，#Lithium-ion Battery Design，#Energy Storage System Maintenance.
