Artificial Intelligence Data Centers (AIDCs) are entering a new era of power density. As AI training, inference, and high-performance computing workloads expand, conventional data center electrical architectures are approaching practical limits. AI compute racks that once required hundreds of kilowatts are moving toward megawatt-class power demand, creating an urgent need for more efficient, scalable, and resilient power infrastructure.
One emerging solution is 800VDC power distribution, designed to support high-density AI factories while reducing electrical losses and simplifying the power conversion chain.
Why AIDCs Are Moving Toward 800VDC
Traditional low-voltage distribution requires extremely high current when delivering megawatts of power. Higher current means larger quantities of copper, bigger conductors, increased heat generation, and more complex distribution infrastructure.
By increasing distribution voltage to approximately 800VDC, AIDCs can significantly reduce current for the same amount of delivered power. This can decrease cable and busway requirements, reduce conduction losses, and enable more compact power infrastructure.
A native DC architecture can also eliminate unnecessary AC/DC conversion stages between the utility connection and GPU point-of-load, improving overall system efficiency.
Depending on facility scale, 800VDC infrastructure can be deployed through several architectures.
Rack-level power systems convert localized AC supplies into 800VDC close to AI compute racks. Cluster-level power centers centralize rectification at the row or cluster level and distribute DC through overhead busways. At even larger scale, multi-megawatt power blocks can integrate medium-voltage utility feeds with technologies such as Transformer Rectifier Units (TRUs) or Solid-State Transformers (SSTs).
Together, these approaches provide a modular path from individual AI racks to large AI campuses.
Managing Dynamic AI Power Loads with BESS and BBU
High power density is only part of the AIDC challenge. AI workloads can also create rapid load fluctuations as thousands of GPUs operate synchronously. These transient loads may produce voltage disturbances and impose additional stress on upstream electrical infrastructure.
Energy storage therefore becomes an important component of next-generation AIDC power architecture.
TLS Energy International provides containerized Battery Energy Storage Systems (BESS) and Battery Backup Unit (BBU) solutions for AIDC applications, delivering prefabricated containerized energy solutions to global clients.
At the utility or behind-the-meter level, containerized BESS can support megawatt-scale peak shaving, power smoothing, grid support, and management of dynamic AI loads. Instead of requiring the grid connection to respond instantly to every compute workload spike, local battery capacity can help buffer rapid changes in demand.
Closer to AI racks, high-density BBU systems can provide short-duration backup and fast-response power support. Integrated at the power rack or power-center level, BBUs can help stabilize the DC bus during sudden step loads while providing temporary hold-up capability during power disturbances.

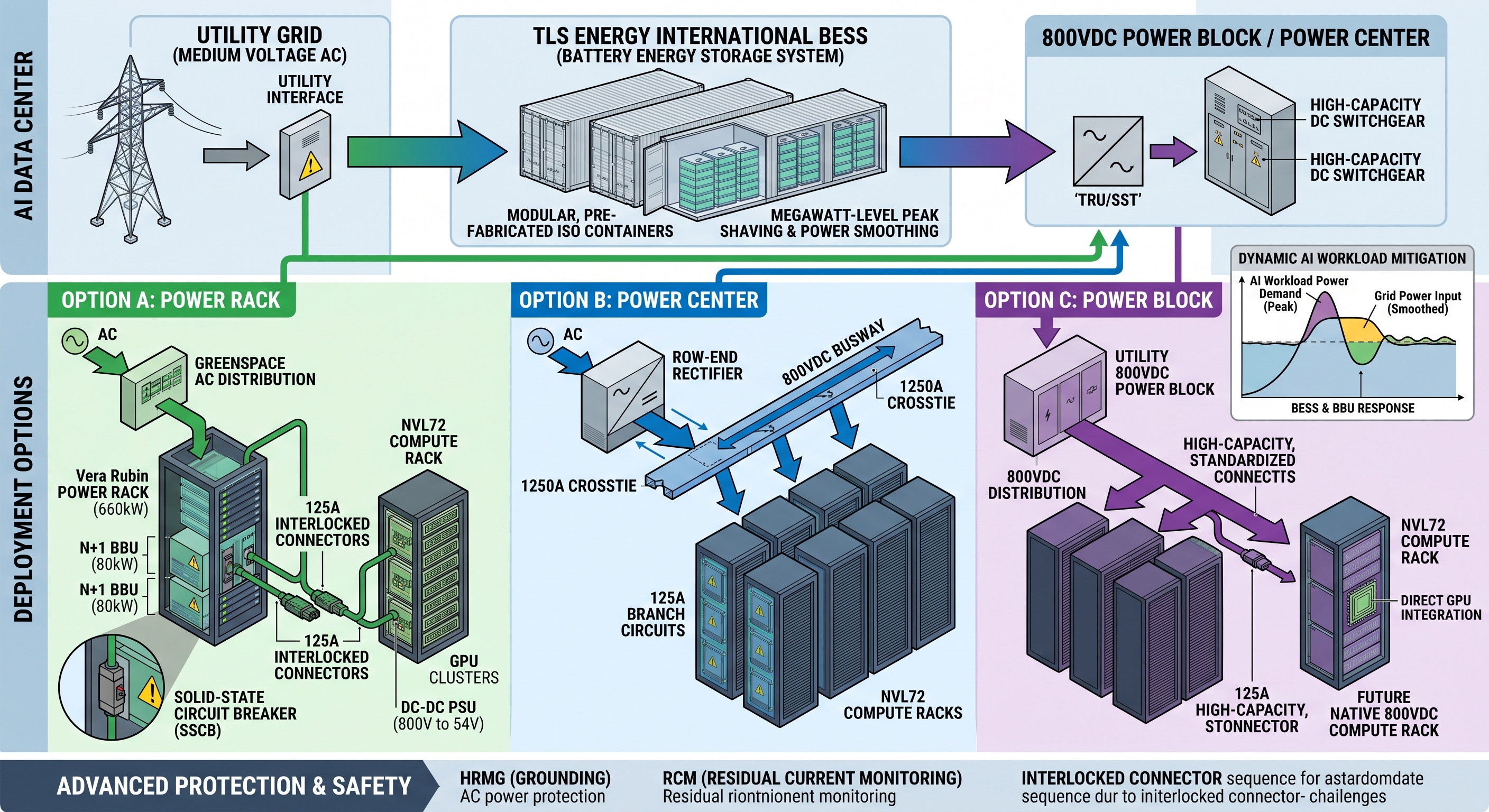

A simplified architecture can therefore combine:
Medium-Voltage Utility Grid → Containerized BESS/BBU → 800VDC Power Block or Power Center → Native 800VDC AI Compute Racks
Protection for High-Voltage DC Infrastructure
Moving toward 800VDC also requires specialized protection. Unlike AC systems, DC does not naturally cross zero every cycle, making interruption of sustained fault currents and electrical arcs more challenging.
Advanced AIDC architectures can therefore incorporate technologies including High-Resistance Midpoint Grounding (HRMG), Solid-State Circuit Breakers (SSCB), Residual Current Monitoring (RCM), and interlocked connectors.
SSCBs can respond extremely quickly to fault conditions, limiting let-through energy and helping protect sensitive downstream electronics. Interlocked rack interfaces can further improve operational safety by ensuring connections are de-energized during insertion or removal.
Containerized Energy Infrastructure for Global AIDC Deployment
As AI data centers scale from megawatt facilities toward much larger AI factories and campuses, power infrastructure must become as modular as the computing equipment itself.
Containerization supports this transition by enabling energy systems to be prefabricated, factory-tested, transported, and rapidly deployed on site.
Through its containerized BESS and BBU solutions, TLS Energy International supports global AIDC clients with scalable energy storage infrastructure that can integrate with existing AC facilities as well as emerging 800VDC architectures.
The convergence of 800VDC distribution, modular power blocks, advanced DC protection, and containerized BESS and BBU systems is creating a new energy backbone for AI infrastructure—one designed for higher density, greater resilience, faster deployment, and the rapidly growing power requirements of next-generation AI computing.
