While NFPA 855 looks at the facility level, UL 9540A dives straight into the heart of the battery itself. Developed by UL Solutions, UL 9540A is titled the Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems.

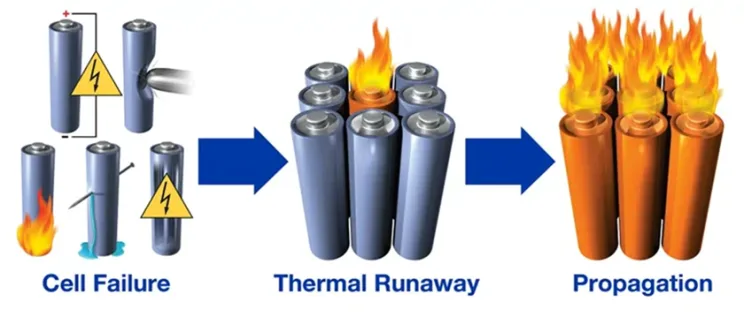

It is vital to note that UL 9540A is not a pass/fail certification. It does not grant a standard safety sticker. Instead, it is a destructive testing methodology that forces batteries into thermal runaway in a controlled environment to gather raw data on fire behavior, gas generation, and heat release rates.The Four-Tier Testing Hierarchy:

1. Cell Level Testing: A single battery cell is forced into thermal runaway via heating or nail penetration. Technicians measure the exact temperature at which the cell fails, gas generation volume, lower flammability limits (LFL) of the emitted gases, and the exact gas composition.
2. Module Level Testing: The test moves to a battery module (a cluster of cells). Fire engineers force one cell into thermal runaway to observe if the internal safeguards prevent the fire from spreading to neighboring cells within the same module.
3. Unit (Rack) Level Testing: An entire battery rack is tested without active fire suppression active. The goal is to see if a fire will breach the enclosure, flash externally, or cause massive radiant heat loops that could threaten adjacent racks.
4. Installation Level Testing: This final optional tier tests a full multi-rack setup with the site's active fire suppression system running. It proves whether the chosen sprinkler or gas suppression method can successfully extinguish or control a worst-case thermal runaway event.

The data generated by UL 9540A is precisely what AHJs demand. If a developer wants to install BESS units closer together than the default distances mandated in NFPA 855, they must present a UL 9540A test report proving that their system will not cause cross-unit fire propagation.
