Short Summary

A transformer container should be specified as an electrical and thermal system, not as a box around a transformer. The RFQ must define the transformer type and rating, voltage interfaces, losses, cooling, protection, earthing, fire strategy, noise limits, transport envelope, maintenance access, site installation and test scope. TLS can configure the enclosure and integrate agreed equipment, but the final arrangement depends on supplier data and project studies.

The Short Answer

To specify a transformer container, give the supplier enough information to size the transformer, remove its heat, connect it safely, protect it, transport it and maintain it at the destination.

At minimum, define:

• transformer type, rated power, voltages, frequency and vector group;
• continuous and cyclic load profile;
• no-load and load losses or guaranteed efficiency requirements;
• site ambient, altitude, dust, humidity and corrosion exposure;
• ventilation or mechanical-cooling philosophy;
• MV and LV cable or busduct interfaces;
• protection, controls, interlocks and communications;
• earthing and bonding;
• fire and oil-containment requirements;
• noise limits and measurement basis;
• transport, lifting and site-access constraints;
• maintenance and equipment-replacement routes; and
• FAT, site acceptance and commissioning responsibilities.

TLS can supply a high-spec enclosure or a more integrated, factory-tested power module. The quotation should state exactly which transformer, switchgear, auxiliary, control and site functions are included.

Define the Electrical Duty First

The transformer rating cannot be selected from peak kilowatts alone. The designer needs apparent power in kVA or MVA, power factor, load profile, expected overloads, harmonic content, phase balance, motor starting, generator behavior and future expansion.

For a remote mine, oilfield, microgrid, renewable plant or data facility, the operating modes can differ substantially. The transformer may connect a utility, diesel generation, BESS, variable-speed drives or large rectifier loads. Each source and load changes thermal duty, fault contribution, harmonics and protection coordination.

The RFQ should state whether the required rating is continuous, cyclic, standby or emergency. It should also identify the governing worst case: maximum ambient, low-voltage operation, harmonic loading, loss of one cooling unit, future load growth or another defined contingency.

Choose the Transformer Type

Dry type transformer

Dry-type transformers avoid insulating-liquid inventory and are commonly considered for enclosed electrical rooms. Their enclosure performance depends strongly on cooling air, altitude, contamination and recirculation. IEC 60076-11 applies to dry-type power transformers within its stated voltage and rating scope and addresses enclosure, dielectric, thermal, climatic, environmental, fire-behavior and seismic considerations.

A dry-type unit still produces substantial heat and requires fire, noise, clearance and maintenance assessment. “Dry type” does not mean no ventilation, no fire risk or no environmental controls.

Liquid immersed transformer

Liquid-immersed transformers may offer different efficiency, thermal capacity and footprint characteristics. Their use inside or adjacent to a container requires attention to insulating-fluid type, tank ventilation, leak detection, bunding or drainage, pressure relief, fire separation and replacement access.

If the transformer is installed in an open-sided or externally accessible compartment, the supplier should still assess weather, dust, solar load, corrosion, animal ingress and safe working clearances.

The buyer should nominate the transformer supplier where required, or specify the performance criteria, standards, acceptable liquids, efficiency, impedance, tapping and accessories that TLS must coordinate.

Specify Capacity Voltage and Impedance

Provide the rated power, primary and secondary voltage, highest voltage for equipment, frequency, phases, vector group, neutral arrangement, tap range and tap method. State whether an off-circuit tap changer or on-load tap changer is required.

Transformer impedance influences fault current, voltage regulation and parallel operation. It should be coordinated with upstream and downstream switchgear ratings and the protection study. If transformers will operate in parallel, give the existing or proposed transformer data and sharing requirements.

Do not leave the LV current as an afterthought. At multi-megawatt ratings, low-voltage current can drive busduct selection, cable quantity, termination space, enclosure width, heat load and installation sequence.

Use Guaranteed Losses for Thermal Design

The enclosure thermal calculation should use guaranteed no-load loss and load loss at the specified reference condition, plus heat from switchgear, busbars, control panels, UPS, lighting and other equipment. If guaranteed losses are not yet available, the design must identify the provisional values and margin.

The heat-rejection design should cover:

• normal continuous duty;
• maximum specified ambient and solar gain;
• altitude correction;
• dirty-filter or degraded-ventilation conditions;
• permitted internal temperature rise;
• transformer and equipment temperature limits; and
• the required response to fan or cooling failure.

A transformer nameplate rating achieved in an open test bay may not be available inside an enclosure without appropriate ventilation or derating. IEC 62271-202 specifically addresses enclosed prefabricated substations within its scope and recognizes the effect of the enclosure and installation conditions on equipment performance.

Design the Ventilation or Cooling System Around Losses

Natural ventilation can be simple, but it needs sufficient inlet and outlet area, a dependable stack effect and a site environment that will not rapidly block filters or contaminate equipment.

Mechanical ventilation provides more control but adds auxiliary demand, fans, filters, dampers, controls, alarms and maintenance.

Air-conditioning is not automatically the correct solution for a transformer compartment. The sensible heat load can be high, and recirculated air can create local hot spots if airflow is poorly distributed. Some projects use a separated transformer zone with high-volume filtered ventilation and an air-conditioned switchgear or control zone.

The RFQ should define whether cooling equipment requires redundancy, variable-speed control, emergency power, low-temperature heating, sand or snow protection, washable filters, remote alarms and safe maintenance while energized.

Computational fluid dynamics may be appropriate when the layout is tight, losses are high or airflow paths are complex. The need and acceptance criteria should be agreed during engineering.

Define MV and LV Interfaces

For each interface, state voltage, current, fault rating, connection type, cable construction, conductor material, number and size of cables, minimum bend radius, gland or transit system and entry direction.

MV interfaces may use cable terminations into switchgear, a ring main unit or the transformer. LV interfaces may use cables, busduct or busbars. The choice affects structural supports, fire sealing, electromagnetic forces, segregation, installation access and shipment splits.

The supplier also needs the cable-pulling direction and site sequence. A technically adequate termination can still be impractical if there is no room for pulling equipment, stress-cone installation, phase transposition or future cable replacement.

External flanges, busduct sections and site joints require tolerance and survey data. Clearly define which party supplies mating parts, flexible links, glands, terminations, supports and final connections.

Coordinate Protection Controls and Interlocks

The protection philosophy should come from the project single-line diagram, grounding method and coordination study. Possible functions include transformer differential, restricted earth fault, overcurrent, earth fault, temperature, pressure or gas protection for liquid-filled units, winding or core temperature alarms and cooling supervision.

The scope may also include MV switchgear, LV switchboards, arc-fault mitigation, local control panels, metering, UPS or DC supply, annunciation, remote I/O and communications gateways. These are project options, not a universal standard package.

Define every trip path and permissive. Examples include transformer trip from high temperature, upstream breaker opening from differential protection, fan start from temperature, door or access interlocks, emergency stop and remote reset restrictions. State the required fail-safe position and loss-of-control-power behavior.

The owner should provide protocol requirements, point lists, time synchronization, cybersecurity rules and the division between local PLC, protection relays and site SCADA.

Engineer Earthing and Bonding

State the system earthing arrangement for each voltage level and identify whether the transformer neutral is solidly grounded, resistance grounded, reactance grounded or isolated. Provide the site earth-grid design values or the inputs needed for the grounding study.

The container should include an internal protective bonding network for the enclosure, doors, equipment frames, cable trays, HVAC and other conductive parts. External earth bosses or bars must be accessible after installation. Neutral grounding equipment, surge arresters and cable-screen bonding should be included only where the agreed electrical design requires them.

Touch and step voltage, transferred potential and lightning protection are site-level issues. The container bonding design must connect to, but cannot replace, the site's grounding assessment.

Define the Fire Strategy

The fire strategy depends on transformer type, insulating liquid, occupancy, surrounding assets, site emergency response and authority requirements. It may address detection, alarm, ventilation shutdown, fire-rated separation, extinguishing, oil containment, drainage and external firefighting access.

For a liquid-filled transformer, specify the fluid volume and classification, containment capacity, leak-monitoring philosophy and route for pressure or liquid release. For dry-type equipment, specify the applicable fire-behavior requirement and the treatment of nearby combustible materials.

Fire suppression should not be selected by container size alone. The extinguishing agent, protected volume, ventilation interlock, pressure relief, personnel exposure and post-discharge recovery all require project review.

Control Noise at the Source and at the Boundary

Transformer sound can include tonal components that remain noticeable even when the overall level appears acceptable. Fans, louvers and structural vibration can add to the result.

Define the required sound pressure or sound power limit, measurement distance, operating condition, background correction and whether the criterion applies at the container surface, site boundary or nearest receiver. Acoustic treatment can affect ventilation pressure drop and heat rejection, so noise and cooling must be engineered together.

If a strict site-boundary limit applies, provide the site layout and other noise sources. The container supplier cannot verify a complete site noise model from equipment data alone.

Design for Transport and Replacement

Remote projects often face road axle limits, bridge restrictions, port handling constraints, seasonal access or small site cranes. Give the maximum shipping dimensions and mass, permitted center of gravity, lifting method, acceleration criteria and whether the transformer ships installed or separately.

An installed transformer subjects its supports, restraints, bus connections and enclosure to transport loads. A separately shipped transformer requires a field installation route, temporary weather protection, alignment method and site test plan.

Provide the route survey and lifting study requirements early. Final shipping mass, center of gravity, lifting points and foundation reactions must be confirmed from the approved equipment and structural design.

Protect Maintenance Access

The layout should show safe operating aisles, door swings, cable-work zones, fan and filter access, relay testing positions and routes for removing the largest maintainable item.

Clearances must account for energized parts, internal arc strategy where applicable, equipment doors and withdrawal paths.

The design should also consider:

• transformer coil or tank inspection;
• tap changer and accessory access;
• temperature-sensor replacement;
• fan and filter removal;
• sampling or fluid handling for liquid-filled units;
• breaker or fuse withdrawal;
• cable termination work; and
• eventual transformer replacement.

A remote site benefits from condition monitoring only when sensors, communications, spares and local maintenance capability form a practical support plan.

Define Site Installation Before Factory Design Is Frozen

The container foundation must support operating, transport, wind, seismic and equipment loads as applicable. The site design should state support points, allowable deflection, anchoring, drainage, flood level, cable trench or above-ground cable routes and required fire separation.

The installation plan should define offloading, lifting, temporary storage, weather protection, alignment, grounding, external cable and bus connections, ventilation clearances, oil filling if applicable and pre-energization inspections.

TLS can provide project-specific foundation reactions and interface drawings after the equipment and structural arrangement are approved. These should not be assumed from a previous container of similar size.

Agree the FAT and SAT Scope

The FAT should distinguish tests already completed by the transformer and switchgear manufacturers from tests performed after integration. Depending on scope and available facilities, integrated checks can include visual and dimensional inspection, wiring continuity, insulation resistance, protection-relay secondary injection, control logic, alarms, interlocks, fan operation, communications and functional simulation.

Primary injection, full-load heat-run, high-voltage testing or complete system energization may require special facilities and should not be assumed. The inspection and test plan should identify test method, acceptance criteria, witness points, simulators, temporary supplies and records.

The site acceptance and commissioning plan can include receipt inspection, assembly checks, grounding verification, cable tests, protection checks, transformer tests after transport, phase rotation, auxiliary-power checks, SCADA point-to-point testing, energization and monitored loading. Assign each activity to TLS, the equipment supplier, EPC, commissioning contractor or owner.

Buyer Inputs for a Useful RFQ

Include these documents and data:

• project single-line diagram and load list;
• operating modes, load profile, power factor, harmonics and motor-starting data;
• transformer type, rating, voltages, frequency, vector group, impedance and tapping;
• guaranteed or provisional losses and efficiency requirements;
• fault levels and protection-coordination basis;
• MV and LV switchgear scope and interface details;
• cable or busduct schedules and entry directions;
• control philosophy, interlock list, point list and communications protocol;
• site earthing and lightning-protection basis;
• fire, oil-containment and emergency-response requirements;
• noise criteria and measurement location;
• site ambient, altitude, solar, humidity, dust, salt, seismic and corrosion data;
• enclosure ingress-protection and coating requirements;
• auxiliary voltage, frequency, backup and redundancy requirements;
• transport route, lifting limits and installation method;
• maintenance clearances and replacement strategy;
• applicable codes, certificates and authority requirements;
• FAT, SAT, documentation, spares and training requirements; and
• destination, schedule and Incoterms.

TLS engineering should confirm the transformer and component selection, thermal calculation, ventilation duty, electrical ratings, protection logic, fire arrangement, acoustic treatment, shipping condition, total mass, center of gravity, lifting, foundation loads and final certification scope.

Frequently Asked Questions

Can TLS supply only the transformer enclosure

Yes. TLS can provide a configurable high-spec enclosure for buyer or EPC integration. The scope can also expand to agreed transformer, switchgear, HVAC, auxiliaries, controls and factory testing.

Is a dry type transformer always better inside a container

No. Dry-type and liquid-immersed transformers have different thermal, fire, maintenance, efficiency, footprint and environmental considerations. The project duty and authority requirements should drive the selection.

Can transformer losses be estimated from the MVA rating

Only for early planning. Final thermal design should use guaranteed supplier losses at the specified operating condition, plus losses from all other installed equipment and environmental heat gains.

Does a containerized transformer arrive ready to energize

Only within the agreed delivery boundary. Site grounding, external connections, transport checks, protection settings, inspections, testing and utility or owner acceptance normally remain before energization.

Should the transformer ship inside the container

It depends on transport mass, route limits, structural design, equipment restraint, vibration, lifting capacity and site installation capability. Both arrangements should be evaluated before the enclosure layout is frozen.

Which standards apply

The applicable set depends on voltage, transformer type, switchgear, location and jurisdiction. Common IEC references can include IEC 60076 for power transformers, IEC 60076-11 for dry-type transformers, IEC 62271-200 for MV metal-enclosed switchgear and IEC 62271-202 for enclosed prefabricated substations. The project specification and authority determine the final list.

Request a Defined Transformer Container Scope

Send TLS the single-line diagram, transformer data, losses, site conditions, interface schedules, transport constraints and test requirements. TLS can then define an enclosure-only or integrated package with its equipment, interfaces and engineering confirmations clearly stated.

Further Reading

· TLS Containerized AI Data Center and Power Infrastructure

· TLS Modular Data Center and Containerized E House Solutions

· IEC 60076-1 Power Transformers General

· IEC 60076-11 Dry Type Transformers

· IEC 62271-200 AC Metal Enclosed Switchgear and Controlgear

· IEC 62271-202 AC Prefabricated Substations

Short Summary

Choose the TLS BESS delivery level by deciding who will own battery selection, auxiliary-system integration, interface engineering, factory testing and site commissioning. An enclosure gives the buyer or EPC the most control and the most integration work. A semi-integrated container moves selected racks and auxiliaries into TLS's factory scope while preserving freedom over major equipment. A fully integrated system places the broadest package and interface responsibility with TLS, subject to an agreed project specification and defined site boundary.

The Short Answer

The right delivery level is the one that places each interface with the party best able to control it.

• Choose a container enclosure when your team already controls the batteries, power conversion system, controls and safety architecture, and wants TLS to provide the engineered physical platform.
• Choose a semi-integrated BESS container when you want TLS to install agreed racks and auxiliary systems in the factory, but you still need freedom to select or integrate key equipment.
• Choose a fully integrated BESS system when you want the broadest factory-integrated package, coordinated controls and defined factory testing under one agreed system scope.

TLS presents these as three configurable delivery levels rather than three fixed bills of material. Capacity, cooling, protection, electrical architecture and the grid-connection boundary remain project-specific.

Start With Responsibility Rather Than Container Size

Buyers often begin with energy capacity or a 20-foot versus 40-foot format. Those inputs matter, but they do not answer the first commercial question: who is responsible when two subsystems do not communicate, a cable termination does not fit, the cooling load changes or a test cannot be completed?

The delivery level determines how much interface work is completed before shipment and how much remains with the buyer, EPC contractor, battery supplier, PCS supplier or site integrator. A lower integration level can preserve approved-vendor freedom and local content. A higher integration level can reduce coordination at site. Neither is automatically better.

Before selecting a level, define five boundaries:

1. Equipment supply boundary
2. Mechanical and electrical installation boundary
3. Controls and communications boundary
4. Factory and site test boundary
5. Certification and authority-approval boundary

What a TLS Container Enclosure Covers

At enclosure level, TLS supplies a configurable container platform for equipment integration. The current TLS BESS product page describes this as a foundation for teams integrating their own batteries, PCS and controls. Depending on the agreed specification, the physical scope can include the enclosure structure, equipment supports or battery racks, access doors, insulation, penetrations, cable-routing provisions, internal mounting features and corrosion protection.

This level is usually appropriate when the buyer or EPC:

• has nominated battery and electrical equipment suppliers;
• owns the system architecture and safety concept;
• has an integration facility or qualified local partners;
• needs tight control over proprietary controls or approved-vendor lists; or
• must maximize local installation or local-content scope.

The main risk is not the enclosure itself. It is incomplete interface definition. Rack geometry, floor loading, cable bend radii, cooling-air or liquid-pipe routes, fire-system penetrations, door clearances and maintenance removal paths must be frozen early enough to avoid rework.

An enclosure should not be assumed to include batteries, thermal management, fire detection or suppression, auxiliary distribution, BMS, DC combiners, PCS, EMS or system commissioning unless those items are explicitly listed in the quotation.

What a TLS Semi Integrated BESS Container Covers

A semi-integrated container moves selected integration work into the factory. TLS identifies battery racks and selected auxiliaries such as cooling, fire protection, lighting and earthing as possible elements of this delivery level. The exact package is configurable.

This level suits projects that want repeatable factory installation but still need to retain control over major equipment. Typical reasons include a buyer-nominated battery platform, a PCS installed outside the battery container, a country-specific fire solution, an owner-supplied EMS or staged integration at another factory.

The value comes from pre-engineering the interfaces that are already known. TLS can coordinate physical layout, equipment supports, selected piping, cable trays, auxiliary distribution and agreed functional checks before shipment. The remaining equipment and responsibilities must still be listed clearly.

A semi-integrated label alone is not a sufficient specification. One supplier may use the term for racks and HVAC only, while another may include fire detection, suppression, lighting, earthing and auxiliary panels. The purchase order should include an equipment responsibility list and an interface schedule.

What a TLS Fully Integrated BESS System Covers

At the fully integrated level, TLS can configure a containerized energy-storage package with battery packs, BMS, DC integration, thermal management, fire detection and suppression, lighting and auxiliary electrical systems. The current product page describes this as the broadest of the three integration levels.

Fully integrated does not mean that every project interface disappears. The quotation still needs to state whether PCS, medium-voltage equipment, EMS, plant controller, transformer, external fire-water connection, site SCADA, cybersecurity configuration, civil works, installation, grid-code studies and commissioning are inside or outside the supply boundary.

This level is usually appropriate when:

• the buyer wants fewer equipment and integration contracts;
• the project schedule benefits from factory assembly and testing;
• site labor, weather windows or access are constrained;
• the owner wants a coordinated container-level control and safety package; or
• a repeatable fleet configuration is more valuable than maximum component freedom.

The project should define what “grid-ready” or “turnkey” means in contractual terms. A factory-complete DC battery container may still require an external PCS, transformer, switchgear, plant controls, site cabling and utility acceptance.

How to Compare the Three Levels

Design authority

With an enclosure, the buyer or EPC normally retains system design authority. In a semi-integrated package, authority is shared across a larger number of defined interfaces. In a fully integrated package, TLS can coordinate more of the container-level design, but the owner and EPC still control site and grid requirements.

Component choice

An enclosure preserves the widest choice. Semi-integration preserves selected buyer choices while standardizing agreed auxiliaries. Full integration works best when major component makes, models, firmware and substitution rules are frozen through the approved vendor and document process.

Testing

An enclosure FAT focuses on the supplied structure and installed items. A semi-integrated FAT can add functional checks for included auxiliaries. A fully integrated FAT can cover a broader sequence of power-up, communications, alarms, interlocks and operating modes. Test depth depends on available external simulators, power sources and equipment at the factory.

Site work

Site work generally decreases as factory integration increases, but it never becomes zero. Delivery, offloading, foundations, positioning, grounding, external cabling, communications, fire-service connections, network configuration, energization and acceptance remain subject to the agreed site scope.

Change control

Late equipment changes affect every level, but their impact rises with integration. A change to battery dimensions, heat rejection, cable entry or safety logic can require structural, thermal, electrical and control revisions. A disciplined design-freeze process is therefore essential for semi-integrated and fully integrated packages.

Questions That Prevent Scope Gaps

Ask these questions before comparing prices:

• Are battery packs included, and who warrants their performance?
• Is the PCS inside the container, supplied separately or outside the package?
• Which cooling equipment, piping, sensors and controls are included?
• Which fire detection, alarm, suppression and external response interfaces are included?
• Who supplies and configures the BMS, EMS and plant controller?
• Which auxiliary voltages and backup-power functions are required?
• What communications protocols, point lists and cybersecurity requirements apply?
• Which factory tests will be performed, witnessed and documented?
• Which certificates apply to the enclosure, installed components and complete system?
• Who owns transport studies, offloading, foundations, spacing and site commissioning?

Buyer Inputs for a Useful RFQ

Provide the following information with the RFQ:

• required energy and power at the stated beginning-of-life or end-of-life condition;
• charge and discharge duration, duty cycle and expected operating modes;
• site location, altitude, ambient conditions, corrosion category and dust or salt exposure;
• battery chemistry and nominated cell, module or rack platform, if already selected;
• DC voltage window and PCS location;
• required delivery level and a preliminary equipment responsibility list;
• cooling preference and available heat-rejection conditions;
• fire and gas philosophy, suppression preference and local authority requirements;
• auxiliary supply, grounding arrangement and external connection points;
• BMS, EMS, SCADA, protocol, remote-access and cybersecurity requirements;
• applicable codes, certification expectations and authority having jurisdiction;
• transport envelope, mass limits, lifting method and route constraints;
• required FAT, site acceptance test, documentation and commissioning support; and
• project schedule, Incoterms and destination.

TLS engineering should confirm the final arrangement, component selection, operating limits, auxiliary demand, fire configuration, interfaces, lifting, foundation loads, installation spacing, certification scope and test plan before these become contractual commitments.

Frequently Asked Questions

Is a container enclosure the lowest cost option

It usually has the smallest TLS supply scope, but it does not automatically produce the lowest installed cost. The buyer must include separate equipment, integration labor, testing, rework risk and site commissioning when comparing total cost.

Does semi integrated mean batteries are included

Not necessarily. TLS describes semi-integration as a configurable package with racks and selected auxiliaries. The quotation must state whether battery modules or packs are included.

Does fully integrated include the PCS and transformer

Only if the agreed scope says so. A fully integrated battery container may be DC-coupled to external PCS and medium-voltage equipment. Define the AC and DC boundaries explicitly.

Can the buyer nominate component brands

Yes, subject to technical compatibility, availability, warranty allocation, certification and TLS engineering review. Nominated equipment should be frozen early enough for interface design and testing.

Which level is best for a remote project

Semi-integrated or fully integrated delivery can reduce field assembly where labor and access are limited. The decision still depends on transport restrictions, local service capability, spare-parts strategy and who will commission the complete plant.

Is the TLS 5 MWh liquid cooled platform a fixed offer

TLS has an established 5 MWh-class liquid-cooled BESS platform that can inform project development. The offered capacity, power, component set, environmental limits, auxiliary load, safety systems, interfaces and certificates must be confirmed against the current project specification and latest approved documents.

Request a Defined BESS Scope

Send TLS your target energy, power, site conditions, nominated equipment and preferred delivery boundary. TLS can then propose an enclosure, semi-integrated or fully integrated scope with the included systems, open interfaces and required engineering confirmations stated clearly.

Further Reading

· TLS BESS Containers Custom Design Manufacturing and EPC Services

· TLS BESS Container Product and Service Brochure

· IEC 60529 Degrees of Protection Provided by Enclosures

Direct Answer

An offshore workshop container is designed primarily as a place where people inspect, repair or maintain equipment. An offshore equipment container is designed primarily to house and protect machinery, controls, tools or other installed assets.

The difference is the main function, not simply the external appearance. A workshop prioritizes safe working space, benches, tool storage, lighting, ventilation and personnel access. An equipment container prioritizes equipment supports, operating clearances, heat removal, cable or pipe interfaces and maintenance access.

Some projects need a hybrid module that performs both roles. In every case, the layout should follow the actual work and equipment rather than a generic container arrangement.

How Do the Two Types Compare?

An offshore workshop container is arranged around people and their tasks. It normally provides open working space, workbenches, tool storage, sockets, lighting and safe movement between equipment and exits. Its ventilation must consider occupancy as well as any heat, dust or fumes produced by the work.

An offshore equipment container is arranged around machinery or technical systems. Structural supports, cable routes, pipe connections, cooling and maintenance clearances are positioned according to the installed equipment. Personnel may enter for inspection or servicing, but the equipment remains the main design priority.

A mechanical repair cabin is therefore usually treated as a workshop, while a generator enclosure, crane-support unit or ROV equipment cabin is usually treated as an equipment container. The final configuration may combine both functions when the operating process requires it.

What Makes an Offshore Workshop Different from a Standard Container?

A workshop container is a functional workspace, so it must address what people will do inside and how the unit will be handled offshore.

Depending on the work, the fit-out may include:

• fixed workbenches and secure tool storage;
• equipment mounting points, electrical distribution and task lighting;
• HVAC, filtered ventilation or local extraction where required;
• fire, smoke or gas detection where required; and
• suitable access and escape routes.

Tools and loose items need suitable restraint for transport. The layout should keep exits and emergency equipment accessible.

What Defines an Offshore Equipment Container?

An equipment container is built around the machinery or system it carries. TLS identifies applications such as crane-support containers, power-generator containers, ROV and control containers, tool-storage units and service cabins.

The design starts with equipment dimensions, weight, center of gravity, heat output, maintenance space and connection points. These details influence structural supports, airflow, openings and external interfaces.

A generator enclosure may need combustion air, exhaust routing and noise control. A control-equipment cabin may instead need stable cooling, cable management and communications. Their internal systems are not interchangeable.

What Systems Can TLS Integrate?

TLS states that its offshore workshop, laboratory and equipment containers can be configured with insulation, air conditioning, filtered air extraction and recirculation, electrical distribution, lighting, communications, and fire and gas detection.

These are options, not a standard list included in every unit. Hazardous-area projects may also need Ex-rated components, pressurisation, gas detection or emergency isolation, subject to the project requirements.

Which Offshore Standards May Be Relevant?

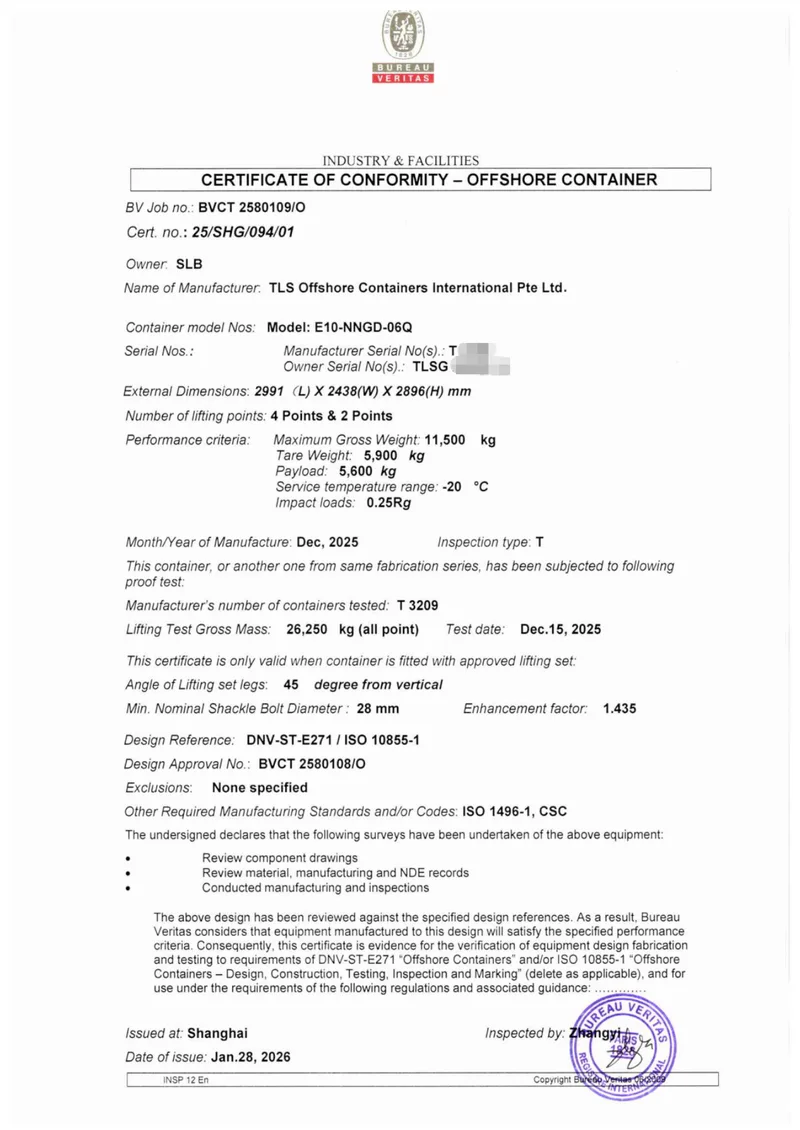

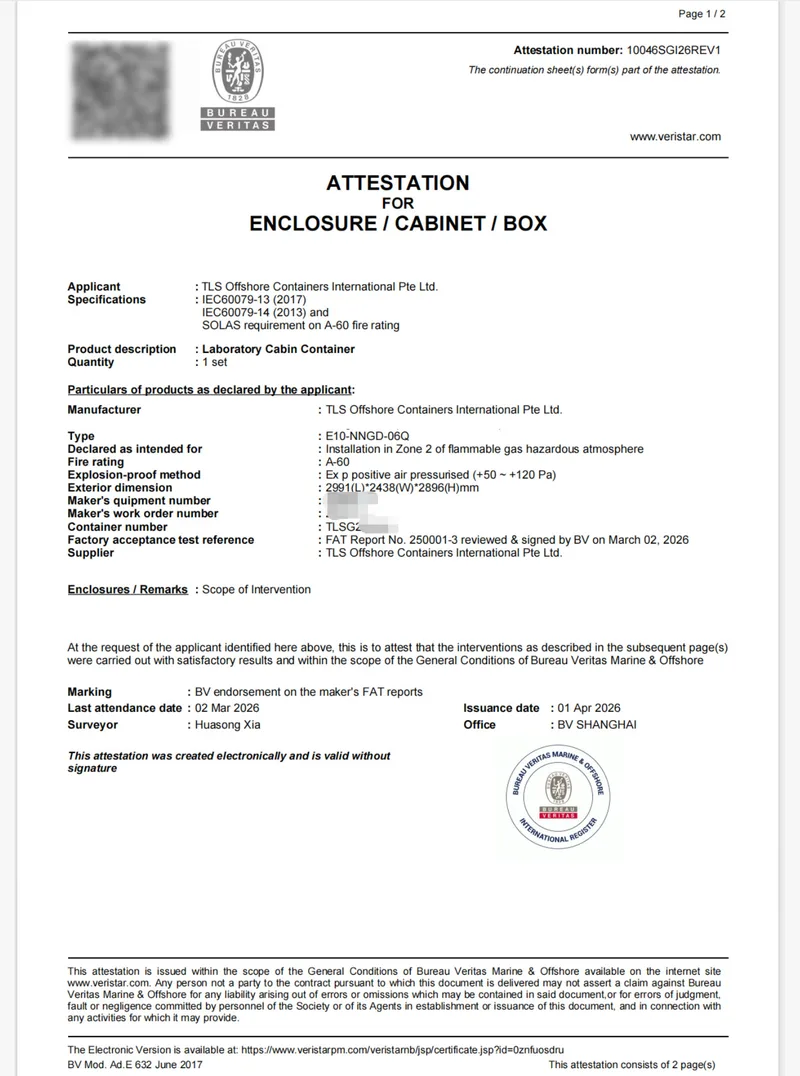

Solutions can be designed for requirements including DNV 2.7-1, EN 12079, NORSOK, ATEX/IECEx and SOLAS/IMO, depending on the project.

These standards cover different issues. Offshore-container requirements address structure and lifting; hazardous-area requirements address ignition risk and protection. The required standards and approvals must be confirmed for the actual installation.

How Should a Buyer Choose Between Them?

Choose a workshop container when the central requirement is a safe and practical place for people to perform work. Choose an equipment container when the central requirement is to support, protect and connect a machine or technical system. Choose a hybrid only when both activities can share one layout without compromising access, ventilation or safety.

Useful project inputs include:

•  a short description of the work or equipment function;
• equipment dimensions, weight, maintenance space and occupancy;
• heat, fumes, dust, noise or vibration;
• utility and data interfaces;
• location, hazardous-area classification and transport limits; and
• required certification and documentation.

These details allow the container structure and internal systems to be configured around the real application.

Conclusion

An offshore workshop container is organized around people performing work; an offshore equipment container is organized around machinery or technical systems. The correct choice becomes clear once the primary function, occupancy, equipment, environmental conditions and offshore requirements are defined. When both functions must share one module, the design should preserve safe access, adequate ventilation and practical maintenance space for each.

Contact Us

Contact the TLS engineering team to discuss your layout, equipment configuration, certification requirements and delivery schedule.
