Introduction
Oil & gas platforms operate in some of the most challenging and hazardous environments on Earth. In Zone 2 classified areas, there's a potential risk of explosive atmospheres forming due to the presence of flammable gases or vapors. To ensure the safety of personnel and critical equipment, specialized solutions like TLS 20ft positive pressure ex-proof containers are essential. In this blog post, we'll dive into how these containers work to safeguard operations on oil & gas platforms.
Understanding Zone 2 Environments
Zone 2 areas are those where explosive atmospheres are not likely to occur in normal operation but could occur for short periods due to abnormal situations like leaks or equipment malfunctions. These zones demand equipment that prevents ignition sources from triggering explosions.
TLS 20ft Positive Pressure Ex-Proof Containers: The Solution
TLS 20ft positive pressure ex-proof containers are designed to provide a safe, controlled environment for housing electrical and electronic equipment in Zone 2 hazardous areas. They achieve this through a combination of features:
1. Robust Construction
2. Positive Pressure System
3. Purging and Ventilation
4. Electrical Safety
Benefits of TLS 20ft Positive Pressure Ex-Proof Containers:
Conclusion:
TLS 20ft positive pressure ex-proof containers play a vital role in maintaining safety and operational efficiency on oil & gas platforms in Zone 2 environments. Their robust construction, positive pressure system, and other safety features make them an indispensable solution for protecting critical equipment and personnel in these challenging conditions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #TLS 20ft container, #positive pressure ex-proof container, #Zone 2 hazardous area, #oil & gas platform safety, #explosion protection, #flameproof container, #positive pressure system, #purge and pressurization, #electrical safety in Zone 2, #ATEX certification, #IECEx certification
Oil & gas platforms operate in some of the most challenging and hazardous environments on Earth. In Zone 2 classified areas, there's a potential risk of explosive atmospheres forming due to the presence of flammable gases or vapors. To ensure the safety of personnel and critical equipment, specialized solutions like TLS 20ft positive pressure ex-proof containers are essential. In this blog post, we'll dive into how these containers work to safeguard operations on oil & gas platforms.
Understanding Zone 2 Environments
Zone 2 areas are those where explosive atmospheres are not likely to occur in normal operation but could occur for short periods due to abnormal situations like leaks or equipment malfunctions. These zones demand equipment that prevents ignition sources from triggering explosions.
TLS 20ft Positive Pressure Ex-Proof Containers: The Solution
TLS 20ft positive pressure ex-proof containers are designed to provide a safe, controlled environment for housing electrical and electronic equipment in Zone 2 hazardous areas. They achieve this through a combination of features:
1. Robust Construction
- Ex-proof Enclosure: The container's shell is built from heavy-duty steel or other robust materials to withstand harsh offshore conditions and potential impacts. It's designed to contain any internal explosion, preventing it from propagating to the external environment.
- Flameproof Joints: Flanges and other joints are meticulously designed to prevent flames from escaping the enclosure even in the event of an internal explosion.
2. Positive Pressure System
- Air Pressurization: The container is continuously pressurized with clean, filtered air. This positive pressure ensures that any potential flammable gases or vapors are kept out of the enclosure.
- Pressure Monitoring: Sophisticated sensors constantly monitor the internal pressure. If the pressure drops below a safe threshold, alarms are triggered, and automatic shutdown systems can be activated to prevent any ignition sources from operating.
3. Purging and Ventilation
- Initial Purging: Before equipment is energized, the container undergoes a purging process to replace any internal air with clean, inert gas. This eliminates any potential explosive atmosphere within the enclosure.
- Continuous Ventilation: While in operation, the container is continuously ventilated with clean air to maintain positive pressure and prevent the buildup of heat.
4. Electrical Safety
- Ex-certified Components: All electrical and electronic equipment installed within the container must be certified for use in Zone 2 hazardous areas. This ensures they are designed to operate safely without creating ignition sources.
- Cable Glands and Seals: Cable entries and exits are carefully sealed with ex-proof cable glands to prevent any potential ingress of flammable gases or vapors.
Benefits of TLS 20ft Positive Pressure Ex-Proof Containers:
- Enhanced Safety: These containers significantly reduce the risk of explosions and fires in Zone 2 environments, protecting both personnel and valuable equipment.
- Operational Continuity: By housing critical equipment in a safe environment, they ensure uninterrupted operations even in the face of potential hazards.
- Regulatory Compliance: TLS containers are designed and certified to IEC60079-13 which can meet stringent international safety standards for Zone 2 hazardous areas.
Conclusion:
TLS 20ft positive pressure ex-proof containers play a vital role in maintaining safety and operational efficiency on oil & gas platforms in Zone 2 environments. Their robust construction, positive pressure system, and other safety features make them an indispensable solution for protecting critical equipment and personnel in these challenging conditions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #TLS 20ft container, #positive pressure ex-proof container, #Zone 2 hazardous area, #oil & gas platform safety, #explosion protection, #flameproof container, #positive pressure system, #purge and pressurization, #electrical safety in Zone 2, #ATEX certification, #IECEx certification
Written by Oliver
As the demand for renewable energy grows, the role of Battery Energy Storage Systems (BESS) becomes increasingly critical. A fully integrated BESS is a complex system that combines batteries, power electronics, thermal management, and control systems into a single, cohesive unit. To ensure the reliability, efficiency, and safety of these systems, regular inspections are essential. This article will guide you through the key aspects of inspecting a fully integrated BESS.

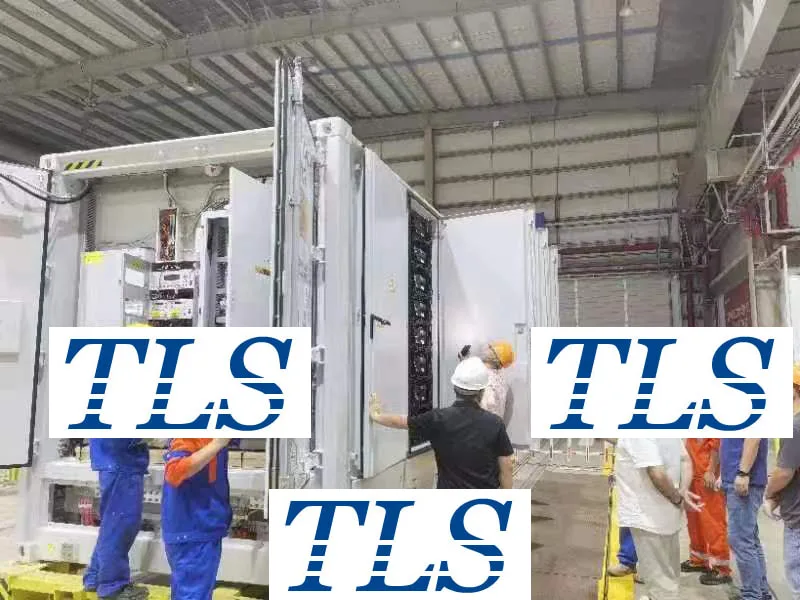

1. Visual Inspection

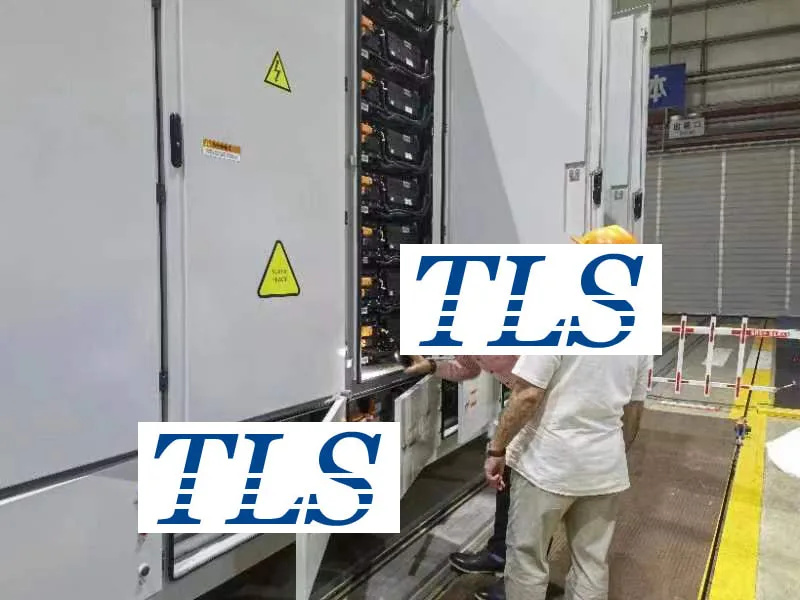

The first step in any BESS inspection is a thorough visual examination. Inspectors should check for any obvious signs of wear and tear, such as corrosion, damaged wiring, or loose connections. Special attention should be given to the enclosure, ensuring it is intact and free from any breaches that could expose internal components to the elements. Additionally, all labels and warning signs should be clearly visible and legible.
2. Electrical System Evaluation
The electrical components of a fully integrated BESS are its lifeblood. Inspectors should verify that all electrical connections are secure and free from damage. This includes checking the integrity of the busbars, circuit breakers, and fuses. The inspection should also involve testing the system’s grounding to ensure it meets safety standards. Any signs of overheating, such as discoloration or burnt smells, should be addressed immediately.

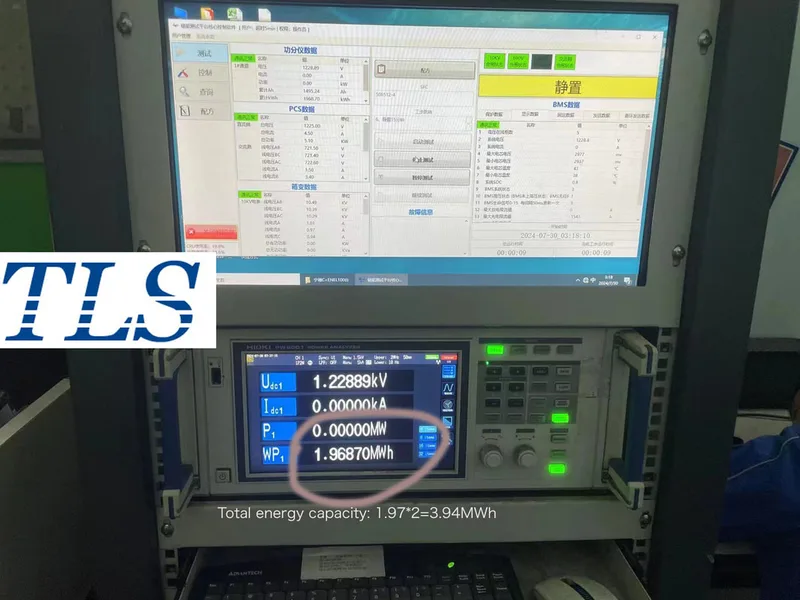

3. Battery Health Assessment

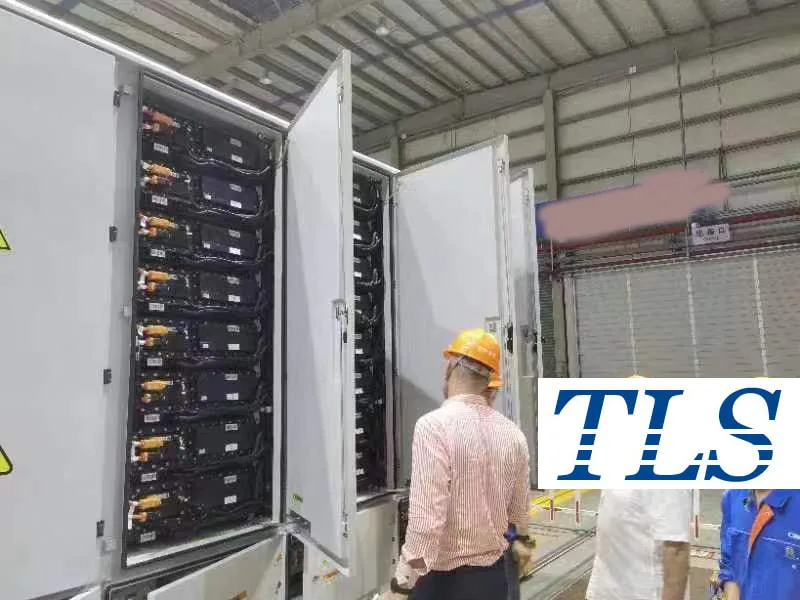

The batteries are the core of any BESS, making their inspection crucial. Inspectors should check for any signs of swelling, leaking, or corrosion on the battery terminals. The state of charge (SOC) and state of health (SOH) of the batteries should be monitored regularly to ensure they are within optimal ranges. Any significant deviations may indicate underlying issues that need to be addressed. Additionally, the battery management system (BMS) should be inspected for proper functionality.
