Before a TLS special container is delivered, it undergoes a comprehensive series of tests to guarantee its structural integrity, safety, and functionality. These meticulous inspections ensure that potential issues are identified and resolved early, minimizing risks during operation. Below is an in-depth overview of these essential tests:
1. Welding Test
Purpose:The welding test is critical for ensuring the structural stability of the container. It verifies the quality and strength of all welded joints, detecting defects such as cracks, porosity, or weak connections that might compromise the container’s reliability.
Testing Methods
2. Lifting Test
Purpose:The lifting test ensures the container can handle the designed load and additional stresses during lifting and transportation. It evaluates the strength and stability of lifting points and the overall structure.
Testing Methods
3. Watertightness Test
Purpose:The watertightness test is essential to confirm the container’s resistance to water intrusion. This ensures the container can protect its cargo from environmental factors such as rain, snow, or humidity.
Testing Methods
4. Paint Test
Purpose:The paint test ensures the durability and visual quality of the container’s surface coating. It evaluates the paint’s adhesion, resistance to corrosion, and overall appearance under various environmental conditions.
Testing Methods
Recommended test sequence
Conclusion:
Each of these tests plays a vital role in ensuring the quality and reliability of TLS special containers. By addressing potential issues at the appropriate stages of production, manufacturers achieve:
Through these rigorous testing processes, TLS ensures that its special containers meet the highest standards of performance and reliability, providing customers with products they can trust for their most demanding applications.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More details,please check below link:
https://www.tls-containers.com/tls-blog/category/container-test
Keywords:#TLS special container#welding test,#lifting test,#watertightness test,#paint test,#structural integrity,#safety testing,#functionality inspection,#visual inspection,#non-destructive testing (NDT),#strength test,#load test,#dynamic testing,#seal check,#vacuum test,#adhesion test,#corrosion resistance
1. Welding Test
Purpose:The welding test is critical for ensuring the structural stability of the container. It verifies the quality and strength of all welded joints, detecting defects such as cracks, porosity, or weak connections that might compromise the container’s reliability.
Testing Methods
- Visual Inspection: Examine weld seams for surface defects like unevenness, undercuts, or spatter.
- Non-Destructive Testing (NDT): Use advanced techniques such as ultrasonic, X-ray, or magnetic particle testing to identify internal defects.
- Strength Test: Apply pressure or load to assess the welds' load-bearing capacity.
- Conduct immediately after completing the welding process.
- Address any defects identified before assembly to avoid further complications or costly rework.
2. Lifting Test
Purpose:The lifting test ensures the container can handle the designed load and additional stresses during lifting and transportation. It evaluates the strength and stability of lifting points and the overall structure.
Testing Methods
- Load Test: Simulate lifting scenarios by applying loads exceeding the rated capacity.
- Lifting Point Check: Verify the strength and integrity of lifting ears and points to meet international standards.
- Dynamic Testing: Assess the container's response to conditions like sudden movements or uneven loads, ensuring stability.
- Perform this test after completing structural welding and assembly but before applying surface treatments.
3. Watertightness Test
Purpose:The watertightness test is essential to confirm the container’s resistance to water intrusion. This ensures the container can protect its cargo from environmental factors such as rain, snow, or humidity.
Testing Methods
- Rain Test: Use high-pressure water jets or simulate heavy rainfall to check for leaks.
- Seal Check: Focus on critical areas like door seals, welded seams, and joints to ensure they meet water resistance standards.
- Conduct after installing door seals and completing welding but prior to surface treatments. This stage allows easier identification and repair of any leakage points.
4. Paint Test
Purpose:The paint test ensures the durability and visual quality of the container’s surface coating. It evaluates the paint’s adhesion, resistance to corrosion, and overall appearance under various environmental conditions.
Testing Methods
- Visual Inspection: Check for uniformity in the coating, ensuring it is free of bubbles, cracks, or peeling.
- Adhesion Test: Utilize cross-cut or pull-off methods to verify the paint’s bond to the container surface.
- Film Thickness Measurement: Measure the film thickness of the paint on the surface of the container using an electronic coating thickness gauge or a magnetic coating thickness gauge to determine the quality of the paint.
- Perform this test after completing the painting process to validate the container’s visual and protective qualities.
Recommended test sequence
- Welding test → watertightness test (preliminary) → lifting test → surface treatment and painting → watertightness test (final)
- After passing all final tests, product acceptance and preparation for delivery.
Conclusion:
Each of these tests plays a vital role in ensuring the quality and reliability of TLS special containers. By addressing potential issues at the appropriate stages of production, manufacturers achieve:
- Enhanced Safety: Mitigate risks of structural failures, safeguarding personnel and cargo.
- Increased Durability: Ensure the container can withstand challenging environments and prolonged use.
- Operational Efficiency: Minimize downtime and repair costs by resolving issues before delivery.
- Compliance with Standards: Guarantee adherence to international quality and safety regulations.
Through these rigorous testing processes, TLS ensures that its special containers meet the highest standards of performance and reliability, providing customers with products they can trust for their most demanding applications.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More details,please check below link:
https://www.tls-containers.com/tls-blog/category/container-test
Keywords:#TLS special container#welding test,#lifting test,#watertightness test,#paint test,#structural integrity,#safety testing,#functionality inspection,#visual inspection,#non-destructive testing (NDT),#strength test,#load test,#dynamic testing,#seal check,#vacuum test,#adhesion test,#corrosion resistance
Written by Snowy
A Factory Acceptance Test (FAT) is a critical procedure to verify the functionality, safety, and reliability of equipment before it’s deployed. In the case of the Pressurized Container, which serves as an essential component in explosion-proof control systems, the FAT ensures that all systems are working optimally and safely under real operational conditions. Below is a comprehensive guide on how the FAT for a pressurized container is performed, covering everything from visual inspection to system performance tests.
1. Visual Inspection: Ensuring Proper Installation and Functionality
The FAT begins with a thorough visual inspection of the equipment and its installation. This includes verifying the placement of key elements like the Ex d CPFG control box, emergency shutdown switches, and combustible gas detectors, which are integral to the system's safety and operational capabilities. Below are the key components inspected:
2. Insulation Resistance Test: Verifying Electrical Integrity
An insulation resistance test is carried out to ensure that all electrical components are properly insulated, which is necessary for preventing electrical faults or short circuits.
3. Power-On Inspection: Validating Electrical Power Systems
The next phase of the FAT involves verifying that the electrical systems are powered on correctly:
4. System Display Screen Operation: Ensuring User Interface Functionality
During the FAT, the system's display screens undergo a series of checks to confirm proper operation and functionality. These checks include:
5. Function Check: Testing System Operations Under Various Conditions
In this phase, the system is put through a series of operational checks under various conditions to ensure it reacts correctly to real-world scenarios:
Conclusion:
Once all the checks have been completed and all tests have been successfully passed, the equipment is deemed ready for deployment. The FAT report will detail each test's result, any issues encountered, and the corrective actions taken. The successful completion of the FAT ensures that the Pressurized Container will function safely and efficiently in real-world applications, meeting all required standards and regulations.
This detailed testing process helps prevent costly failures or safety hazards once the equipment is put into operation. By thoroughly evaluating the system’s performance and safety mechanisms, the FAT ensures that the pressurized container will operate smoothly in explosive environments, providing reliable protection for both personnel and equipment.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More information,please visit the below website: https://www.tls-containers.com/tls-blog/category/container-test
Keywords: #Factory Acceptance Test (FAT),#PDU Pressurized Container,#Explosion-proof systems,#Visual inspection,#Insulation resistance test,#Electrical integrity,#Emergency shutdown systems,#Combustible gas detection,#System performance testing,#Safety mechanisms,#Operational reliability,#Differential pressure components,#Grounding systems,#Alarm system functionality,#Emergency shutdown test,#Real-world scenario testing.
1. Visual Inspection: Ensuring Proper Installation and Functionality
The FAT begins with a thorough visual inspection of the equipment and its installation. This includes verifying the placement of key elements like the Ex d CPFG control box, emergency shutdown switches, and combustible gas detectors, which are integral to the system's safety and operational capabilities. Below are the key components inspected:
- Control and Emergency Power Systems: This includes explosion-proof boxes, emergency power switches, and the safety mechanisms such as gas detectors (e.g., H2S detectors), temperature/smoke sensors, and fire alarms.
- Differential Pressure Components: Ensuring that the differential pressure transmitters and gauges are properly connected to the gas pipes is essential to maintaining positive pressure and preventing hazardous situations.
- Emergency Systems: The presence of emergency shutdown switches, alarms, lights, and fire extinguishers are verified.
- Grounding and Cable Inspections: A detailed check is performed on grounding systems, cable glands, and cable penetration sealing modules (MCT) to ensure proper insulation and prevent electrical hazards.
- Seal and Label Checks: Another crucial aspect is checking the pressurized room seals and the door labels, which should clearly indicate warnings about the pressurized nature of the room, ensuring that personnel follow the correct safety procedures.
2. Insulation Resistance Test: Verifying Electrical Integrity
An insulation resistance test is carried out to ensure that all electrical components are properly insulated, which is necessary for preventing electrical faults or short circuits.
3. Power-On Inspection: Validating Electrical Power Systems
The next phase of the FAT involves verifying that the electrical systems are powered on correctly:
- Voltage Measurements: The input voltage of the CPFG control box and its control power supply output are checked.
- PLC Power Supply: The power supply to the PLC is verified, with the fuse checked to ensure that the system is properly powered and operational.
- Touch Screen Check: The system's touch screen should display normal operations and be responsive to commands.
4. System Display Screen Operation: Ensuring User Interface Functionality
During the FAT, the system's display screens undergo a series of checks to confirm proper operation and functionality. These checks include:
- Screen Cycling: Ensuring that the system cycles through different screens correctly, from the main display to alarm and status screens.
- Debug Mode: Ensuring that the system enters debugging mode for troubleshooting and configuration purposes.
- Alarm Confirmation and Testing: Checking that the alarm system operates correctly, providing audible and visual alerts when needed.
5. Function Check: Testing System Operations Under Various Conditions
In this phase, the system is put through a series of operational checks under various conditions to ensure it reacts correctly to real-world scenarios:
- Normal and Bypass Operations: The system is tested in both normal and bypass modes to confirm that power and fan operations can be toggled appropriately.
- Alarm Tests: Various alarms are simulated, including combustible gas detection, low and high gas concentrations, fire alarms, and H2S gas detection. The system should automatically cut off power and sound alarms when necessary.
- Fan and Flow Rate Testing: The fan system and airflow are monitored, ensuring that the fan responds to changes in pressure or other alarm conditions, and that ventilation is maintained as per system requirements.
- Emergency Shutdown Test: The system’s emergency shutdown mechanism is triggered during simulated emergencies, ensuring that power is safely cut off in the event of a fault.
- Sensor Integrity Test: Sensor disconnections are simulated to ensure that the system responds promptly with alarms and performs an automatic shutdown if necessary.
Conclusion:
Once all the checks have been completed and all tests have been successfully passed, the equipment is deemed ready for deployment. The FAT report will detail each test's result, any issues encountered, and the corrective actions taken. The successful completion of the FAT ensures that the Pressurized Container will function safely and efficiently in real-world applications, meeting all required standards and regulations.
This detailed testing process helps prevent costly failures or safety hazards once the equipment is put into operation. By thoroughly evaluating the system’s performance and safety mechanisms, the FAT ensures that the pressurized container will operate smoothly in explosive environments, providing reliable protection for both personnel and equipment.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More information,please visit the below website: https://www.tls-containers.com/tls-blog/category/container-test
Keywords: #Factory Acceptance Test (FAT),#PDU Pressurized Container,#Explosion-proof systems,#Visual inspection,#Insulation resistance test,#Electrical integrity,#Emergency shutdown systems,#Combustible gas detection,#System performance testing,#Safety mechanisms,#Operational reliability,#Differential pressure components,#Grounding systems,#Alarm system functionality,#Emergency shutdown test,#Real-world scenario testing.
Written by Snowy
In today’s fast-evolving energy landscape, TLS Battery Energy Storage Systems (BESS) are transforming how we harness and manage renewable energy. Whether you’re looking to store energy from solar, wind, or other renewable sources, TLS offers customized containerized solutions designed to meet your specific needs. We go beyond providing simple energy storage—our solutions are built to maximize efficiency, reliability, and sustainability.
Benefits of BESS for today and tomorrow
TLS BESS offers more than just a storage solution. Our systems are modular, scalable, and cost-effective, enabling you to store renewable energy and manage it efficiently.
Two main models of the temperature control of battery energy storage systems
Air Cooling:
Liquid Cooling:
Selection Criteria: Decisions should be based on heat generation requirements, budget constraints, environmental conditions, and system design.
Three Tailored BESS Container Solutions
We offer three distinct BESS container types, each designed with precision to meet the needs of different projects, whether large or small:
Why Choose TLS BESS?
Transform Your Energy Future with TLS BESS
At TLS, we are dedicated to providing innovative and sustainable energy solutions that empower your business and help create a greener future. With our modular, scalable, and fully integrated BESS containers, we help you take control of your energy management while reducing costs and environmental impact.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#TLS BESS,#Battery Energy Storage Systems,#Renewable energy,#Energy storage,#Modular solutions,#Scalable systems,#Cost-effective,#Reliable power,#Sustainable energy,#Customized solutions,#Energy management,#Battery Management System (BMS)
Benefits of BESS for today and tomorrow
TLS BESS offers more than just a storage solution. Our systems are modular, scalable, and cost-effective, enabling you to store renewable energy and manage it efficiently.
- Reliable Power: BESS containers not only store energy from solar and wind but also support advanced energy management systems, ensuring you have reliable power whenever you need it.
- Cost Savings: With the ability to store energy and use it during peak times, you can reduce reliance on expensive grid power and lower overall energy costs.
- Sustainable Energy: By supporting renewable energy solutions, TLS BESS helps reduce your carbon footprint and contribute to a greener, more sustainable future.
Two main models of the temperature control of battery energy storage systems
Air Cooling:
- Advantages: Simple structure, high reliability, and low cost. Suitable for low heat generation and moderate environmental conditions.
- Disadvantages: Limited cooling efficiency, unsuitable for high temperatures or dusty environments.
Liquid Cooling:
- Advantages: High cooling efficiency and compact system design. Ideal for high heat generation and large-scale projects.
- Disadvantages: High cost, complex maintenance, and not suitable for extremely low temperatures or water-scarce regions.
Selection Criteria: Decisions should be based on heat generation requirements, budget constraints, environmental conditions, and system design.

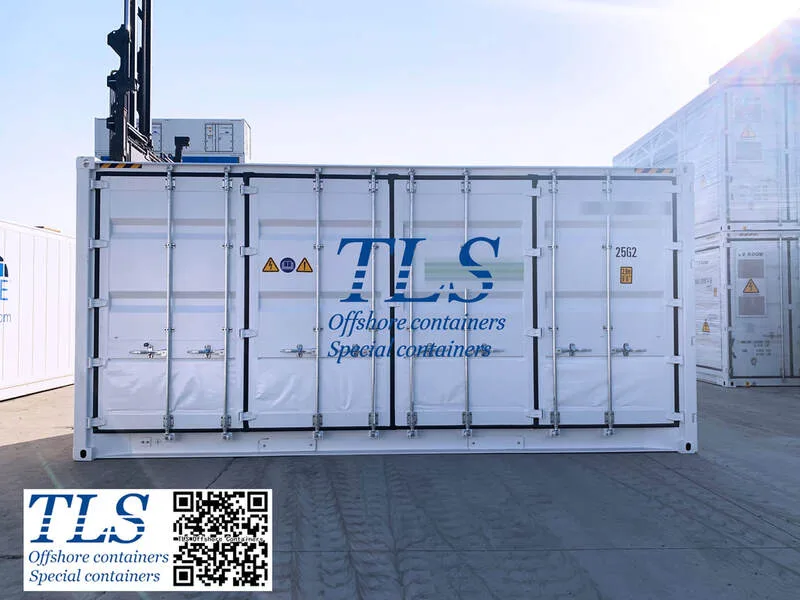

Three Tailored BESS Container Solutions
We offer three distinct BESS container types, each designed with precision to meet the needs of different projects, whether large or small:

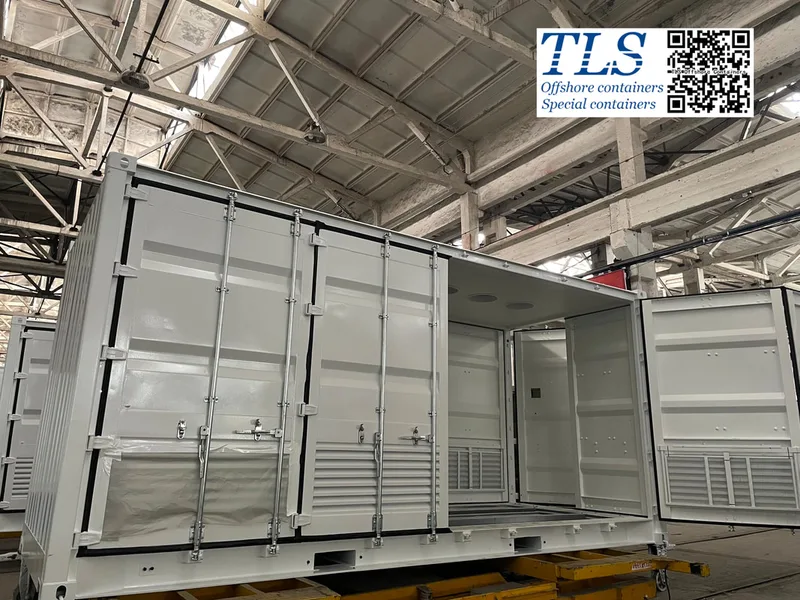

- Container Enclosure Body with Battery Rack
- Semi-Integrated BESS Container Solution
- Fully Integrated BESS Container
Why Choose TLS BESS?
- Scalable Solutions: From small businesses to large industrial projects, TLS BESS adapts to your energy needs as they grow.
- Seamless Integration: TLS BESS is designed to integrate easily with your existing infrastructure, making installation and operation smooth.
- We could offer tailored services to meet the unique needs of different customers, such as Smart Battery Management and EPC Services.
Transform Your Energy Future with TLS BESS
At TLS, we are dedicated to providing innovative and sustainable energy solutions that empower your business and help create a greener future. With our modular, scalable, and fully integrated BESS containers, we help you take control of your energy management while reducing costs and environmental impact.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#TLS BESS,#Battery Energy Storage Systems,#Renewable energy,#Energy storage,#Modular solutions,#Scalable systems,#Cost-effective,#Reliable power,#Sustainable energy,#Customized solutions,#Energy management,#Battery Management System (BMS)
