Lithium battery State of Health (SOH) is a crucial factor in determining battery performance and lifespan. Improper usage can lead to rapid degradation, reduced capacity, and shorter operational life. To maximize battery efficiency and longevity, it’s essential to follow best practices for battery care. This guide explores top strategies to maintain and extend lithium battery SOH effectively.
## **1. Avoid Deep Discharges: Use Shallow Charge Cycles**
- **Why?** Deep discharges increase stress on battery chemistry, leading to faster wear.
- **Best Practice:** Maintain the **State of Charge (SOC) between 20% and 80%** for optimal longevity.
- **Tip:** Avoid draining the battery below **20%** and do not keep it at **100%** for long durations.
## **2. Optimize Charging Habits**
- **Why?** Fast charging generates heat and increases chemical degradation.
- **Best Practice:**
- Prefer **slow or moderate charging** instead of high-speed charging.
- Unplug the battery **before it reaches 100%** (ideal charge range: **80-90%**).
- Use **original or certified chargers** to prevent overvoltage damage.
- Implement a **consistent charging schedule** to avoid erratic charging patterns.
## **3. Control Operating Temperature**
- **Why?** High temperatures accelerate degradation, while low temperatures reduce performance.
- **Best Practice:**
- Keep the battery within the **optimal temperature range of 15°C to 35°C (59°F to 95°F)**.
- Avoid exposing the battery to **direct sunlight** or extreme heat.
- Allow cold batteries to warm up **before charging** to prevent stress on the cells.
## **4. Reduce High Discharge Currents**
- **Why?** High power draws generate excess heat and accelerate battery wear.
- **Best Practice:** Limit **power-intensive activities** like gaming or heavy processing when running on battery power.
- **Tip:** Enable **battery-saving modes** to regulate energy consumption.
## **5. Minimize Idle and Standby Time**
- **Why?** Long idle periods lead to **self-discharge** and chemical degradation.
- **Best Practice:**
- Store batteries at **40-60% charge** if not in use for extended periods.
- Recharge the battery every **2-3 months** to prevent deep discharge damage.
## **6. Use a Smart Battery Management System (BMS)**
- **Why?** A **BMS** helps optimize charge cycles, prevent overcharging, and balance battery cells.
- **Best Practice:** Invest in devices equipped with **battery management software** to track performance.
## **7. Avoid Frequent Full Charge Cycles**
- **Why?** Repeated **0-100% charge cycles** accelerate battery aging.
- **Best Practice:** Charge in smaller increments, such as **30-80% or 20-90%**.
## **8. Follow Proper Storage Guidelines**
- **Why?** Incorrect storage conditions lead to capacity loss and degradation.
- **Best Practice:**
- Store batteries in a **cool, dry place** at a temperature of **15°C to 25°C (59°F to 77°F)**.
- Avoid exposing stored batteries to **high humidity**.
## **9. Balance Battery Cells (For Multi-Cell Systems)**
- **Why?** Unbalanced cells degrade unevenly, reducing overall battery lifespan.
- **Best Practice:** Perform **cell balancing** if using multi-cell battery packs.
## **10. Monitor SOH Regularly**
- Why? Regular SOH tracking detects early signs of degradation.
- Best Practice: Use battery monitoring apps or a BMS to check SOH parameters like capacity, voltage, and internal resistance.
Optimizing battery usage is essential for maintaining lithium battery SOH, improving efficiency, and extending lifespan. By following these best practices—avoiding deep discharges, managing temperature, optimizing charging habits, and monitoring SOH—users can significantly enhance battery performance and reliability. Implement these strategies today for longer-lasting and more efficient lithium battery usage!
## **1. Avoid Deep Discharges: Use Shallow Charge Cycles**
- **Why?** Deep discharges increase stress on battery chemistry, leading to faster wear.
- **Best Practice:** Maintain the **State of Charge (SOC) between 20% and 80%** for optimal longevity.
- **Tip:** Avoid draining the battery below **20%** and do not keep it at **100%** for long durations.
## **2. Optimize Charging Habits**
- **Why?** Fast charging generates heat and increases chemical degradation.
- **Best Practice:**
- Prefer **slow or moderate charging** instead of high-speed charging.
- Unplug the battery **before it reaches 100%** (ideal charge range: **80-90%**).
- Use **original or certified chargers** to prevent overvoltage damage.
- Implement a **consistent charging schedule** to avoid erratic charging patterns.
## **3. Control Operating Temperature**
- **Why?** High temperatures accelerate degradation, while low temperatures reduce performance.
- **Best Practice:**
- Keep the battery within the **optimal temperature range of 15°C to 35°C (59°F to 95°F)**.
- Avoid exposing the battery to **direct sunlight** or extreme heat.
- Allow cold batteries to warm up **before charging** to prevent stress on the cells.
## **4. Reduce High Discharge Currents**
- **Why?** High power draws generate excess heat and accelerate battery wear.
- **Best Practice:** Limit **power-intensive activities** like gaming or heavy processing when running on battery power.
- **Tip:** Enable **battery-saving modes** to regulate energy consumption.
## **5. Minimize Idle and Standby Time**
- **Why?** Long idle periods lead to **self-discharge** and chemical degradation.
- **Best Practice:**
- Store batteries at **40-60% charge** if not in use for extended periods.
- Recharge the battery every **2-3 months** to prevent deep discharge damage.
## **6. Use a Smart Battery Management System (BMS)**
- **Why?** A **BMS** helps optimize charge cycles, prevent overcharging, and balance battery cells.
- **Best Practice:** Invest in devices equipped with **battery management software** to track performance.
## **7. Avoid Frequent Full Charge Cycles**
- **Why?** Repeated **0-100% charge cycles** accelerate battery aging.
- **Best Practice:** Charge in smaller increments, such as **30-80% or 20-90%**.
## **8. Follow Proper Storage Guidelines**
- **Why?** Incorrect storage conditions lead to capacity loss and degradation.
- **Best Practice:**
- Store batteries in a **cool, dry place** at a temperature of **15°C to 25°C (59°F to 77°F)**.
- Avoid exposing stored batteries to **high humidity**.
## **9. Balance Battery Cells (For Multi-Cell Systems)**
- **Why?** Unbalanced cells degrade unevenly, reducing overall battery lifespan.
- **Best Practice:** Perform **cell balancing** if using multi-cell battery packs.
## **10. Monitor SOH Regularly**
- Why? Regular SOH tracking detects early signs of degradation.
- Best Practice: Use battery monitoring apps or a BMS to check SOH parameters like capacity, voltage, and internal resistance.
Optimizing battery usage is essential for maintaining lithium battery SOH, improving efficiency, and extending lifespan. By following these best practices—avoiding deep discharges, managing temperature, optimizing charging habits, and monitoring SOH—users can significantly enhance battery performance and reliability. Implement these strategies today for longer-lasting and more efficient lithium battery usage!
Lithium battery SOH (State of Health) is a critical parameter that determines the performance and lifespan of a battery. It measures the degradation and remaining usability of a battery over time. Understanding SOH indicators helps in optimizing battery usage, prolonging lifespan, and ensuring safety. Here, we explore the key SOH indicators and factors affecting battery health.
Key SOH Indicators
### 1. Capacity Indicator
Capacity measures the maximum charge a battery can store and deliver, typically expressed in ampere-hours (Ah). It is one of the primary metrics for determining SOH. A new battery starts with 100% capacity, which gradually decreases with usage.
**Evaluation Method:**
- **Full Discharge Test:** The most accurate but time-consuming method, requiring complete discharge to measure output energy.
- **Model-Based Estimation:** Uses mathematical models to estimate capacity without full discharge.
**Example Data:**
- New battery SOH: 100%
- After 500 charge cycles: ~80%
- After 1000 charge cycles: ~60%
### 2. Internal Resistance Indicator
Internal resistance measures the resistance within the battery that affects efficiency and heat generation. Higher resistance leads to increased energy loss and heating.
**Evaluation Method:**
- **AC Impedance Test:** Uses an AC signal to measure impedance, distinguishing different resistance types.
- **DC Resistance Test:** Uses DC current to measure resistance; simpler but less precise.
**Example Data:**
- New battery resistance: ~0.1Ω
- After 500 charge cycles: ~0.2Ω
- After 1000 charge cycles: ~0.3Ω
### 3. Voltage Indicator
Battery voltage is influenced by charge state, temperature, and aging. Measuring open-circuit voltage (OCV) and dynamic voltage helps assess SOH.
**Evaluation Method:**
- **Open-Circuit Voltage (OCV):** Measures voltage without load, indicating chemical state.
- **Dynamic Voltage Test:** Measures under load to assess polarization effects.
**Example Data:**
- Typical lithium battery OCV: 3.0V - 4.2V
- Discharge cutoff voltage: ~2.5V
- Full charge voltage: ~4.2V
### 4. Self-Discharge Indicator
Self-discharge occurs when a battery loses charge while idle. Higher self-discharge rates indicate aging and potential defects.
**Evaluation Method:**
- **Static Test:** Measures voltage drop over time without usage.
**Example Data:**
- New battery self-discharge: ~1-2% per month
- After 500 charge cycles: ~2-3% per month
- After 1000 charge cycles: ~3-5% per month
Factors Affecting SOH
1. **Charge Cycle Count:** The more charge-discharge cycles, the faster capacity depletes.
2. **Depth of Discharge (DoD):** Deep discharges accelerate aging, while shallow cycles extend lifespan.
3. **Temperature Impact:** High temperatures increase degradation, while low temperatures affect performance.
4. **Charge/Discharge Rate:** Rapid charging generates heat, causing faster aging; slower rates are gentler on batteries.
Monitoring lithium battery SOH is essential for maintaining performance, extending lifespan, and ensuring safety. By understanding capacity, resistance, voltage, and self-discharge, users can take preventive measures to enhance battery efficiency and durability.
**Optimize battery usage today by following these best practices for monitoring and maintaining lithium battery SOH.**
Key SOH Indicators
### 1. Capacity Indicator
Capacity measures the maximum charge a battery can store and deliver, typically expressed in ampere-hours (Ah). It is one of the primary metrics for determining SOH. A new battery starts with 100% capacity, which gradually decreases with usage.
**Evaluation Method:**
- **Full Discharge Test:** The most accurate but time-consuming method, requiring complete discharge to measure output energy.
- **Model-Based Estimation:** Uses mathematical models to estimate capacity without full discharge.
**Example Data:**
- New battery SOH: 100%
- After 500 charge cycles: ~80%
- After 1000 charge cycles: ~60%
### 2. Internal Resistance Indicator
Internal resistance measures the resistance within the battery that affects efficiency and heat generation. Higher resistance leads to increased energy loss and heating.
**Evaluation Method:**
- **AC Impedance Test:** Uses an AC signal to measure impedance, distinguishing different resistance types.
- **DC Resistance Test:** Uses DC current to measure resistance; simpler but less precise.
**Example Data:**
- New battery resistance: ~0.1Ω
- After 500 charge cycles: ~0.2Ω
- After 1000 charge cycles: ~0.3Ω
### 3. Voltage Indicator
Battery voltage is influenced by charge state, temperature, and aging. Measuring open-circuit voltage (OCV) and dynamic voltage helps assess SOH.
**Evaluation Method:**
- **Open-Circuit Voltage (OCV):** Measures voltage without load, indicating chemical state.
- **Dynamic Voltage Test:** Measures under load to assess polarization effects.
**Example Data:**
- Typical lithium battery OCV: 3.0V - 4.2V
- Discharge cutoff voltage: ~2.5V
- Full charge voltage: ~4.2V
### 4. Self-Discharge Indicator
Self-discharge occurs when a battery loses charge while idle. Higher self-discharge rates indicate aging and potential defects.
**Evaluation Method:**
- **Static Test:** Measures voltage drop over time without usage.
**Example Data:**
- New battery self-discharge: ~1-2% per month
- After 500 charge cycles: ~2-3% per month
- After 1000 charge cycles: ~3-5% per month
Factors Affecting SOH
1. **Charge Cycle Count:** The more charge-discharge cycles, the faster capacity depletes.
2. **Depth of Discharge (DoD):** Deep discharges accelerate aging, while shallow cycles extend lifespan.
3. **Temperature Impact:** High temperatures increase degradation, while low temperatures affect performance.
4. **Charge/Discharge Rate:** Rapid charging generates heat, causing faster aging; slower rates are gentler on batteries.
Monitoring lithium battery SOH is essential for maintaining performance, extending lifespan, and ensuring safety. By understanding capacity, resistance, voltage, and self-discharge, users can take preventive measures to enhance battery efficiency and durability.
**Optimize battery usage today by following these best practices for monitoring and maintaining lithium battery SOH.**
Battery Energy Storage Systems (BESS) play a crucial role in stabilizing power grids, integrating renewable energy, and ensuring energy efficiency. One of the most critical subsystems within a BESS is the **Thermal Management System (TMS)**, which is responsible for maintaining optimal battery operating temperatures. Proper TMS design ensures battery longevity, safety, and overall system performance.
Importance of Thermal Management in BESS
Temperature fluctuations can significantly impact the performance and lifespan of lithium-ion batteries used in BESS. Without proper thermal management, batteries are prone to thermal runaway, capacity degradation, and reduced efficiency. The TMS is designed to regulate temperature, prevent overheating, and enhance system reliability.
TMS Design Considerations in BESS
An effective TMS design must address several critical aspects:
1. **Uniform Temperature Distribution**: Prevents localized hotspots that can lead to battery degradation.
2. **Energy Efficiency**: Minimizes power consumption of the cooling or heating system.
3. **Scalability and Modularity**: Ensures flexibility for different BESS sizes and applications.
4. **Redundancy and Reliability**: Incorporates backup mechanisms to enhance system safety.
5. **Integration with BMS (Battery Management System)**: Works in conjunction with BMS for real-time monitoring and control.
Key Components of TMS in BESS
A well-designed TMS consists of multiple components, each playing a vital role in maintaining optimal battery conditions:
#### 1. **Cooling Systems**

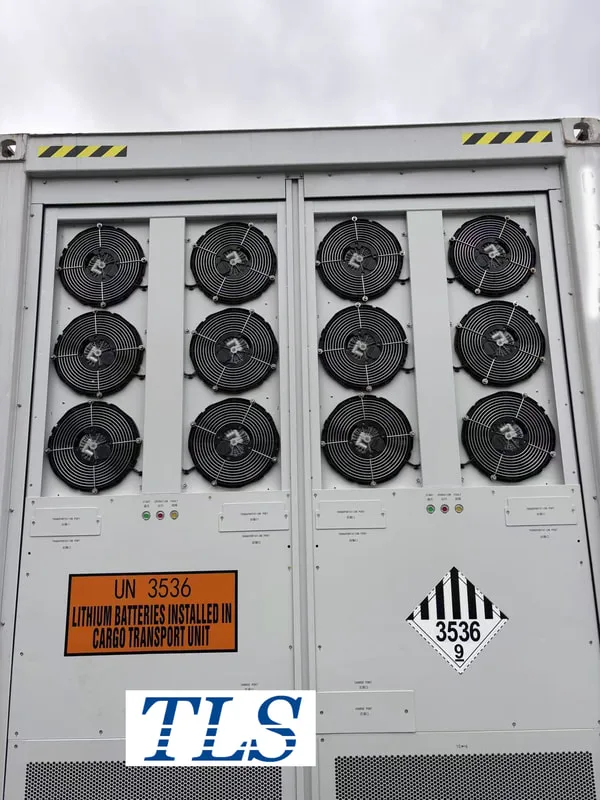

- **Air Cooling**: Uses fans to circulate air and dissipate heat. Suitable for small-to-medium BESS applications.

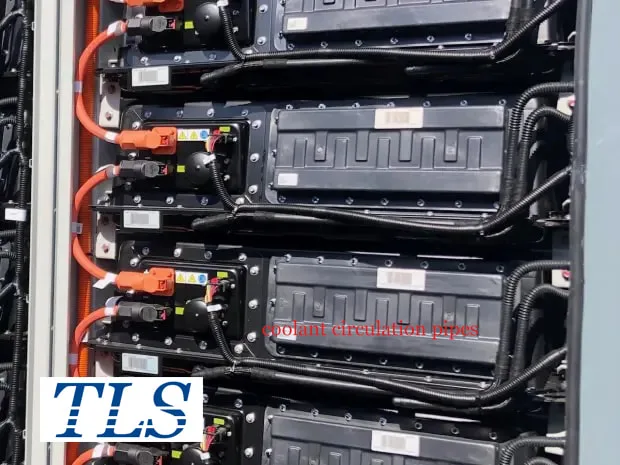

- **Liquid Cooling**: Employs coolant to transfer heat away from the battery pack, ideal for high-power applications requiring efficient heat dissipation.
- **Phase Change Material (PCM) Cooling**: Absorbs and releases heat during phase transitions, providing passive cooling for enhanced thermal stability.
#### 2. **Heating Systems**
- **Electric Heaters**: Used in low-temperature environments to prevent performance degradation.
- **Heat Pumps**: Improve energy efficiency by recycling heat within the system.
#### 3. **Thermal Insulation**
- Insulation materials help in maintaining stable temperatures and reducing external environmental impacts.
#### 4. **Temperature Sensors**
- **Thermocouples and RTDs (Resistance Temperature Detectors)**: Provide real-time temperature monitoring and feedback to the BMS.
#### 5. **Control Systems**
- Advanced algorithms optimize temperature regulation based on real-time data from sensors.
- Smart controllers adjust cooling/heating mechanisms dynamically to maintain efficiency.
Future Trends in TMS for BESS
- **AI and Machine Learning Integration**: Predictive analytics for better thermal management and failure prevention.
- **Advanced Materials**: Development of high-performance coolants and thermal interface materials.
- **Hybrid Cooling Solutions**: Combining different cooling methods to enhance efficiency and reliability.
The Thermal Management System (TMS) is a fundamental component of any Battery Energy Storage System (BESS), ensuring safety, performance, and longevity. An optimized TMS design, incorporating efficient cooling, heating, insulation, and control systems, is essential for meeting the demands of modern energy storage applications. As technology advances, innovations in TMS will continue to enhance the reliability and efficiency of BESS solutions.
For more information on **advanced BESS solutions and thermal management technologies**, contact **TLS Energy**, a global leader in energy storage innovation.
Importance of Thermal Management in BESS
Temperature fluctuations can significantly impact the performance and lifespan of lithium-ion batteries used in BESS. Without proper thermal management, batteries are prone to thermal runaway, capacity degradation, and reduced efficiency. The TMS is designed to regulate temperature, prevent overheating, and enhance system reliability.
TMS Design Considerations in BESS
An effective TMS design must address several critical aspects:
1. **Uniform Temperature Distribution**: Prevents localized hotspots that can lead to battery degradation.
2. **Energy Efficiency**: Minimizes power consumption of the cooling or heating system.
3. **Scalability and Modularity**: Ensures flexibility for different BESS sizes and applications.
4. **Redundancy and Reliability**: Incorporates backup mechanisms to enhance system safety.
5. **Integration with BMS (Battery Management System)**: Works in conjunction with BMS for real-time monitoring and control.
Key Components of TMS in BESS
A well-designed TMS consists of multiple components, each playing a vital role in maintaining optimal battery conditions:
#### 1. **Cooling Systems**
- **Air Cooling**: Uses fans to circulate air and dissipate heat. Suitable for small-to-medium BESS applications.
- **Liquid Cooling**: Employs coolant to transfer heat away from the battery pack, ideal for high-power applications requiring efficient heat dissipation.
- **Phase Change Material (PCM) Cooling**: Absorbs and releases heat during phase transitions, providing passive cooling for enhanced thermal stability.
#### 2. **Heating Systems**
- **Electric Heaters**: Used in low-temperature environments to prevent performance degradation.
- **Heat Pumps**: Improve energy efficiency by recycling heat within the system.
#### 3. **Thermal Insulation**
- Insulation materials help in maintaining stable temperatures and reducing external environmental impacts.
#### 4. **Temperature Sensors**
- **Thermocouples and RTDs (Resistance Temperature Detectors)**: Provide real-time temperature monitoring and feedback to the BMS.
#### 5. **Control Systems**
- Advanced algorithms optimize temperature regulation based on real-time data from sensors.
- Smart controllers adjust cooling/heating mechanisms dynamically to maintain efficiency.
Future Trends in TMS for BESS
- **AI and Machine Learning Integration**: Predictive analytics for better thermal management and failure prevention.
- **Advanced Materials**: Development of high-performance coolants and thermal interface materials.
- **Hybrid Cooling Solutions**: Combining different cooling methods to enhance efficiency and reliability.
The Thermal Management System (TMS) is a fundamental component of any Battery Energy Storage System (BESS), ensuring safety, performance, and longevity. An optimized TMS design, incorporating efficient cooling, heating, insulation, and control systems, is essential for meeting the demands of modern energy storage applications. As technology advances, innovations in TMS will continue to enhance the reliability and efficiency of BESS solutions.
For more information on **advanced BESS solutions and thermal management technologies**, contact **TLS Energy**, a global leader in energy storage innovation.
