Brief Summary

Buyers should evaluate a BESS container as an integrated system, not as an empty enclosure or a headline energy-capacity figure. The selection should confirm the operating duty, battery and power architecture, thermal management, fire and electrical safety, site interfaces, transport constraints, maintainability, documentation, and the exact boundary of supplier responsibility. A reliable quotation starts with project-specific inputs and identifies every assumption that still needs engineering confirmation.

Short Answer

Before selecting a battery energy storage system container, buyers should verify ten connected areas: application and duty cycle; usable energy and power; battery architecture; thermal management; fire, gas, and electrical safety; environmental design; controls and communications; transport and installation; maintenance access; and the documentation and warranty boundary.

The most important principle is simple: compare complete technical scopes under the same project conditions. Two offers with similar nominal energy may differ materially in usable energy, auxiliary consumption, operating temperature, degradation assumptions, safety evidence, service access, grid interface, and included equipment.

1.Define the Application Before Comparing Containers

A supplier cannot select the right system from capacity alone. The same nominal BESS may behave very differently in a frequency-regulation application, a solar-shifting project, a microgrid, backup service, peak shaving, or a high-cycle commercial application.

The enquiry should define:

• required power at the agreed point of measurement;
• required usable energy at beginning of life and, if applicable, at end of life;
• expected charge and discharge duration;
• daily or annual cycle profile;
• normal and maximum depth of discharge;
• target state-of-charge operating window;
• expected idle periods and standby requirements;
• grid-forming, grid-following, black-start, or backup functions, if required; and
• the project life and performance guarantee period.

These inputs affect cell selection, C-rate, thermal load, degradation, inverter sizing, auxiliary power, and warranty conditions. If they are missing, quotations will contain different assumptions and will not be directly comparable.

2. Separate Nominal Energy From Deliverable Energy

Nominal energy is only one rating. Buyers should ask where energy and efficiency are measured and what losses or operating reserves are excluded.

Clarify the following:

• DC nominal energy versus usable DC energy;
• AC deliverable energy at the point of connection;
• beginning-of-life versus end-of-life capacity;
• state-of-charge limits and reserved capacity;
• temperature and power conditions used for the rating;
• inverter, transformer, cable, cooling, control, and standby losses;
• round-trip-efficiency test boundary; and
• whether auxiliary consumption is included in guaranteed performance.

A credible offer states the measurement boundary, test conditions, and tolerances. It should not present a single efficiency or capacity number without explaining what is inside that boundary.

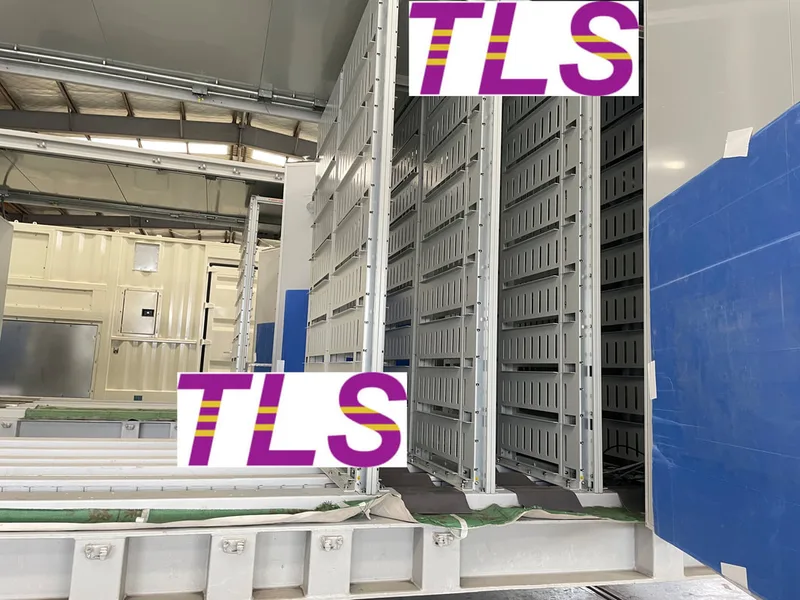

3. Review the Battery and Electrical Architecture

The container, battery racks, battery management system, DC protection, power conversion system, transformer, and plant controller must be treated as connected subsystems.

Buyers should confirm:

• cell chemistry and manufacturer;
• cell, module, rack, and string arrangement;
• nominal and operating DC voltage range;
• maximum continuous and short-duration current;
• rack-level isolation and protection philosophy;
• pre-charge, contactor, fuse, disconnect, and insulation-monitoring functions;
• grounding or earthing arrangement;
• cable segregation and routing;
• interface responsibility between the battery and PCS; and
• fault coordination across the supplied equipment.

The battery management hierarchy should define what is monitored at cell, module, rack, and system level. It should also identify alarm and trip thresholds, data retention, event records, and the response to communication loss or abnormal sensor readings.

4. Check Thermal Management Under Real Site Conditions

Temperature control affects available power, efficiency, cell consistency, degradation, and safety. A cooling system should therefore be evaluated against the project heat load and ambient conditions, not by cooling technology or rated capacity alone.

Ask the supplier to define:

• allowable operating and storage temperature ranges;
• site design temperature and humidity;
• heat-load calculation at the specified duty;
• coolant architecture, flow monitoring, leak detection, and isolation;
• redundancy or degraded-operation strategy;
• heating and low-temperature start provisions;
• condensation prevention;
• control logic during standby, charging, and discharging;
• auxiliary power demand; and
• maintenance access for chillers, pumps, filters, valves, and sensors.

For liquid-cooled systems, the proposal should also address coolant compatibility, corrosion control, filling and draining, service connections, leak containment, and the consequences of pump or chiller failure.

5. Evaluate Safety as a Layered System

No single certificate, detector, or extinguishing device makes a BESS container safe. Safety depends on prevention, early detection, electrical isolation, ventilation or gas management, propagation control, emergency response, and an installation that matches the tested configuration.

Buyers should request the applicable evidence for:

• battery and energy-storage-system product certification;
• thermal-runaway and fire-propagation testing;
• smoke, heat, flammable-gas, and off-gas detection;
• emergency stop and remote shutdown functions;
• electrical protection and isolation;
• pressure relief or explosion-control strategy, where required;
• fire suppression or water-application strategy;
• alarm transmission to the site controller or fire system;
• emergency response guidance; and
• separation-distance and installation assumptions.

UL 9540A is a test method for evaluating thermal-runaway fire propagation; it is not a generic certificate stating that every installation is safe. Buyers should verify that the tested cell, module, rack, enclosure, spacing, ventilation, and protection configuration are relevant to the proposed system. Local codes, the authority having jurisdiction, the fire service, insurers, and the project risk assessment may impose additional requirements.

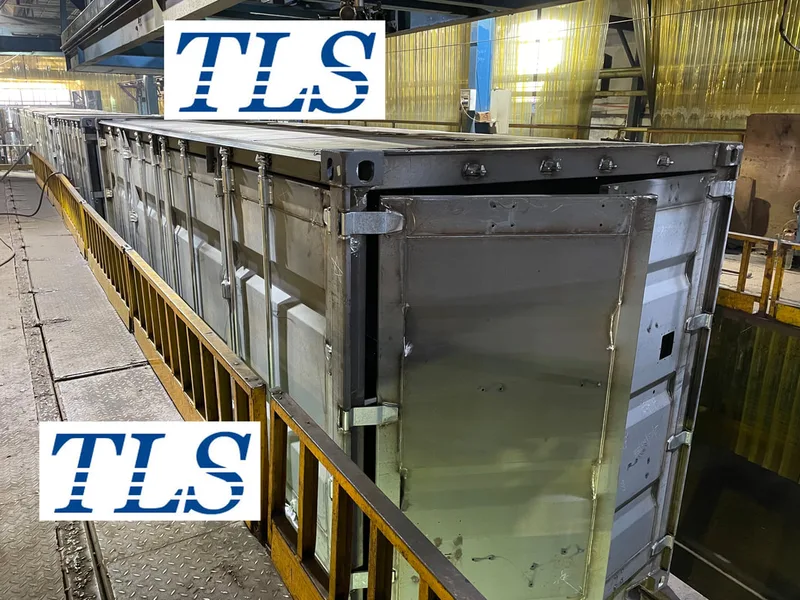

6. Confirm Environmental and Enclosure Design

The enclosure must protect the installed system throughout transport, storage, operation, and maintenance. Required performance depends on the location.

Define:

• minimum and maximum ambient temperature;
• humidity, condensation, rainfall, snow, ice, dust, sand, salt, and pollution exposure;
• • altitude and resulting cooling or electrical derating;
• wind, seismic, and snow loads;
• flood level and drainage strategy;
• corrosion category and coating system;
• enclosure ingress-protection requirements;
• acoustic limits at the project boundary; and
• exposure to corrosive or hazardous atmospheres.

An IP rating alone does not resolve condensation, cable-entry sealing, corrosion, flooding, or the effect of doors being opened during maintenance.

7. Define Controls, Data, and Cybersecurity Interfaces

Controls often become a late-stage integration risk. The enquiry should state the required communications protocol, network topology, time synchronization, signal list, control modes, data historian requirements, remote access policy, and cybersecurity responsibilities.

Ask who supplies and validates:

• battery management interfaces;
• energy management or plant control functions;
• PCS commands and interlocks;
• SCADA integration;
• fire-alarm and emergency-stop hardwired interfaces;
• revenue or performance metering;
• network equipment and fibre or copper connections;
• remote diagnostic access; and
• firmware, account, and patch-management procedures.

The cause-and-effect matrix should show how alarms, trips, ventilation, cooling, isolation, and emergency functions interact.

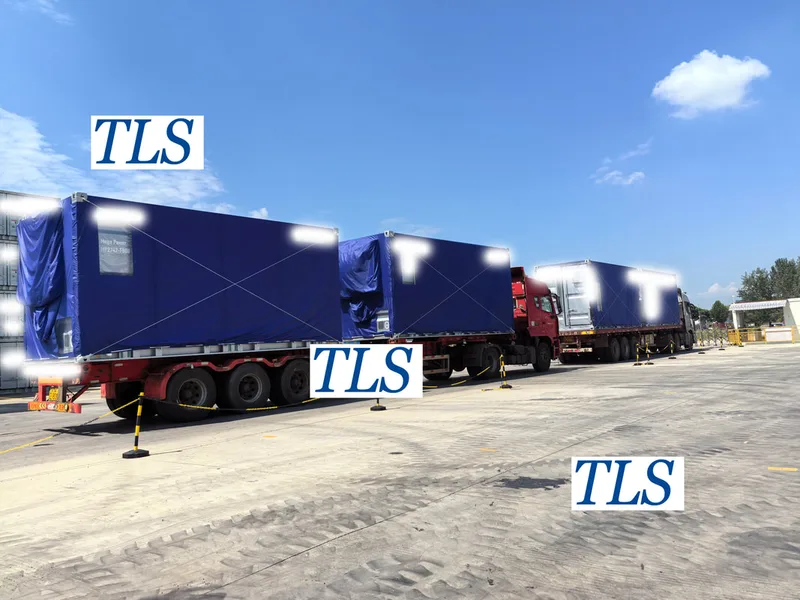

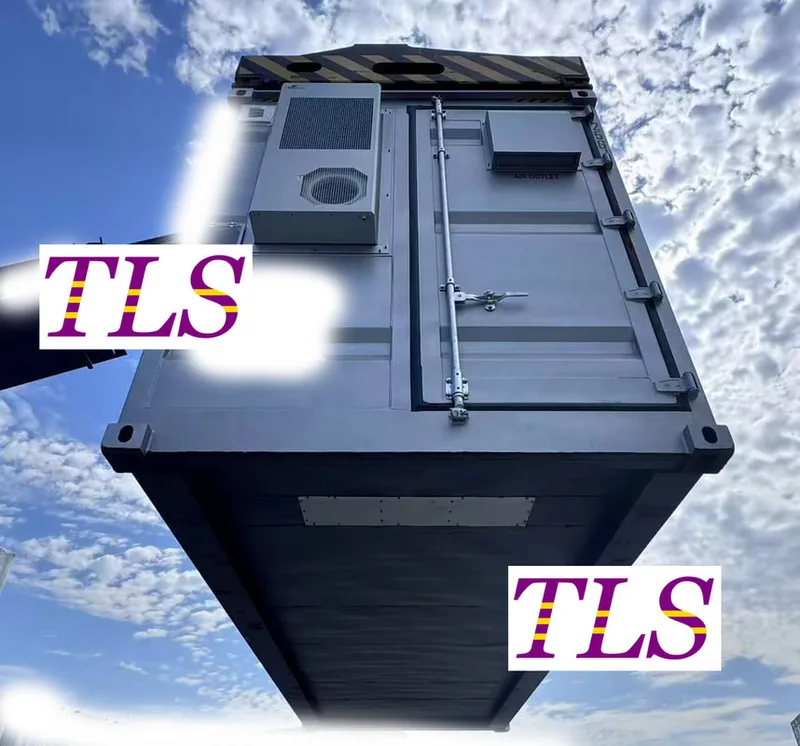

8. Verify Transport and Installation Constraints Early

A containerised form does not automatically mean the complete unit can be shipped, lifted, stacked, or handled like a standard freight container. Installed batteries and equipment may change gross mass, centre of gravity, dangerous-goods classification, lifting conditions, and transport route requirements.

Confirm the as-shipped dimensions and mass, centre of gravity, lifting points, lifting method, transport orientation, removable equipment, packaging, shock and vibration provisions, route restrictions, and site crane capacity. Also define the foundation interface, support points, anchoring, cable entry, earthing points, drainage, access clearances, and commissioning sequence.

Battery transport documentation should be reviewed against the applicable transport mode and current dangerous-goods requirements, including relevant UN testing evidence. Transport compliance and stationary installation approval are separate scopes.

9. Design for Maintenance, Not Only Delivery

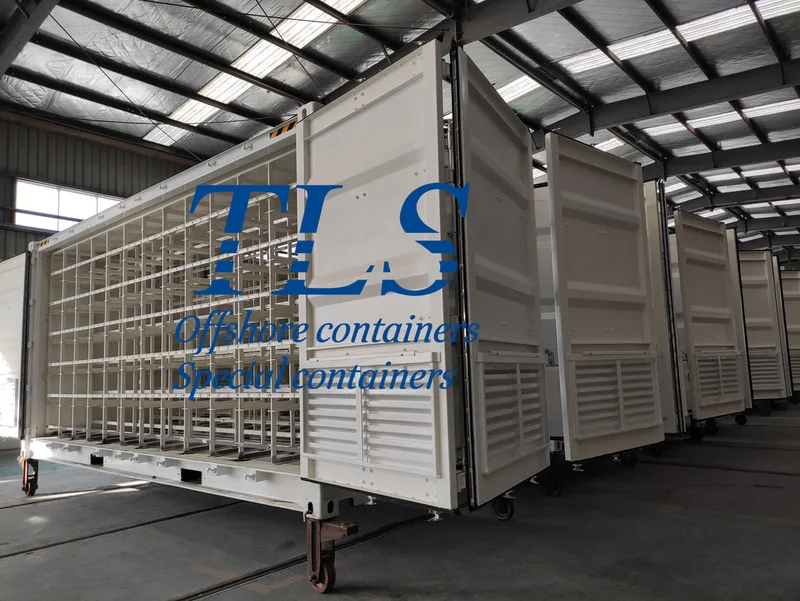

A layout that fits all equipment can still be difficult or unsafe to service. Buyers should examine access with doors open, technician working space, removal paths, isolation points, overhead clearance, lighting, internal escape, spare-parts strategy, and the ability to replace high-mass components.

Key questions include:

• Can a rack, module, pump, fan, sensor, or chiller component be replaced without disturbing unrelated equipment?
• Are serviceable items reachable without entering an energized zone?
• Is safe access available after adjacent containers are installed?
• What periodic tests and consumables are required?
• Which tools, lifting aids, software, and trained personnel are needed?
• How will coolant, damaged batteries, and other service materials be handled?

Maintenance clearances must be included in the site layout, not discovered after foundations are complete.

10. Make the Documentation and Responsibility Boundary Explicit

The final selection should include a document register and a responsibility matrix. Depending on the project, the deliverables may include general-arrangement drawings, structural calculations, single-line diagrams, schematics, cable schedules, interface drawings, heat-load calculations, hazard analysis, test reports, certificates, inspection records, operating manuals, commissioning procedures, spare-parts lists, and training materials.

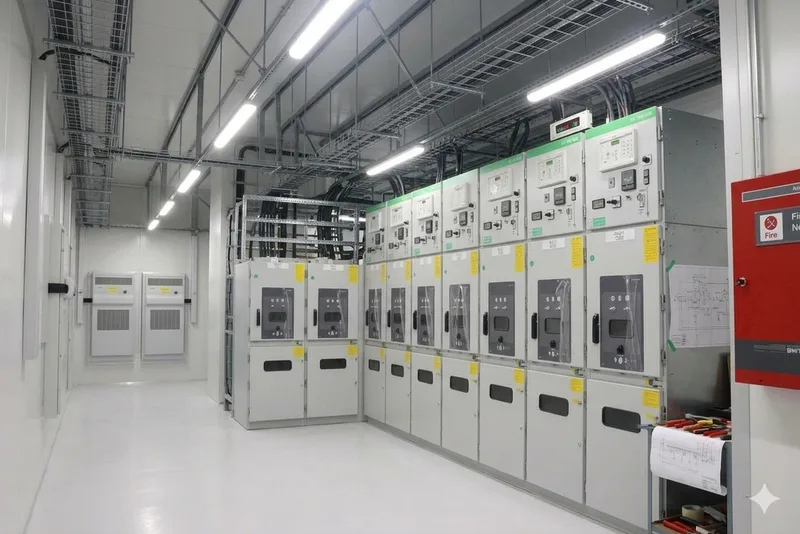

Also identify who is responsible for the PCS, transformer, switchgear, fire system, HVAC or liquid-cooling equipment, plant controller, site cabling, foundations, installation supervision, commissioning, performance testing, and approvals. Unclear scope boundaries are a common source of delay and variation.

What Should Buyers Send With an Enquiry?

For a technically meaningful proposal, provide the application, required power and usable energy, duty cycle, project life, grid voltage and frequency, point-of-connection definition, site coordinates, environmental conditions, applicable codes, fire-safety requirements, communications architecture, transport route, installation layout, interface limits, delivery location, schedule, quantity, and required documentation.

If some inputs are not yet available, label them as open items and ask suppliers to state their assumptions. TLS Energy can review a project-specific input package and help define the container, thermal, safety, transport, and interface scope. Contact TLS with the available project data for a targeted technical discussion.

FAQ

Is the highest energy density always the best choice?

No. Higher energy density may reduce footprint, but it can also affect heat rejection, access, transport mass, fire strategy, and the consequences of a fault. The right design balances energy density with safety evidence, site constraints, serviceability, performance, and lifecycle cost.

Can buyers compare BESS offers using price per kWh?

Only after normalizing the scope. The comparison should use the same usable-energy boundary, power, duty cycle, auxiliary loads, degradation basis, included equipment, warranty, installation scope, and documentation. Otherwise, price per kWh can hide major exclusions.

Does container certification cover the batteries and power equipment?

Not automatically. Structural or transport compliance for an enclosure is different from product, electrical, fire, and installation compliance for the complete BESS. Confirm the exact scope and configuration covered by each certificate or test report.

What is the most useful document to request before selection?

There is no single document that resolves every risk. A strong review normally uses the technical datasheet, scope matrix, general arrangement, single-line diagram, interface list, safety concept, applicable test evidence, and preliminary document register together.

When should the authority having jurisdiction be engaged?

As early as practical, especially where fire-code interpretation, spacing, explosion control, emergency access, or test evidence may affect the site layout. Late engagement can force redesign after equipment selection.

Further Reading

• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems

• UL Solutions: UL 9540A Test Method for Battery Energy Storage Systems

Brief Summary

Liquid cooling can improve BESS container performance by moving heat through a controlled coolant circuit close to the cells or modules. When correctly engineered, it can reduce cell-to-cell temperature variation, limit high-temperature operation, support more consistent power, and improve packaging efficiency. It also strengthens thermal monitoring and control. However, liquid cooling is not a standalone safety system: leak prevention, condensation control, coolant compatibility, fault detection, fire protection, controls, and maintenance must be designed as one integrated architecture.

Short Answer

Liquid cooling improves a BESS container by transferring heat from battery modules to a coolant loop and then rejecting that heat through a chiller or other heat-exchange system. Compared with air-only cooling, a well-designed liquid system can provide more direct heat removal and tighter temperature control, particularly in high-density or high-power applications.

The practical benefits can include more uniform cell temperatures, reduced thermal stress, more stable charge and discharge capability, lower dependence on large internal airflows, and a more compact layout. These benefits depend on correct hydraulic design, sensors, control logic, auxiliary capacity, installation conditions, and maintenance. Liquid cooling supports safety, but it does not prevent every battery failure or replace propagation testing, gas detection, electrical protection, and emergency planning.

Why Battery Temperature Matters

Lithium-ion cells generate heat during charging, discharging, and certain standby conditions. The amount of heat depends on cell chemistry, internal resistance, current, state of charge, temperature, age, and operating duty.

Battery performance is affected by both absolute temperature and temperature variation. If some cells consistently operate hotter than others, they may age at a different rate. The battery management system must then operate the string within the limits of the most constrained cells, which can reduce usable performance over time.

Temperature control therefore has four connected objectives:

• keep cells within the permitted operating range;
• reduce temperature variation between cells and modules;
• remove transient heat during high-power operation; and
• maintain stable conditions during standby and changing ambient temperatures.

Thermal management is not only a comfort system for the enclosure. It is part of the performance, availability, degradation, and safety design.

How a Liquid-Cooling System Works

A typical liquid-cooled BESS uses cold plates or other heat-transfer components close to battery modules. Coolant circulates through a closed loop, absorbs heat, and carries it to a chiller or heat exchanger. Pumps maintain flow, while valves, sensors, and controls manage distribution and temperature.

The precise arrangement varies by product. It may include:

• cold plates or cooling channels;
• supply and return manifolds;
• pumps and flow-control devices;
• coolant temperature, pressure, and flow sensors;
• a chiller, dry cooler, or heat exchanger;
• expansion volume and air-separation provisions;
• filters, fill ports, drains, and service valves;
• leak detection and containment; and
• heating capability for low-temperature operation.

The thermal controller should coordinate with the battery management system and site controller. Cooling demand should respond to cell conditions, operating power, ambient conditions, and alarms rather than using a single fixed setpoint for every operating state.

How Liquid Cooling Improves Performance

1. More Direct Heat Transfer

Liquid can transport heat through compact channels close to the heat source. This can reduce the distance between the cells and the primary heat-transfer surface compared with an enclosure that relies mainly on bulk air circulation.

The result can be faster and more controllable heat removal, provided that the cold-plate contact, flow distribution, coolant temperature, and heat exchanger are correctly sized.

2. Better Temperature Uniformity

Uniformity is often more important than the average container temperature. The design should aim to reduce differences between modules at the inlet and outlet of a cooling loop and between high- and low-load areas.

Better uniformity can help keep cells in a similar operating condition. This supports more consistent state-of-charge estimation and reduces the likelihood that a small group of hot or cold cells will constrain the entire string.

Buyers should ask for the stated temperature-uniformity target, the conditions under which it applies, and the method used to validate it. A value without ambient temperature, power, state of charge, sensor locations, and stabilization time is incomplete.

3. More Stable Power Capability

Battery management systems may limit current when cell temperatures approach operating limits. A thermal system that controls temperature during sustained or repeated operation can reduce temperature-driven derating and support more predictable power delivery.

This does not mean that liquid cooling removes all derating. Cell voltage, state of charge, age, ambient extremes, inverter limits, and equipment ratings can still reduce available power. Performance guarantees should state the complete operating envelope.

4. Support for Higher Packaging Density

Because liquid cooling does not depend entirely on large air passages between every heat source, it can support compact module and rack arrangements. This may improve the ratio of battery equipment to enclosure footprint.

Packaging density must not eliminate access, drainage, cable separation, gas movement, pressure relief, or component-removal paths. A compact layout is valuable only if it remains safe to inspect and maintain.

5. Lower Internal Airflow Requirements

A liquid loop carries much of the battery heat to a defined rejection point. This can reduce the airflow needed solely for cell cooling and may make internal temperature control less sensitive to airflow obstruction.

Air management may still be necessary for electrical components, humidity control, off-gas management, smoke detection, or ventilation. Liquid cooling should therefore be coordinated with—not assumed to replace—the enclosure air and gas strategy.

How Liquid Cooling Supports Safety

Earlier Detection of Thermal Abnormalities

A well-instrumented cooling system measures coolant temperature, pressure, and flow in addition to battery temperatures. Deviations can reveal blocked flow, pump degradation, loss of coolant, unequal branch performance, or an unexpected heat load.

The value comes from the response logic. Sensors should feed defined warnings, trips, power limits, isolation actions, and maintenance alarms. A sensor list without a cause-and-effect matrix does not establish a safe response.

Reduced Exposure to Sustained High Temperature

Keeping cells away from their upper operating limit reduces routine thermal stress. This supports stable operation and can lower the likelihood that normal high-load conditions combine with another fault to create an abnormal temperature event.

However, a cooling system is generally not designed to stop an internally initiated thermal runaway once it has developed inside a cell. Propagation behavior, gas release, ignition, fire exposure, and emergency response need separate evaluation.

Controlled Thermal Segmentation

Hydraulic branches can be arranged by rack or module group, allowing the system to monitor and sometimes isolate sections. This can support fault localization and maintenance.

Segmentation must consider the failure mode of valves and pumps, common manifolds, control power, and the effect of isolating flow while batteries remain energized.

Improved Consistency for Protective Logic

When temperatures are more uniform, abnormal readings can be easier to distinguish from normal location-driven variation. This may improve the usefulness of battery-management thresholds and trending.

Protective logic must still account for sensor accuracy, sensor failure, sampling rate, communication loss, and local hot spots that may not be captured by coolant outlet temperature.

What New Risks Does Liquid Cooling Introduce?

Liquid cooling replaces some air-cooling constraints with hydraulic and moisture-related risks. These risks are manageable, but they must be explicitly designed for.

Leakage

Potential leak points include hoses, fittings, seals, cold plates, manifolds, valves, pumps, and service connections. The design should address material compatibility, pressure limits, vibration, thermal expansion, manufacturing inspection, leak testing, detection, drainage, and containment.

Buyers should ask what happens after a small leak is detected: Does the system alarm, reduce power, stop the pump, isolate a branch, or shut down? Can leaked coolant reach energized terminals or pool below equipment?

Condensation

If coolant or surfaces fall below the enclosure dew point, condensation can form on pipes, cold plates, or nearby electrical equipment. Controls should consider ambient temperature and humidity, insulation, vapour sealing, minimum coolant temperature, and door-opening conditions.

Condensation prevention is especially important in humid climates and during low-load operation, when aggressive cooling may not be necessary.

Coolant Compatibility and Ageing

Coolant chemistry must be compatible with metals, elastomers, plastics, seals, pumps, and cold plates. Water quality, inhibitor condition, concentration, contamination, and service interval can affect corrosion and heat-transfer performance.

The maintenance plan should define sampling, replacement, approved fluid, mixing restrictions, storage, and disposal.

Pump, Chiller, and Control Failure

A thermal system can lose capacity because of pump failure, blocked flow, refrigerant fault, sensor error, controller failure, loss of auxiliary power, or extreme ambient conditions. The BESS should have defined degraded modes and safe shutdown responses.

Redundancy may be appropriate for some projects, but it should follow the availability target and risk assessment. Simply duplicating equipment does not remove common-mode failures such as loss of control power or a shared manifold blockage.

What Should Buyers Ask a Liquid-Cooling Supplier?

Request answers to the following questions:

• What battery duty, ambient temperature, humidity, altitude, and solar load were used for thermal sizing?
• What cell or module temperature range and temperature spread are expected at the specified power?
• Where are temperature, pressure, flow, and leak sensors installed?
• What warnings, derating actions, trips, and isolation actions follow each abnormal condition?
• What is the maximum and typical thermal-system auxiliary demand?
• How does the system operate during standby, cold start, and loss of grid power?
• What coolant is used, and what are its inspection and replacement requirements?
• How are filling, venting, draining, and branch isolation performed?
• What provisions prevent condensation?
• Can pumps, valves, filters, and chiller components be accessed and replaced after site installation?
• What factory tests verify pressure integrity, leak tightness, flow balance, sensors, alarms, and controls?
• Which thermal and safety tests apply to the exact proposed battery configuration?

The answers should appear in drawings, calculations, alarm matrices, manuals, and test procedures—not only in marketing descriptions.

How Should Cooling Performance Be Specified?

A useful specification links cooling performance to measurable conditions. Define the battery power profile, state-of-charge window, ambient range, humidity, altitude, solar exposure, allowable cell-temperature range, maximum temperature difference, operating modes, auxiliary-power boundary, noise limit, and required availability.

Also define the acceptance method. Factory or site testing may verify sensor operation, flow, pressure, leak alarms, control transitions, heat rejection, power consumption, and response to simulated faults. Full-load thermal validation may require an agreed test setup or validated model when project conditions cannot be reproduced directly.

TLS Energy can review a project-specific thermal input package and coordinate container layout, cooling interfaces, safety functions, and maintenance access. Contact TLS with the application duty, site conditions, and interface requirements for a targeted discussion.

FAQ

Is liquid cooling always safer than air cooling?

Not automatically. Liquid cooling can provide tighter temperature control and stronger heat removal, but it introduces leak, condensation, coolant, pump, and chiller failure modes. Safety depends on the complete design, testing, controls, installation, and maintenance.

Does liquid cooling stop thermal runaway?

It can reduce normal thermal stress and may influence heat transfer around an abnormal event, but it should not be described as a guaranteed method for stopping internally initiated thermal runaway. Propagation testing and the full fire-and-gas safety strategy remain necessary.

Does liquid cooling improve battery life?

Maintaining cells within a suitable and more uniform temperature range can reduce temperature-driven ageing differences. Actual life still depends on chemistry, state of charge, depth of discharge, C-rate, calendar time, manufacturing variation, and the operating profile. Any life claim should be tied to stated conditions and warranty terms.

Is a larger chiller always better?

No. Oversizing can increase cost, cycling, auxiliary consumption, and control difficulty without improving cell conditions. Capacity should follow the heat-load calculation, site extremes, required redundancy, operating modes, and control range.

What is the key acceptance metric?

There is no single universal metric. Buyers should verify the combination of cell-temperature limits, temperature uniformity, cooling response, auxiliary power, fault behavior, leak integrity, and performance across the specified duty and ambient range.

Further Reading

• NREL: Battery Thermal Characterization

• IEC 62933-5-1:2024 - Safety considerations for grid-integrated EES systems

• UL Solutions: UL 9540A Test Method for Battery Energy Storage Systems

• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems

Brief Summary

A BESS container should be engineered for its complete lifecycle, not only for stationary operation. Transport mass, centre of gravity, lifting and dangerous-goods requirements affect delivery; foundations, anchoring, drainage, cable routes, spacing, and commissioning affect installation; and access, isolation, replacement paths, spares, and monitoring affect long-term maintenance. These requirements should be fixed early because the enclosure layout and site design are interdependent.

Short Answer

For transport, installation, and maintenance, a BESS container design should define the as-shipped configuration, gross mass, centre of gravity, lifting and securing method, dangerous-goods documentation, foundation loads, anchoring, drainage, cable and utility interfaces, site clearances, commissioning sequence, safe service access, and equipment-removal paths.

The central design rule is that the container and the site must be engineered together. A layout optimized only for factory assembly may create transport restrictions, crane problems, inaccessible cable entries, blocked fire-service routes, or maintenance tasks that cannot be performed after adjacent units are installed.

Why Lifecycle Design Must Start Early

Containerisation can simplify factory integration and site work, but it does not make every BESS a standard freight item. Batteries, racks, cooling equipment, switchgear, controls, and fire systems change structural loads and operating constraints.

Decisions made during enclosure design affect:

• whether the complete unit can travel on the intended route;
• where lifting forces enter the structure;
• how the foundation carries static, wind, seismic, and operational loads;
• where DC, AC, auxiliary, communication, fire, coolant, and drainage interfaces are located;
• how emergency responders and technicians approach the unit; and
• whether major components can be replaced during the project life.

These are not separate downstream details. They are inputs to the general arrangement.

Transport Design Factors

1. Define the As-Shipped Configuration

The supplier should state exactly what is installed during transport and what is shipped separately. Removing batteries, chillers, fire-system cylinders, cable boxes, or roof-mounted equipment can change mass, centre of gravity, lifting conditions, site assembly, and commissioning work.

The transport drawing should show:

• external dimensions, including protrusions and removable parts;
• gross and tare mass;
• axle or support reactions where relevant;
• longitudinal, transverse, and vertical centre of gravity;
• lifting points and permitted lifting method;
• tie-down or securing points;
• transport orientation;
• temporary braces, locks, covers, or desiccants; and
• items requiring removal before lifting or energization.

Values should reflect the final supplied configuration, including coolant and other service fluids where applicable.

2. Check Route and Mode Constraints

Road, rail, sea, and multimodal transport impose different constraints. Route planning should consider bridge and road limits, tunnel and overhead clearance, turning radius, port handling, terminal equipment, axle loads, permits, seasonal restrictions, and final-mile access.

The project should also determine whether the enclosure is being handled as an ISO freight container, a special cargo unit, or another transport category. A container-like shape does not prove that a fully equipped unit meets every intermodal handling or stacking requirement.

ISO 1496-1 specifies requirements for general-purpose series 1 freight containers. A purpose-built BESS enclosure may use ISO dimensions or corner fittings without automatically having the complete compliance scope of a certified freight container. The quotation and drawings should state the actual structural and transport basis.

3. Account for Battery Transport Requirements

Lithium batteries are regulated dangerous goods during transport. The applicable requirements depend on cell and battery type, configuration, state, packaging, transport mode, jurisdiction, and whether batteries are new, damaged, defective, or intended for recycling.

The shipping plan should confirm applicable UN test evidence, test summaries, classification, marks, labels, documents, packaging or enclosure provisions, state-of-charge restrictions where applicable, and carrier acceptance. The current edition and amendments of the relevant regulations must be checked for each shipment.

UN transport testing and documents do not replace stationary product certification, fire-code review, or site approval.

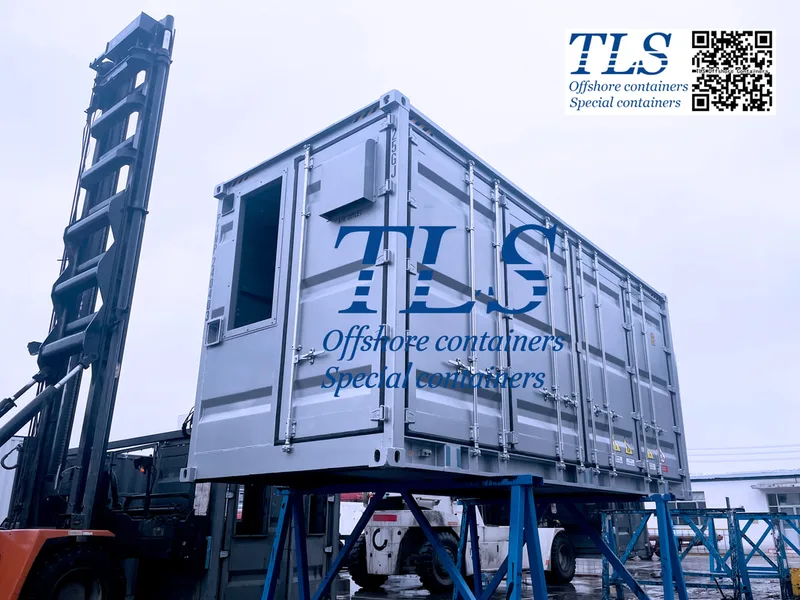

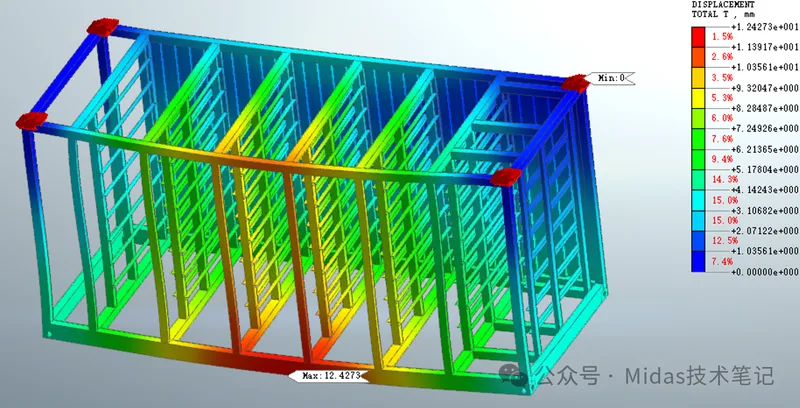

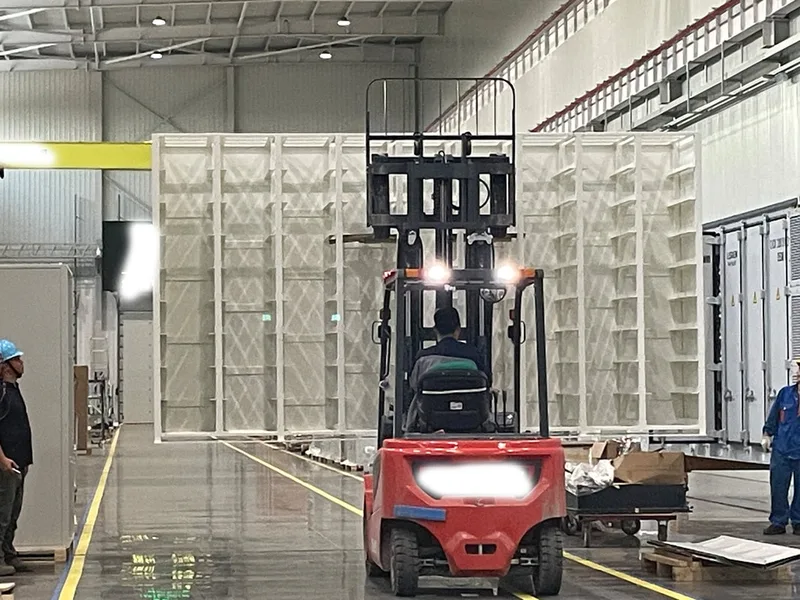

4. Engineer Lifting and Handling as Real Load Cases

Lifting points, base rails, roof frames, and local reinforcements should be designed for the defined lifting configuration and gross mass. The project should specify top lift, bottom lift, spreader beam, sling angles, crane hook arrangement, forklift handling, or other methods as applicable.

Ask for a lifting drawing that identifies lifting accessories, sling lengths, permissible angles, centre of gravity, sequence, tag-line points, exclusion zones, and any restrictions. Site crane selection should include radius, lift height, ground bearing capacity, nearby structures, wind limits, and the weight of rigging—not only the container mass.

Installation Design Factors

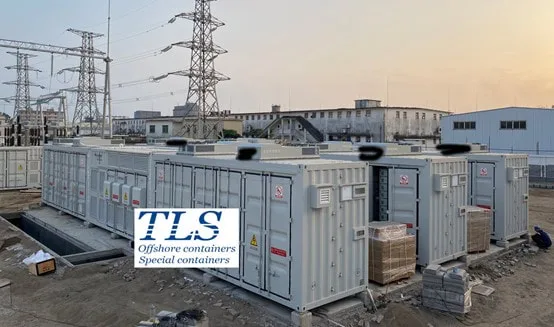

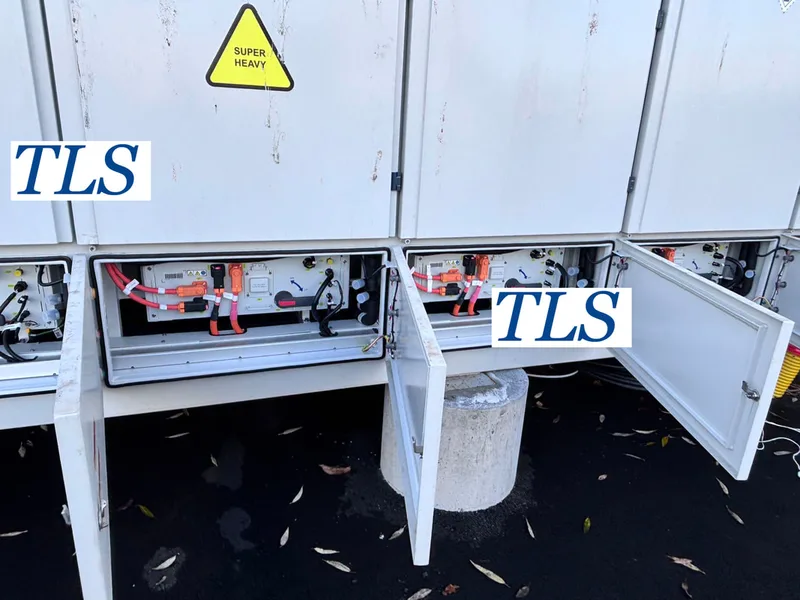

1. Foundation and Anchoring

The enclosure supplier and civil designer should agree on support locations, allowable level tolerance, bearing reactions, anchor layout, uplift and sliding forces, corrosion interfaces, grout or pad requirements, and drainage.

The foundation design may need to consider:

• operating and transport mass;
• concentrated support reactions;
• wind, seismic, snow, and ice loads;
• short-circuit or equipment forces where relevant;
• flood elevation and water flow;
• frost, settlement, soil conditions, and differential movement;
• cable trenches and buried services; and
• access for installation and future replacement.

An enclosure designed around corner support should not be placed on an unverified continuous surface, or vice versa. Support assumptions should be shown on approved interface drawings.

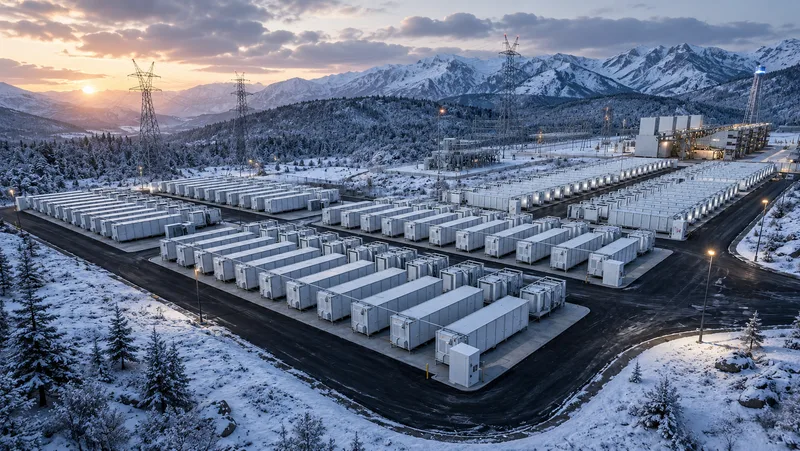

2. Site Layout and Separation

The site layout should coordinate equipment spacing, fire-code requirements, test evidence, emergency access, doors, ventilation outlets, pressure-relief zones, acoustic limits, and maintenance clearances.

Required distances cannot be copied from a generic project. They may depend on the applicable code, stored energy, system listing, large-scale fire-test configuration, nearby exposures, fire protection, walls, local authority, and emergency response plan.

The layout should preserve:

• unobstructed door swing and escape routes;
• access to emergency stops and manual disconnects;
• fire-service approach and hose or apparatus access;
• safe areas around exhaust, relief, or deflagration-control devices;
• airflow and heat-rejection clearance for cooling equipment;
• crane or lifting access for future replacement; and
• separation between energized work zones and public or traffic areas.

3. Cable and Utility Interfaces

Interface design should identify all AC, DC, auxiliary, communication, grounding, fire-alarm, coolant, drainage, and other connections. Drawings should show entry location, direction, quantity, size, bend radius, gland or connector type, termination responsibility, sealing, fire stopping, and spare capacity.

Below-floor entries need coordination with foundations and water management. Side entries need protection from impact and adequate cable support. Roof penetrations require careful weather sealing and maintenance access.

Power and communication routes should be segregated as required. Grounding or earthing connections should be accessible, corrosion-resistant, and coordinated with the site grid.

4. Water, Flooding, and Drainage

The design should prevent routine rainwater, condensate, cooling-system leakage, or firefighting water from creating uncontrolled electrical or environmental hazards. Define floor slopes, drain locations, traps or seals, containment, external discharge points, and any requirement to capture contaminated water.

Flood risk should be addressed through site elevation, plinth height, cable-entry position, door thresholds, drainage capacity, and emergency procedures. An enclosure ingress rating does not by itself establish flood resistance.

5. Installation Sequence

The project should plan the order of civil completion, enclosure delivery, crane placement, anchoring, cable installation, coolant service, auxiliary power, network connection, fire-system completion, energization, and commissioning.

Temporary conditions matter. The BESS may require humidity control, heating, ventilation, or battery monitoring before full site power is available. Long storage periods, delayed commissioning, and partially connected systems should have defined preservation requirements.

Commissioning and Handover

Commissioning should verify that the installed system matches the approved drawings and safety basis. A typical plan may include visual and mechanical inspection; torque and connection checks; insulation and grounding tests; cooling-system pressure, flow, and leak checks; sensor validation; alarm and trip testing; emergency-stop testing; communications and time synchronization; fire-system interfaces; functional charge and discharge tests; and performance testing at the agreed boundary.

The cause-and-effect matrix should be tested across subsystem boundaries. For example, a battery alarm may need to limit PCS power, start or adjust cooling, notify the site controller, activate an external alarm, or initiate isolation depending on severity.

Before handover, confirm the approved as-built drawings, settings, software versions, test records, certificates, operating manuals, maintenance plan, spares, training, warranty start conditions, and open-item list.

Maintenance Design Factors

1. Safe Access and Isolation

Technicians need defined access to inspection points, filters, pumps, valves, sensors, control panels, battery racks, and disconnects. The design should distinguish tasks that can be performed externally from tasks requiring enclosure entry.

Provide adequate working space, lighting, anti-slip surfaces, escape paths, door restraints, warning labels, and isolation points. Lockout and tagout procedures should identify stored electrical energy, auxiliary supplies, capacitors, coolant pressure, refrigerants, and any remotely initiated functions.

2. Component Replacement Paths

Every maintainable component needs a realistic removal route. The general arrangement should consider component dimensions and mass, lifting eyes, trolley or hoist access, door opening, turning space, adjacent containers, fences, cable trays, and roof equipment.

Ask whether the following can be replaced after the site is complete:

• individual battery modules;
• a complete rack or string component;
• pumps, filters, valves, and sensors;
• chiller compressors, fans, or heat exchangers;
• fire-detection and suppression components;
• switchgear, contactors, fuses, and control power supplies; and
• network or battery-management controllers.

If heavy replacement requires a mobile crane, preserve the crane setup area and lifting path in the permanent site design.

3. Preventive and Condition-Based Maintenance

The maintenance plan should combine scheduled inspection with condition data. Battery temperatures, voltage imbalance, insulation resistance, coolant pressure and flow, chiller performance, pump current, filter condition, leak alarms, enclosure humidity, fire-system status, and communication health can support trend-based intervention.

Data is useful only if responsibilities are defined. The owner should know who reviews alarms and trends, how quickly abnormal conditions are escalated, how records are retained, and how firmware or setpoint changes are controlled.

4. Spares, Tools, and Competence

Long-term availability depends on more than initial equipment quality. Identify critical spares, consumables, shelf-life limits, storage conditions, special tools, diagnostic software, access credentials, lifting aids, and required technician qualifications.

The service strategy should also address obsolete parts, compatible replacements, cybersecurity updates, battery-module matching, coolant specifications, refrigerant servicing, and disposal of damaged or end-of-life components.

What Procurement Inputs Should Be Defined?

A transport-and-installation enquiry should include delivery location and route information; transport mode; maximum dimensions and mass; crane and handling constraints; site plan; foundation concept; wind, seismic, snow, flood, and corrosion conditions; cable and utility interfaces; fire-code basis; equipment spacing; maintenance philosophy; target schedule; commissioning scope; required tests; and handover documentation.

Ask the supplier to return a consolidated interface schedule, preliminary general arrangement, as-shipped data, foundation loads, lifting concept, maintenance-clearance drawing, document register, and exclusions list. These items allow the civil, electrical, fire, controls, logistics, and operations teams to review the same design.

TLS Energy can support project-specific coordination of the container structure, equipment layout, transport configuration, site interfaces, and maintenance access. Contact TLS with the site plan, duty, transport limits, and required scope for a targeted review.

FAQ

Can a fully equipped BESS container be handled like a standard shipping container?

Not automatically. Confirm the complete unit's certification basis, gross mass, centre of gravity, lifting points, stacking or handling limits, and permitted transport method. Installed equipment can change the assumptions that apply to an empty or general-purpose freight container.

Who should design the foundation?

The civil designer normally designs the site foundation using verified reactions and interface requirements from the enclosure or system supplier. Responsibility should be contractually clear, and both parties should approve the support and anchoring assumptions.

How much maintenance clearance is required?

There is no universal dimension. Clearance should follow the actual door swing, electrical working-space rules, cooling airflow, emergency access, component-removal paths, applicable codes, and supplier procedures. It should be shown on the site layout.

Should cable entry be from the bottom or side?

Either can work. Bottom entry can simplify protected routing but requires close coordination with trenches, foundations, drainage, and sealing. Side entry may simplify access but needs mechanical protection, support, bend-radius space, and weatherproofing. The project interface should drive the decision.

What should be completed before the container arrives?

At minimum, confirm foundation acceptance, access route, crane plan, permits, laydown and exclusion zones, anchor and cable-entry positions, drainage, grounding provisions, temporary power or preservation needs, receiving inspection, and the responsibilities of all site parties.

Further Reading

• ISO 1496-1:2013 - Series 1 freight containers, specification and testing

• UNECE: UN Manual of Tests and Criteria, Revision 8 and Amendment 1

• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems

• IEC 62933-5-1:2024 - Safety considerations for grid-integrated EES systems
