Introduction
Offshore drilling operations require precision, safety, and efficiency to maximize performance while minimizing risks. One critical aspect of this process is mud logging, which provides real-time geological insights through the analysis of drilling fluids. TLS Offshore Containers specializes in high-quality mud logging containers designed to enhance data accuracy, safety, and operational efficiency in offshore environments.
Why Mud Logging is Essential
Mud logging plays a crucial role in drilling operations by offering real-time data that aids in decision-making and risk mitigation. Key benefits include:
Why Choose TLS Offshore Mud Logging Containers?
TLS Offshore Containers offers advanced mud logging solutions designed to meet the stringent demands of offshore drilling. Here’s why they stand out:
1. Industry-Leading Offshore Expertise
TLS has extensive experience in designing offshore containers that withstand harsh environmental conditions, including extreme weather and corrosive elements.
2. Compliance with International Standards
All TLS mud logging containers are built to meet DNV 2.7-1 certification, ensuring compliance with global safety and quality regulations.
3. Purpose-Built Design for Maximum Efficiency
Each container is meticulously designed for seamless workflow integration, providing ample space for equipment and comfortable working conditions for personnel.
4. Advanced Technology Integration
TLS containers come equipped with state-of-the-art mud logging instruments, data acquisition software, and real-time monitoring systems, ensuring high accuracy and efficiency.
5. Customization to Fit Project Needs
Every drilling project has unique requirements, and TLS provides fully customizable mud logging containers tailored to specific operational needs.
6. Global Support and Maintenance
With a worldwide network, TLS offers comprehensive technical support, training, and maintenance services to ensure seamless operations throughout the container’s lifecycle.
Key Benefits of TLS Mud Logging Containers
Investing in a TLS Offshore mud logging container brings numerous advantages:
Conclusion
As a trusted provider of certified offshore container solutions, TLS Offshore Containers is committed to enhancing offshore drilling operations through innovative and robust mud logging containers. By integrating cutting-edge technology, superior design, and compliance with industry standards, TLS ensures that drilling teams have the necessary tools to operate safely and efficiently.
Contact TLS Offshore Containers today to discover how our mud logging solutions can elevate your offshore drilling success!
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Offshore mud logging containers, #Mud logging solutions, #Offshore drilling containers, #DNV 2.7-1 certified containers, #Mud logging technology, #Geological data analysis, #Real-time drilling data, #Offshore container solutions, #Customizable mud logging cabins, #Oil and gas exploration equipment
Offshore drilling operations require precision, safety, and efficiency to maximize performance while minimizing risks. One critical aspect of this process is mud logging, which provides real-time geological insights through the analysis of drilling fluids. TLS Offshore Containers specializes in high-quality mud logging containers designed to enhance data accuracy, safety, and operational efficiency in offshore environments.
Why Mud Logging is Essential
Mud logging plays a crucial role in drilling operations by offering real-time data that aids in decision-making and risk mitigation. Key benefits include:
- Formation Evaluation – Identifies rock composition, porosity, and permeability.
- Hydrocarbon Detection – Determines the presence of oil and gas reserves.
- Risk Prevention – Monitors for abnormal pressure, lost circulation, and stuck pipe scenarios.
- Operational Efficiency – Provides insights that help adjust drilling parameters for improved performance and cost savings.
Why Choose TLS Offshore Mud Logging Containers?
TLS Offshore Containers offers advanced mud logging solutions designed to meet the stringent demands of offshore drilling. Here’s why they stand out:
1. Industry-Leading Offshore Expertise
TLS has extensive experience in designing offshore containers that withstand harsh environmental conditions, including extreme weather and corrosive elements.
2. Compliance with International Standards
All TLS mud logging containers are built to meet DNV 2.7-1 certification, ensuring compliance with global safety and quality regulations.
3. Purpose-Built Design for Maximum Efficiency
Each container is meticulously designed for seamless workflow integration, providing ample space for equipment and comfortable working conditions for personnel.
4. Advanced Technology Integration
TLS containers come equipped with state-of-the-art mud logging instruments, data acquisition software, and real-time monitoring systems, ensuring high accuracy and efficiency.
5. Customization to Fit Project Needs
Every drilling project has unique requirements, and TLS provides fully customizable mud logging containers tailored to specific operational needs.
6. Global Support and Maintenance
With a worldwide network, TLS offers comprehensive technical support, training, and maintenance services to ensure seamless operations throughout the container’s lifecycle.
Key Benefits of TLS Mud Logging Containers
Investing in a TLS Offshore mud logging container brings numerous advantages:
- Enhanced Safety – Protects personnel and equipment in extreme offshore environments.
- Improved Efficiency – Purpose-driven designs streamline workflows and data collection.
- Accurate Data for Better Decisions – Real-time monitoring enhances decision-making and risk prevention.
- Operational Flexibility – Customizable layouts and features adapt to diverse drilling projects.
- Cost-Effectiveness – Reduced downtime, accident prevention, and optimized drilling efficiency lead to significant cost savings.
Conclusion
As a trusted provider of certified offshore container solutions, TLS Offshore Containers is committed to enhancing offshore drilling operations through innovative and robust mud logging containers. By integrating cutting-edge technology, superior design, and compliance with industry standards, TLS ensures that drilling teams have the necessary tools to operate safely and efficiently.
Contact TLS Offshore Containers today to discover how our mud logging solutions can elevate your offshore drilling success!
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Offshore mud logging containers, #Mud logging solutions, #Offshore drilling containers, #DNV 2.7-1 certified containers, #Mud logging technology, #Geological data analysis, #Real-time drilling data, #Offshore container solutions, #Customizable mud logging cabins, #Oil and gas exploration equipment
Written by Oliver
As the adoption of large-scale energy storage power stations increases, ensuring proper equipment layout and safety distances is crucial. These facilities house essential components such as battery containers, Power Conversion Systems (PCS), and transformers. Proper spacing prevents risks such as thermal runaway, fire, and explosion while optimizing performance. This article explores the key principles and recommended safety distances for energy storage station layouts.
Key Principles for Safe Layout
1. Safety First
Safety is the top priority when designing an energy storage station. High-voltage equipment must have adequate clearance to prevent electric shock hazards. The layout should allow easy installation, maintenance, and expansion while meeting fire protection regulations.
2. Fire Protection and Safety Measures
• Fire safety spacing should comply with the High Voltage Power Distribution Device Design Standard (DL/T 5352-2018).
• If required spacing is not met, firewalls can be installed to ensure adequate fire separation.
• Perimeter walls, gates, and internal roads should facilitate emergency access, equipment transportation, and maintenance.
• Roads within the facility should have a minimum width of 3 meters, and fire truck access routes should have a minimum turning radius of 7 meters.
3. Efficient and Practical Layout
The equipment layout should consider site conditions and power line direction. It should minimize cable crossing between different voltage levels to enhance system efficiency. The PCS and transformer should be integrated into prefabricated containers for easier installation.
4. Maintenance and Accessibility
Proper spacing should be maintained to allow easy equipment access for maintenance and inspections. There should be sufficient room for personnel to operate safely.
5. Space Optimization
To reduce land usage, energy storage stations can adopt compact designs, including back-to-back battery container arrangements with firewalls. Additionally, stacking containerized battery systems can further minimize the footprint.

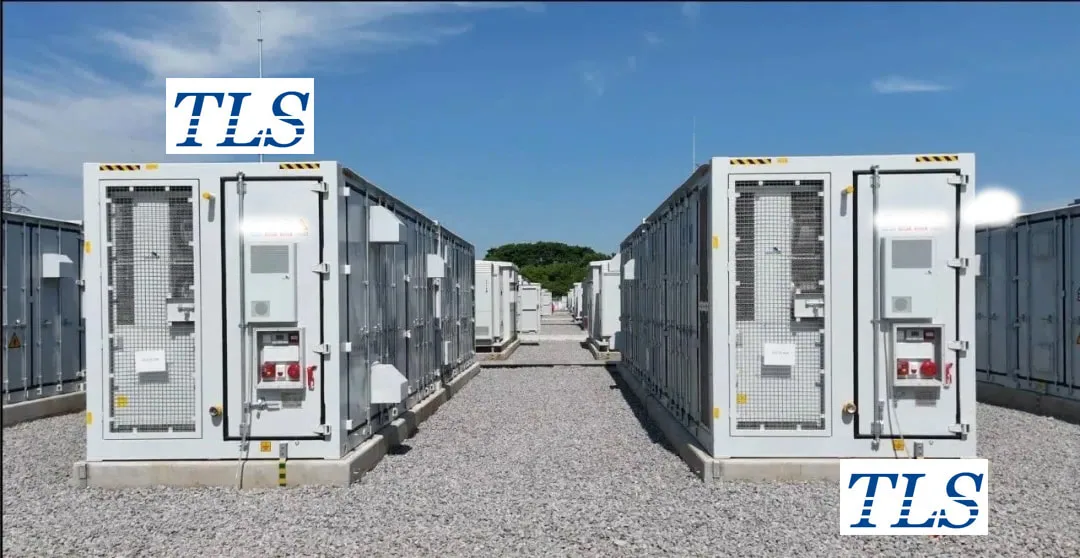

Recommended Safety Distances for Equipment Layout
Battery Containers
• When surrounded by ventilated protective walls, heat dissipation surfaces should be at least 1 meter from the wall.
• For solid protective walls, the spacing should be 4 meters for heat dissipation surfaces and 0.5 meters for non-dissipating short sides.
• The distance between battery containers should be 3 meters (long side) and 4 meters (short side). If a firewall is installed, the short side distance can be reduced to 0.5 meters.
Fire Protection for Battery Containers
• Per T/CEC 373-2020, battery containers should be arranged in a single-layer configuration.
• Without a firewall, the fire separation should be at least 3 meters (long side) and 4 meters (short side).
• Firewalls should extend 1 meter beyond the container’s outline for effective fire containment.
• Outdoor battery enclosures should be at least 3 meters from station roads.
• The maximum energy storage capacity within a single fire zone should not exceed 50MWh, with a minimum spacing of 10 meters between adjacent fire zones. If this is not feasible, a fire-resistant wall (≥4-hour rating) should be installed.
Ensuring proper safety distances in large-scale energy storage power stations is essential for risk mitigation and operational efficiency. By following standardized layout principles, maintaining adequate fire protection, and optimizing space usage, energy storage facilities can operate safely and effectively. For reliable and compliant energy storage solutions, TLS Energy provides high-quality battery container systems designed for enhanced safety and efficiency.
Would you like more details on optimizing energy storage system layouts? Contact TLS Energy today for expert guidance on secure and efficient energy storage solutions.
Key Principles for Safe Layout
1. Safety First
Safety is the top priority when designing an energy storage station. High-voltage equipment must have adequate clearance to prevent electric shock hazards. The layout should allow easy installation, maintenance, and expansion while meeting fire protection regulations.
2. Fire Protection and Safety Measures
• Fire safety spacing should comply with the High Voltage Power Distribution Device Design Standard (DL/T 5352-2018).
• If required spacing is not met, firewalls can be installed to ensure adequate fire separation.
• Perimeter walls, gates, and internal roads should facilitate emergency access, equipment transportation, and maintenance.
• Roads within the facility should have a minimum width of 3 meters, and fire truck access routes should have a minimum turning radius of 7 meters.
3. Efficient and Practical Layout
The equipment layout should consider site conditions and power line direction. It should minimize cable crossing between different voltage levels to enhance system efficiency. The PCS and transformer should be integrated into prefabricated containers for easier installation.
4. Maintenance and Accessibility
Proper spacing should be maintained to allow easy equipment access for maintenance and inspections. There should be sufficient room for personnel to operate safely.
5. Space Optimization
To reduce land usage, energy storage stations can adopt compact designs, including back-to-back battery container arrangements with firewalls. Additionally, stacking containerized battery systems can further minimize the footprint.
Recommended Safety Distances for Equipment Layout
Battery Containers
• When surrounded by ventilated protective walls, heat dissipation surfaces should be at least 1 meter from the wall.
• For solid protective walls, the spacing should be 4 meters for heat dissipation surfaces and 0.5 meters for non-dissipating short sides.
• The distance between battery containers should be 3 meters (long side) and 4 meters (short side). If a firewall is installed, the short side distance can be reduced to 0.5 meters.
Fire Protection for Battery Containers
• Per T/CEC 373-2020, battery containers should be arranged in a single-layer configuration.
• Without a firewall, the fire separation should be at least 3 meters (long side) and 4 meters (short side).
• Firewalls should extend 1 meter beyond the container’s outline for effective fire containment.
• Outdoor battery enclosures should be at least 3 meters from station roads.
• The maximum energy storage capacity within a single fire zone should not exceed 50MWh, with a minimum spacing of 10 meters between adjacent fire zones. If this is not feasible, a fire-resistant wall (≥4-hour rating) should be installed.
Ensuring proper safety distances in large-scale energy storage power stations is essential for risk mitigation and operational efficiency. By following standardized layout principles, maintaining adequate fire protection, and optimizing space usage, energy storage facilities can operate safely and effectively. For reliable and compliant energy storage solutions, TLS Energy provides high-quality battery container systems designed for enhanced safety and efficiency.
Would you like more details on optimizing energy storage system layouts? Contact TLS Energy today for expert guidance on secure and efficient energy storage solutions.
With the rapid development of renewable energy, energy storage systems (ESS) have become essential for balancing supply and demand. Among the key components of an ESS, the Energy Management System (EMS) plays a central role in monitoring, scheduling, and optimizing system performance. It ensures efficient energy storage and release, improves grid stability, and enhances economic benefits for operators.

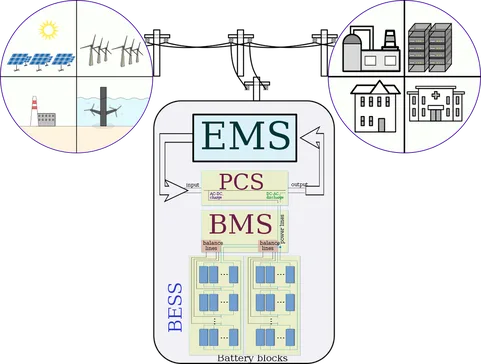

What is EMS and How Does It Work?
EMS acts as the decision-making hub of an energy storage system, controlling the charging and discharging process while coordinating with the grid. Its main functions include:
🔹 Real-time Monitoring – EMS continuously tracks battery voltage, current, temperature, power conversion efficiency, and grid load conditions.
🔹 Optimized Scheduling – It determines the best charging/discharging strategies based on energy demand, electricity prices, and grid conditions.
🔹 Fault Management – EMS detects and responds to failures by isolating faulty components and ensuring system stability.
The Role of EMS in Energy Storage Systems
An efficient EMS provides several critical benefits:
🔹 Maximizing Economic Returns – By optimizing energy use based on electricity price fluctuations, EMS improves overall energy efficiency and financial returns.
🔹 Enhancing Grid Stability – EMS supports grid balancing by storing energy during low demand and supplying power during peak hours, reducing pressure on the power network.
🔹 Integrating Renewable Energy – It helps manage fluctuations from solar and wind energy, ensuring seamless integration into the grid.
Core Technologies Behind EMS
To perform these functions, EMS utilizes advanced technologies such as:
🔹 Data Processing & AI Algorithms – EMS collects and analyzes real-time system data using artificial intelligence and machine learning to enhance efficiency.
🔹 Optimization Algorithms – Techniques like linear programming and genetic algorithms help determine the best energy dispatch strategies.
🔹 Communication Protocols – EMS interacts with components like Battery Management Systems (BMS) and Power Conversion Systems (PCS) through Modbus, CAN bus, or Ethernet connections.
EMS Applications in Energy Storage
🔹 Large-scale Energy Storage Stations – EMS manages thousands of battery modules, optimizing their performance and extending battery life.
🔹 Microgrid Systems – EMS enables decentralized energy networks by balancing renewable generation, battery storage, and local consumption.
Future Trends & Challenges of EMS
🔹 Smart & AI-driven EMS – AI-based EMS will predict and adjust energy flows dynamically.
🔹 Integration with BMS & PCS – Closer collaboration between system components will improve efficiency.
🔹 Standardization & Security – As EMS adoption grows, ensuring interoperability and cybersecurity will be key challenges.
The Energy Management System (EMS) is the backbone of modern energy storage, enabling smart, efficient, and reliable operations. As technology advances, EMS will continue to evolve, driving the energy industry toward a more sustainable and intelligent future.
What is EMS and How Does It Work?
EMS acts as the decision-making hub of an energy storage system, controlling the charging and discharging process while coordinating with the grid. Its main functions include:
🔹 Real-time Monitoring – EMS continuously tracks battery voltage, current, temperature, power conversion efficiency, and grid load conditions.
🔹 Optimized Scheduling – It determines the best charging/discharging strategies based on energy demand, electricity prices, and grid conditions.
🔹 Fault Management – EMS detects and responds to failures by isolating faulty components and ensuring system stability.
The Role of EMS in Energy Storage Systems
An efficient EMS provides several critical benefits:
🔹 Maximizing Economic Returns – By optimizing energy use based on electricity price fluctuations, EMS improves overall energy efficiency and financial returns.
🔹 Enhancing Grid Stability – EMS supports grid balancing by storing energy during low demand and supplying power during peak hours, reducing pressure on the power network.
🔹 Integrating Renewable Energy – It helps manage fluctuations from solar and wind energy, ensuring seamless integration into the grid.
Core Technologies Behind EMS
To perform these functions, EMS utilizes advanced technologies such as:
🔹 Data Processing & AI Algorithms – EMS collects and analyzes real-time system data using artificial intelligence and machine learning to enhance efficiency.
🔹 Optimization Algorithms – Techniques like linear programming and genetic algorithms help determine the best energy dispatch strategies.
🔹 Communication Protocols – EMS interacts with components like Battery Management Systems (BMS) and Power Conversion Systems (PCS) through Modbus, CAN bus, or Ethernet connections.
EMS Applications in Energy Storage
🔹 Large-scale Energy Storage Stations – EMS manages thousands of battery modules, optimizing their performance and extending battery life.
🔹 Microgrid Systems – EMS enables decentralized energy networks by balancing renewable generation, battery storage, and local consumption.
Future Trends & Challenges of EMS
🔹 Smart & AI-driven EMS – AI-based EMS will predict and adjust energy flows dynamically.
🔹 Integration with BMS & PCS – Closer collaboration between system components will improve efficiency.
🔹 Standardization & Security – As EMS adoption grows, ensuring interoperability and cybersecurity will be key challenges.
The Energy Management System (EMS) is the backbone of modern energy storage, enabling smart, efficient, and reliable operations. As technology advances, EMS will continue to evolve, driving the energy industry toward a more sustainable and intelligent future.
