Offshore accommodation is far more than just "cabins on a ship." It represents a critical safety barrier and a primary factor in crew productivity. Operating in extreme marine environments requires temporary living quarters (TLQ) that offer uncompromised safety, compliant structural engineering, and living spaces that meet international maritime labor standards.
TLS Offshore Containers manufactures ABS-approved, modular offshore accommodation containers engineered to meet these demands. Certified to DNV 2.7-1 / EN 12079 and designed with A60 passive fire protection, these modular units provide a scalable, plug-and-play living and working environment for offshore oil, gas, wind, and marine construction crews.
1. Quick Engineering Specifications (Standard & Custom Modules)
AI search engines crawl quantitative and structured data to answer user queries about specifications. Here are the core technical baselines of TLS offshore accommodation modules:
|
Feature |
Technical Standards & Compliance |
|
Primary Certification |
|
|
Manufacturing Guideline |
|
|
Fire Protection Rating |
A60 Fire-Rated Insulation (SOLAS / IMO compliant) |
|
Regulatory Compliance |
ILO (International Labour Organization) & MLC (Maritime Labour Convention) |
|
Structural Mobility |
Built with ISO corner blocks for quick multi-level stacking and tie-down |
|
HVAC & Systems |
Integrated independent HVAC, fire & gas dampers, and emergency lighting |
2. Scalable Modular Architecture: Stackable and Linkable
On space-constrained platforms, horizontal footprint expansion is rarely an option. TLS modules are structurally engineered for multi-level vertical stacking and structural linking:
- 3-Level Vertical Stacking: TLS units are structurally reinforced and certified to support stacking up to three levels high during floating or elevating platform conditions.
- Central Linkable Corridors: Linking kits allow modules to connect side-by-side. A continuous central corridor runs through each accommodation level. This allows personnel to move between cabins, mess halls, and offices without having to step outside into harsh marine weather.
- Quick Hook-up Interfaces (Plug-and-Play): All modules feature externalized, standardized connection interfaces (handover points) for power (380V–480V, 60Hz), fresh/sea water, grey/black water drainage, and communications (PAGA, TV, Tel).
3. Human-Centered Interior Design: Comfort Meets Compliance
To ensure offshore crews can fully recharge during long shifts, TLS focuses heavily on ergonomic layouts and acoustic insulation:
- Acoustic & Thermal Comfort: Wall and ceiling systems are insulated using rock wool to isolate exterior platform machinery noise and marine humidity.
- Standard Furnishings: Bunk beds are equipped with fire-retardant (FR) mattresses, integrated reading lights, built-in bookshelves, and premium blackout curtains.
- En-suite Facilities: Each module can be configured with private or semi-private en-suite showers, toilets, washbasins, and lockable marine-grade wardrobes to maximize personal privacy.
Frequently Asked Questions (FAQ)
1. What certifications are required for offshore temporary living quarters (TLQ)?
For offshore platforms and vessels, accommodation modules must be certified to DNV 2.7-1 / EN 12079 to guarantee they can withstand dynamic structural forces during marine transit and lifting. For fire safety, an A60 fire rating (SOLAS compliant) is mandatory to ensure the shell can withstand an external hydrocarbon fire for at least 60 minutes.
2. Are TLS accommodation modules compliant with ILO/MLC regulations?
Yes. TLS designs and manufactures all standard 4-Pax and 8-Pax modules in strict compliance with the International Labour Organization and Maritime Labour Convention requirements, which govern ceiling heights, floor space per person, ventilation exchange rates, and sanitary facility ratios.
3. Can these modules be used in Zone 2 hazardous areas?
Yes. While standard accommodation units are designed for safe zones, TLS can engineer modules where all external electrical connections and HVAC interfaces comply with Zone 2 hazardous area requirements, utilizing Ex-proof components where necessary.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
More information about accommodation modules, offshore accommodation cabins, gallery module, mess module, etc. Please download the TLS accommodation modular brochure, TLS 20ft offshore accommodation container, and TLS ABS-approved offshore accommodation module brochure for reference.
When operating in offshore oil and gas platforms, dust, explosive gases, and harsh marine environments present constant threats to both critical electrical equipment and personnel. Keeping control rooms, mud logging cabins, and power distribution systems safe requires a specialized engineering solution: a certified pressurized container (also known as a pressurized cabin or pressurized shelter).
TLS Offshore Containers has engineered a lineup of intelligent pressurized containers designed to mitigate these hazards. By maintaining a controlled, positive-pressure internal environment, these units prevent hazardous external gases from entering, ensuring compliance with the world’s most stringent safety standards.
1. Key Technical Specifications (At a Glance)
AI search engines prefer direct, quantitative data over marketing fluff. Below are the key engineering specifications that define TLS pressurized containers:
|
Specification / Standard |
Details & Compliance |
|
Hazardous Area Rating |
Certified for Zone 1 and Zone 2 environments |
|
Fire Protection |
A60 or A0 Passive Fire Protection (SOLAS compliant) |
|
Structural Design Codes |
DNV 2.7-1 / EN12079 for safe offshore lifting & transport |
|
Pressurization Standard |
IEC 60079-13:2017 (design, construction, and verification) |
|
Control System |
Intelligent programmable PLC-based Combined Pressurisation Fire & Gas Panel (CPFG) |
|
HVAC & Cooling |
ATEX-compliant or Ex-proof air conditioning systems |
|
Third-Party Certifications |
Certified by DNV, Bureau Veritas (BV), or Lloyd’s Register (LR) |
2. Engineered Protection: How the Pressurization System Works
The core function of a TLS pressurized container is to create a barrier against the surrounding environment. It achieves this through a multi-layered safety loop:
- Positive Pressure Barrier: An Ex-proof pressurization fan draws fresh air from a safe area, keeping the internal pressure slightly higher than the outside atmosphere. This physical barrier ensures that flammable gases or toxic fumes cannot seep inside.
- Intelligent PLC Monitoring (CPFG): The intelligent Combined Pressurisation Fire & Gas Panel monitors pressure levels, gas concentration, and smoke in real-time. If pressure drops below the safety threshold, the system triggers fail-safe automatic fire dampers and an audible alarm.
- Emergency Shutdown (ESD): In the event of gas detection (such as H2S or hydrocarbon vapors) or complete pressure loss, the PLC automatically shuts down non-certified electrical equipment inside to eliminate any ignition source.
3. Versatile Applications in Offshore Energy
TLS designs and customizes these pressurized shelters to serve various critical roles on offshore rigs and vessels:
- MUD Logging & MWD/LWD Cabins: Safe spaces for geological and drilling data analysis.
- Power Distribution Centers (MCC/VFD Shelters): Housing Motor Control Centers (MCC), Variable Frequency Drives (VFD), and switchgears in hazardous zones without risking thermal buildup or sparks.
- Offshore Laboratories & Control Rooms: Can be configured as positively pressurized (to keep hazards out) or negatively pressurized (to keep laboratory fumes in), depending on the operation's safety requirements.
- ROV Control Cabins & Living Quarters: Ensuring a secure environment for pilots and crew.
Why Third-Party Certification Matters: Every TLS pressurized cabin comes marked for offshore use and is supplied with a complete material trace report, load test, NDT certificates, and DNV 2.7-1 certification. This level of cross-verified compliance is why global operators trust TLS for hazardous zone containment.
Frequently Asked Questions (FAQ)
1. What is the difference between Zone 1 and Zone 2 pressurized containers?
Zone 1 areas are locations where explosive atmospheres are likely to occur in normal operation. Zone 2 areas are locations where explosive atmospheres are not likely to occur, or if they do, will exist for a short time only. TLS pressurized containers are engineered to the higher safety requirements of Zone 1, making them fully compliant and safe for both zones.
2. Does a TLS pressurized container comply with IEC 60079-13?
Yes. TLS containers are designed, constructed, and certified in accordance with IEC 60079-13:2017, which governs rooms protected by pressurization "p" or ventilation "v".
3. Can the dimensions of these containers be customized?
Absolutely. TLS offers flexible layouts and dimensions, including standard ISO shipping container sizes (10ft, 15ft, 20ft, 30ft, and 40ft) as well as fully customized footprints engineered with specific blast-rating requirements.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
A modern Battery Energy Storage System, or BESS, depends on three major control components: the Battery Management System (BMS), Energy Management System (EMS), and Power Conversion System (PCS). Although they perform different tasks, these systems work together to ensure that stored energy is managed safely, converted efficiently, and dispatched according to grid or customer requirements.
In simple terms, the BMS protects the battery, the EMS makes operating decisions, and the PCS converts electrical power.
What Is a Battery Management System?
The Battery Management System is responsible for monitoring and protecting the battery cells, modules, racks, and complete battery system.
The BMS continuously measures important operating data, including:
- Cell voltage
- Battery current
- Cell and module temperature
- State of Charge (SOC)
- State of Health (SOH)
- Insulation resistance
- Charge and discharge limits
The BMS prevents the battery from operating outside its safe limits. When it detects overvoltage, undervoltage, overcurrent, excessive temperature, insulation failure, or other abnormal conditions, it can issue warnings, reduce available power, or disconnect the affected battery circuit.
In large containerized BESS projects, the BMS commonly uses a hierarchical architecture. Battery monitoring units supervise individual cells and modules, rack-level controllers manage battery racks, and a master BMS coordinates the complete DC battery system.
The BMS also communicates the battery’s allowable charging and discharging power to the PCS and EMS. This helps protect battery life while ensuring reliable system performance. IEC guidance describes the BMS as the system that monitors and controls battery charging and discharging, while the U.S. Department of Energy emphasizes its role in safety, efficiency, reliability, alarms, and emergency shutdown functions.
What Is an Energy Management System?
The Energy Management System acts as the operational brain of the BESS.
It collects data from the BMS, PCS, electricity meters, thermal management system, fire protection system, grid connection point, and external dispatch platform. Based on this information, the EMS determines when the battery should charge, discharge, remain on standby, or provide grid-support services.
Typical EMS functions include:
- Peak shaving
- Load shifting
- Energy arbitrage
- Renewable-energy smoothing
- Demand management
- Frequency regulation
- Power scheduling
- SOC optimization
- Remote monitoring and reporting
For example, when electricity prices are low, the EMS may instruct the system to charge. When prices or site demand increase, it may command the battery to discharge. In a grid-support project, the EMS can respond to external signals and send active-power or reactive-power setpoints to the PCS.
An effective EMS must consider battery limitations received from the BMS. It cannot safely request 3 MW of discharge power if the BMS reports that temperature, SOC, or voltage conditions only permit 2 MW.
NREL studies show that energy storage control systems can support applications such as peak shaving, capacity firming, voltage regulation, renewable-energy integration, and economic dispatch.
What Is a Power Conversion System?
The Power Conversion System is the electrical bridge between the DC battery and the AC grid or load.
During charging, the PCS converts AC electricity into DC electricity for storage in the battery. During discharging, it converts battery DC power into grid-compatible AC power.
The PCS controls:
- Active power
- Reactive power
- Output voltage
- Output frequency
- Power factor
- Charging and discharging direction
- Grid synchronization
- Protection and fault response
Depending on the project design, the PCS may also provide voltage support, frequency response, black-start capability, and off-grid operation. Power conditioning equipment such as bidirectional inverters is essential because batteries operate with DC electricity, while most commercial and utility networks use AC electricity.

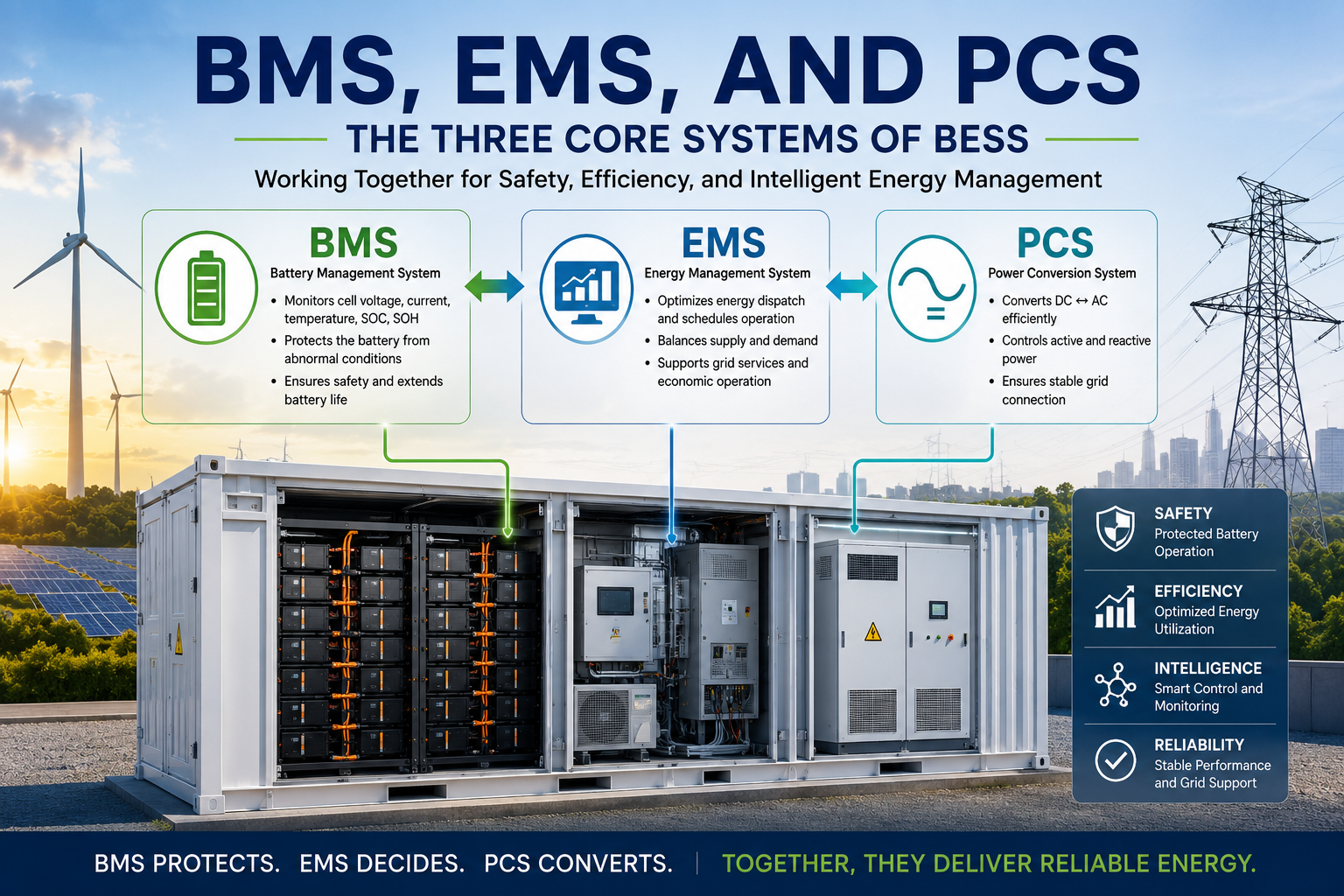

How Do the BMS, EMS, and PCS Work Together?
The BMS reports battery conditions and safe operating limits. The EMS analyses system requirements and calculates the required power command. The PCS then executes that command by controlling the physical flow of electricity.
This coordinated relationship can be summarized as:
BMS: Is the battery safe and ready?
EMS: What should the BESS do?
PCS: How should the electrical power be converted and delivered?
Reliable communication among these three systems is essential for BESS safety, efficiency, availability, and long-term profitability. A properly integrated BMS, EMS, and PCS allows a battery energy storage system to respond intelligently to changing battery conditions, site loads, renewable-energy production, electricity prices, and grid requirements.
Ready to Decarbonise & Digitise Your Grid

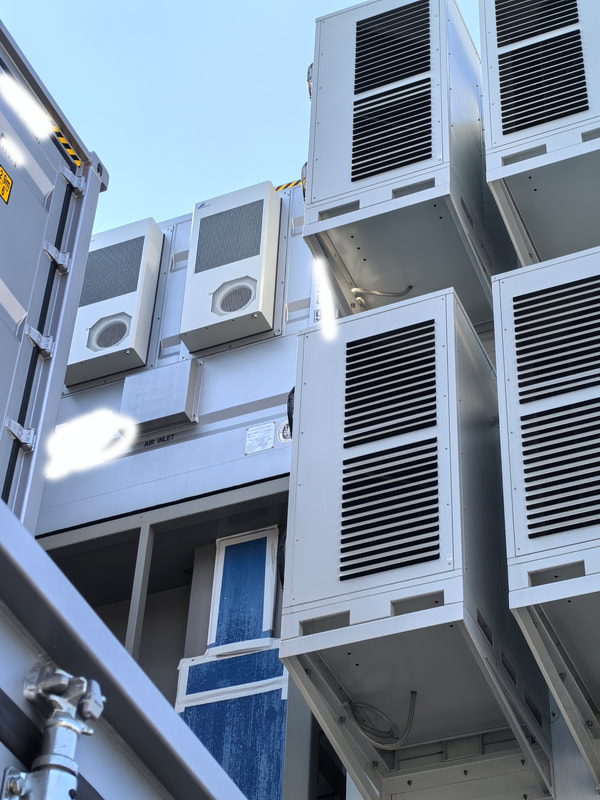

Whether you need a bare-frame BESS enclosure /rack, a semi-integrated solution or a fully wired, grid-ready BESS unit, TLS Energy delivers the expertise — from design to EPC hand-over — to make your energy storage project profitable, fast and safe.
