The design and construction of offshore containers, as well as their lifting equipment, are subject to strict regulations and standards to ensure their safety and reliability in the challenging operating environment of offshore oil rigs. The DNV 2.7-1 and EN 12079 standards set out the requirements for the design, manufacture, testing, and certification of offshore containers, including their top corner piece structure and lifting equipment.
To ensure that these containers are safe and reliable, a series of tests are conducted. These tests include:
1. All Point Lifting Test: This test involves placing a weight of 2.5R-T inside the container and measuring the deformation of the bottom frame while the container is lifted at all four corners for 5 minutes. After 5 minutes, the deformation of the bottom frame is measured.
2. Two-Point Lifting Test: In this test, the weight inside the container is reduced to 1.5R-T, and the deformation of the bottom frame is measured.
3. Fork Pocket Lifting Test (if applicable): If the container has fork pockets, this test involves adjusting the weight inside the container to 1.6R-T and measuring the deformation of the bottom frame while fixing the fork arm with angle pieces or jacking up the container and standing still for 5 minutes. For small containers, the container is directly lifted with a forklift and held still for 5 minutes, after which the data is recorded.
4. Vertical Impact Test: For this test, the weight inside the container is adjusted to the R-T state.To lift a container, appropriate shackles and wire rope slings should be installed on all four lifting points according to the design requirements specified in the drawing. The lifting point of the wire rope should be adjusted to ensure that the container is at a certain slope. When lifting the container, it should be unloaded quickly between the hook of the crane and the wire rope, and the container should be pulled by the rope to prevent it from swinging randomly. Once the container is lifted to the cement surface, adjust the tilt angle of the bottom side beam of the box by 5 degrees. The highest point of the bottom frame should not be higher than the lowest point by more than 400 mm. Make sure that the lowest point of the bottom frame is at least 5 cm away from the ground to operate the quick shackle, allowing the container to free fall. After the test is completed, inspect all structural parts of the container for any cracks or damage.
The main purpose of the tests is to examine the impact of the lifting and placing of containers at sea to ensure that the cabinet can withstand the damage caused by the impact.
To ensure that these containers are safe and reliable, a series of tests are conducted. These tests include:
1. All Point Lifting Test: This test involves placing a weight of 2.5R-T inside the container and measuring the deformation of the bottom frame while the container is lifted at all four corners for 5 minutes. After 5 minutes, the deformation of the bottom frame is measured.
2. Two-Point Lifting Test: In this test, the weight inside the container is reduced to 1.5R-T, and the deformation of the bottom frame is measured.
3. Fork Pocket Lifting Test (if applicable): If the container has fork pockets, this test involves adjusting the weight inside the container to 1.6R-T and measuring the deformation of the bottom frame while fixing the fork arm with angle pieces or jacking up the container and standing still for 5 minutes. For small containers, the container is directly lifted with a forklift and held still for 5 minutes, after which the data is recorded.
4. Vertical Impact Test: For this test, the weight inside the container is adjusted to the R-T state.To lift a container, appropriate shackles and wire rope slings should be installed on all four lifting points according to the design requirements specified in the drawing. The lifting point of the wire rope should be adjusted to ensure that the container is at a certain slope. When lifting the container, it should be unloaded quickly between the hook of the crane and the wire rope, and the container should be pulled by the rope to prevent it from swinging randomly. Once the container is lifted to the cement surface, adjust the tilt angle of the bottom side beam of the box by 5 degrees. The highest point of the bottom frame should not be higher than the lowest point by more than 400 mm. Make sure that the lowest point of the bottom frame is at least 5 cm away from the ground to operate the quick shackle, allowing the container to free fall. After the test is completed, inspect all structural parts of the container for any cracks or damage.
The main purpose of the tests is to examine the impact of the lifting and placing of containers at sea to ensure that the cabinet can withstand the damage caused by the impact.
Written by Oliver
Unlike ordinary dry cargo containers, which are primarily used for land transportation, offshore containers are specialized containers used on offshore oil rigs; Therefore, there is a well-established set of European standards for their design and manufacture, including DNV 2.7-1 and EN 12079.
Marine containers are mainly used on marine drilling platforms, where the operating environment is demanding and frequent hoisting is required, which places high requirements on container hoisting equipment.

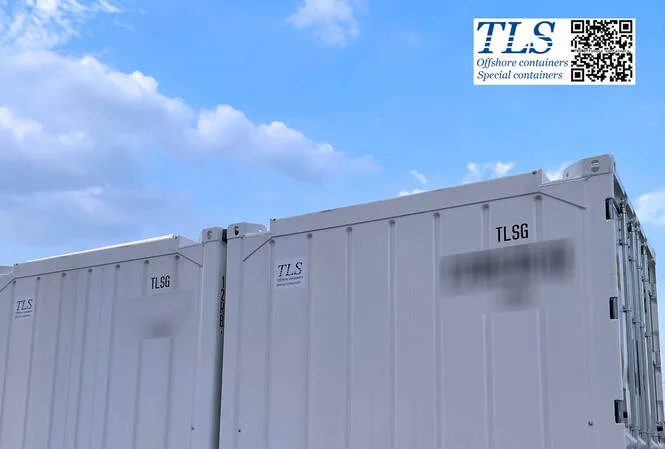

All four corners of the top of the container have a top corner piece structure. The top corner piece structure consists of a standard container top corner piece, a lifting lug, and a reinforcing piece.
The uplifted ears are located on the inner side of the top horn, adjacent to it, and are arranged and fixed to it. The four-point or two-point lifting of a container can be performed by means of a hoist, and therefore there is a higher strength requirement on the hoist itself as well as on the top of the box in which the hoist is mounted. The lifted lug material must have low-temperature shock resistance properties.
The reinforcing piece consists of a bottom plate for the lifting lug, and a coaming plate arranged on three sides of the bottom plate of the lifting lug. The setting of the coaming plate not only strengthens the lifting ear area but also protects the lifting ear.
When lifted, a special sling is used, the shackles are passed through the eye holes and locked firmly, then the sling is lifted through the main ring of the sling.
Marine containers are mainly used on marine drilling platforms, where the operating environment is demanding and frequent hoisting is required, which places high requirements on container hoisting equipment.
All four corners of the top of the container have a top corner piece structure. The top corner piece structure consists of a standard container top corner piece, a lifting lug, and a reinforcing piece.
The uplifted ears are located on the inner side of the top horn, adjacent to it, and are arranged and fixed to it. The four-point or two-point lifting of a container can be performed by means of a hoist, and therefore there is a higher strength requirement on the hoist itself as well as on the top of the box in which the hoist is mounted. The lifted lug material must have low-temperature shock resistance properties.
The reinforcing piece consists of a bottom plate for the lifting lug, and a coaming plate arranged on three sides of the bottom plate of the lifting lug. The setting of the coaming plate not only strengthens the lifting ear area but also protects the lifting ear.
When lifted, a special sling is used, the shackles are passed through the eye holes and locked firmly, then the sling is lifted through the main ring of the sling.

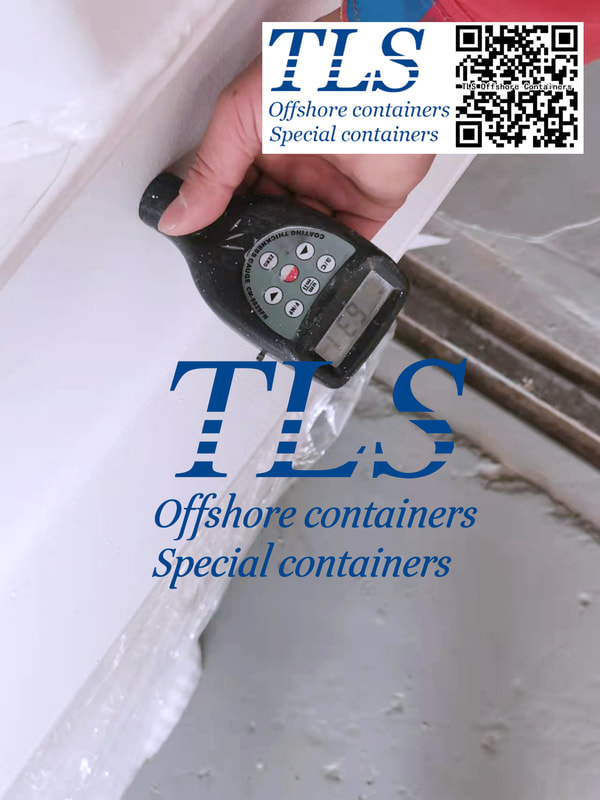

Compared with the design durability of C5-H of 15-25 years, the corresponding dry film thickness of C5-VH is 320μm, and the design life of C5-VH is over 25 years.
Specific parameters are as follows:
Specific parameters are as follows:
- Shop primer (pretreatment) 10 μm
- Epoxy zinc primer (secondary primer) 100 μm
- Epoxy intermediate coating 150 μm
- Polyurethane finish 60 μm
