Thermal management is a crucial aspect of ensuring the safe operation of energy storage systems, specifically in terms of improving the safety performance of batteries and maintaining stability during operation. There are two main angles to consider when improving the safe operation of energy storage systems:
In summary, thermal management is essential for the safe operation of energy storage systems and can be achieved by improving the safety performance of batteries, and maintaining stability during operation by implementing BMS and temperature control equipment. This ensures that energy storage systems are operating within a safe range, avoiding thermal runaway and providing efficient performance.
- Improving the safety performance of the battery itself through reducing the probability of punctures, short circuits, and other issues. This mainly depends on the technical improvement and innovations of battery manufacturers.
- Maintaining the stability of the battery during operation through thermal management, keeping the battery within a safe operating range during charging and discharging, static, and other states, thus avoiding thermal runaway. This is primarily achieved through the use of a BMS (Battery Management System) to monitor the state of lithium batteries and temperature control equipment to regulate the constant temperature of lithium batteries.
In summary, thermal management is essential for the safe operation of energy storage systems and can be achieved by improving the safety performance of batteries, and maintaining stability during operation by implementing BMS and temperature control equipment. This ensures that energy storage systems are operating within a safe range, avoiding thermal runaway and providing efficient performance.
Written by Mandy

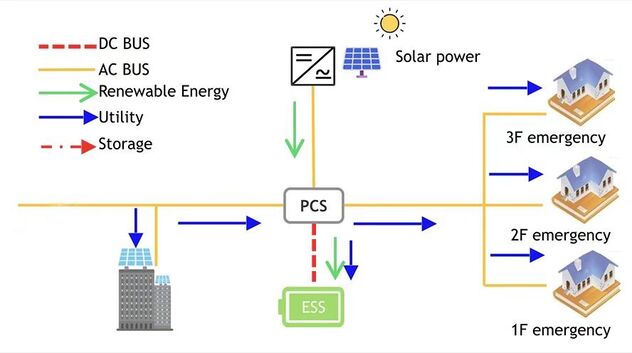

PCS (Power Conversion System) is the core part of an energy storage system, which is responsible for converting currents. It is a bidirectional reversible AC/DC converter that can convert the electric energy output from the grid or new energy generation through the energy storage inverter into DC power, which charges the battery. The energy released by the battery can then be converted back into AC power through the energy storage inverter and fed back to the grid or used to supply power to the load.
Energy storage converters have two working modes: grid-connected and off-grid. In grid-connected mode, the PCS bidirectionally converts the energy between the battery pack and the grid. It has features such as anti-islanding, automatic tracking of grid voltage phase and frequency, and low voltage ride-through. According to the requirements of grid dispatching or local control, the PCS charges the battery pack with AC power from the grid and can also discharge the energy storage battery. During peak grid load periods, the PCS inverts the DC power of the energy storage battery into AC power and feeds it back to the public grid; it also feeds or absorbs active power to the grid, providing reactive power compensation when necessary.
In off-grid mode, PCS is able to disconnect from the main grid and meet the set requirements, providing local partial loads with AC that meets the power quality requirements of the grid electrical energy. It can also smoothly switch between grid-connected and off-grid modes.
Energy storage converters have two working modes: grid-connected and off-grid. In grid-connected mode, the PCS bidirectionally converts the energy between the battery pack and the grid. It has features such as anti-islanding, automatic tracking of grid voltage phase and frequency, and low voltage ride-through. According to the requirements of grid dispatching or local control, the PCS charges the battery pack with AC power from the grid and can also discharge the energy storage battery. During peak grid load periods, the PCS inverts the DC power of the energy storage battery into AC power and feeds it back to the public grid; it also feeds or absorbs active power to the grid, providing reactive power compensation when necessary.
In off-grid mode, PCS is able to disconnect from the main grid and meet the set requirements, providing local partial loads with AC that meets the power quality requirements of the grid electrical energy. It can also smoothly switch between grid-connected and off-grid modes.
Written by Mandy

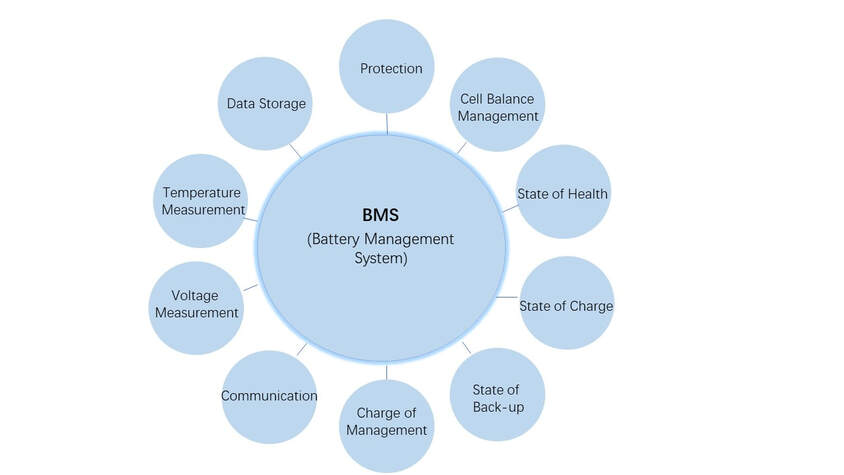

In ESS, the battery management system performs two main functions, namely battery protection and battery monitoring.
Battery Protection
Detecting various fault conditions and protecting the battery from damage during charging and discharging is the main purpose and function of the BMS. Operating a battery outside of its specifications can damage the cell and lead to battery failure, maintenance work and significant cost implications. The battery must be closely monitored during charging and discharging to avoid these negative effects.
Protection must be provided for the following conditions:
Those who design with TLS energy stoarge system solutions will benefit from
Battery Monitoring
The battery must be systematically monitored to protect it. The battery management system is responsible for monitoring each cell in the battery pack and ensuring that they are operating within safe operating limits. Various parameters such as battery voltage, states of charge (SOC), state of health (SOH) and temperature have a decisive impact on the performance, safety and lifetime of the battery. Batteries need to be protected from external failures that could put the system at risk. Protecting the battery from damage during the normal function of the system (charging and discharging processes) is one of the main functions of the BMS. In TLS energy stoarge system solutions, designers will find the right device to disconnect the battery system when a fault is detected, thus protecting its value.
Battery Protection
Detecting various fault conditions and protecting the battery from damage during charging and discharging is the main purpose and function of the BMS. Operating a battery outside of its specifications can damage the cell and lead to battery failure, maintenance work and significant cost implications. The battery must be closely monitored during charging and discharging to avoid these negative effects.
Protection must be provided for the following conditions:
- Overvoltage/undervoltage
- Inrush currents
- Reverse currents
- Short circuit
Those who design with TLS energy stoarge system solutions will benefit from
- Broader safe operating area (SOA)
- Short-circuit protection with higher peak current rates
- On and off solutions tailored to application requirements
- Cost benefits from reduced bill of materials (BOM) quantities and more efficient parallelization solutions
Battery Monitoring
The battery must be systematically monitored to protect it. The battery management system is responsible for monitoring each cell in the battery pack and ensuring that they are operating within safe operating limits. Various parameters such as battery voltage, states of charge (SOC), state of health (SOH) and temperature have a decisive impact on the performance, safety and lifetime of the battery. Batteries need to be protected from external failures that could put the system at risk. Protecting the battery from damage during the normal function of the system (charging and discharging processes) is one of the main functions of the BMS. In TLS energy stoarge system solutions, designers will find the right device to disconnect the battery system when a fault is detected, thus protecting its value.
